◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#65018) — 77 parça

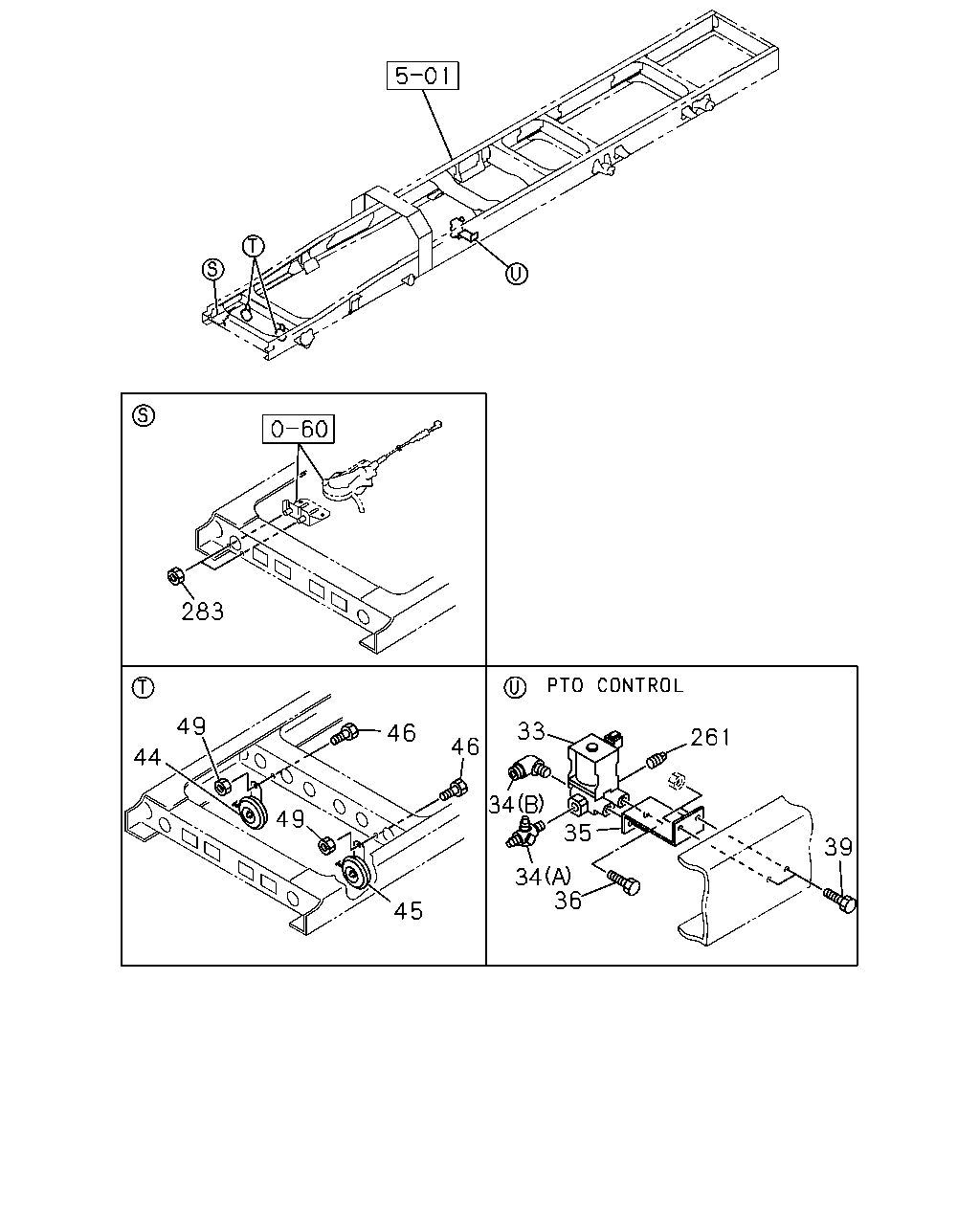

çizim 143572
283 49 33 46 261 46 44 34 35 49 39 34 36 45
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-600-4 01 1 9601-0004
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9601-9804
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9805-0004
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) 		1-09660-718-1 01 1 9601-9804
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-0004
34 CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 9805-0004
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-462-0 01 1 9601-9704
35 BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6> 		1-47477-953-0 01 1 9705-0004
36 BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE 		0-28080-820-0 02 1 9601-0004
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606
39 BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE 		0-28680-835-0 02 1 9607-0004
44 HORN; HIGH NOTE 1-83410-057-1 01 1 9601-9804
44 HORN; HIGH NOTE
EXC. AIR HORN<WB8> 		1-83410-057-1 01 1 9805-0004
44 HORN; HIGH NOTE 1-83410-057-1 01 1 0005-0210
44 HORN; HIGH NOTE 1-83410-065-1 01 1 0211-
45 HORN; LOW NOTE 1-83410-058-1 01 1 9601-9804
45 HORN; LOW NOTE
EXC. AIR HORN<WB8> 		1-83410-058-1 01 1 9805-0004
45 HORN; LOW NOTE 1-83410-058-1 01 1 0005-0210
45 HORN; LOW NOTE 1-83410-064-1 01 1 0211-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9804
46 BOLT; HORN TO BODY
EXC. AIR HORN<WB8> M8X25 FLANGE 		0-28680-825-0 02 1 9805-0004
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
49 NUT; HORN TO BODY
M8 FLANGE 		5-09440-005-0 02 1 9601-9601
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE 		5-09440-005-0 02 1 9602-9606
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE 		0-91150-108-0 02 1 9607-9804
49 NUT; HORN TO BODY
EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE 		0-91150-108-0 02 1 9805-0004
49 NUT; HORN TO BODY
M8 FLANGE 		0-91150-108-0 02 1 0005-0602
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0603-
261 PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 9601-0004
283 NUT; BRKT
M8 FLANGE 		5-09440-005-0 02 1 9601-9606
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0602
283 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-

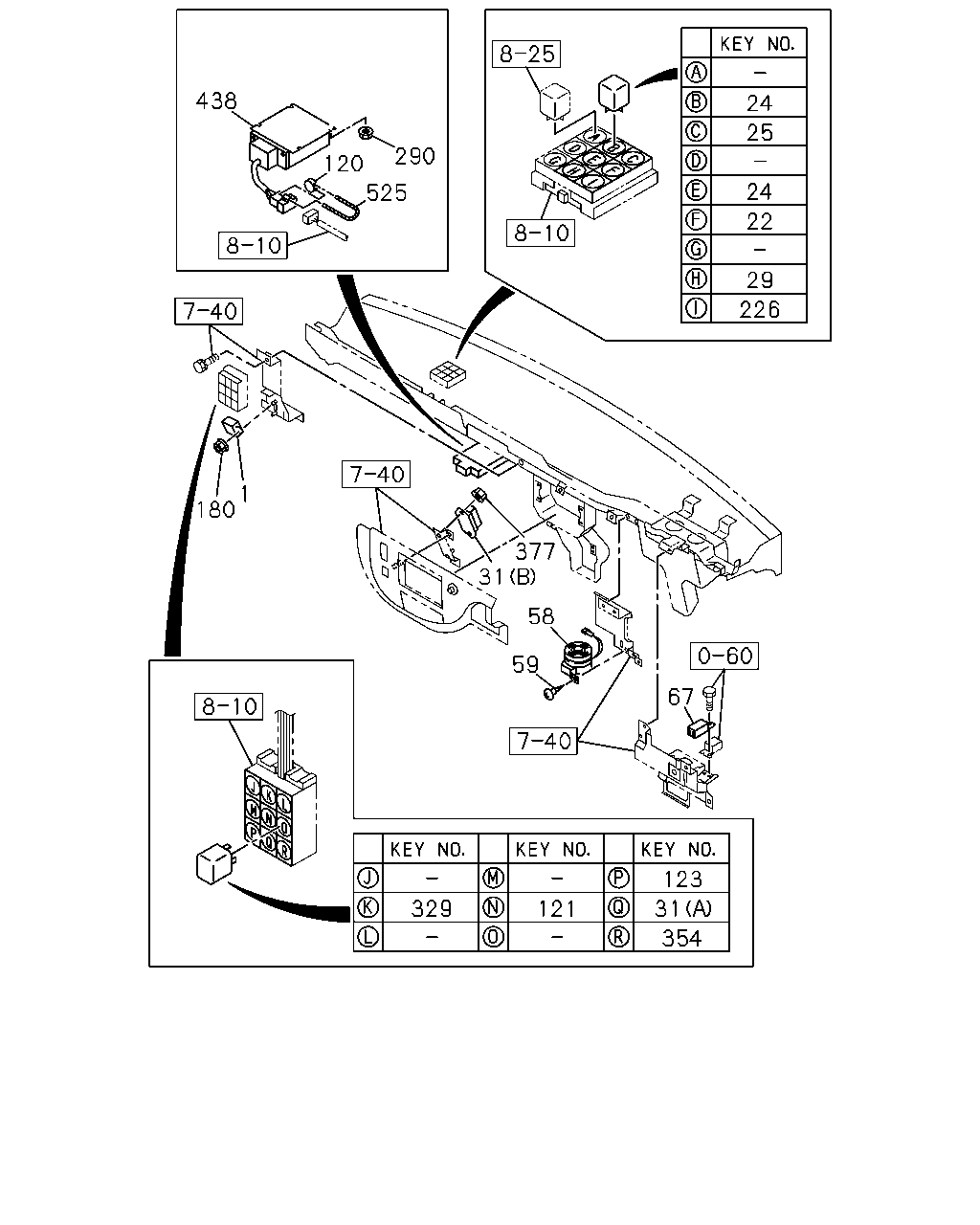

çizim 143887
438 24 25 290 120 24 525 22 29 226 1 180 377 31 58 59 67 123 329 121 31 354
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-060-1 01 1 9601-
22 RELAY; STOP LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
24 RELAY; LIGHTING
24V 12.5A MITUBA 		8-97062-815-1 02 1 9601-0111
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112-
25 RELAY; TAIL LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-9804
29 RELAY; HORN
EXC. AIR HORN<WB8> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9805-0004
29 RELAY; HORN
24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
31 RELAY; PTO CONT
PTO CONTROL<SV6> (B) 24V 		1-82550-187-1 01 1 9601-0004
31 RELAY; PTO CONT
PTO CONTROL<SV6> (A) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0004
58 BUZZER; AIR PRESSURE WARNING
NIKKO 		1-83460-056-0 01 1 9601-0004
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-0 01 1 9904-9907
58 BUZZER; AIR PRESSURE WARNING
EXC. NIKKO<Y70> METRO DENSO 		1-83460-074-1 01 1 9908-0004
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-1 01 1 0005-0612
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-865-0 01 1 0701-
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 9601-
67 BUZZER; ENG OVERRUN
ENGINE OVERRUN BUZZER<SK4> 		1-83460-051-1 01 1 9609-0004
120 SEAL
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-15739-002-0 01 1 9603-0004
121 RELAY; PARKING BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-9804
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9805-0111
121 RELAY; PARKING BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
123 RELAY; HTR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111
123 RELAY; HTR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 9601-0602
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603-
226 RELAY; EXH BRK
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
290 NUT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE 		0-91150-106-0 04 1 9601-0004
329 RELAY; BACK LAMP
AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0004
354 RELAY; BRAKE FLUID CHECK
AUSTRALIA EQUIPMENT(RR3) 24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0004
377 NUT; RELAY
PTO CONTROL<SV6> M6 FLANGE 		0-91150-106-0 02 1 9601-0004
438 UNIT; SPD CONTROL
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-82540-066-0 01 1 9601-0004
525 WIRE; CONTROL UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		9-81325-446-0 01 1 9603-0004

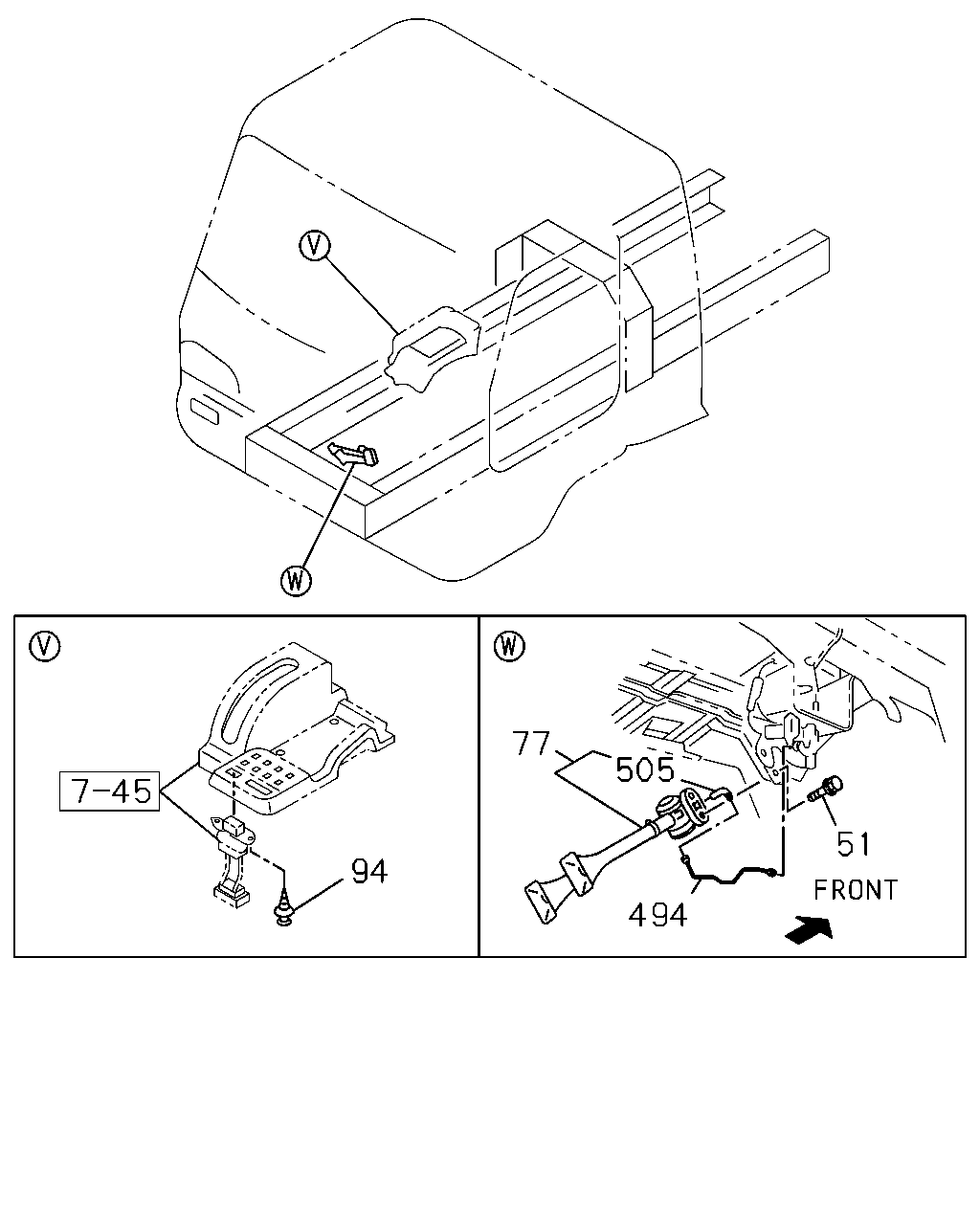

çizim 184575
77 505 51 94 494
BalonParca AdiParca NoAdetTipApplied Date
51 BOLT; HORN TO BRKT
AIR HORN<WB8> M8X20 FLANGE 		0-28680-820-0 02 1 9805-0004
77 HORN ASM
AIR HORN<WB8> 		1-83430-038-2 01 1 9805-0004
94 SCREW; CONSENT TO BLIND PNL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9601-9810
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 9811-0604
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605-
494 PIPE; AIR,UNION TO HORN
AIR HORN<WB8> 		1-49115-750-0 01 1 9805-0004
505 JOINT; AIR HORN
AIR HORN<WB8> 		1-83439-005-0 01 1 9805-0004
