◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#65017) — 70 parça

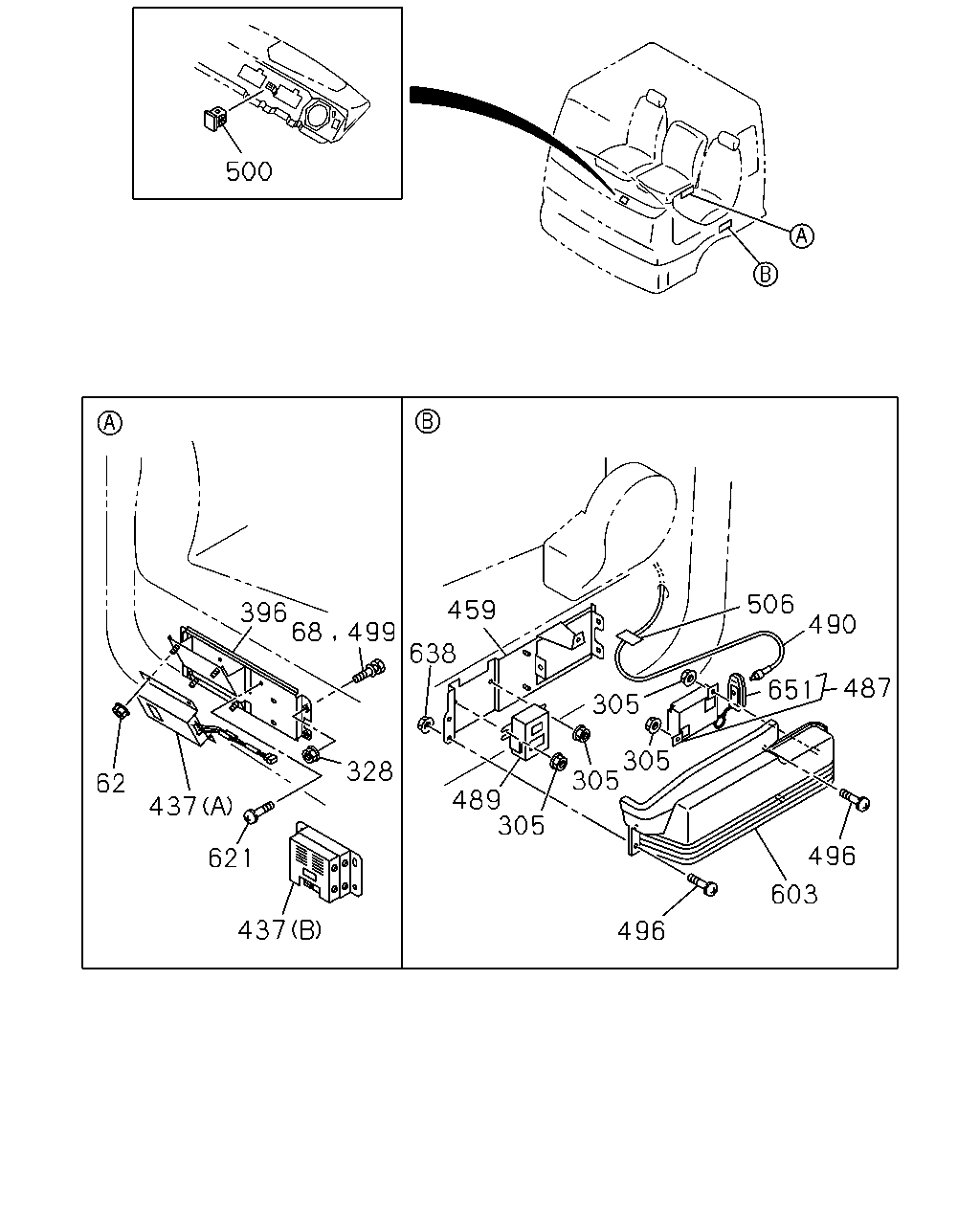

çizim 138128
500 506 459 396 490 638 487 651 305 305 305 328 62 489 305 437 496 621 603 437 496 68 499
BalonParca AdiParca NoAdetTipApplied Date
62 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 9811-9909
62 NUT; BRKT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 9910-0004
62 NUT; BRKT
ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 9910-0004
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0004
305 NUT; CONT UNIT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 04 1 9910-0004
328 NUT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905-9907
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6 FLANGE 		0-91150-106-0 04 1 9908-9911
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-483-0 01 1 9905-9907
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 9908-0004
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-005-0 01 1 9807-0004
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-037-0 01 1 9905-9907
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 		1-84122-037-1 01 1 9908-0004
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 9811-9909
459 BRACKET; CONTROL BOX
CUSTOM CAB(SR5) 		1-75558-488-5 01 1 9910-0004
459 BRACKET; CONTROL BOX
ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) 		1-75558-488-5 01 1 9910-0004
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-006-1 01 1 9910-0004
489 CONTROL UNIT; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82540-049-1 01 1 9910-0004
490 ANTENNA; AUTO REMOTE DOOR LOCK
CUSTOM CAB(SR5) 		1-86855-023-1 01 1 9910-0004
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9811-9909
496 SCREW; COVER
CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9910-0004
496 SCREW; COVER
ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 9910-0004
499 BOLT; UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-
500 SENSOR; AUTO LIGHT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-82486-002-0 01 1 9910-0004
506 TAPE; ANTENNA
CUSTOM CAB(SR5) 100X30 		1-74998-068-0 06 1 9910-0004
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> 		1-72538-160-2 01 1 9811-9909
603 COVER; CONT UNIT,SEAT STAND
CUSTOM CAB(SR5) 		1-72538-160-2 01 1 9910-0004
603 COVER; CONT UNIT,SEAT STAND
ELEC OUTLET 12V<TAW> EXC. CUSTOM CAB(SR5) 		1-72538-160-2 01 1 9910-0004
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912-0004
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9811-0004
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
CUSTOM CAB(SR5) 		1-86855-017-0 01 1 9910-0004

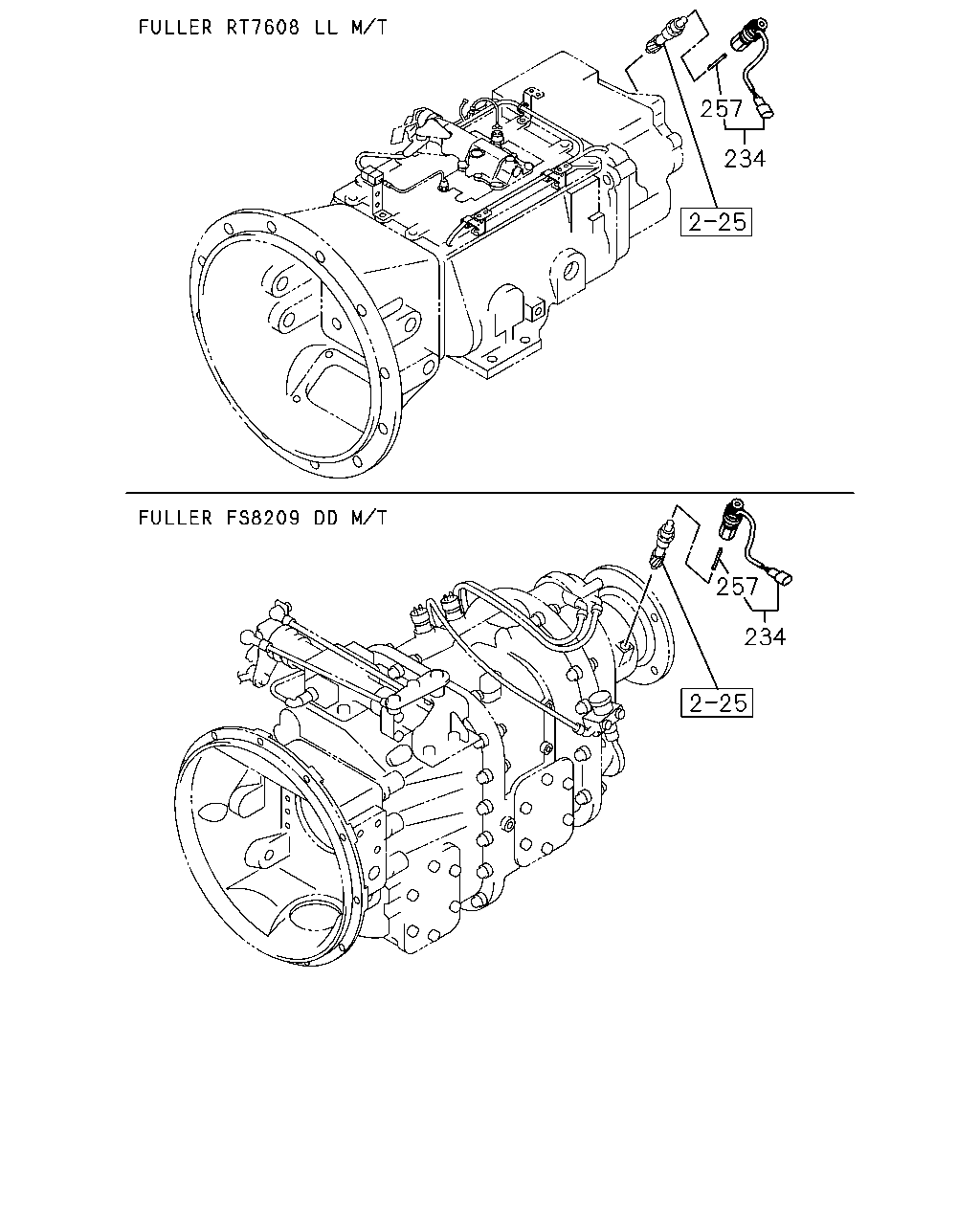

çizim 138428
257 234 257 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-0 01 1 9601-9608
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 9609-0004
234 SENSOR; VEHICLE SPD
MAL6S M/T(Y1V) 		1-83127-254-2 01 1 9601-9804
234 SENSOR; VEHICLE SPD
MLD6Q M/T(X5J),MAL6S M/T(Y1V) 		1-80240-001-1 01 1 9805-0202
234 SENSOR; VEHICLE SPD
MLD6Q M/T(X5J),MAL6S M/T(Y1V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9601-9608
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9609-0004
257 KEY; SPEED SENSOR
MAL6S M/T(Y1V) 		1-83129-125-0 01 1 9601-9804

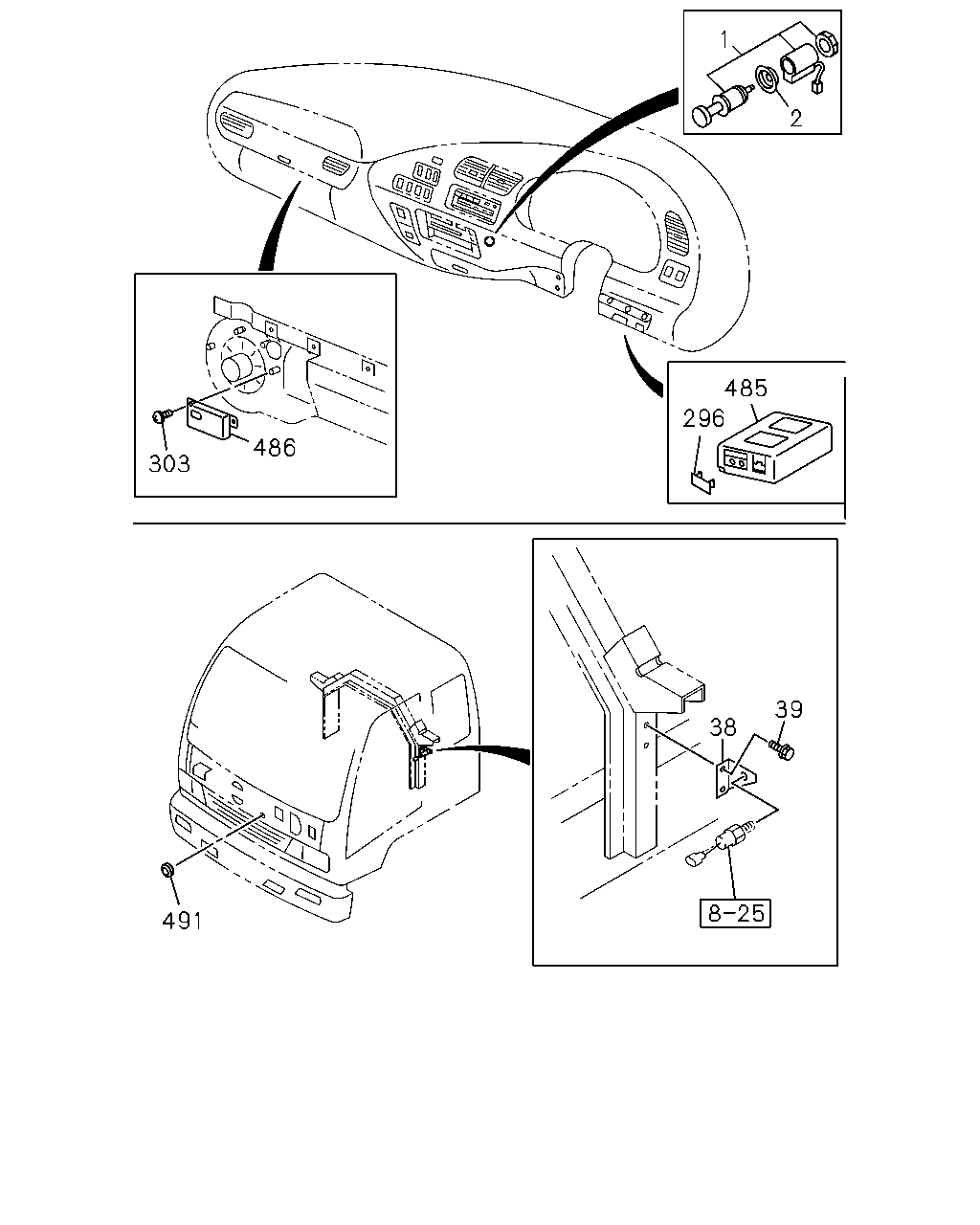

çizim 138523
1 2 485 296 486 303 39 38 491
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9601-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9601-
38 BRACKET; SW,STARTER SUB
AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9601-9608
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82699-351-0 01 1 9609-0004
38 BRACKET; SW,STARTER SUB
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-82698-232-0 01 1 0005-0005
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606
39 BOLT; BRKT,STARTER SUB SW
AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9608
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE 		0-28680-825-0 02 1 9609-9801
39 BOLT; BRKT,STARTER SUB SW
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE 		0-28680-820-0 02 1 9802-0004
296 COVER; CONT UNIT 1-82549-010-0 01 1 9805-9909
296 COVER; CONT UNIT
EXC. CUSTOM CAB(SR5) 		1-82549-010-0 01 1 9910-0004
296 COVER; CONT UNIT
CUSTOM CAB(SR5) 		1-80199-003-0 01 1 9910-0004
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 9911-0004
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9601-9909
485 CONTROL UNIT; SPEED SENSOR
EXC. CUSTOM CAB(SR5) 		1-82540-065-0 01 1 9910-0004
485 CONTROL UNIT; SPEED SENSOR
EXC. CUSTOM CAB(SR5) 		1-82540-065-0 01 1 0005-0005
485 CONTROL UNIT; SPEED SENSOR
CUSTOM CAB(SR5) 		1-80190-038-1 01 1 9910-0004
485 CONTROL UNIT; SPEED SENSOR
MLD6Q M/T(X5J),MAL6S M/T(Y1V) 		1-80190-038-1 01 1 0005-0402
485 CONTROL UNIT; SPEED SENSOR
MLD6Q M/T(X5J),MAL6S M/T(Y1V) 		1-80190-149-0 01 1 0403-0410
485 CONTROL UNIT; SPEED SENSOR
MLD6Q M/T(X5J),MAL6S M/T(Y1V) 		1-80190-158-0 01 1 0411-
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 9805-0004
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9601-
çizim 184574
234 257 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-0 01 1 9601-9608
234 SENSOR; VEHICLE SPD
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 25 PULSE 		1-83127-414-1 01 1 9609-0004
234 SENSOR; VEHICLE SPD
MAL6S M/T(Y1V) 		1-83127-254-2 01 1 9601-9804
234 SENSOR; VEHICLE SPD
MLD6Q M/T(X5J),MAL6S M/T(Y1V) 		1-80240-001-1 01 1 9805-0202
234 SENSOR; VEHICLE SPD
MLD6Q M/T(X5J),MAL6S M/T(Y1V) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-
257 KEY; SPEED SENSOR
FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9601-9608
257 KEY; SPEED SENSOR
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-83129-073-0 01 1 9609-0004
257 KEY; SPEED SENSOR
MAL6S M/T(Y1V) 		1-83129-125-0 01 1 9601-9804
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
