8-15 — FIXING PARTS; WIRING HARNESS (#65013) — 551 parça

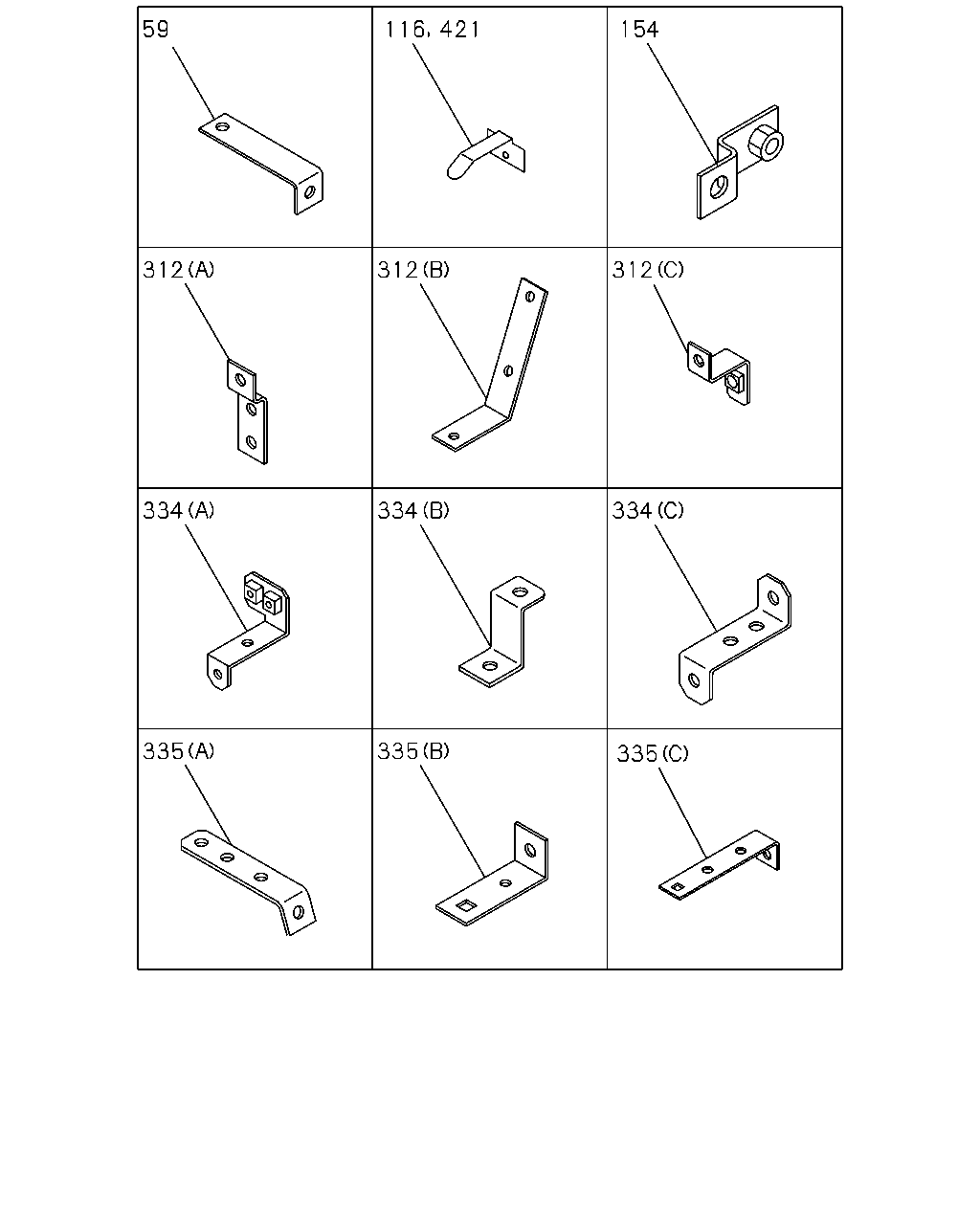

çizim 136707
59 116 154 312 312 312 334 334 334 335 335 335 421
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9601-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 02 1 9601-9909
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9910-0004
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9910-0004
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0005-0009
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 9601-9909
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-2 02 1 9910-0004
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 02 1 0005-0009
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0010-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1410-
154 BRACKET; STARTER EARTH CABLE
6HH1 STD ENG(65L) 		1-47465-518-0 01 1 9805-
312 BRACKET; CLIP HARNESS
(B) 		1-82699-109-0 01 1 9601-9804
312 BRACKET; CLIP HARNESS
PARKING BRAKE DRUM 10"(B1T) (A) 		1-82699-588-0 01 1 9805-0302
312 BRACKET; CLIP HARNESS
PARKING BRAKE DRUM 10"(B1T) (C) 		1-47478-981-0 01 1 0303-
312 BRACKET; CLIP HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-82699-109-0 01 1 9805-
334 BRACKET
FULLER RT7608LL M/T(X8P) (C) 		1-47476-812-1 01 1 9609-0004
334 BRACKET
MAL6S M/T(Y1V) (A) 		1-82699-639-1 03 1 9601-9605
334 BRACKET
MAL6S M/T(Y1V) (B) 		1-82699-425-0 01 1 9606-9804
334 BRACKET
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (B) 		1-82699-425-0 01 1 9805-
335 BRACKET; CONNECTOR
(A) 		1-82699-517-0 01 1 9601-9910
335 BRACKET; CONNECTOR
(A) 		1-82698-167-0 01 1 9911-
335 BRACKET; CONNECTOR
(B) L=60 		1-82699-875-0 01 1 9601-0004
335 BRACKET; CONNECTOR
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (B) L=60 		1-82699-875-0 01 1 0005-0206
335 BRACKET; CONNECTOR
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (C) L=120 		1-82699-963-0 01 1 0207-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9601-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-

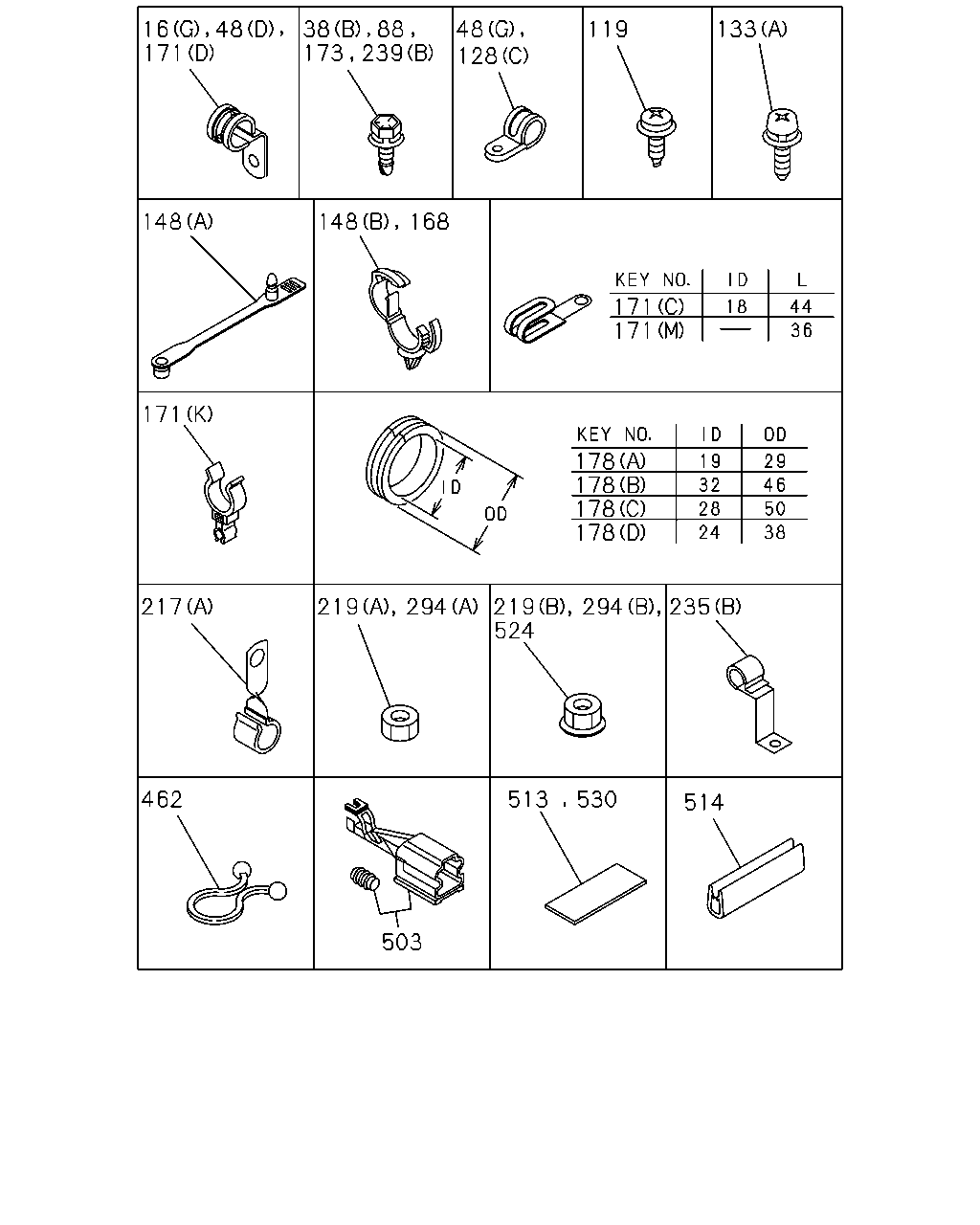

çizim 137099
16 48 171 38 88 173 239 48 128 119 133 148 148 168 171 171 178 178 178 178 171 217 219 294 219 294 235 524 462 503 513 530 514
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9601-9601
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) (B) ID=11 L=41 		1-09700-403-0 04 1 9602-9703
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) (B) ID=11 L=41 		1-09700-403-0 02 1 9704-0004
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (B) ID=11 L=41 		1-09700-403-0 02 1 0005-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9601-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9601-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-
16 CLIP; HARNESS
(D) L=300 		1-09707-001-1 01 1 9601-
16 CLIP; HARNESS
(F) L=140 		5-09707-031-0 01 1 9601-9804
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=140 		5-09707-031-1 02 1 9805-
16 CLIP; HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 9601-9804
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) ID=14 L=44 		9-09917-427-0 03 1 9805-0004
16 CLIP; HARNESS
6HH1 STD ENG(65L) (J) ID=14 L=44 		9-09917-427-0 03 1 0005-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9601-0004
16 CLIP; HARNESS
AUSTRALIA EQUIPMENT(RR3) (E) L=250 		5-09707-030-1 01 1 9601-0004
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0005-
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=50 		9-09917-430-0 03 1 9805-0004
16 CLIP; HARNESS
6SD1 STD ENG(37L) (C) ID=20 L=50 		9-09917-430-0 03 1 0005-
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 06 1 9601-9909
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 04 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 06 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 04 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 04 1 9601-9904
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 06 1 9905-9909
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 02 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 06 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 02 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 03 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. CUSTOM CAB(SR5) (I) L=55 		8-94432-655-0 03 1 9910-0004
16 CLIP; HARNESS
6HH1 STD ENG(65L) (L) L=180 		1-09707-162-1 01 1 0005-0209
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 03 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 03 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (I) 		1-82698-130-0 03 1 9910-0004
16 CLIP; HARNESS
6HH1 STD ENG(65L) (G) ID=19 H=21 L=50 		1-09700-910-1 01 1 9805-
16 CLIP; HARNESS
6HH1 STD ENG(65L) (K) ID=19 L=32 		9-09525-866-0 01 1 9805-0606
16 CLIP; HARNESS
6HH1 STD ENG(65L) (K) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (F) L=140 		5-09707-031-1 01 1 9805-0004
16 CLIP; HARNESS
6SD1 STD ENG(37L) (F) L=140 		5-09707-031-1 01 1 0005-
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0605-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 03 1 9601-9606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9607-9804
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9805-0512
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28080-825-0 08 1 9601-9606
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9601-9903
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-1201
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28080-830-0 01 1 9606-9606
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9804
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 05 1 9805-0004
38 BOLT; CLIP,HARNESS
(A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9607-9702
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9805-0004
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0005-0512
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
MAL6S M/T(Y1V) (A) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9601-9606
38 BOLT; CLIP,HARNESS
MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9804
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9805-0512
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (A) M8X16 FLANGE 		0-28080-816-0 04 1 9805-0512
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (A) M10X16 FLANGE 		0-28181-016-0 01 1 9805-0512
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (A) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X30 FLANGE 		0-28680-830-0 02 1 9805-0512
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28680-830-0 01 1 9805-0004
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28680-830-0 06 1 0005-0512
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0604
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0605-
48 CLIP; FRAME HARNESS
(H) L=180 		1-09707-162-1 01 1 0005-0104
48 CLIP; FRAME HARNESS
(L) L=300 		1-09707-001-1 01 1 0105-0209
48 CLIP; FRAME HARNESS
(H) L=180 		1-09707-162-1 01 1 0202-
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 08 1 9601-9601
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 07 1 9602-9804
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (F) ID=11 L=61 		1-09700-484-0 04 1 9805-
48 CLIP; FRAME HARNESS
(B) ID=20 L=70 		1-09700-485-0 07 1 9601-9603
48 CLIP; FRAME HARNESS
(B) ID=20 L=70 		1-09700-485-0 11 1 9604-9804
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (B) ID=20 L=70 		1-09700-485-0 06 1 9805-
48 CLIP; FRAME HARNESS
(G) ID=32 L=75 		1-09700-704-1 02 1 9601-9804
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (A) ID=20 L=50 		9-09917-430-0 19 1 9805-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 03 1 9601-9804
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (C) ID=28 L=78 		1-09700-858-0 04 1 9805-
48 CLIP; FRAME HARNESS
(H) L=180 		1-09707-162-0 01 1 9601-9703
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (H) L=180 		1-09707-162-0 01 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (F) ID=11 L=61 		1-09700-484-0 07 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (F) ID=11 L=61 		1-09700-484-0 07 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 07 1 9601-9603
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9604-9703
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (A) ID=20 L=50 		9-09917-430-0 02 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (A) ID=20 L=50 		9-09917-430-0 02 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 01 1 0005-
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (A) ID=20 L=50 		9-09917-430-0 01 1 0005-
48 CLIP; FRAME HARNESS
(G) ID=35 L=75 		1-09700-608-2 01 1 9601-9804
48 CLIP; FRAME HARNESS
(H) L=180 		1-09707-162-1 01 1 9805-0004
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9601-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(I) ID=19 L=60 		9-09525-896-0 01 1 9606-9804
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (K) ID=14 L=44 		9-09917-427-0 01 1 9805-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 01 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 01 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 01 1 9805-0004
48 CLIP; FRAME HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (J) ID=11 L=41 		1-09700-403-0 03 1 9601-9804

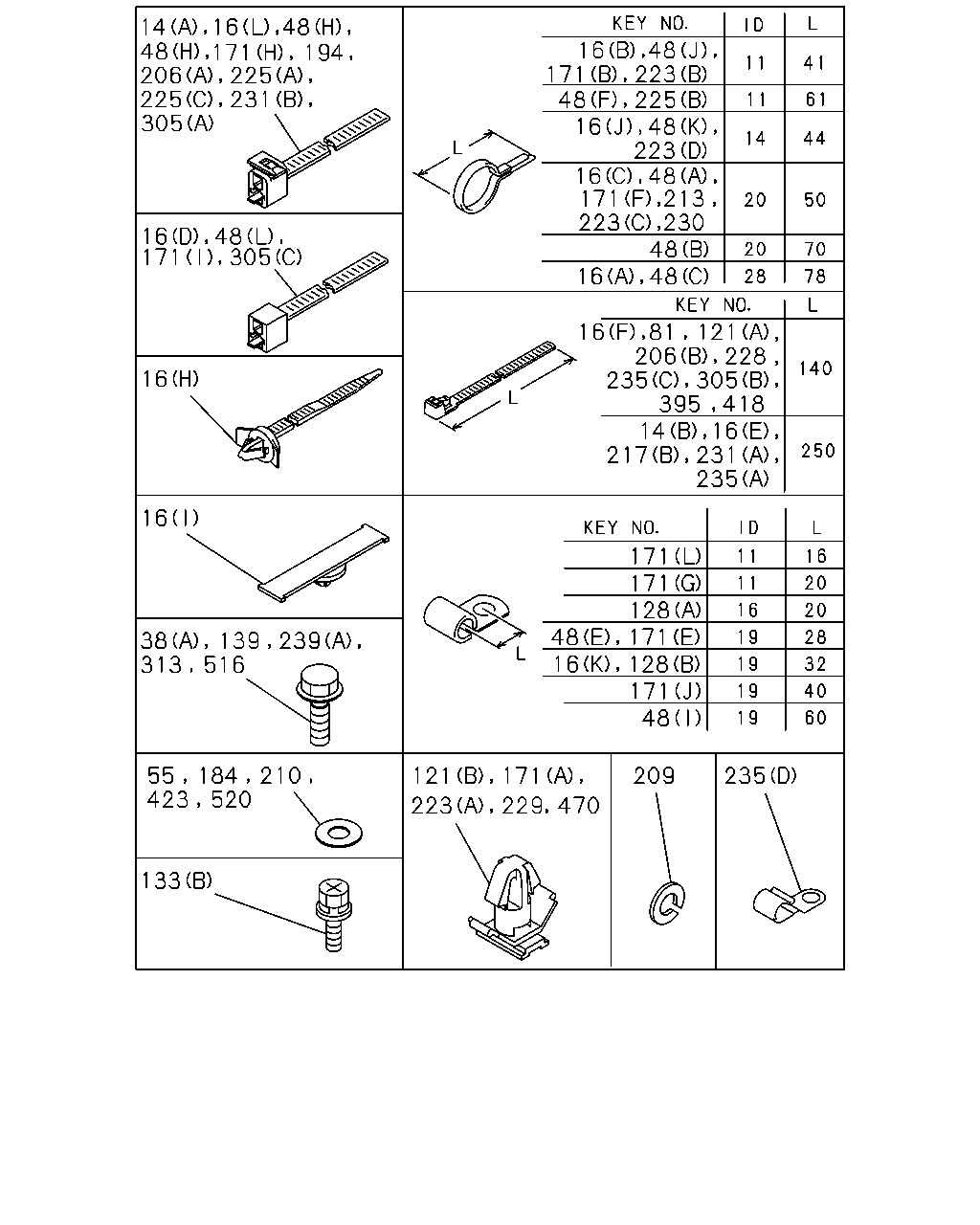

48 CLIP; FRAME HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (J) ID=11 L=41 		1-09700-403-0 03 1 9805-9806
48 CLIP; FRAME HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (K) ID=14 L=44 		9-09917-427-0 03 1 9807-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (K) ID=14 L=44 		9-09917-427-0 02 1 0005-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=20 L=50 		9-09917-430-0 25 1 9601-9601
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=20 L=50 		9-09917-430-0 21 1 9602-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (A) ID=20 L=50 		9-09917-430-0 30 1 9601-9601
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (A) ID=20 L=50 		9-09917-430-0 23 1 9602-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (K) ID=14 L=44 		9-09917-427-0 02 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (K) ID=14 L=44 		9-09917-427-0 02 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=32 L=75 		1-09700-704-1 02 1 0005-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) ID=20 L=70 		1-09700-485-0 11 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (B) ID=20 L=70 		1-09700-485-0 04 1 0005-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (G) ID=32 L=75 		1-09700-704-1 01 1 9805-9812
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (G) ID=32 L=75 		1-09700-704-1 02 1 9901-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (B) ID=20 L=70 		1-09700-485-0 07 1 0005-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C) ID=28 L=78 		1-09700-858-0 03 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (C) ID=28 L=78 		1-09700-858-0 03 1 0005-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (I) ID=19 L=60 		9-09525-896-0 01 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (I) ID=19 L=60 		9-09525-896-0 01 1 0005-0606
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (I) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (G) ID=35 L=75 		1-09700-608-2 02 1 9805-9812
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (G) ID=35 L=75 		1-09700-608-2 01 1 9901-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=35 L=75 		1-09700-608-2 01 1 0005-
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9601-1007
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9601-1007
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9601-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9601-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9601-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9601-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9601-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9601-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9601-
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (M) L=36 		8-94224-891-1 01 1 1410-
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (L) ID=11 L=16 		9-09525-025-0 01 1 0402-0606
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (L) ID=11 L=16 		0-95235-025-0 01 1 0607-
171 CLIP; STARTER HARNESS
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=10 & 16.5 		8-94360-745-0 01 1 0201-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 9601-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0005-
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 9601-9703
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (C) ID=18 L=44 		8-94225-185-0 01 1 9704-0004
171 CLIP; STARTER HARNESS
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (I) L=300 		1-09707-001-1 01 1 0005-0201
171 CLIP; STARTER HARNESS
(I) L=300 		1-09707-001-1 01 1 0202-
171 CLIP; STARTER HARNESS
(J) ID=19 L=40 		9-09525-876-0 01 1 9601-9702
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (J) ID=19 L=40 		9-09525-876-0 01 1 9703-0606
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (J) ID=19 L=40 		0-95235-876-0 01 1 0607-
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (B) ID=11 L=41 		1-09700-403-0 01 1 9601-9605
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (H) L=180 		1-09707-162-1 02 1 9712-0004
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 0005-0209
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (D) ID=21 L=30 H=40 		1-09700-991-1 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (H) L=180 		1-09707-162-1 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (A) OD=9 H=6 		1-09709-178-0 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (G) ID=11 L=20 		9-09525-035-0 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (F) ID=20 L=50 		9-09917-430-0 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (E) ID=19 L=28 		9-09525-856-0 01 1 9703-0004
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (B) ID=11 L=41 		1-09700-403-0 02 1 9601-9605
171 CLIP; STARTER HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9606-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (B) ID=11 L=41 		1-09700-403-0 01 1 0005-
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (A) OD=9 H=6 		1-09709-178-0 02 1 9601-9804
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MAL6S M/T(Y1V) (A) OD=9 H=6 		1-09709-178-0 02 1 9805-
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=19 L=28 		9-09525-856-0 04 1 9805-0606
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=19 L=28 		0-95235-856-0 04 1 0607-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9601-
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 02 1 9601-9804
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9805-
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9601-9804
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9805-
178 GROMMET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 OD=23 T=24 		1-09332-103-0 03 1 9805-
178 GROMMET; HARNESS
LOW ROOF<6XQ> (B) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9601-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9601-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9601-
219 NUT
(A) M8 		9-09110-408-0 06 1 9601-9606
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9607-9609
219 NUT
(B) M8 FLANGE 		0-91150-108-0 06 1 9610-0004
219 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0005-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-0604
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0605-1409
219 NUT
6HH1 STD ENG(65L) (B) M8 FLANGE 		0-91180-108-0 01 1 0605-1409
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1410-
219 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91180-108-0 01 1 1410-
219 NUT
6HH1 STD ENG(65L) (B) M8 FLANGE 		0-91180-108-0 01 1 1410-
219 NUT
(A) M8 		9-09110-408-0 02 1 9607-9609
219 NUT
FULLER RT7608LL M/T(X8P) (B) M8 FLANGE 		0-91150-108-0 02 1 9609-9610
219 NUT
FULLER RT7608LL M/T(X8P) (B) M8 FLANGE 		0-91150-108-0 02 1 9703-9804
219 NUT
6HH1 STD ENG(65L) (B) M8 FLANGE 		0-91150-108-0 02 1 9805-0004
219 NUT
FULLER RT7608LL M/T(X8P) (B) M8 FLANGE 		0-91150-108-0 02 1 9805-0004
219 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91150-108-0 03 1 0005-0602
219 NUT
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (B) M8 FLANGE 		0-91150-108-0 03 1 0005-0602
219 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91180-108-0 03 1 0603-0604
219 NUT
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (B) M8 FLANGE 		0-91180-108-0 03 1 0603-0604
219 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91180-108-0 03 1 0605-
219 NUT
6SD1 STD ENG(37L) (B) M8 FLANGE 		0-91180-108-0 03 1 0605-
219 NUT
MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) (A) M8 		9-09110-408-0 03 1 9606-9606
219 NUT
MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) (B) M8 FLANGE 		0-91150-108-0 03 1 9607-9804
219 NUT
(B) M8 FLANGE 		0-91150-108-0 03 1 9805-0004
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0005-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-0604
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0605-
219 NUT
6HH1 STD ENG(65L) (B) M8 FLANGE 		0-91180-108-0 02 1 0605-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9601-9602
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER FS8209 DD M/T(Y2S) (C) L=140 		5-09707-031-1 01 1 9609-0004
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) L=250 		5-09707-030-0 01 1 9609-9804
235 CLIP; HARNESS,SPD SENSOR,SSPS
MAL6S M/T(Y1V) (B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9601-9804
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6Q M/T(X5J),MAL6S M/T(Y1V) (D) ID=12 L=35 		5-09700-206-0 01 1 9805-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9601-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9601-9804
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9805-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1008-
239 BOLT; GRAND
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9601-9903
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-1201
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
294 NUT
(A) M6 		9-09110-406-0 01 1 9601-9606
294 NUT
(B) M6 FLANGE 		0-91150-106-0 01 1 9607-9804
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6 FLANGE 		0-91150-106-0 01 1 9805-0602
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6 FLANGE 		0-91180-106-0 01 1 0603-
294 NUT
(A) M8 		9-09110-408-0 02 1 9601-9606
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
294 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
294 NUT
(A) M8 		9-09110-408-0 01 1 9601-9606
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 9607-9804
294 NUT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) (B) M8 FLANGE 		0-91150-108-0 01 1 9805-0004
294 NUT
MLD6Q M/T(X5J) PARKING BRAKE DRUM 10"(B1T) (B) M8 FLANGE 		0-91150-108-0 01 1 9805-0004
294 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0602
294 NUT
MLD6Q M/T(X5J) PARKING BRAKE DRUM 10"(B1T) (B) M8 FLANGE 		0-91150-108-0 01 1 0005-0602
294 NUT
MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1006
294 NUT
MLD6Q M/T(X5J) PARKING BRAKE DRUM 10"(B1T) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-1006
294 NUT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (B) M8 FLANGE 		0-91180-108-0 01 1 1007-
294 NUT
MAL6S M/T(Y1V) (B) M10 FLANGE 		0-91150-110-0 03 1 9601-9605
294 NUT
MAL6S M/T(Y1V) (B) M10 FLANGE 		0-91150-110-0 01 1 9606-9606
294 NUT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (B) M10 FLANGE 		0-91150-210-0 01 1 9607-0602
294 NUT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (B) M10 FLANGE 		0-91180-210-0 01 1 0603-
462 CLIP; HARNESS,HTR
AUSTRALIA EQUIPMENT(RR3) ID=20 		1-09709-068-0 02 1 9910-0004
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 9601-9709
503 CONNECTOR
AUSTRALIA EQUIPMENT(RR3) 		1-82690-668-0 01 1 9710-9804
503 CONNECTOR
AUSTRALIA EQUIPMENT(RR3) 		1-82690-668-0 01 1 9805-9812
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 9901-0004
503 CONNECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AUSTRALIA EQUIPMENT(RR3) 		1-82690-668-0 01 1 9901-0004
503 CONNECTOR
6HH1 STD ENG(65L) 		1-82690-668-0 01 1 9901-0004
503 CONNECTOR
6HH1 STD ENG(65L) 		1-82690-668-0 01 1 0005-0105
503 CONNECTOR 1-82690-668-0 01 1 0005-0105
503 CONNECTOR 1-82690-668-0 01 1 0106-0109
503 CONNECTOR 1-82690-668-0 01 1 0110-
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 0110-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0005-0906
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER<UN3> L=50 		8-94270-377-1 01 1 0907-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9601-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-
çizim 184569
14 48 171 194 305 223 48 48 16 121 14 16 235 16 16 171 171 128 171 128 171 48 48 16 38 313 516 55 423 520 121 171 209 235 223 133 16 48 206 225 225 231 16 48 171 305 139 239 184 210 229 217 231 418 395 305 228 235 206 81 16 223 230 213 171 16 48 48 16 48 225 223 48 16 171 470
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-1 01 1 9805-
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L) (B) L=250 		5-09707-030-1 01 1 0002-1205
14 CLIP; BAND,HARNESS
6HH1 STD ENG(65L) (B) L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 9601-9601
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) (B) ID=11 L=41 		1-09700-403-0 04 1 9602-9703
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) (B) ID=11 L=41 		1-09700-403-0 02 1 9704-0004
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (B) ID=11 L=41 		1-09700-403-0 02 1 0005-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9601-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9601-
16 CLIP; HARNESS
(G) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-
16 CLIP; HARNESS
(D) L=300 		1-09707-001-1 01 1 9601-
16 CLIP; HARNESS
(F) L=140 		5-09707-031-0 01 1 9601-9804
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=140 		5-09707-031-1 02 1 9805-
16 CLIP; HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 9601-9804
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) ID=14 L=44 		9-09917-427-0 03 1 9805-0004
16 CLIP; HARNESS
6HH1 STD ENG(65L) (J) ID=14 L=44 		9-09917-427-0 03 1 0005-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9601-0004
16 CLIP; HARNESS
AUSTRALIA EQUIPMENT(RR3) (E) L=250 		5-09707-030-1 01 1 9601-0004
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0005-
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=50 		9-09917-430-0 03 1 9805-0004
16 CLIP; HARNESS
6SD1 STD ENG(37L) (C) ID=20 L=50 		9-09917-430-0 03 1 0005-
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 06 1 9601-9909
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 04 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 06 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 04 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 04 1 9601-9904
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 06 1 9905-9909
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 02 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 06 1 0005-0101
16 CLIP; HARNESS
POWER WINDOW<A30> (H) L=175 		8-97110-167-0 02 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 03 1 9910-0004
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. CUSTOM CAB(SR5) (I) L=55 		8-94432-655-0 03 1 9910-0004
16 CLIP; HARNESS
6HH1 STD ENG(65L) (L) L=180 		1-09707-162-1 01 1 0005-0209
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 03 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> (I) L=55 		8-94432-655-0 03 1 0102-
16 CLIP; HARNESS
POWER WINDOW<A30> CUSTOM CAB(SR5) (I) 		1-82698-130-0 03 1 9910-0004
16 CLIP; HARNESS
6HH1 STD ENG(65L) (G) ID=19 H=21 L=50 		1-09700-910-1 01 1 9805-
16 CLIP; HARNESS
6HH1 STD ENG(65L) (K) ID=19 L=32 		9-09525-866-0 01 1 9805-0606
16 CLIP; HARNESS
6HH1 STD ENG(65L) (K) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (F) L=140 		5-09707-031-1 01 1 9805-0004
16 CLIP; HARNESS
6SD1 STD ENG(37L) (F) L=140 		5-09707-031-1 01 1 0005-
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28650-830-0 05 1 0605-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 03 1 9601-9606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9607-9804
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9805-0512
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28080-825-0 08 1 9601-9606
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9601-9903
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-9909
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-1201
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28080-830-0 01 1 9606-9606
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 06 1 9607-9804
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 05 1 9805-0004
38 BOLT; CLIP,HARNESS
(A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9607-9702
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 9805-0004
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0005-0512
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
MAL6S M/T(Y1V) (A) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9601-9606
38 BOLT; CLIP,HARNESS
MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9804
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9805-0512
38 BOLT; CLIP,HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (A) M8X16 FLANGE 		0-28080-816-0 04 1 9805-0512
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (A) M10X16 FLANGE 		0-28181-016-0 01 1 9805-0512
38 BOLT; CLIP,HARNESS
MLD6Q M/T(X5J) (A) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X30 FLANGE 		0-28680-830-0 02 1 9805-0512
38 BOLT; CLIP,HARNESS
6HH1 STD ENG(65L) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28680-830-0 01 1 9805-0004
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28680-830-0 06 1 0005-0512
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0604
38 BOLT; CLIP,HARNESS
6SD1 STD ENG(37L) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0605-
48 CLIP; FRAME HARNESS
(H) L=180 		1-09707-162-1 01 1 0005-0104
48 CLIP; FRAME HARNESS
(L) L=300 		1-09707-001-1 01 1 0105-0209
48 CLIP; FRAME HARNESS
(H) L=180 		1-09707-162-1 01 1 0202-
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 08 1 9601-9601
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 07 1 9602-9804
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (F) ID=11 L=61 		1-09700-484-0 04 1 9805-
48 CLIP; FRAME HARNESS
(B) ID=20 L=70 		1-09700-485-0 07 1 9601-9603
48 CLIP; FRAME HARNESS
(B) ID=20 L=70 		1-09700-485-0 11 1 9604-9804
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (B) ID=20 L=70 		1-09700-485-0 06 1 9805-
48 CLIP; FRAME HARNESS
(G) ID=32 L=75 		1-09700-704-1 02 1 9601-9804
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (A) ID=20 L=50 		9-09917-430-0 19 1 9805-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 03 1 9601-9804
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (C) ID=28 L=78 		1-09700-858-0 04 1 9805-
48 CLIP; FRAME HARNESS
(H) L=180 		1-09707-162-0 01 1 9601-9703
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (H) L=180 		1-09707-162-0 01 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (F) ID=11 L=61 		1-09700-484-0 07 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (F) ID=11 L=61 		1-09700-484-0 07 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 07 1 9601-9603
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9604-9703
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (A) ID=20 L=50 		9-09917-430-0 02 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L) (A) ID=20 L=50 		9-09917-430-0 02 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 01 1 0005-
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (A) ID=20 L=50 		9-09917-430-0 01 1 0005-
48 CLIP; FRAME HARNESS
(G) ID=35 L=75 		1-09700-608-2 01 1 9601-9804
48 CLIP; FRAME HARNESS
(H) L=180 		1-09707-162-1 01 1 9805-0004
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9601-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9601-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(I) ID=19 L=60 		9-09525-896-0 01 1 9606-9804
48 CLIP; FRAME HARNESS
6HH1 STD ENG(65L) (K) ID=14 L=44 		9-09917-427-0 01 1 9805-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 01 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 01 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=20 L=50 		9-09917-430-0 01 1 9805-0004
48 CLIP; FRAME HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (J) ID=11 L=41 		1-09700-403-0 03 1 9601-9804
48 CLIP; FRAME HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (J) ID=11 L=41 		1-09700-403-0 03 1 9805-9806
48 CLIP; FRAME HARNESS
SPEED LIMITER CABLE STROKE CONTROL<TDT> (K) ID=14 L=44 		9-09917-427-0 03 1 9807-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (K) ID=14 L=44 		9-09917-427-0 02 1 0005-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=20 L=50 		9-09917-430-0 25 1 9601-9601
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=20 L=50 		9-09917-430-0 21 1 9602-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (A) ID=20 L=50 		9-09917-430-0 30 1 9601-9601
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (A) ID=20 L=50 		9-09917-430-0 23 1 9602-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (K) ID=14 L=44 		9-09917-427-0 02 1 9704-9804
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (K) ID=14 L=44 		9-09917-427-0 02 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=32 L=75 		1-09700-704-1 02 1 0005-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) ID=20 L=70 		1-09700-485-0 11 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (B) ID=20 L=70 		1-09700-485-0 04 1 0005-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (G) ID=32 L=75 		1-09700-704-1 01 1 9805-9812
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (G) ID=32 L=75 		1-09700-704-1 02 1 9901-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (B) ID=20 L=70 		1-09700-485-0 07 1 0005-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C) ID=28 L=78 		1-09700-858-0 03 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (C) ID=28 L=78 		1-09700-858-0 03 1 0005-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (I) ID=19 L=60 		9-09525-896-0 01 1 9805-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (I) ID=19 L=60 		9-09525-896-0 01 1 0005-0606
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (I) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (G) ID=35 L=75 		1-09700-608-2 02 1 9805-9812
48 CLIP; FRAME HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (G) ID=35 L=75 		1-09700-608-2 01 1 9901-0004
48 CLIP; FRAME HARNESS
6SD1 STD ENG(37L) (G) ID=35 L=75 		1-09700-608-2 01 1 0005-
55 WASHER; PL,CLIP
FULLER RT7608LL M/T(X8P) ID=8.4 OD=18 		9-09160-608-0 01 1 9609-9612
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9601-
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0005-
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> (B) OD=7 H=1.2 		8-94364-750-0 02 1 9601-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9601-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9601-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9601-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9601-9606
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 9607-0004
139 BOLT; BRKT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) M8X35 FLANGE 		0-28680-835-0 01 1 0005-0512
139 BOLT; BRKT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
139 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9601-9606
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9607-0512
139 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (M) L=36 		8-94224-891-1 01 1 1410-
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (L) ID=11 L=16 		9-09525-025-0 01 1 0402-0606
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (L) ID=11 L=16 		0-95235-025-0 01 1 0607-
171 CLIP; STARTER HARNESS
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (K) ID=10 & 16.5 		8-94360-745-0 01 1 0201-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 02 1 9601-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (D) ID=21 L=30 H=40 		1-09700-991-1 02 1 0005-
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 9601-9703
171 CLIP; STARTER HARNESS
6SD1 TCN ENG(31L) (C) ID=18 L=44 		8-94225-185-0 01 1 9704-0004
171 CLIP; STARTER HARNESS
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (I) L=300 		1-09707-001-1 01 1 0005-0201
171 CLIP; STARTER HARNESS
(I) L=300 		1-09707-001-1 01 1 0202-
171 CLIP; STARTER HARNESS
(J) ID=19 L=40 		9-09525-876-0 01 1 9601-9702
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (J) ID=19 L=40 		9-09525-876-0 01 1 9703-0606
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (J) ID=19 L=40 		0-95235-876-0 01 1 0607-
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (B) ID=11 L=41 		1-09700-403-0 01 1 9601-9605
171 CLIP; STARTER HARNESS
FULLER FS8209 DD M/T(Y2S) (H) L=180 		1-09707-162-1 02 1 9712-0004
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 0005-0209
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (D) ID=21 L=30 H=40 		1-09700-991-1 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (H) L=180 		1-09707-162-1 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (A) OD=9 H=6 		1-09709-178-0 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (G) ID=11 L=20 		9-09525-035-0 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P) (F) ID=20 L=50 		9-09917-430-0 01 1 9609-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (E) ID=19 L=28 		9-09525-856-0 01 1 9703-0004
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (B) ID=11 L=41 		1-09700-403-0 02 1 9601-9605
171 CLIP; STARTER HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9606-0004
171 CLIP; STARTER HARNESS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (B) ID=11 L=41 		1-09700-403-0 01 1 0005-
171 CLIP; STARTER HARNESS
MAL6S M/T(Y1V) (A) OD=9 H=6 		1-09709-178-0 02 1 9601-9804
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MAL6S M/T(Y1V) (A) OD=9 H=6 		1-09709-178-0 02 1 9805-
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=19 L=28 		9-09525-856-0 04 1 9805-0606
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J) (E) ID=19 L=28 		0-95235-856-0 04 1 0607-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9904-
194 CLIP; BAND
AUSTRALIA EQUIPMENT(RR3) L=180 		1-09707-162-0 03 1 9601-9608
194 CLIP; BAND
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=180 		1-09707-162-0 03 1 9609-9804
194 CLIP; BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=180 		1-09707-162-1 01 1 9805-
194 CLIP; BAND
EXC. AUSTRALIA EQUIPMENT(RR3) L=180 		1-09707-162-0 01 1 9601-9608
194 CLIP; BAND
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=180 		1-09707-162-0 01 1 9609-9804
194 CLIP; BAND
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=180 		1-09707-162-1 03 1 9805-
206 CLIP; FUEL TANK HARNESS
(A) L=180 		1-09707-162-0 01 1 9601-9804
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9601-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9601-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9904-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9601-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9601-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9601-
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9601-9804
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41 		1-09700-403-0 10 1 9805-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=17.5 		1-09709-181-0 01 1 9601-9804
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14 L=44 		9-09917-427-0 02 1 9805-
223 CLIP; AIR TANK HARNESS
AUSTRALIA EQUIPMENT(RR3) (C) ID=20 L=50 		9-09917-430-0 04 1 9601-9608
223 CLIP; AIR TANK HARNESS
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) ID=20 L=50 		9-09917-430-0 04 1 9609-9703
223 CLIP; AIR TANK HARNESS
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C) ID=20 L=50 		9-09917-430-0 03 1 9704-9804
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=50 		9-09917-430-0 03 1 9805-0005
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=50 		9-09917-430-0 04 1 0006-0305
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 L=50 		9-09917-430-0 05 1 0306-
223 CLIP; AIR TANK HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=11 L=41 		1-09700-403-0 04 1 9601-9608
223 CLIP; AIR TANK HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) ID=11 L=41 		1-09700-403-0 04 1 9609-9703
223 CLIP; AIR TANK HARNESS
EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) ID=11 L=41 		1-09700-403-0 03 1 9704-9804
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41 		1-09700-403-0 01 1 9805-
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OD=9 H=17.5 		1-09709-181-0 01 1 9805-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-0 01 1 9601-9804
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=180 		1-09707-162-1 01 1 9805-0112
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0201-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 9601-9804
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 9805-0004
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 0110-
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) L=600 		1-09707-107-1 01 1 0201-
228 CLIP; COOLER HARNESS
AUSTRALIA EQUIPMENT(RR3) L=140 		5-09707-031-1 01 1 9710-0004
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0005-
229 CLIP; STARTER SUB SW HARNESS
AUSTRALIA EQUIPMENT(RR3) OD=9 H=6 		1-09709-178-0 01 1 9601-9608
229 CLIP; STARTER SUB SW HARNESS
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=9 H=6 		1-09709-178-0 01 1 9609-0004
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9601-
231 CLIP; BAND,OIL PRESS
(A) L=250 		5-09707-030-0 01 1 9601-9804
231 CLIP; BAND,OIL PRESS
6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 9805-0104
231 CLIP; BAND,OIL PRESS
6SD1 STD ENG(37L),6HH1 STD ENG(65L) (B) L=180 		1-09707-162-1 01 1 0105-
231 CLIP; BAND,OIL PRESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250 		5-09707-030-1 01 1 9805-0004
231 CLIP; BAND,OIL PRESS
6SD1 STD ENG(37L) (A) L=250 		5-09707-030-1 01 1 0005-0104
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9601-9602
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER FS8209 DD M/T(Y2S) (C) L=140 		5-09707-031-1 01 1 9609-0004
235 CLIP; HARNESS,SPD SENSOR,SSPS
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V) (A) L=250 		5-09707-030-0 01 1 9609-9804
235 CLIP; HARNESS,SPD SENSOR,SSPS
MAL6S M/T(Y1V) (B) ID=6 H=25 L=21 		1-09700-432-0 01 1 9601-9804
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6Q M/T(X5J),MAL6S M/T(Y1V) (D) ID=12 L=35 		5-09700-206-0 01 1 9805-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 9601-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9601-9804
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9805-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1008-
239 BOLT; GRAND
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9601-9903
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9904-1201
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-0 01 1 9601-9804
305 CLIP; ENG HARNESS
6HH1 STD ENG(65L) (A) L=180 		1-09707-162-1 01 1 9805-
305 CLIP; ENG HARNESS
6HH1 STD ENG(65L) EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9805-
305 CLIP; ENG HARNESS
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C) L=300 		1-09707-001-1 01 1 9805-0004
305 CLIP; ENG HARNESS
6SD1 STD ENG(37L) (C) L=300 		1-09707-001-1 01 1 0005-
313 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9601-9606
313 BOLT; BRKT
M6X20 FLANGE 		0-28680-620-0 01 1 9607-9804
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) M8X16 FLANGE 		0-28080-816-0 01 1 9805-0512
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
313 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 FLANGE 		0-28680-620-0 01 1 9805-0512
313 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X20 FLANGE 		0-28650-620-0 01 1 0601-
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0005-
418 CLIP; LAMP HARNESS
RADIO CLARION<SK2> L=140 		5-09707-031-1 01 1 0703-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9904-9909
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9904-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
