Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#65009) — 244 parça

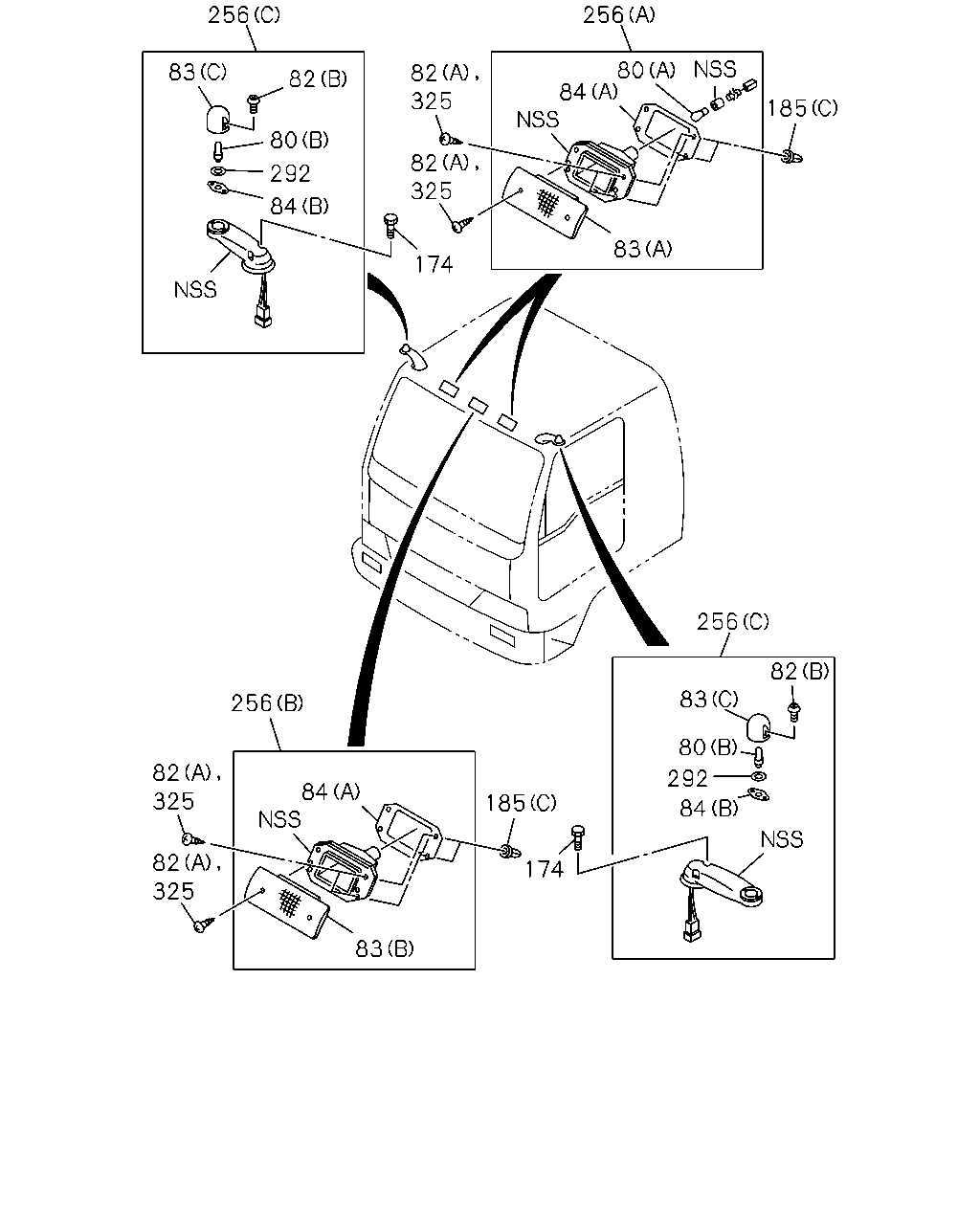

256 256 80 83 82 325 82 84 185 80 82 325 292 84 83 174 256 82 83 256 80 82 325 292 84 185 84 82 325 174 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 12W	9-82691-302-0	02	1	9609-0004
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (B) 12V 5W	1-82194-053-0	02	1	9601-9608
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B) 12V 5W	1-82194-053-0	02	1	9609-0004
82	SCREW; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A) M5X20 TAPPING	0-71090-520-0	18	1	9609-0004
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (B)	1-82219-011-0	04	1	9601-9608
82	SCREW; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B)	1-82219-011-0	04	1	9609-0004
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (C)	1-82215-048-0	02	1	9609-0004
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A)	1-82215-068-0	02	1	9609-0004
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-82215-069-0	01	1	9609-0004
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (C)	1-82215-046-0	02	1	9601-0004
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A)	1-86830-153-0	03	1	9609-0004
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (B)	1-86830-288-0	04	1	9601-9608
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B)	1-86830-288-0	04	1	9609-0004
174	BOLT LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER	1-09039-006-1	04	1	9601-9608
174	BOLT LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> M6X25 W/PL WASHER	1-09039-006-1	04	1	9609-0004
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9601-
185	GROMMET; SCREW (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9601-9604
185	GROMMET; SCREW (B) D=8.6X7.7 L=7.5	1-09983-177-0	02	1	9605-9807
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9609-9908
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9609-9908
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9909-0004
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-131-0	01	1	9609-0004
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (A)	1-86830-170-0	02	1	9609-0004
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (C)	1-86830-295-0	01	1	9609-0004
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (C)	1-86830-294-0	01	1	9609-0004
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (C)	1-86830-293-0	01	1	9601-0004
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (C)	1-86830-292-0	01	1	9601-0004
292	WASHER; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	9601-9608
292	WASHER; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	9609-0004
325	SCREW; SPD INDICATOR LAMP LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9609-9908

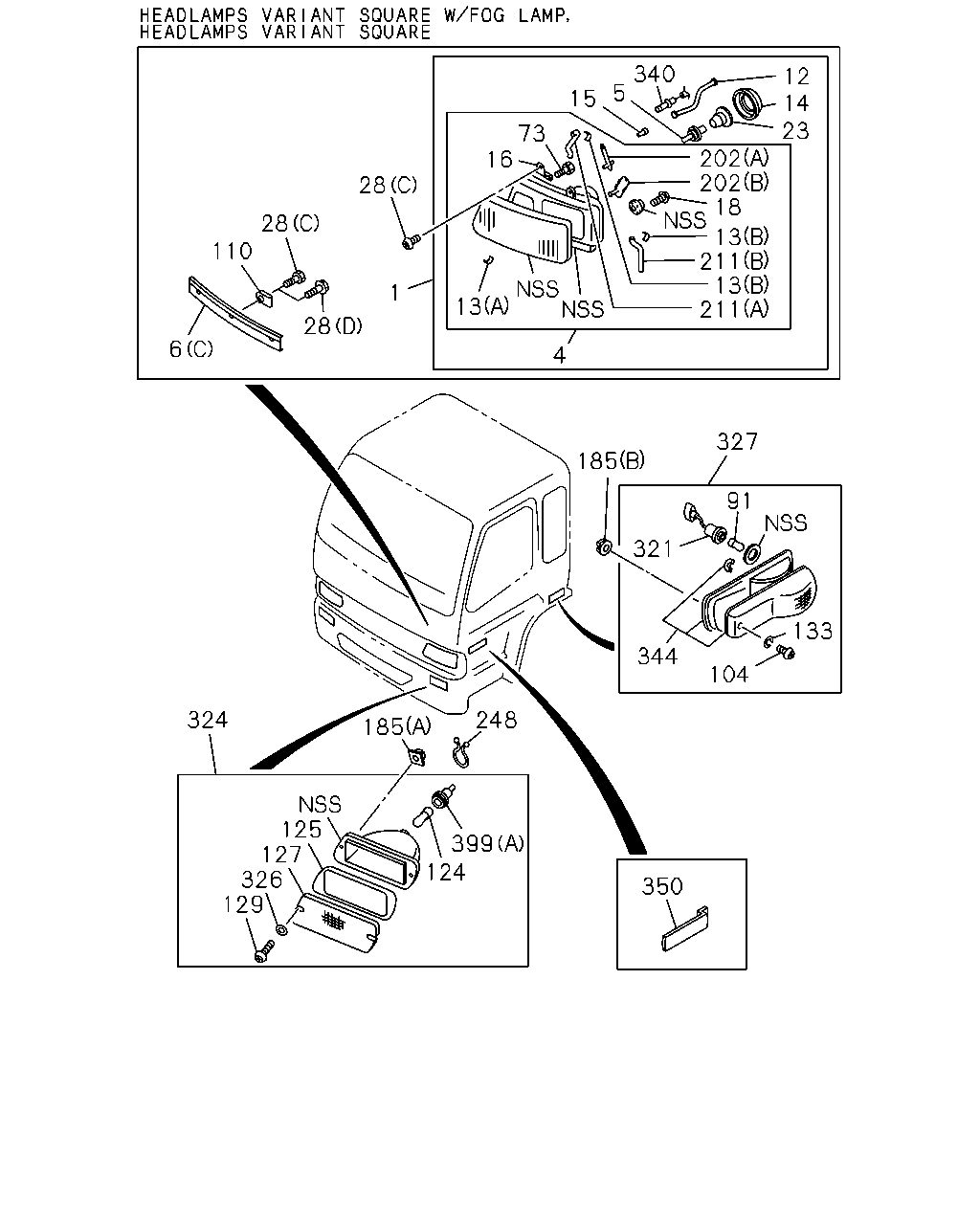

28 28 110 6 28 13 16 73 15 5 340 12 14 23 18 202 202 13 211 13 211 4 327 185 91 344 321 133 104 350 185 248 324 125 399 124 127 326 129 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-169-1	01	1	9601-0004
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-168-1	01	1	9601-0004
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-178-6	01	1	9601-0210
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-359-0	01	1	0211-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-177-6	01	1	9601-0210
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-358-0	01	1	0211-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-122-3	01	1	9601-0004
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-121-3	01	1	9601-0004
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-190-1	01	1	9601-0210
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82119-200-0	01	1	0211-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-189-1	01	1	9601-0210
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82119-199-0	01	1	0211-
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA>	1-86830-194-1	01	1	9601-0004
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA>	1-86830-193-1	01	1	9601-0004
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA> 24V 75/70W	8-94405-657-0	02	1	9712-0004
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W	1-82194-063-0	02	1	9601-9711
5	BULB; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 75/70W	1-82194-063-0	02	1	9712-
6	RIM; HEADLAMP CUSTOM CAB(SR5) (C)	1-88434-533-0	01	1	9910-0004
6	RIM; HEADLAMP CUSTOM CAB(SR5) (C)	1-88434-532-0	01	1	9910-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	8-94165-573-0	04	1	9601-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-71118-746-1	01	1	9601-9804
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-71118-745-1	01	1	9805-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-71118-745-1	01	1	9601-9804
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-71118-746-1	01	1	9805-0004
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-5	01	1	9601-9909
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C)	1-86830-006-5	01	1	9910-0004
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-5	01	1	0005-
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-5	01	1	9601-9909
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C)	1-86830-005-5	01	1	9910-0004
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-5	01	1	0005-
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-145-0	02	1	9601-
12	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>	1-86830-199-0	02	1	9601-0004
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82119-084-0	04	1	9601-0004
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-82119-084-0	04	1	0005-
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	8-94381-588-0	14	1	9601-0004
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	8-94381-588-0	14	1	0005-
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	9609-0004
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	9601-0004
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	0005-
15	BULB; FOG LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 55W	1-82194-079-0	02	1	9601-
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-076-0	01	1	9601-0004
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-076-0	01	1	0005-
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-075-0	01	1	9601-0004
16	BRACKET; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-075-0	01	1	0005-
18	SCREW; GEAR CASE HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING	1-82119-067-0	08	1	9601-0004
18	SCREW; GEAR CASE HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M4X16 TAPPING	1-82119-067-0	08	1	0005-
23	COVER; BULB,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-147-0	02	1	9601-0004
23	COVER; BULB,HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-147-0	02	1	0005-
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (D) M6X16 FLANGE	0-28650-616-0	04	1	0709-
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9601-0004
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0004
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9601-0004
28	BOLT; HEADLAMP (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0005-0102
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0103-0708
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
73	BOLT; BRKT,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	8-94332-050-0	04	1	9601-0004
73	BOLT; BRKT,HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	8-94332-050-0	04	1	0005-
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	9601-9809
91	BULB; SIDE TURN SIGNAL AUSTRALIA EQUIPMENT(RR3) 24V 10W	1-82194-037-0	02	1	9810-0004
91	BULB; SIDE TURN SIGNAL EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	1-82194-030-0	02	1	9810-0004
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0005-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9601-
110	CLIP; RIM,HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-213-0	04	1	9601-0004
110	CLIP; RIM,HEADLAMP	1-86830-213-0	04	1	0005-0102
110	CLIP; RIM,HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-213-1	04	1	0103-
124	BULB; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W	1-82194-036-0	02	1	9601-0004
124	BULB; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 21W	1-82194-036-0	02	1	0005-
125	GASKET; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-033-0	02	1	9601-0004
125	GASKET; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-033-0	02	1	0005-
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-065-0	01	1	9601-0004
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-065-0	01	1	0005-
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-064-0	01	1	9601-0004
127	LENS; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ORANGE	1-82215-064-0	01	1	0005-
129	SCREW; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82219-026-0	04	1	9601-0004
129	SCREW; FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82219-026-0	04	1	0005-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9601-0206
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9601-
185	GROMMET; SCREW (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9601-9604
185	GROMMET; SCREW (B) D=8.6X7.7 L=7.5	1-09983-177-0	02	1	9605-9807
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9609-9908
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9609-9908
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9909-0004
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER	1-86830-139-0	02	1	9601-0004
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A) OUTER	1-86830-139-0	02	1	0005-
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER	1-86830-140-0	02	1	9601-0004
202	GEAR UNIT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) INNER	1-86830-140-0	02	1	0005-
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-142-0	01	1	9601-9911
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-329-0	01	1	9912-0004
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-329-0	01	1	0005-0105
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-144-0	01	1	9601-9911
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-331-0	01	1	9912-0004
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-331-0	01	1	0005-
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-141-0	01	1	9601-9911
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-328-0	01	1	9912-0004
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-86830-328-0	01	1	0005-0105
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-143-0	01	1	9601-9911
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-330-0	01	1	9912-0004
211	TUBE; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B)	1-86830-330-0	01	1	0005-
248	CLIP; HARNESS VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5	1-09709-083-0	01	1	9601-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9601-
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-203-1	01	1	9601-0004
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-203-1	01	1	0005-
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-202-1	01	1	9601-0004
324	LAMP; FRT FLASHER HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82210-202-1	01	1	0005-
326	WASHER; PL,FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-032-0	04	1	9601-0004
326	WASHER; PL,FRT TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-82216-032-0	04	1	0005-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-263-0	01	1	9601-9809
327	LAMP ASM; SIDE TURN SIGNAL AUSTRALIA EQUIPMENT(RR3)	1-86830-263-0	01	1	9810-0004
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-262-0	01	1	9601-9809
327	LAMP ASM; SIDE TURN SIGNAL AUSTRALIA EQUIPMENT(RR3)	1-86830-262-0	01	1	9810-0004
327	LAMP ASM; SIDE TURN SIGNAL EXC. AUSTRALIA EQUIPMENT(RR3)	1-86830-011-5	01	1	9810-0004
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0005-
327	LAMP ASM; SIDE TURN SIGNAL EXC. AUSTRALIA EQUIPMENT(RR3)	1-86830-007-5	01	1	9810-0004
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0005-
340	BULB; POSITION HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W	1-82194-042-0	02	1	9601-0004
340	BULB; POSITION HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 5W	1-82194-042-0	02	1	0005-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	9601-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	9601-
350	COVER; SIDE TURN HOLE	1-79998-944-1	01	1	9601-0209
350	COVER; SIDE TURN HOLE	1-79996-607-0	01	1	0210-
350	COVER; SIDE TURN HOLE	1-79998-943-1	01	1	9601-0209
350	COVER; SIDE TURN HOLE	1-79996-606-0	01	1	0210-
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-033-0	02	1	9601-0004
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-034-0	02	1	9601-0004
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82219-034-0	02	1	0005-

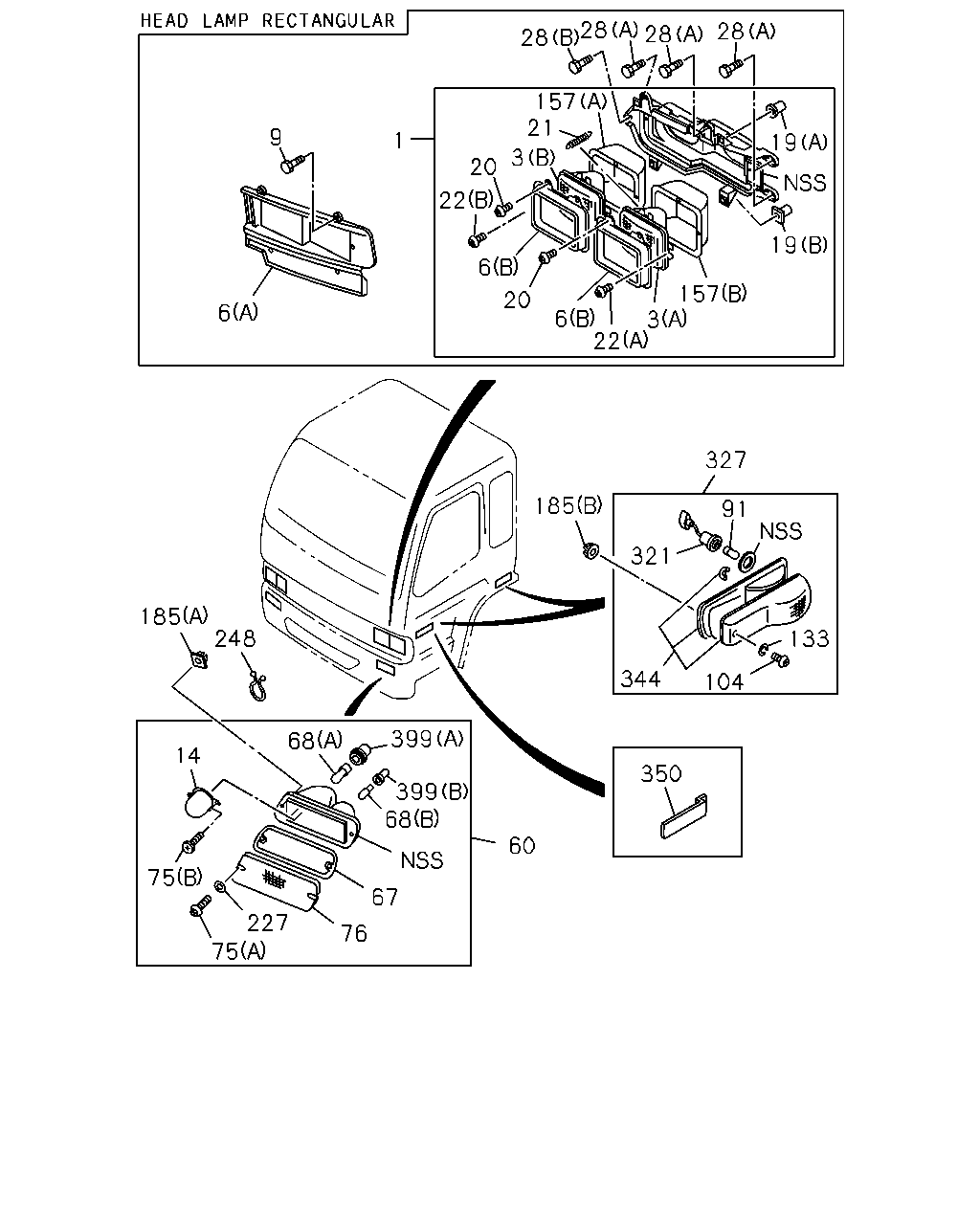

28 28 28 28 157 21 9 3 1 19 20 22 19 6 157 20 6 6 22 3 327 185 91 321 185 248 133 344 104 399 68 14 350 399 68 60 75 67 227 76 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-169-1	01	1	9601-0004
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4>	1-86830-168-1	01	1	9601-0004
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-178-6	01	1	9601-0210
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-359-0	01	1	0211-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-177-6	01	1	9601-0210
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-358-0	01	1	0211-
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-122-3	01	1	9601-0004
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA>	1-86830-121-3	01	1	9601-0004
3	SEALED BEAM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 65/50W	1-82113-011-0	02	1	9601-0004
3	SEALED BEAM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	8-94111-276-0	02	1	9601-0004
6	RIM; HEADLAMP CUSTOM CAB(SR5) (C)	1-88434-533-0	01	1	9910-0004
6	RIM; HEADLAMP CUSTOM CAB(SR5) (C)	1-88434-532-0	01	1	9910-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	8-94165-573-0	04	1	9601-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-71118-746-1	01	1	9601-9804
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-71118-745-1	01	1	9805-0004
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-71118-745-1	01	1	9601-9804
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-71118-746-1	01	1	9805-0004
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-5	01	1	9601-9909
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C)	1-86830-006-5	01	1	9910-0004
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-006-5	01	1	0005-
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-5	01	1	9601-9909
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. CUSTOM CAB(SR5) (C)	1-86830-005-5	01	1	9910-0004
6	RIM; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C)	1-86830-005-5	01	1	0005-
9	SCREW; HEADLAMP RIM HEADLAMPS RECTANGULAR<TR4> M4X20 TAPPING W/PL WASHER	0-74110-420-0	08	1	9601-0004
14	CAP; BULB,LAMP HEADLAMPS RECTANGULAR<TR4>	1-82219-030-0	02	1	9609-0004
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	9601-0004
14	CAP; BULB,LAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>	1-86830-148-0	02	1	0005-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-117-0	08	1	9601-0004
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	8-97044-618-0	08	1	9601-0004
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4> M4X8	8-94165-886-0	16	1	9601-0004
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-120-0	04	1	9601-0004
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-118-0	07	1	9601-0004
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-119-0	01	1	9601-0004
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (D) M6X16 FLANGE	0-28650-616-0	04	1	0709-
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9601-0004
28	BOLT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0004
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9601-0004
28	BOLT; HEADLAMP (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0005-0102
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0103-0708
28	BOLT; HEADLAMP HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-211-0	01	1	9601-9608
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-221-0	01	1	9609-0004
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-210-0	01	1	9601-9608
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4>	1-82210-220-0	01	1	9609-0004
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82216-033-0	02	1	9601-0004
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 21W	1-82194-036-0	02	1	9601-0004
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B) 24V 5W	8-94135-397-0	02	1	9601-0004
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-026-0	04	1	9601-0004
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-031-0	04	1	9609-0004
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> ORANGE	1-82215-065-0	01	1	9601-9608
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82215-071-0	01	1	9609-0004
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> ORANGE	1-82215-064-0	01	1	9601-9608
76	LENS; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82215-070-0	01	1	9609-0004
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	9601-9809
91	BULB; SIDE TURN SIGNAL AUSTRALIA EQUIPMENT(RR3) 24V 10W	1-82194-037-0	02	1	9810-0004
91	BULB; SIDE TURN SIGNAL EXC. AUSTRALIA EQUIPMENT(RR3) 24V 12W	1-82194-030-0	02	1	9810-0004
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0005-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9601-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9601-0206
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-032-0	01	1	9601-0004
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-033-0	01	1	9601-0004
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-031-0	01	1	9601-0004
157	RING; MTG,HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-034-0	01	1	9601-0004
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9601-
185	GROMMET; SCREW (B) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9601-9604
185	GROMMET; SCREW (B) D=8.6X7.7 L=7.5	1-09983-177-0	02	1	9605-9807
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9609-9908
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9609-9908
185	GROMMET; SCREW LAMPS FOUR ROOF MARKER<PJ5> (C) M5 SCREW GROMMET	1-09983-131-0	12	1	9909-0004
227	SEAT; SET SCREW,FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4>	1-82216-032-0	04	1	9601-0004
248	CLIP; HARNESS VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=11.5	1-09709-083-0	01	1	9601-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9601-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-263-0	01	1	9601-9809
327	LAMP ASM; SIDE TURN SIGNAL AUSTRALIA EQUIPMENT(RR3)	1-86830-263-0	01	1	9810-0004
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-262-0	01	1	9601-9809
327	LAMP ASM; SIDE TURN SIGNAL AUSTRALIA EQUIPMENT(RR3)	1-86830-262-0	01	1	9810-0004
327	LAMP ASM; SIDE TURN SIGNAL EXC. AUSTRALIA EQUIPMENT(RR3)	1-86830-011-5	01	1	9810-0004
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0005-
327	LAMP ASM; SIDE TURN SIGNAL EXC. AUSTRALIA EQUIPMENT(RR3)	1-86830-007-5	01	1	9810-0004
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0005-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	9601-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	9601-
350	COVER; SIDE TURN HOLE	1-79998-944-1	01	1	9601-0209
350	COVER; SIDE TURN HOLE	1-79996-607-0	01	1	0210-
350	COVER; SIDE TURN HOLE	1-79998-943-1	01	1	9601-0209
350	COVER; SIDE TURN HOLE	1-79996-606-0	01	1	0210-
399	SOCKET; TURN SIGNAL HEADLAMPS RECTANGULAR<TR4> (B)	1-82219-033-0	02	1	9601-0004
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,HEADLAMPS RECTANGULAR<TR4> (A)	1-82219-034-0	02	1	9601-0004
399	SOCKET; TURN SIGNAL HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (A)	1-82219-034-0	02	1	0005-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
