◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#65005) — 44 parça

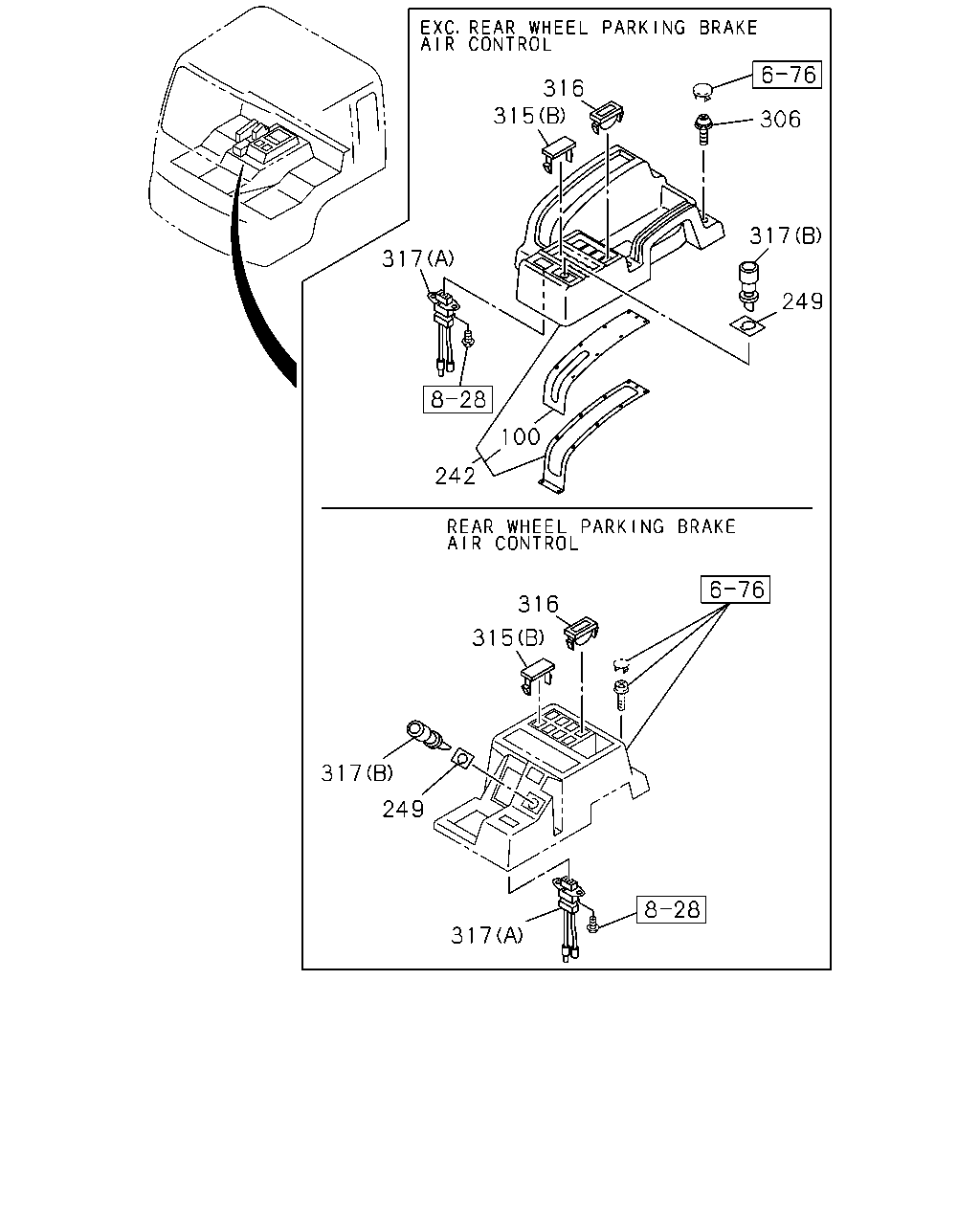

çizim 134059
316 315 306 317 317 249 100 242 316 315 317 249 317
BalonParca AdiParca NoAdetTipApplied Date
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-161-3 01 1 0005-
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-161-3 01 1 9805-0004
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-164-4 01 1 9805-0004
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-245-0 01 1 0005-
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 9807-0004
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0005-0202
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0203-
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 9805-0004
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9601-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 9601-
316 BOX; COIN 8-94482-280-2 02 1 9803-
317 CONSENT
(A) 		1-82523-020-2 01 1 9601-
317 CONSENT
ELEC OUTLET 12V<TAW> (B) 		8-94382-451-1 01 1 9807-0004

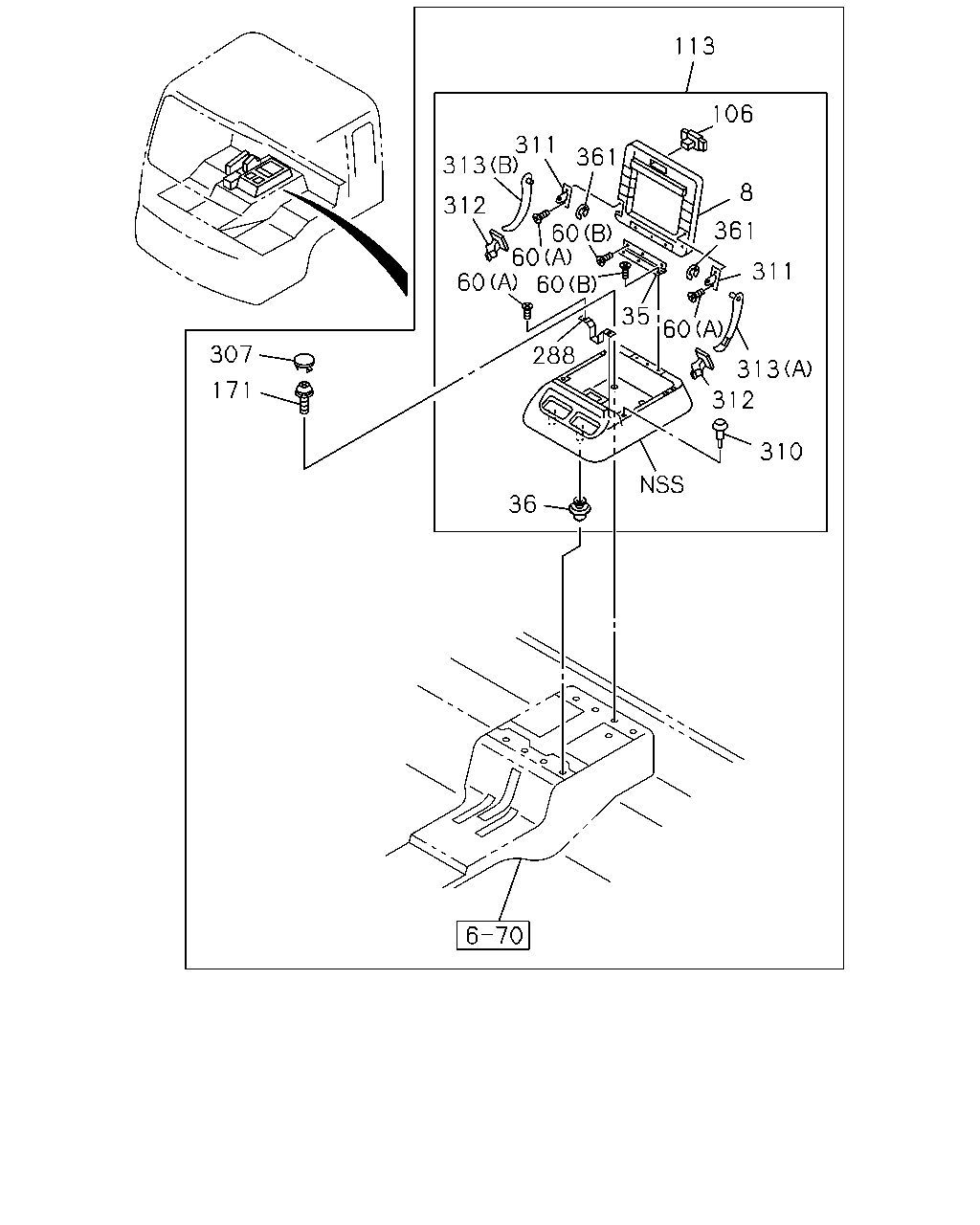

çizim 134235
113 106 311 313 361 8 312 60 60 60 361 311 60 35 60 307 288 313 171 312 310 36
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-179-3 01 1 9601-0004
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-260-1 01 1 0005-0703
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-321-0 01 1 0704-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 01 1 9601-
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 9602-
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0610-0703
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0210-0603
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0604-
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) M5X14 		8-94279-325-0 04 1 0210-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 9601-
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-175-5 01 1 9601-9601
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-225-0 01 1 9602-0004
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-258-0 01 1 0005-0209
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-297-2 01 1 0210-0609
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-315-1 01 1 0610-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0005-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9601-0004
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 9601-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9601-0004
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-76337-461-0 02 1 0005-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 9601-
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 9601-
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 9601-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) 		1-72538-185-3 01 1 9601-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) 		1-72538-184-3 01 1 9601-
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> ID=5 		9-09185-405-0 02 1 0210-

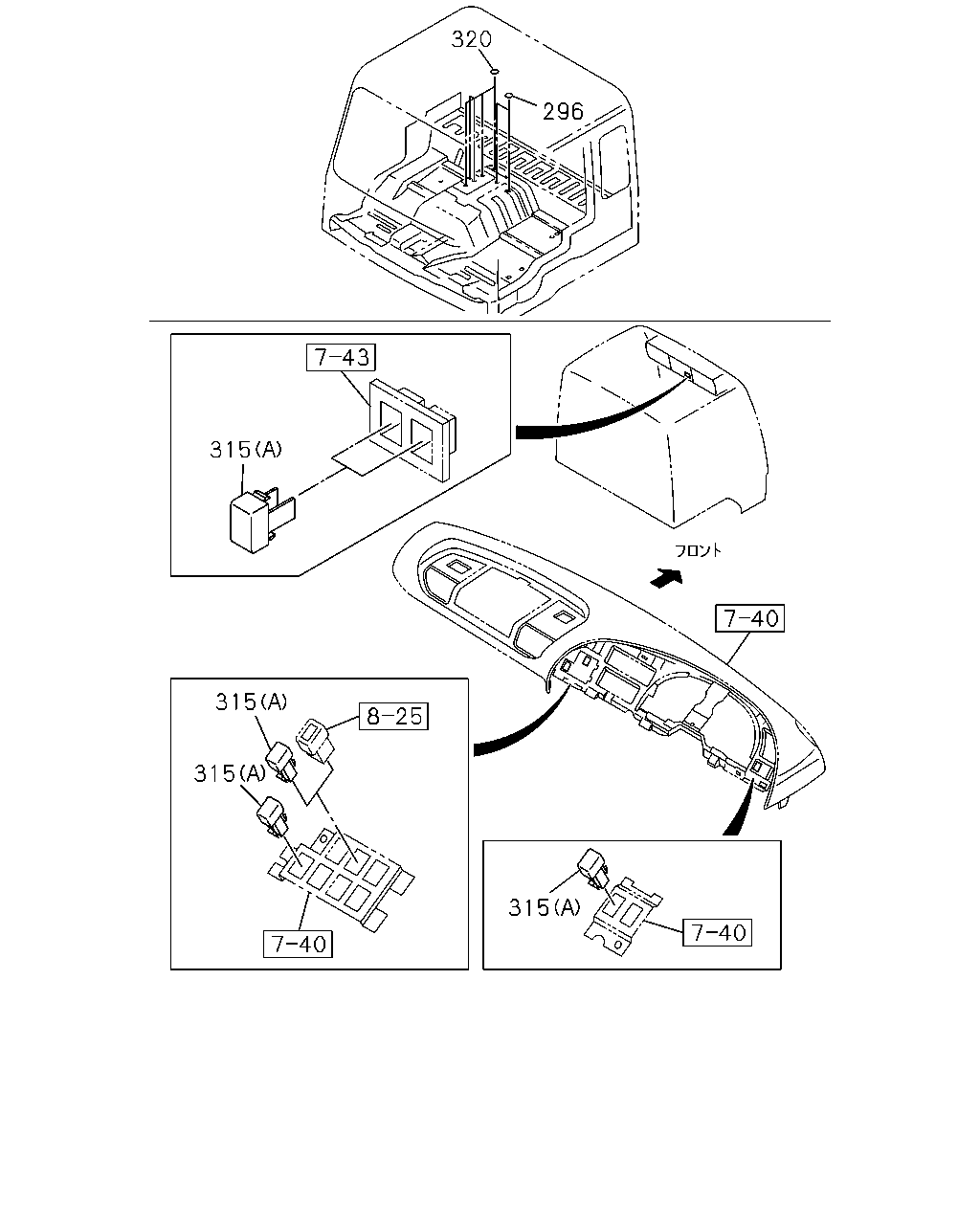

çizim 184482
320 296 315 315 315 315
BalonParca AdiParca NoAdetTipApplied Date
296 SEAL
CENTER SEAT 3 CREWS<SA1> OD=25 BLACK 		1-76798-019-0 02 1 9601-
296 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> EXC. HIGH ROOF<S2F> OD=25 BLACK 		1-76798-019-0 02 1 9601-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9601-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 9601-
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 05 1 9601-
