Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#65004) — 282 parça

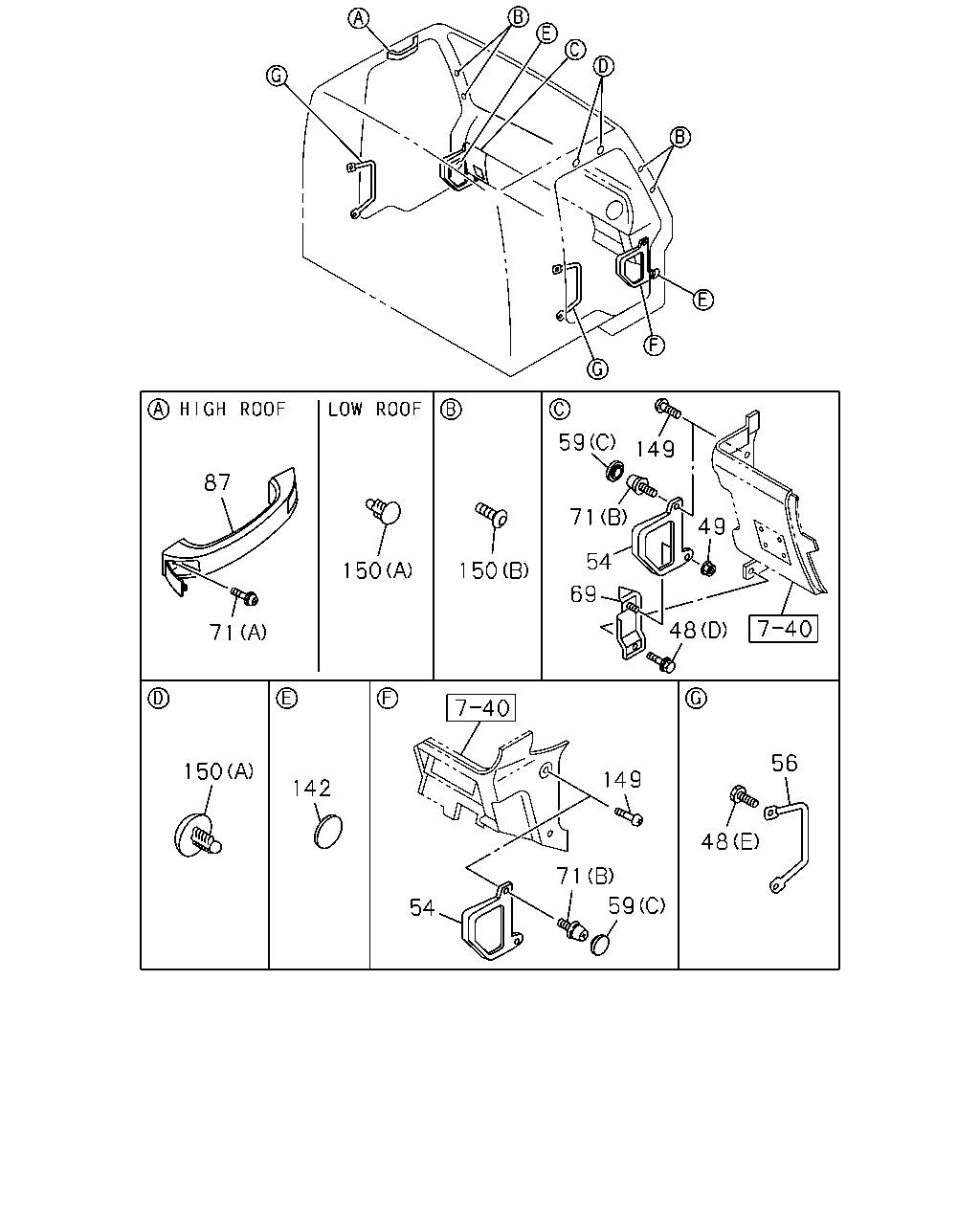

59 149 87 71 49 54 150 150 69 48 71 56 150 149 142 48 71 59 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (E) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9601-
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-
48	BOLT; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3) (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9608
48	BOLT; ASSIST GRIP EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9609-0004
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9601-9603
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-
49	NUT; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3) M6 FLANGE	0-91150-106-0	01	1	9601-9608
49	NUT; ASSIST GRIP EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M6 FLANGE	0-91150-106-0	01	1	9609-0004
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0005-0602
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0603-
54	GRIP; ASSIST,QUARTER SIDE AUSTRALIA EQUIPMENT(RR3)	1-73618-158-2	02	1	9601-9608
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-73618-158-2	02	1	9609-0004
54	GRIP; ASSIST,QUARTER SIDE EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-067-0	01	1	9601-9608
54	GRIP; ASSIST,QUARTER SIDE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-73617-067-0	01	1	9609-0004
54	GRIP; ASSIST,QUARTER SIDE	1-73617-564-1	01	1	0005-
54	GRIP; ASSIST,QUARTER SIDE EXC. AUSTRALIA EQUIPMENT(RR3)	1-73617-066-0	01	1	9601-9608
54	GRIP; ASSIST,QUARTER SIDE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-73617-066-0	01	1	9609-0004
54	GRIP; ASSIST,QUARTER SIDE	1-73617-563-1	01	1	0005-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9601-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9601-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9601-
59	COVER; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3) (C)	1-73617-069-0	02	1	9601-9608
59	COVER; ASSIST GRIP EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-73617-069-0	02	1	9609-0004
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-
69	BRACKET; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3)	1-73618-178-2	01	1	9601-9608
69	BRACKET; ASSIST GRIP EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-73618-178-2	01	1	9609-0004
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	0005-
71	SCREW AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9601-9608
71	SCREW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9609-0004
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9601-9608
71	SCREW EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9609-0004
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0005-
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9601-9702
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-9909
71	SCREW CUSTOM CAB(SR5) (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9910-0004
71	SCREW HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9910-0004
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9601-0004
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0005-0212
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0301-
142	SEAL; ASSIST GRIP AUSTRALIA EQUIPMENT(RR3) OD=25 BLACK	1-76798-019-0	02	1	9601-9608
142	SEAL; ASSIST GRIP NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=25 BLACK	1-76798-019-0	02	1	9609-0004
149	SCREW; ASSIST GRIP HOLE AUSTRALIA EQUIPMENT(RR3) M6X16	8-94479-534-0	02	1	9601-9608
149	SCREW; ASSIST GRIP HOLE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M6X16	8-94479-534-0	02	1	9609-0004
150	CLIP; ASSIST GRIP HOLE EXC. AUSTRALIA EQUIPMENT(RR3) (B) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9601-9608
150	CLIP; ASSIST GRIP HOLE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9609-0004
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0005-
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9601-9804
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	9805-0212
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> HIGH ROOF<S2F> (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9601-0212
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (E) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9601-
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-
48	BOLT; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3) (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9608
48	BOLT; ASSIST GRIP EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9609-0004
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0005-0904
48	BOLT; ASSIST GRIP (D) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9601-9603
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9601-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9601-
59	COVER; ASSIST GRIP EXC. AUSTRALIA EQUIPMENT(RR3) (C)	1-73617-069-0	02	1	9601-9608
59	COVER; ASSIST GRIP EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (C)	1-73617-069-0	02	1	9609-0004
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71997-895-1	02	1	9601-9610
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71907-492-0	02	1	9611-0907
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	9601-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9601-
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9601-
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	9601-
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	9601-

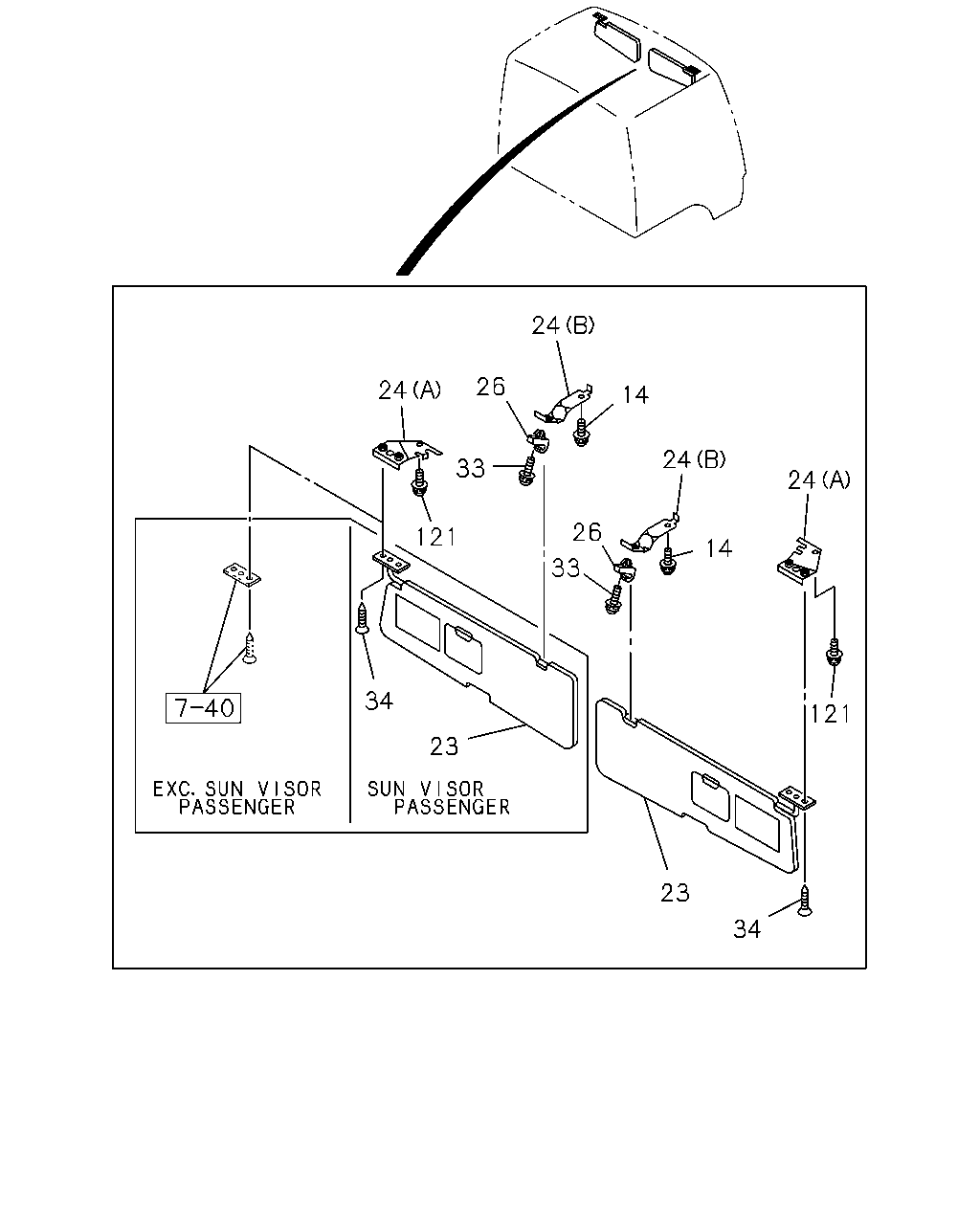

24 26 24 14 24 33 24 26 121 14 33 34 121 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0005-
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9601-0004
23	SUN VISOR	1-73138-148-1	01	1	9601-0004
23	SUN VISOR	1-73138-156-1	01	1	0005-
23	SUN VISOR HIGH ROOF<S2F>	1-73138-150-0	01	1	9601-9704
23	SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ>	1-73138-150-0	01	1	9601-9704
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9705-0004
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (B)	1-73138-145-0	02	1	9601-
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-144-1	01	1	9601-
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-143-1	01	1	9601-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9601-0004
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9601-0101
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9601-9704
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0005-
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9601-0004

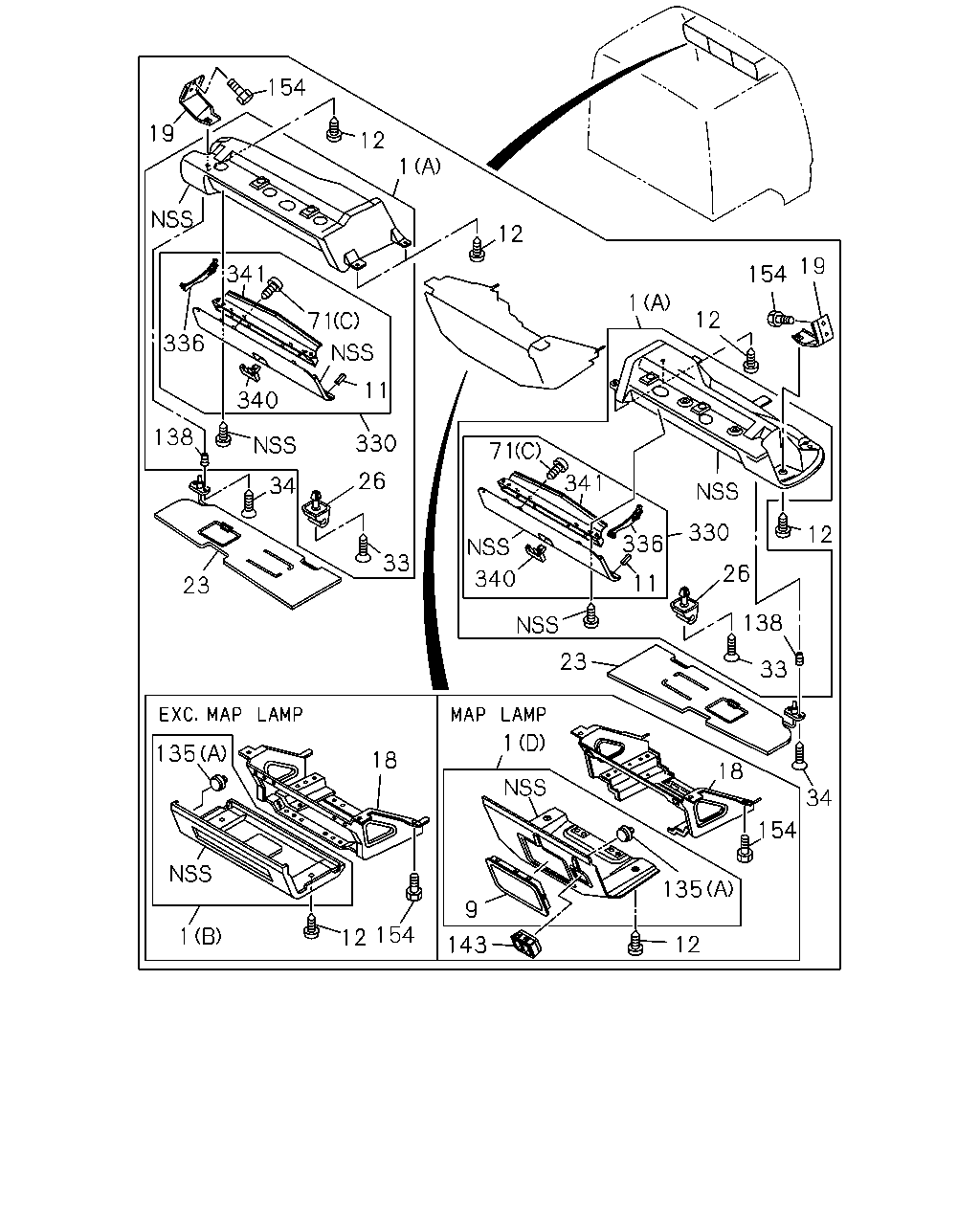

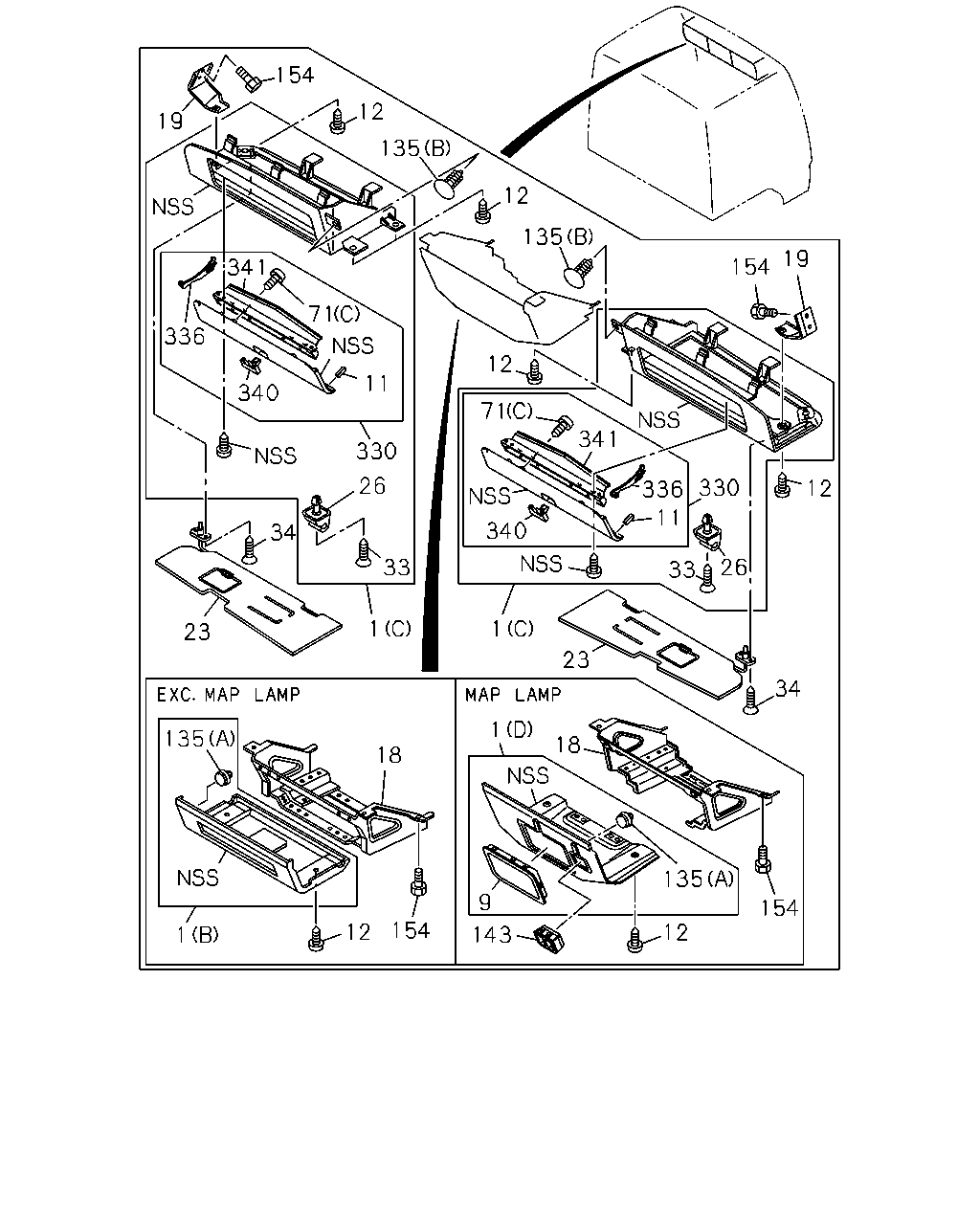

154 12 19 135 12 135 19 154 341 71 336 12 11 340 71 341 330 26 330 12 336 11 340 34 26 33 33 1 1 23 23 34 1 135 18 18 135 9 154 154 12 12 143 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF CUSTOM CAB(SR5) (A)	1-72448-597-2	01	1	9910-0004
1	BOARD; HEADER SHELF CUSTOM CAB(SR5) (A)	1-72448-596-2	01	1	9910-0004
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-568-1	01	1	9601-9909
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER	1-72448-568-1	01	1	9910-0004
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-663-0	01	1	0005-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9601-9804
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-616-1	01	1	9805-9909
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C)	1-73318-616-1	01	1	9910-0003
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C)	1-73318-689-0	01	1	0004-0004
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-691-0	01	1	0005-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9601-9804
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73317-362-1	01	1	9805-9909
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C)	1-73317-362-1	01	1	9910-0003
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C)	1-73318-687-0	01	1	0004-0004
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-690-0	01	1	0005-
1	BOARD; HEADER SHELF MAP LAMP<C85> (D)	1-72448-535-1	01	1	9910-0004
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	9910-0004
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9601-9909
11	CAP; HEADER SHELF CUSTOM CAB(SR5)	8-94270-538-0	04	1	9910-0004
11	CAP; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	8-94270-538-0	04	1	9910-0004
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	0005-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-0004
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	1-72448-552-4	01	1	9601-9604
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-0	01	1	9605-9909
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	8-97865-124-0	01	1	9910-0004
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-1	01	1	0005-
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-0	01	1	9910-0004
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9601-
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9601-
23	SUN VISOR	1-73138-148-1	01	1	9601-0004
23	SUN VISOR	1-73138-156-1	01	1	0005-
23	SUN VISOR HIGH ROOF<S2F>	1-73138-150-0	01	1	9601-9704
23	SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ>	1-73138-150-0	01	1	9601-9704
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9705-0004
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9601-0004
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9601-0101
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9601-9704
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-
71	SCREW AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9601-9608
71	SCREW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9609-0004
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9601-9608
71	SCREW EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9609-0004
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0005-
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9601-9702
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-9909
71	SCREW CUSTOM CAB(SR5) (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9910-0004
71	SCREW HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9910-0004
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9601-9909
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9910-0004
135	CLIP; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9910-0004
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0005-0005
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9805-0209
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 BLACK	1-09987-114-0	02	1	0210-
143	BEZEL CUSTOM CAB(SR5)	1-72448-532-0	01	1	9910-0004
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9601-
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9601-9909
330	LID; HEADER SHELF CUSTOM CAB(SR5)	1-72448-360-3	02	1	9910-0004
330	LID; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	1-72448-360-3	02	1	9910-0004
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-679-0	02	1	0005-
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9601-9909
336	STAY; LID CUSTOM CAB(SR5)	1-72448-379-3	04	1	9910-0004
336	STAY; LID HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	1-72448-379-3	04	1	9910-0004
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	0005-
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9601-9909
340	LOCK; HEADER SHELF CUSTOM CAB(SR5)	1-72448-376-0	02	1	9910-0004
340	LOCK; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	1-72448-376-0	02	1	9910-0004
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	0005-
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9601-9909
341	HINGE; LID,HEADER SHELF CUSTOM CAB(SR5)	1-72448-403-1	02	1	9910-0004
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	1-72448-403-1	02	1	9910-0004
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	0005-

154 19 12 1 12 19 341 154 1 12 71 336 11 340 138 330 71 26 341 34 330 12 336 33 26 340 11 23 138 23 33 1 135 18 18 34 154 135 9 154 1 12 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF CUSTOM CAB(SR5) (A)	1-72448-597-2	01	1	9910-0004
1	BOARD; HEADER SHELF CUSTOM CAB(SR5) (A)	1-72448-596-2	01	1	9910-0004
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-568-1	01	1	9601-9909
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (B) CENTER	1-72448-568-1	01	1	9910-0004
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B) CENTER	1-72448-663-0	01	1	0005-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9601-9804
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-616-1	01	1	9805-9909
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C)	1-73318-616-1	01	1	9910-0003
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C)	1-73318-689-0	01	1	0004-0004
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-691-0	01	1	0005-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9601-9804
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73317-362-1	01	1	9805-9909
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C)	1-73317-362-1	01	1	9910-0003
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C)	1-73318-687-0	01	1	0004-0004
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-73318-690-0	01	1	0005-
1	BOARD; HEADER SHELF MAP LAMP<C85> (D)	1-72448-535-1	01	1	9910-0004
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85>	1-72448-547-2	01	1	9910-0004
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9601-9909
11	CAP; HEADER SHELF CUSTOM CAB(SR5)	8-94270-538-0	04	1	9910-0004
11	CAP; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	8-94270-538-0	04	1	9910-0004
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	0005-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-0004
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	1-72448-552-4	01	1	9601-9604
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-0	01	1	9605-9909
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	8-97865-124-0	01	1	9910-0004
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	8-97865-124-1	01	1	0005-
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85>	1-72448-632-0	01	1	9910-0004
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9601-
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9601-
23	SUN VISOR	1-73138-148-1	01	1	9601-0004
23	SUN VISOR	1-73138-156-1	01	1	0005-
23	SUN VISOR HIGH ROOF<S2F>	1-73138-150-0	01	1	9601-9704
23	SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ>	1-73138-150-0	01	1	9601-9704
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-150-1	01	1	9705-0004
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0005-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9601-0004
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9601-0101
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9601-9704
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-
71	SCREW AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9601-9608
71	SCREW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9609-0004
71	SCREW EXC. AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9601-9608
71	SCREW EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9609-0004
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0005-
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9601-9702
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-0212
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-9909
71	SCREW CUSTOM CAB(SR5) (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9910-0004
71	SCREW HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5) (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9910-0004
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	0005-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9601-9909
135	CLIP; HEADER SHELF MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9910-0004
135	CLIP; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9910-0004
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	0005-0005
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	06	1	0006-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9805-0209
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 BLACK	1-09987-114-0	02	1	0210-
138	NUT; BRKT,HEADER SHELF CUSTOM CAB(SR5)	1-09984-166-0	04	1	9910-0004
138	NUT; BRKT,HEADER SHELF HIGH ROOF<S2F>	1-09984-166-0	04	1	9601-9804
143	BEZEL CUSTOM CAB(SR5)	1-72448-532-0	01	1	9910-0004
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9601-
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9601-9909
330	LID; HEADER SHELF CUSTOM CAB(SR5)	1-72448-360-3	02	1	9910-0004
330	LID; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	1-72448-360-3	02	1	9910-0004
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-679-0	02	1	0005-
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9601-9909
336	STAY; LID CUSTOM CAB(SR5)	1-72448-379-3	04	1	9910-0004
336	STAY; LID HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	1-72448-379-3	04	1	9910-0004
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	0005-
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9601-9909
340	LOCK; HEADER SHELF CUSTOM CAB(SR5)	1-72448-376-0	02	1	9910-0004
340	LOCK; HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	1-72448-376-0	02	1	9910-0004
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	0005-
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9601-9909
341	HINGE; LID,HEADER SHELF CUSTOM CAB(SR5)	1-72448-403-1	02	1	9910-0004
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F> EXC. CUSTOM CAB(SR5)	1-72448-403-1	02	1	9910-0004
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	0005-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
