7-40 — INSTRUMENT PANEL AND BOX (#65003) — 194 parça

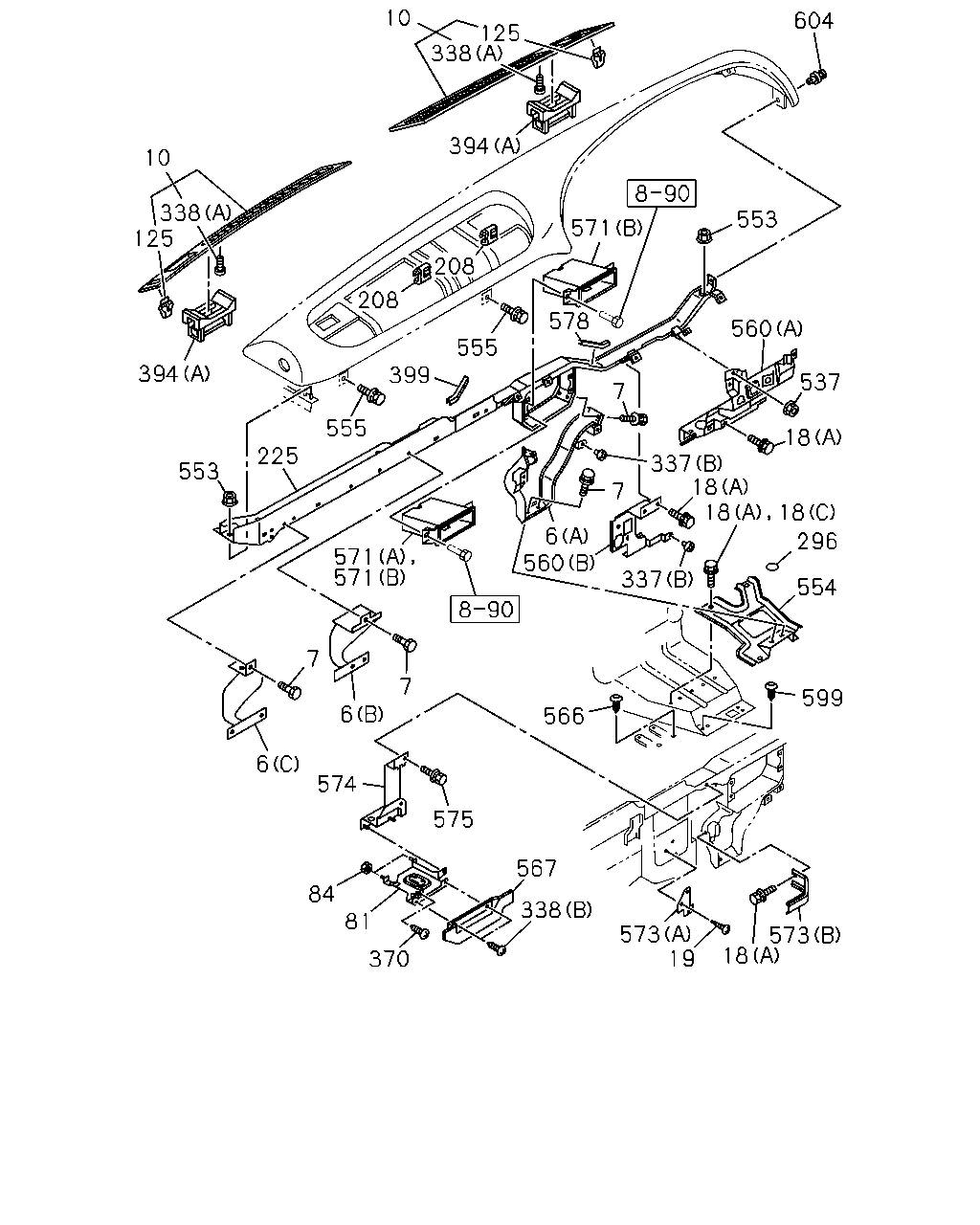

çizim 184480
10 604 125 338 394 10 338 125 553 571 208 208 578 560 555 394 399 537 7 555 18 225 337 18 18 553 7 18 6 560 296 571 571 337 554 7 7 599 6 566 6 574 575 567 84 338 81 573 19 573 18 370
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
(A) 		1-65680-961-4 01 1 9601-9904
6 SUPPORT; INST PANEL
(A) 		1-65681-165-2 01 1 9905-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (C) 		1-65681-064-2 01 1 9601-
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		1-65681-063-3 01 1 9601-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9601-
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-
10 PANEL ASM; GARNISH
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72437-603-2 01 1 9910-0004
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-2 01 1 9602-9909
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> W/SPEAKER NET 		1-72437-601-2 01 1 9910-0004
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 0005-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 9602-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-158-1 01 1 9602-
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-72438-157-1 01 1 9602-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0209-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9601-9801
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9802-0004
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-0004
18 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 9805-0512
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 9910-0004
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-0004
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9601-0004
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0005-
81 BRACKET; ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-73908-156-4 01 1 9601-0004
84 NUT; CONT UNIT BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-0004
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005-
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9812
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0004
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9812
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005-
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9601-
225 FRAME; FACIA 1-65681-096-2 01 1 9601-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 01 1 9601-9806
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601-0004
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0005-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601-
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 9601-9909
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 05 1 9910-0004
338 SCREW; COVER
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (A) M5X14 		8-94279-325-0 05 1 9910-0004
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> (A) M5X14 		8-94279-325-0 05 1 9910-0004
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0005-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94148-576-1 10 1 0209-0309
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 20 1 0310-0405
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 10 1 0406-0801
338 SCREW; COVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M5X14 		8-94279-325-0 15 1 0802-
338 SCREW; COVER
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) M6X16 		8-94479-534-0 02 1 9601-0004
370 SCREW; BRKT,ELEC CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M5X14 		8-94279-325-0 01 1 9601-0004
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9807
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9601-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9601-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 9601-
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9601-0512
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-
560 BRACKET
(B) 		1-65680-976-3 01 1 9601-
560 BRACKET
(A) 		1-65681-078-7 01 1 9601-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9601-
567 COVER; CONT UNIT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-65681-022-1 01 1 9601-0004
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9601-9812
571 BEZEL; POCKET
EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> (B) 		1-72438-151-0 01 1 9601-9812
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 9901-
571 BEZEL; POCKET
EXC. RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> (B) 		1-72438-151-3 01 1 9901-
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-73908-023-2 01 1 9601-
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (B) 		1-73908-024-2 01 1 9601-
574 PANEL; RELAY BOX 1-73908-011-3 01 1 9601-9910
574 PANEL; RELAY BOX 1-73908-252-3 01 1 9911-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-
578 SEAL; PROTECTOR,HARNESS
100X30 		1-72498-014-1 01 1 9601-9903
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 9904-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 9601-
604 CLIP; INST PAD 1-09983-123-0 01 1 9601-

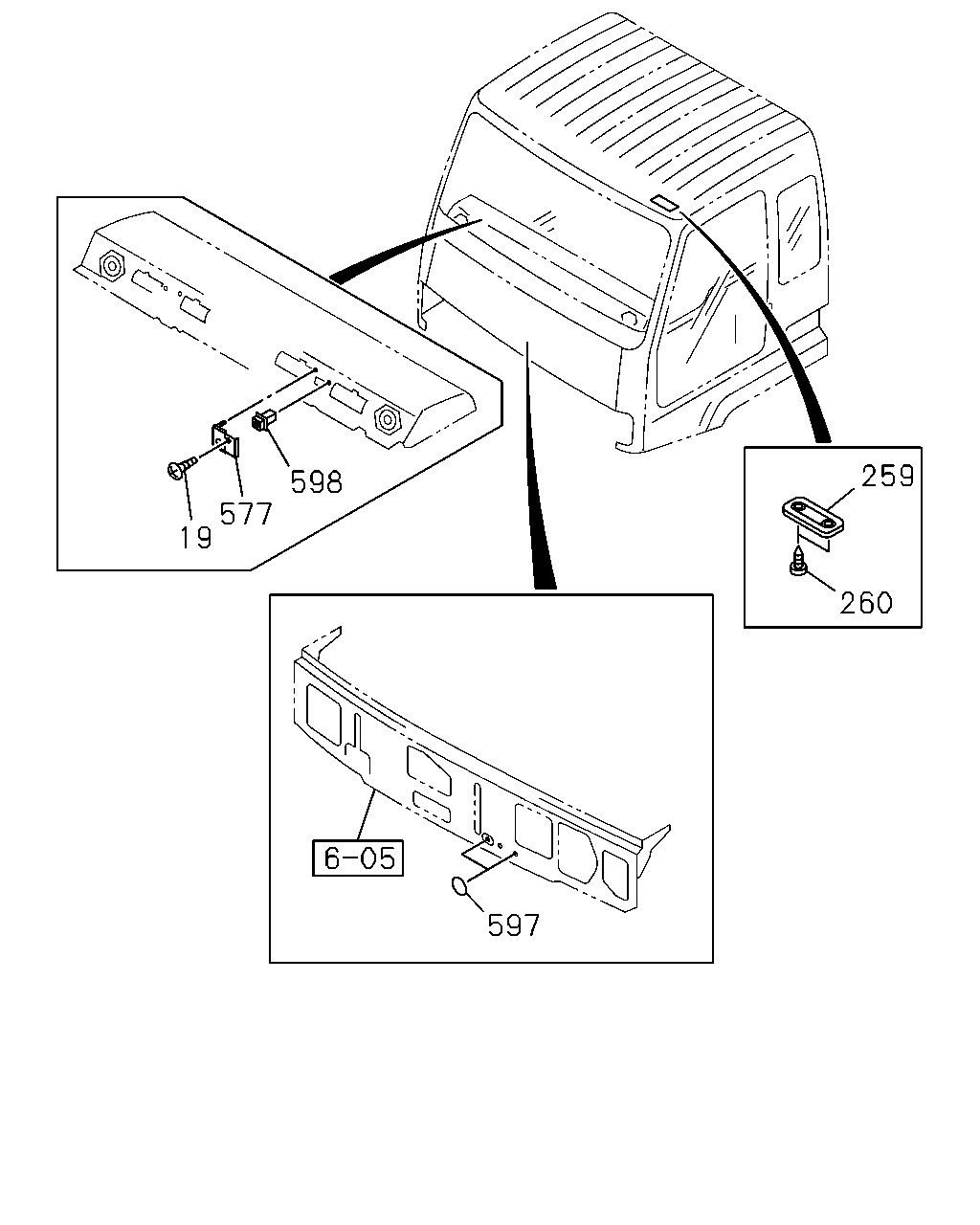

çizim 184481
259 598 577 19 260 597
BalonParca AdiParca NoAdetTipApplied Date
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 9910-0004
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-0004
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9601-0004
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0005-
259 PLATE; STUFF,SUN VISOR
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9601-9804
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9805-0004
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005-
260 SCREW; STUFF PLATE
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9601-9804
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9805-
577 BRACKET; SENSOR
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		1-72318-414-0 01 1 9910-0004
597 SEAL; HOLE,DASH
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> OD=16 BLACK 		1-76798-037-0 02 1 9601-0004
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0005-
598 GROMMET; SCREW
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 9910-0004

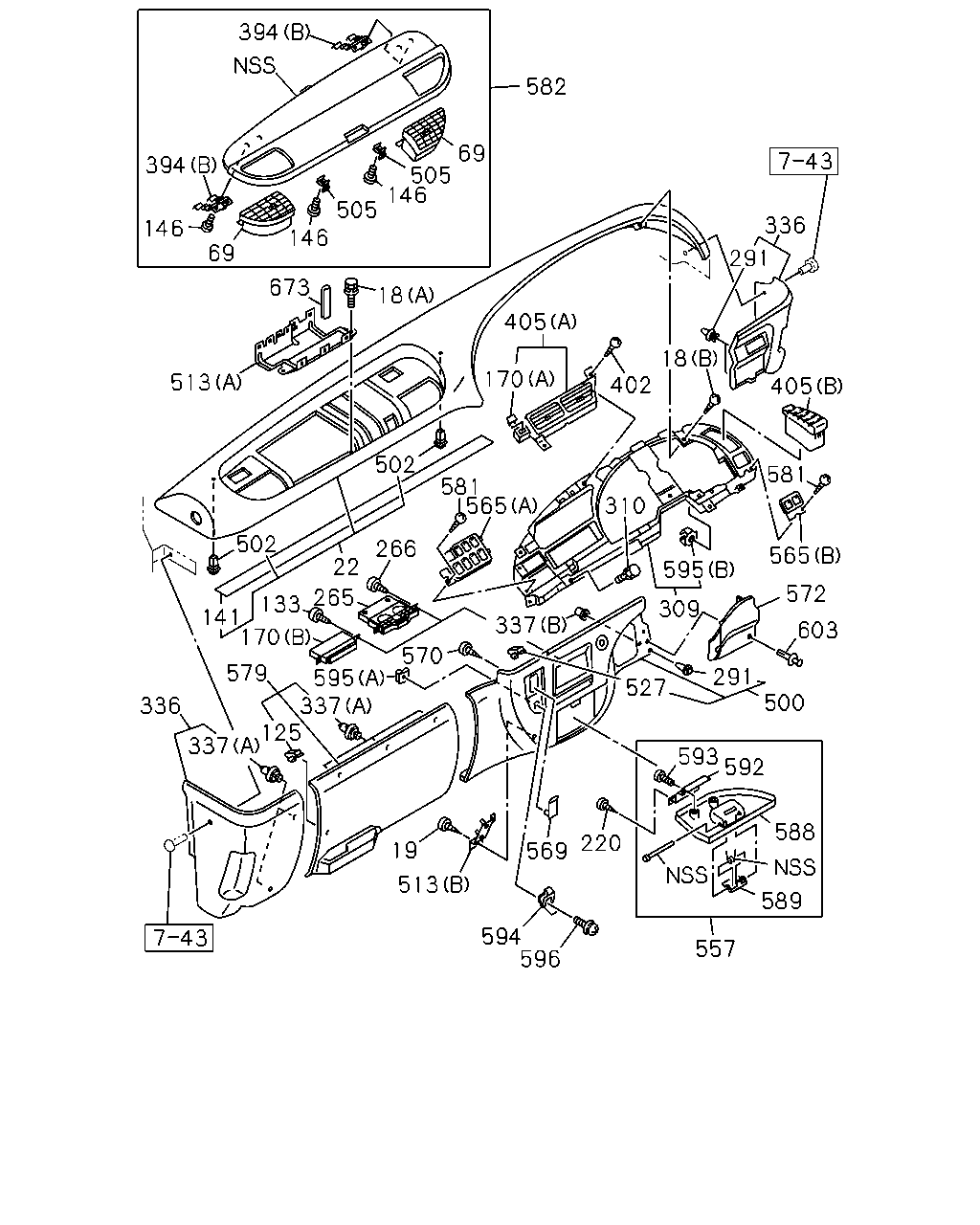

çizim 184491
394 582 69 505 146 394 505 146 336 146 69 291 673 18 405 18 170 513 402 405 502 581 581 565 310 502 266 565 22 595 572 265 133 309 141 170 337 603 570 579 291 595 337 125 527 500 336 337 593 592 588 220 19 569 513 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0209-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9601-9801
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9802-0004
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-0004
18 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0005-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9802-9804
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 9805-0512
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-
19 SCREW; BRKT
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> M5X14 		8-94279-325-0 01 1 9910-0004
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601-0004
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9601-0004
19 SCREW; BRKT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 0005-
22 PAD; INST 1-72318-421-2 01 1 9601-0004
22 PAD; INST 1-72318-433-4 01 1 0005-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9601-0004
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0005-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9601-0004
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0005-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0005-
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9812
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-0004
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9812
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. AUTO LIGHT HEADLAMPS ON-OFF CONTROL<TAT> 		8-97217-066-0 04 1 9910-0004
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005-
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004
133 SCREW; COVER,INST PNL
EXC. INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9601-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9601-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9601-
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 9601-
170 COVER; HOLE
EXC. INTERIOR ORNAMENT HOLDER<TEJ> (B) 		1-72438-139-1 01 1 9601-
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 9601-
265 HOLDER; CUP
INTERIOR ORNAMENT HOLDER<TEJ> 		8-97853-172-8 01 1 9601-
266 SCREW; CUP STAND
INTERIOR ORNAMENT HOLDER<TEJ> M5X14 		8-94279-325-0 02 1 9601-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0005-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 9601-0004
309 PANEL; SW,INST 1-72418-009-6 01 1 9601-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0209-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9601-0004
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0005-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9601-0004
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0005-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601-0004
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0005-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 9601-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9601-
500 CLUSTER; INST CENTER 1-72438-117-9 01 1 9601-0004
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0005-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9601-
505 LOCK; LID 1-72558-024-2 02 1 9601-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9601-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9601-0004
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9601-9812
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 9601-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 9601-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 9601-
569 HOLDER; CARD 1-72498-015-2 01 1 9601-
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 9601-
572 COVER; INSPECTION 1-72438-054-3 01 1 9601-0004
572 COVER; INSPECTION 1-72438-183-0 01 1 0005-
579 COVER; INST PNL 1-72438-113-4 01 1 9601-0004
579 COVER; INST PNL 1-72438-184-1 01 1 0005-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-127-8 01 1 9601-0004
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0005-
588 LID; BOX 1-72548-135-3 01 1 9601-
589 KNOB; LID 1-72548-143-0 01 1 9601-
592 HINGE; LID 1-72548-133-3 01 1 9601-
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 9601-
594 HOOK; COAT 1-72498-013-0 01 1 9601-
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 9601-0012
595 NUT; HOOK
(A) WO/NUT 		8-97810-118-0 01 1 0101-0110
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 0111-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 9601-
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 9601-0012
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0101-0110
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111-
603 CLIP; COVER 1-09987-245-1 01 1 9601-0004
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0005-
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
