7-10 — CAUTION PLATE AND LABEL (#65000) — 39 parça

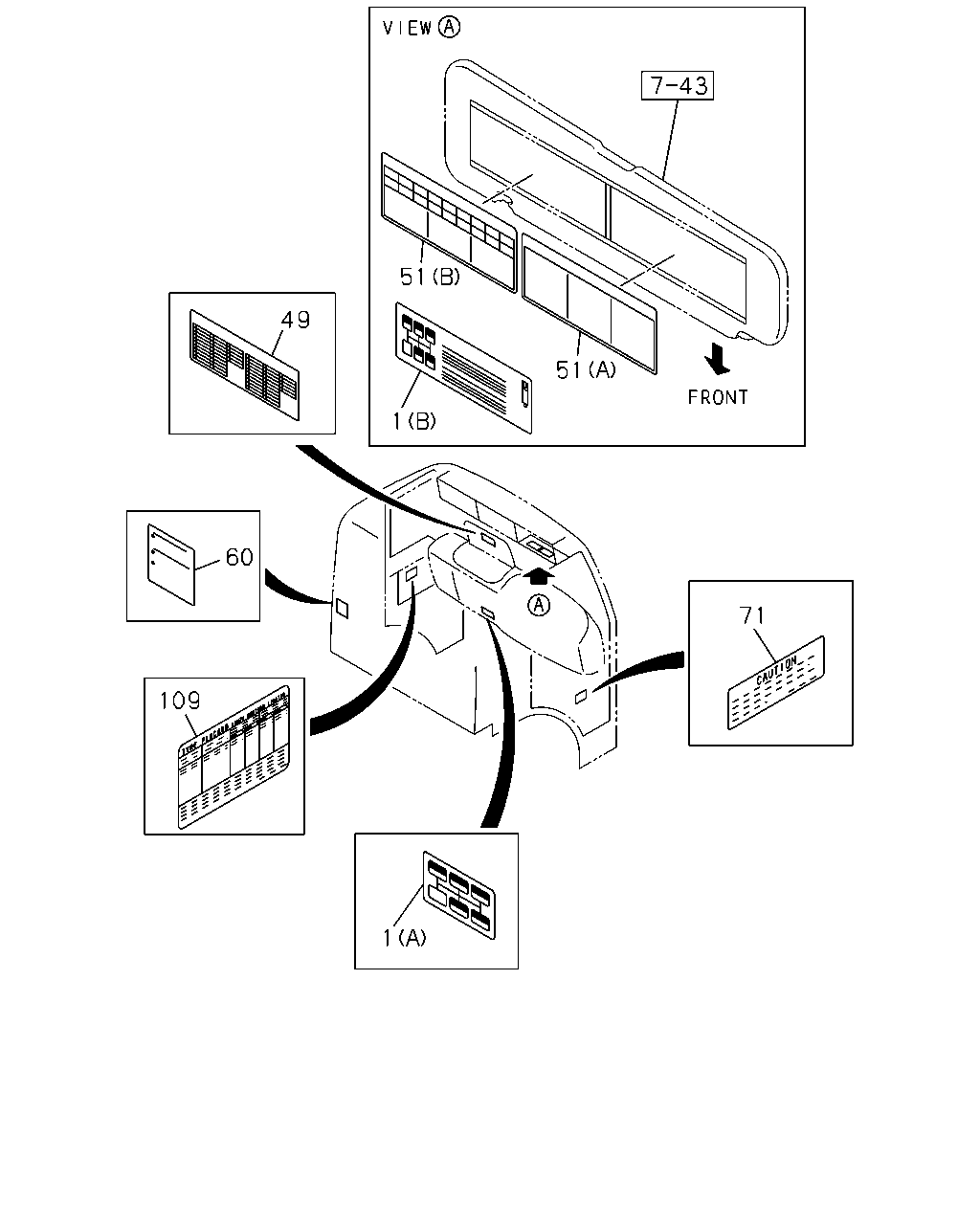

51 49 51 1 60 71 109 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PLATE; CAUTION,SHIFT PATTERN FULLER FS8209 DD M/T(Y2S) (A)	1-85881-598-0	01	1	9601-0004
1	PLATE; CAUTION,SHIFT PATTERN FULLER FS8209 DD M/T(Y2S) (B)	1-85881-599-0	01	1	9601-0004
1	PLATE; CAUTION,SHIFT PATTERN FULLER RT7608LL M/T(X8P) (B)	1-85881-639-0	01	1	9609-0004
1	PLATE; CAUTION,SHIFT PATTERN FULLER RT7608LL M/T(X8P) (A)	1-85881-640-0	01	1	9609-0004
49	PLATE; CAUTION,FUSE BOX	1-85888-554-2	01	1	9601-9804
49	PLATE; CAUTION,FUSE BOX	1-85877-623-0	01	1	9805-9806
49	PLATE; CAUTION,FUSE BOX EXC. ELEC OUTLET 12V<TAW>	1-85877-623-0	01	1	9807-0004
49	PLATE; CAUTION,FUSE BOX ELEC OUTLET 12V<TAW>	1-85878-077-0	01	1	9807-0004
49	PLATE; CAUTION,FUSE BOX	1-85878-278-0	01	1	0005-
51	PLATE; CAUTION,WARNING (A)	1-85880-707-1	01	1	9601-
51	PLATE; CAUTION,WARNING (B)	1-85888-559-2	01	1	9601-
60	PLATE; CAUTION,CAB TILT	1-85883-169-0	01	1	9601-
71	PLATE; CAUTION,PARKING KENYA EQUIPMENT(PQ2)	1-85881-851-0	01	1	0110-
109	PLATE; CAUTION,TIRE PLACARD TIRE 11R22.5-16 SPECIAL AUSTRALIA(46P) AUSTRALIA EQUIPMENT(RR3)	1-85881-743-0	01	1	9601-9810
109	PLATE; CAUTION,TIRE PLACARD TIRE 11R22.5-16 SPECIAL AUSTRALIA(46P),TIRE 11R22.5-16 SPECIAL(73K) AUSTRALIA EQUIPMENT(RR3)	1-85881-743-0	01	1	9811-0004
109	PLATE; CAUTION,TIRE PLACARD TIRE 275/70R22.5 SPECIAL(45P) AUSTRALIA EQUIPMENT(RR3)	1-85881-748-0	01	1	9601-9810
109	PLATE; CAUTION,TIRE PLACARD TIRE 275/70R22.5 SPECIAL VAR2(39N),TIRE 275/70R22.5SPECIAL(45P) AUSTRALIA EQUIPMENT(RR3)	1-85881-748-0	01	1	9811-0004

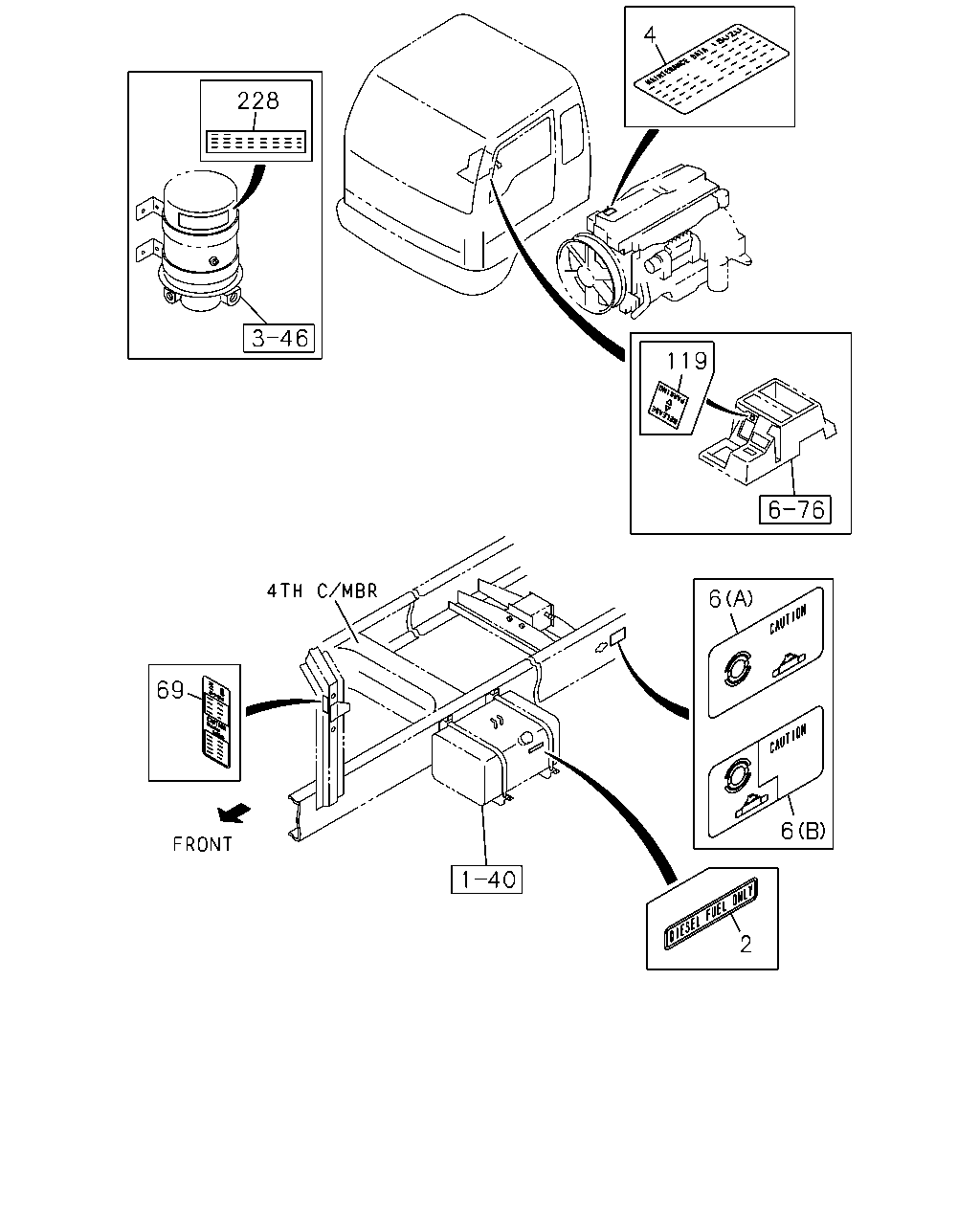

228 4 119 6 69 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LABEL; FUEL CAUTION FUEL TANK 200L FMCSR(PK6)	8-94414-353-0	01	1	9601-9604
2	LABEL; FUEL CAUTION FUEL TANK 200L+200L(NF7) AUSTRALIA EQUIPMENT(RR3)	8-94414-353-0	01	1	9601-9604
2	LABEL; FUEL CAUTION FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	8-94414-353-0	01	1	9605-9804
2	LABEL; FUEL CAUTION FUEL TANK 200L+200L FMCSR(TGS)	8-94414-353-0	01	1	9605-9804
2	LABEL; FUEL CAUTION FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	8-97135-605-0	01	1	9805-0004
2	LABEL; FUEL CAUTION FUEL TANK 200L+200L FMCSR(TGS)	8-97135-605-0	01	1	9805-0004
4	LABEL; ENG MAINTENANCE 6HH1 STD ENG(65L)	8-94391-228-0	01	1	9805-
4	LABEL; ENG MAINTENANCE 6SD1 STD ENG(37L)	1-85886-789-0	01	1	9601-
4	LABEL; ENG MAINTENANCE 6SD1 TCN ENG(31L)	1-85886-788-0	01	1	9601-9705
4	LABEL; ENG MAINTENANCE 6SD1 TCN ENG(31L) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-85886-788-0	01	1	9706-9804
4	LABEL; ENG MAINTENANCE 6SD1 TCN ENG(31L) AUSTRALIA EQUIPMENT(RR3)	1-85886-788-0	01	1	9805-0004
4	LABEL; ENG MAINTENANCE 6SD1 TCN ENG(31L) NEW ZEALAND EQUIPMENT(PK5)	1-85886-864-0	01	1	9706-0004
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)	1-53639-004-0	01	1	9601-0004
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53639-004-0	01	1	0005-0708
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98082-437-0	01	1	0709-
69	PLATE; CAUTION,STARTER SW AUSTRALIA EQUIPMENT(RR3)	1-85887-389-0	01	1	9601-9608
69	PLATE; CAUTION,STARTER SW NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	1-85887-389-0	01	1	9609-0004
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-726-0	01	1	9601-9606
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	9607-0004
119	PLATE; CAUTION,HAND BRK LEVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85881-759-0	01	1	0005-
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7>	1-48199-325-0	01	1	9805-0004
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7>	1-85887-935-0	01	1	0110-1001
