Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#650) — 180 parça

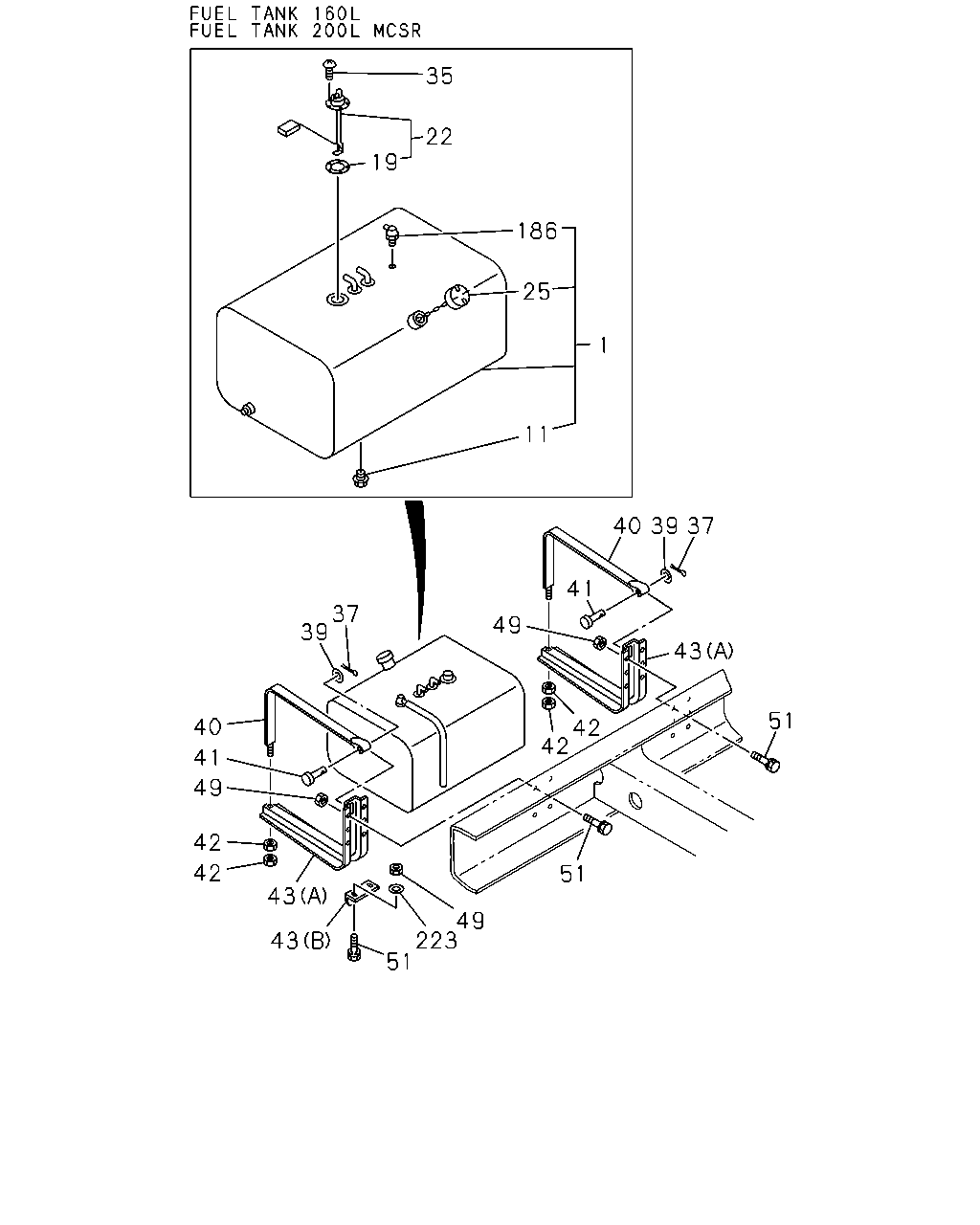

35 22 19 186 25 1 11 41 37 39 49 43 51 40 42 42 41 49 42 42 51 43 49 223 51 43 40 39 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22400-790-3	01	1	9202-9502	●
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22401-016-0	01	1	9503-	●
1	TANK; FUEL FUEL TANK 160L<NG6> 730X597X413 160L	1-22400-820-0	01	1	9202-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X532.4X322.4 200L	1-22400-508-3	01	1	9202-	●	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 869X597X413 200L	1-22400-819-0	01	1	9202-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-09604-052-0	01	1	9202-9203	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M14X14	9-09862-156-0	01	1	9503-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9204-9502	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9204-9502		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	9202-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22417-001-0	01	1	9202-9203	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>	5-83148-001-0	01	1	9202-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-83149-003-0	01	1	9202-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-011-0	01	1	9202-	●	●
22	UNIT; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-83141-069-0	01	1	9202-	●
22	UNIT; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-83141-086-1	01	1	9202-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-031-0	01	1	9202-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22440-046-0	01	1	9202-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9202-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9202-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>	1-22419-008-0	05	1	9208-9502	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02> M5X10 W/LK WASHER	9-03910-510-0	05	1	9503-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9202-9207	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9208-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9202-	●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> OD=3.7 L=28	9-08114-028-0	02	1	9202-	●	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=17	9-09164-516-0	02	1	9202-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22550-206-1	02	1	9202-9404	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=755	1-22550-182-2	02	1	9405-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22550-221-0	02	1	9202-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=775	1-22550-211-1	02	1	9202-9404	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=790	1-22550-186-2	02	1	9405-	●	●
41	PIN; SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> OD=16 L=75	9-08224-675-0	02	1	9202-	●	●
42	NUT; SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9202-	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M10	9-09110-510-0	04	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-53461-202-6	02	1	9202-	●
43	BRACKET; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-53461-354-2	02	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B)	1-53461-432-1	02	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9202-	●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-512-0	08	1	9202-	●
49	NUT; BRKT WHEEL BASE 3700MM(37W) FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	13	1	9202-	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9202-	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9202-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 W/LK WASHER	0-50041-235-0	08	1	9202-9307	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 FLANGE	0-28081-235-0	08	1	9308-	●
51	BOLT; BRKT TO FRAME FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12X35 W/LK WASHER	0-50041-235-0	16	1	9202-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	16	1	9308-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER	0-50041-235-0	12	1	9202-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	12	1	9308-	●	●
186	VALVE; GT,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22453-005-0	01	1	9202-	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> ID=12.5 OD=26	9-09160-612-0	04	1	9202-	●	●

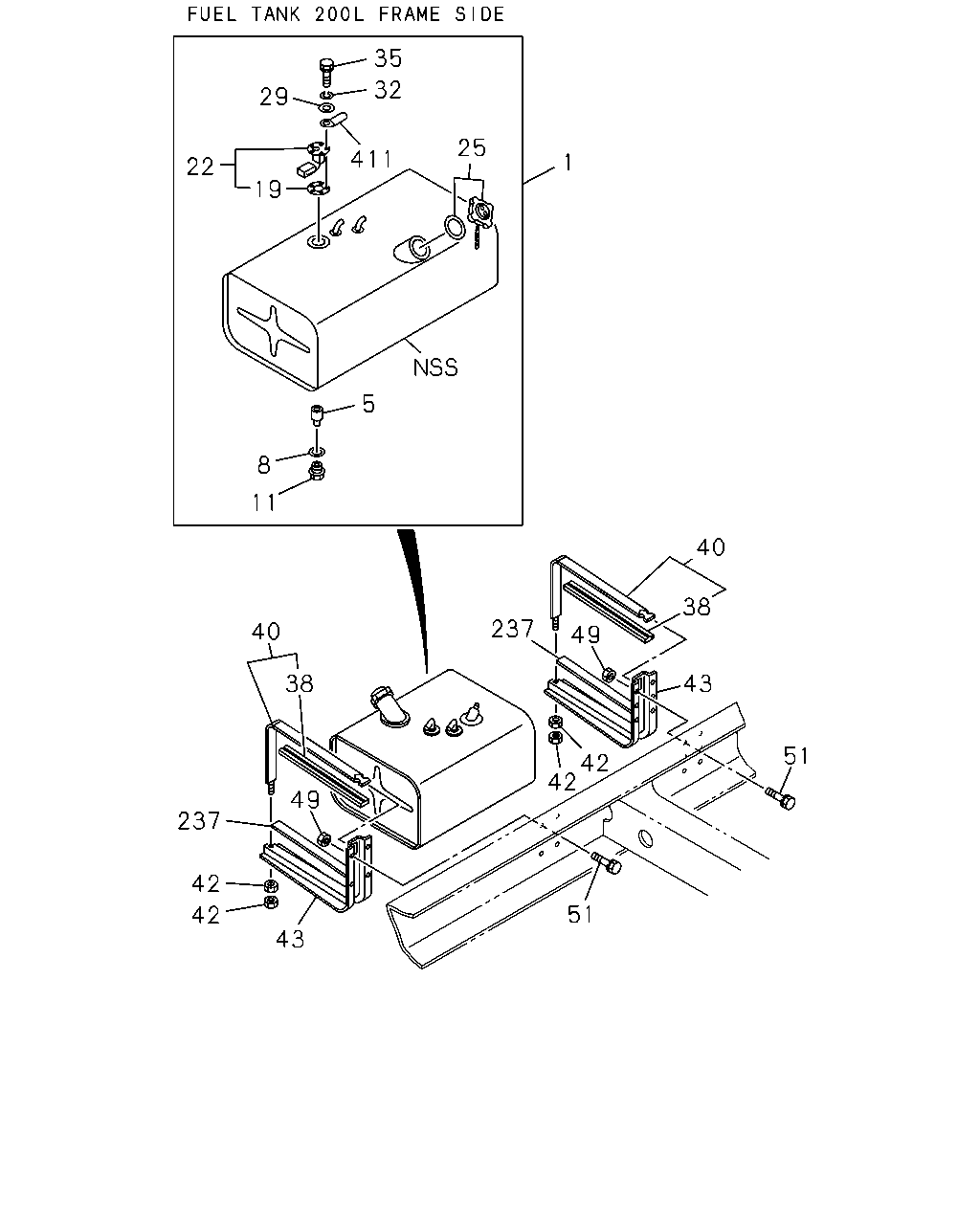

35 32 29 25 411 1 22 19 5 8 11 40 38 237 40 49 38 43 51 42 42 49 237 42 51 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22400-790-3	01	1	9202-9502	●
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22401-016-0	01	1	9503-	●
1	TANK; FUEL FUEL TANK 160L<NG6> 730X597X413 160L	1-22400-820-0	01	1	9202-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X532.4X322.4 200L	1-22400-508-3	01	1	9202-	●	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 869X597X413 200L	1-22400-819-0	01	1	9202-	●	●
5	STRAINER; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22460-001-1	01	1	9202-	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22460-026-0	01	1	9202-9203	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	9204-9402	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	9-09572-014-0	01	1	9503-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20>	9-09923-030-0	01	1	9202-9502	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-09923-030-0	01	1	9202-9502		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-09923-030-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-09604-052-0	01	1	9202-9203	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M14X14	9-09862-156-0	01	1	9503-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9204-9502	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9204-9502		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	9202-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22417-001-0	01	1	9202-9203	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>	5-83148-001-0	01	1	9202-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-83149-003-0	01	1	9202-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-011-0	01	1	9202-	●	●
22	UNIT; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-83141-069-0	01	1	9202-	●
22	UNIT; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-83141-086-1	01	1	9202-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-031-0	01	1	9202-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22440-046-0	01	1	9202-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9202-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9202-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9202-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	01	1	9202-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>	1-22419-008-0	05	1	9208-9502	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02> M5X10 W/LK WASHER	9-03910-510-0	05	1	9503-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9202-9207	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9208-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9202-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-014-2	02	1	9202-9404	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 100L FRAME SIDE<N02> L=540	1-22553-014-2	02	1	9405-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22550-206-1	02	1	9202-9404	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=755	1-22550-182-2	02	1	9405-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22550-221-0	02	1	9202-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=775	1-22550-211-1	02	1	9202-9404	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=790	1-22550-186-2	02	1	9405-	●	●
42	NUT; SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9202-	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M10	9-09110-510-0	04	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-53461-202-6	02	1	9202-	●
43	BRACKET; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-53461-354-2	02	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B)	1-53461-432-1	02	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9202-	●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-512-0	08	1	9202-	●
49	NUT; BRKT WHEEL BASE 3700MM(37W) FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	13	1	9202-	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9202-	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9202-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 W/LK WASHER	0-50041-235-0	08	1	9202-9307	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 FLANGE	0-28081-235-0	08	1	9308-	●
51	BOLT; BRKT TO FRAME FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12X35 W/LK WASHER	0-50041-235-0	16	1	9202-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	16	1	9308-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER	0-50041-235-0	12	1	9202-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	12	1	9308-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=480	1-22553-002-0	02	1	9202-9301	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> L=480	1-22553-002-0	02	1	9302-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9202-9301	●	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 100L FRAME SIDE<N02>	1-09700-708-0	01	1	9202-	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20>	1-09700-416-0	01	1	9202-	●	●

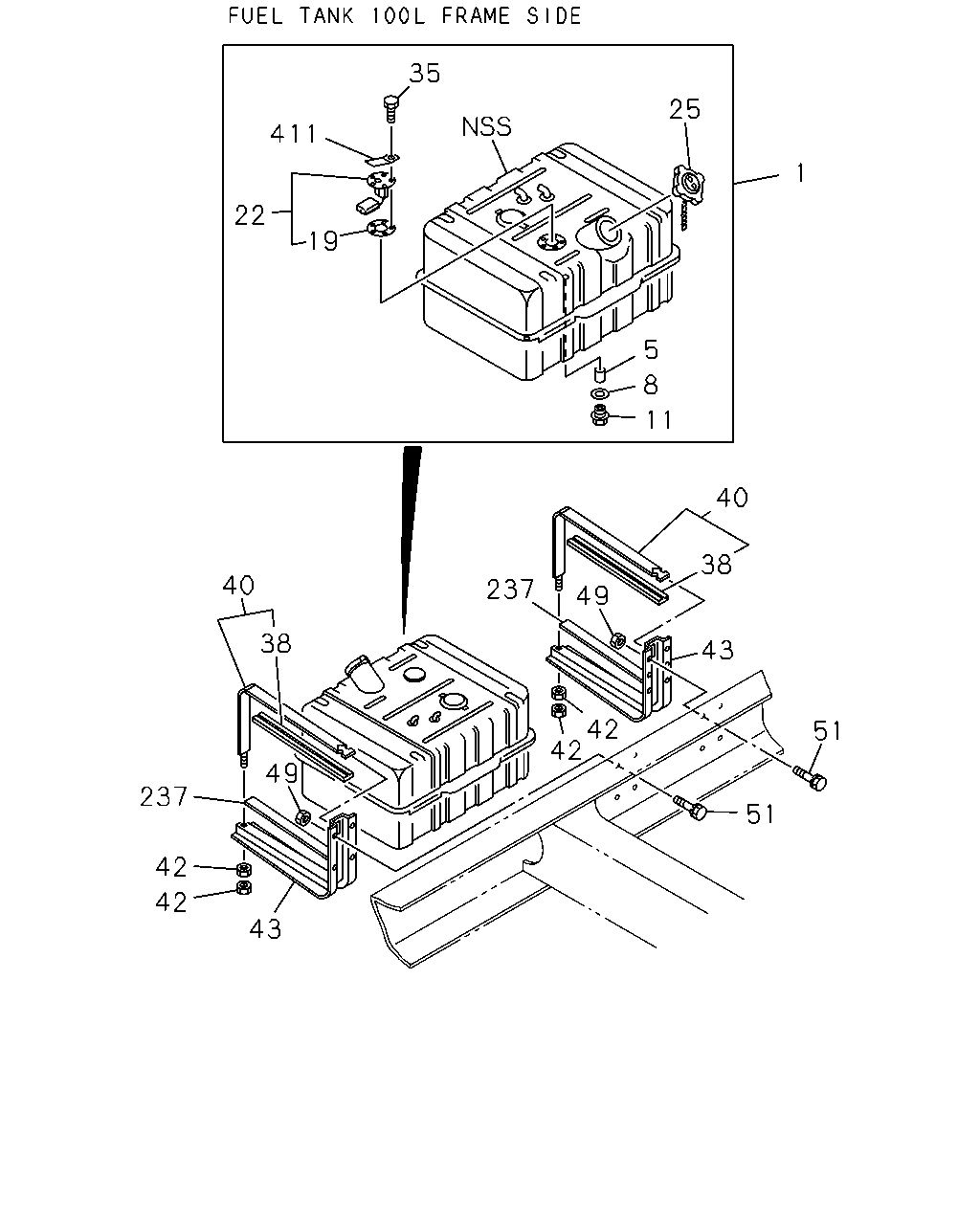

35 25 411 1 22 19 5 8 11 40 38 40 237 49 38 43 42 42 51 49 237 51 42 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22400-790-3	01	1	9202-9502	●
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22401-016-0	01	1	9503-	●
1	TANK; FUEL FUEL TANK 160L<NG6> 730X597X413 160L	1-22400-820-0	01	1	9202-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X532.4X322.4 200L	1-22400-508-3	01	1	9202-	●	●
1	TANK; FUEL FUEL TANK 200L FMCSR<PK6> 869X597X413 200L	1-22400-819-0	01	1	9202-	●	●
5	STRAINER; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22460-001-1	01	1	9202-	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22460-026-0	01	1	9202-9203	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	9204-9402	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	9-09572-014-0	01	1	9503-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20>	9-09923-030-0	01	1	9202-9502	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-09923-030-0	01	1	9202-9502		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-09923-030-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-09604-052-0	01	1	9202-9203	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M14X14	9-09862-156-0	01	1	9503-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9204-9502	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9204-9502		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09604-082-0	01	1	9202-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22417-001-0	01	1	9202-9203	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>	5-83148-001-0	01	1	9202-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-83149-003-0	01	1	9202-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-011-0	01	1	9202-	●	●
22	UNIT; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-83141-069-0	01	1	9202-	●
22	UNIT; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-83141-086-1	01	1	9202-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-031-0	01	1	9202-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22440-046-0	01	1	9202-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22440-050-0	01	1	9202-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9202-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>	1-22419-008-0	05	1	9208-9502	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02> M5X10 W/LK WASHER	9-03910-510-0	05	1	9503-	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9202-9207	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9208-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09187-007-0	05	1	9202-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-014-2	02	1	9202-9404	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 100L FRAME SIDE<N02> L=540	1-22553-014-2	02	1	9405-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22550-206-1	02	1	9202-9404	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=755	1-22550-182-2	02	1	9405-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-22550-221-0	02	1	9202-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=775	1-22550-211-1	02	1	9202-9404	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=790	1-22550-186-2	02	1	9405-	●	●
42	NUT; SUPPORT BELT FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6>	1-09487-027-1	04	1	9202-	●	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M10	9-09110-510-0	04	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-53461-202-6	02	1	9202-	●
43	BRACKET; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-53461-354-2	02	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B)	1-53461-432-1	02	1	9202-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9202-	●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-512-0	08	1	9202-	●
49	NUT; BRKT WHEEL BASE 3700MM(37W) FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	13	1	9202-	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9202-	●	●
49	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12	9-99110-512-0	16	1	9202-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 W/LK WASHER	0-50041-235-0	08	1	9202-9307	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 FLANGE	0-28081-235-0	08	1	9308-	●
51	BOLT; BRKT TO FRAME FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12X35 W/LK WASHER	0-50041-235-0	16	1	9202-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> M12X35 FLANGE	0-28081-235-0	16	1	9308-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER	0-50041-235-0	12	1	9202-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	12	1	9308-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=480	1-22553-002-0	02	1	9202-9301	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> L=480	1-22553-002-0	02	1	9302-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9202-9301	●	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 100L FRAME SIDE<N02>	1-09700-708-0	01	1	9202-	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20>	1-09700-416-0	01	1	9202-	●	●

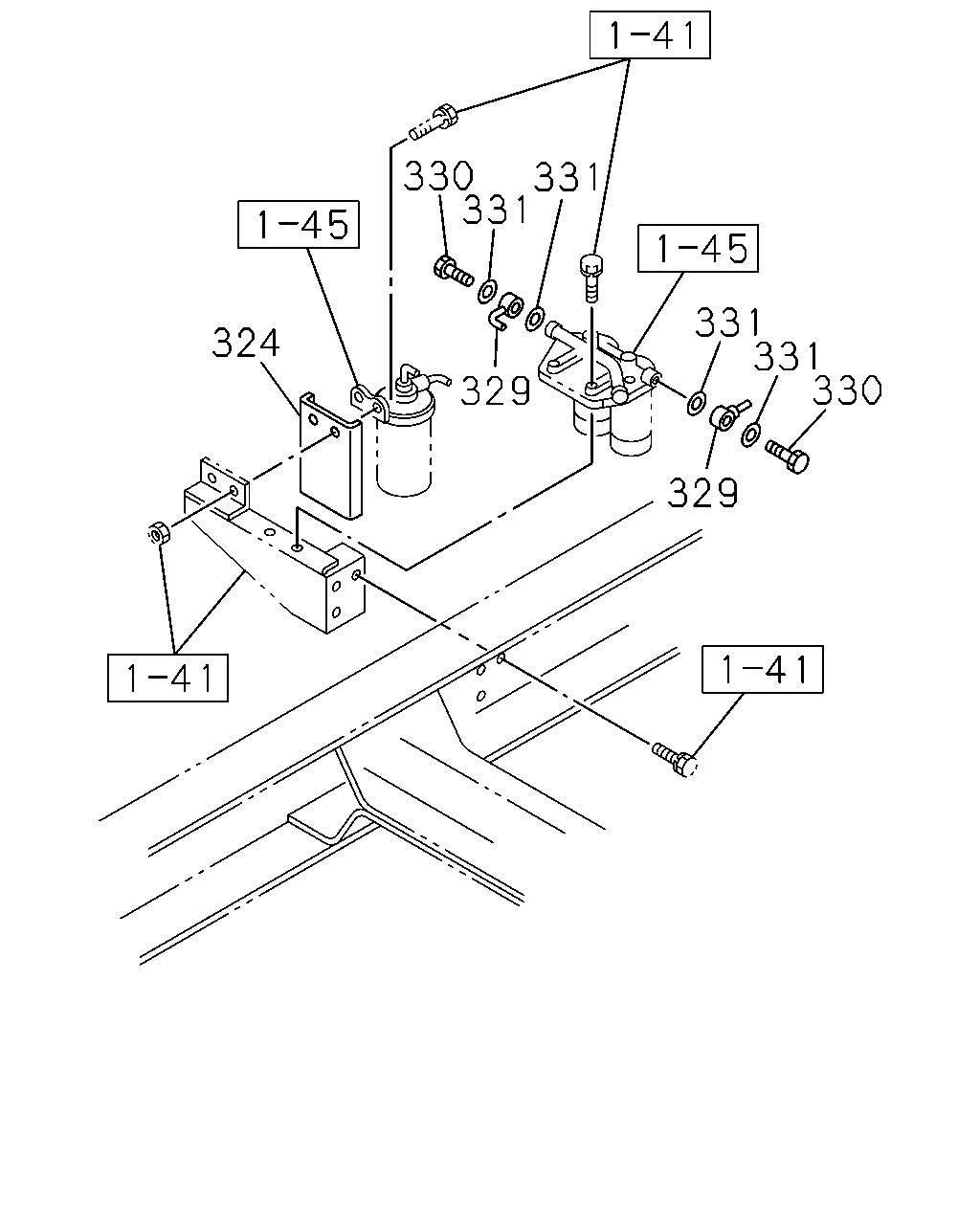

331 331 331 330 324 329 329 330 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
324	PROTECTOR; FUEL SEDIMENTER	1-19759-012-0	01	1	9202-	●	●
329	JOINT ASM; EYE,FUEL PIPE	5-15411-472-0	02	1	9202-	●	●
330	BOLT; EYE,JOINT M14X27 FLANGE	1-09675-086-0	02	1	9202-	●	●
331	GASKET; EYE JOINT ID=14.2 OD=19.2	1-09630-085-0	04	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
