◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#64991) — 32 parça

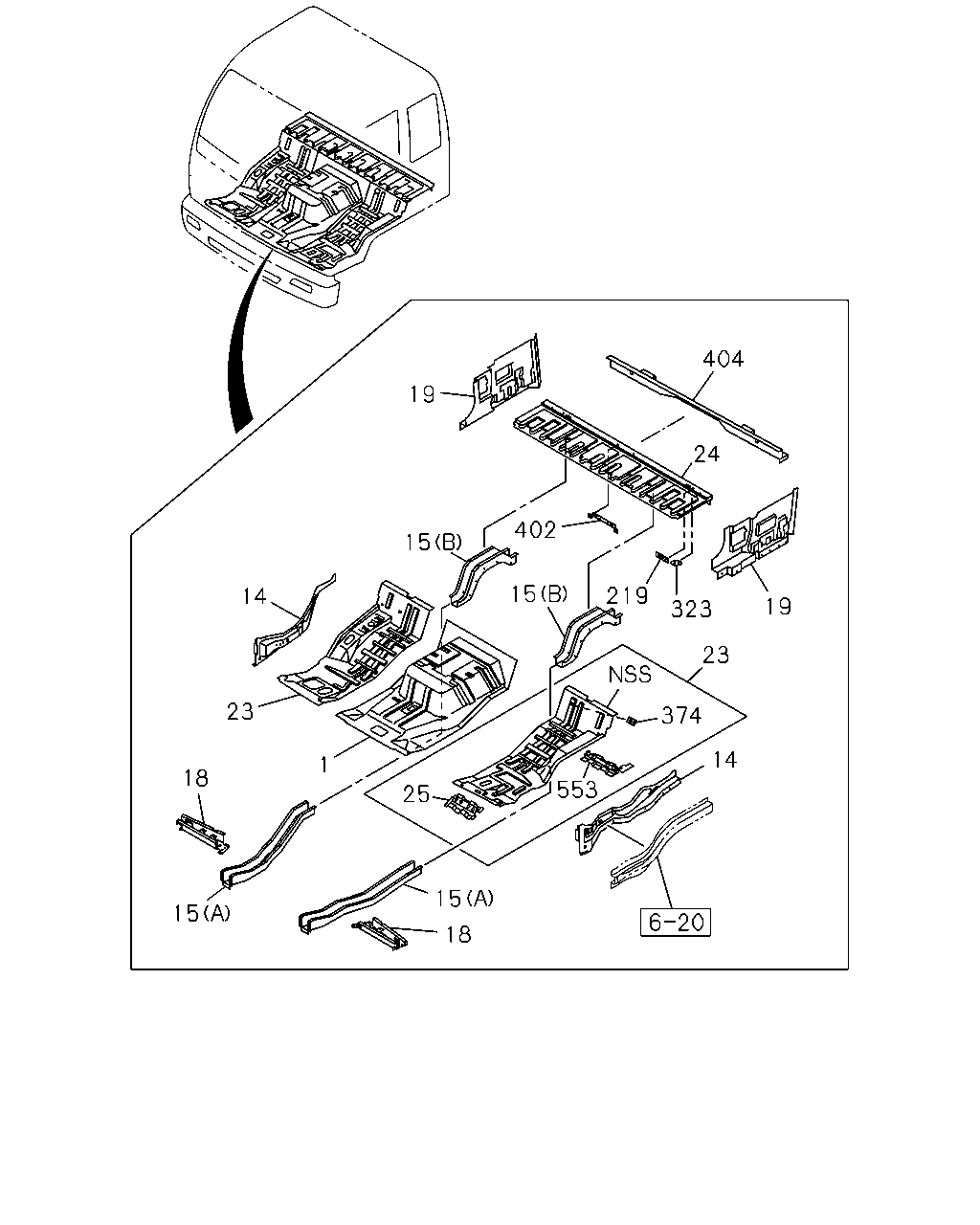

çizim 132549
404 19 24 19 323 23 219 15 402 15 14 23 1 18 15 18 15 25 553 14 374
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62183-138-9 01 1 9601-9601
1 PANEL; FLOOR
MAL6S M/T(Y1V) 		1-62183-138-9 01 1 9602-9706
1 PANEL; FLOOR
MAL6S M/T(Y1V) 		1-62183-405-1 01 1 9707-9804
1 PANEL; FLOOR
MLD6Q M/T(X5J),MAL6S M/T(Y1V) 		1-62183-405-2 01 1 9805-0004
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-405-2 01 1 0005-
1 PANEL; FLOOR
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-62183-337-3 01 1 9602-0004
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-334-4 01 1 0005-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9601-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9601-
15 FRAME; UNDER
(A) 		1-62482-931-9 01 1 9601-0401
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0402-
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 9601-
15 FRAME; UNDER
(A) 		1-62482-930-9 01 1 9601-0103
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0104-
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 9601-
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 9601-
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 9601-
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 9601-
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 9601-
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9601-9904
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 9905-
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 9601-0004
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> 		1-62183-270-4 01 1 0005-
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0005-
24 PANEL; BED PAN 1-62182-940-9 01 1 9601-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 9601-
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 9601-
323 PATCH; HAND LEVER 1-62182-961-0 01 1 9601-
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 9601-
402 PATCH; CAB LOCK 1-62182-947-2 01 1 9601-
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 9601-
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 9601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
