10772 - LV280(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

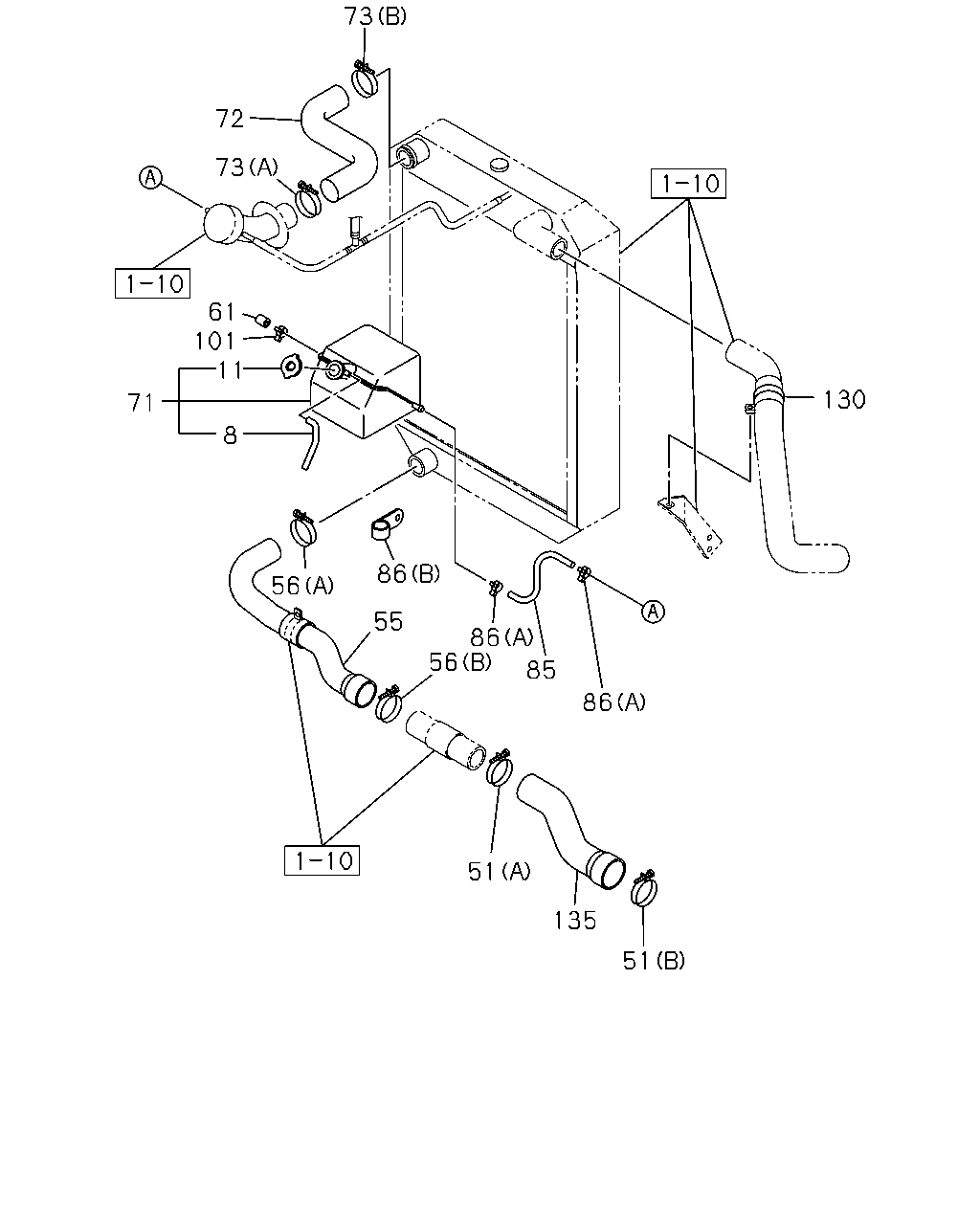

1-11 — RADIATOR HOSE AND SUB TANK
(#6499) — 23 parça
73
72
73
61
101
11
130
71
8
86
56
55
86
56
85
86
51
135
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HOSE; VINYL
L=2850
1-09366-061-0
01
1
9705-
11
CAP; RESERVE TANK
1-21489-099-0
01
1
9705-0003
11
CAP; RESERVE TANK
1-21489-184-0
01
1
0004-
33
BOLT; BRKT
M8X20
0-20800-820-0
06
1
9809-
35
NUT
M8
9-09110-408-0
06
1
9809-
51
CLIP; WATER HOSE,RAD
(A) ID=76
1-09704-069-0
01
1
9705-
51
CLIP; WATER HOSE,RAD
(B) ID=89
1-09704-071-0
02
1
9705-
55
HOSE; WATER,RAD OUTLET
1-21437-513-2
01
1
9705-
56
CLIP; WATER HOSE,RAD
(B) ID=76
1-09704-069-0
01
1
9705-
56
CLIP; WATER HOSE,RAD
(A) ID=63
1-09704-106-0
01
1
9705-
61
CAP; DRAIN
8-94107-603-0
01
1
9705-
71
TANK ASM; RESERVE
1-21480-099-2
01
1
9705-
72
HOSE; RUBBER FILLER TO TANK
1-21437-515-1
01
1
9705-
73
CLIP; RUBBER HOSE
(A) ID=57
1-09704-066-0
01
1
9705-
73
CLIP; RUBBER HOSE
(B) ID=63
1-09704-106-0
01
1
9705-
85
HOSE; RUB,WATER FILLER TO SURGE TANK
L=940 SERVICED BY L=3000
0-03257-300-0
01
1
9705-0103
85
HOSE; RUB,WATER FILLER TO SURGE TANK
L=940 SERVICED BY L=3000
0-03557-300-0
01
1
0104-
86
CLIP; RUB HOSE,WATER FILLER
(A) ID=12
8-94238-610-0
02
1
9705-
86
CLIP; RUB HOSE,WATER FILLER
(B) ID=13 H=24 L=20
9-09527-012-0
02
1
9705-
101
CLIP; RUBBER HOSE & FILLER
ID=12
8-94238-610-0
01
1
9705-
130
CLIP; RAD HOSE TO BODY
1-09701-202-0
01
1
9705-
135
HOSE; WATER,ENG TO CONN
1-21437-514-1
01
1
9705-
154
WASHER; LK,TANK
ID=8.2
9-09150-508-0
06
1
9809-
