◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#64989) — 81 parça

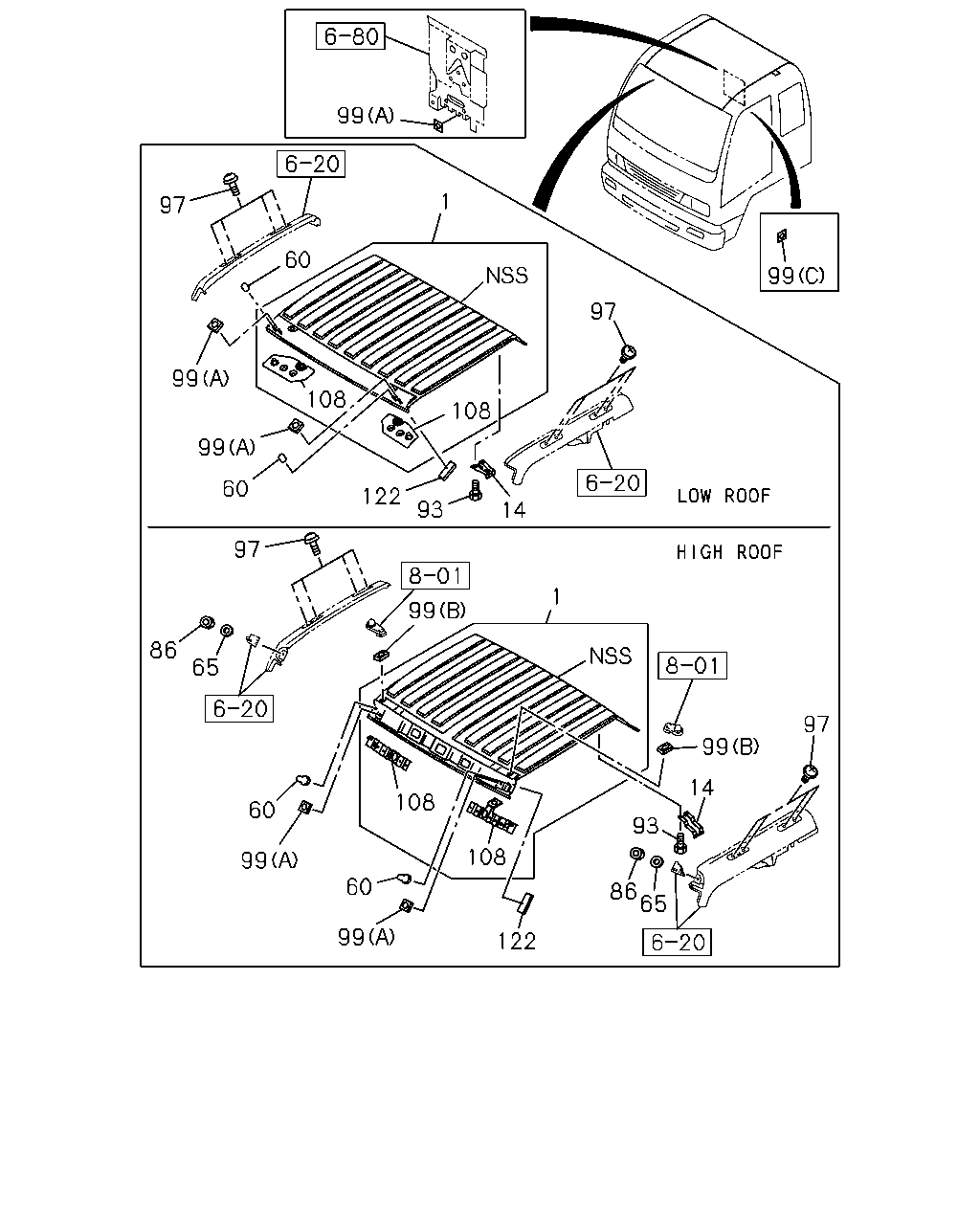

çizim 131574
99 1 97 60 99 97 99 108 108 99 60 122 93 14 97 1 99 86 65 97 99 14 108 60 93 108 99 60 86 65 99 122
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> 		1-61181-087-1 01 1 9601-9804
1 PANEL; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-61181-169-0 01 1 9805-0004
1 PANEL; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> EXC. SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-61181-151-0 01 1 9805-0004
1 PANEL; ROOF
HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61181-070-1 01 1 9601-9608
1 PANEL; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> 		1-61181-070-1 01 1 9609-9804
1 PANEL; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5>,MIR STAY O/S W/REMOTE<TBA>,LAMPS TWO ROOF MARKER<TEC>,SPEAKER SYSTEMRR 2 SPEAKERS<TLS> PRIMER 		1-61181-152-0 01 1 9805-0004
1 PANEL; ROOF
HIGH ROOF<S2F> PRIMER 		1-61181-152-0 01 1 0005-
1 PANEL; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> 		1-61181-091-1 01 1 9609-9804
1 PANEL; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> 		1-61181-170-0 01 1 9805-0004
1 PANEL; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. MIR STAY O/S W/REMOTE<TBA> 		1-61181-135-0 01 1 9805-0004
1 PANEL; ROOF
LOW ROOF<6XQ> 		1-61181-072-0 01 1 9601-
14 SUPPORT; ROOF
HIGH ROOF<S2F> 		1-73318-493-3 02 1 9601-9804
14 SUPPORT; ROOF
HIGH ROOF<S2F> 		1-73318-595-3 02 1 9805-
14 SUPPORT; ROOF
LOW ROOF<6XQ> 		1-73318-510-1 02 1 9601-
60 COVER; ROOF
HIGH ROOF<S2F> 		1-79998-922-3 02 1 9601-9801
60 COVER; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-79998-922-3 02 1 9802-0004
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW FLAT<YS1> HIGH ROOF<S2F> 		1-79998-922-3 03 1 0005-
60 COVER; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> 		1-79998-922-3 03 1 9601-9801
60 COVER; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-79998-922-3 03 1 9802-0004
60 COVER; ROOF
HIGH ROOF<S2F> 		1-79998-922-3 02 1 0005-
60 COVER; ROOF
LOW ROOF<6XQ> 		1-71736-200-0 02 1 9601-9801
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-71736-200-0 02 1 9802-0004
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW FLAT<YS1> LOW ROOF<6XQ> 		1-71736-200-0 02 1 0005-
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-71736-200-0 02 1 0005-
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW WIDE<WU4> 		1-71736-200-0 03 1 9601-9801
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-71736-200-0 03 1 9802-0004
65 WASHER; PL
HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9601-9801
65 WASHER; PL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> ID=8 T=2.3 		8-94368-403-1 01 1 9601-9801
65 WASHER; PL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2> ID=8 T=2.3 		8-94368-403-1 01 1 9802-0004
65 WASHER; PL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> ID=8 T=2.3 		8-94368-403-1 01 1 9802-0004
65 WASHER; PL
HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW WIDE<WU4>,MIR O/S RR VIEW FLAT<YS1> ID=8 T=2.3 		8-94368-403-1 01 1 0005-0701
65 WASHER; PL
HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW WIDE<WU4>,MIR O/S RR VIEW FLAT<YS1> ID=8 T=2.3 		8-98073-399-0 01 1 0702-
86 NUT; ROOF
HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 9601-9801
86 NUT; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> M8 FLANGE 		9-09130-408-0 01 1 9601-9801
86 NUT; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2> M8 LOCK NUT 		9-09131-408-0 01 1 9802-0004
86 NUT; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> M8 LOCK NUT 		9-09131-408-0 01 1 9802-0004
86 NUT; ROOF
HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW WIDE<WU4>,MIR O/S RR VIEW FLAT<YS1> M8 LOCK NUT 		9-09131-408-0 01 1 0005-0103
86 NUT; ROOF
HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW WIDE<WU4>,MIR O/S RR VIEW FLAT<YS1> M8 LOCK NUT 		9-09131-508-0 01 1 0104-0603
86 NUT; ROOF
HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW WIDE<WU4>,MIR O/S RR VIEW FLAT<YS1> M8 LOCK NUT 		0-91370-008-0 01 1 0604-
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9601-
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9601-
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 25 1 9601-9806
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9601-9806
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9601-9806
99 SEAL; BODY,METAL
LOW ROOF<6XQ> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9601-9806
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 13 1 9807-0001
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 17 1 0002-
99 SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 9807-
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9601-9806
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9601-9806
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 03 1 9601-9806
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9807-9905
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9807-9905
99 SEAL; BODY,METAL
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9906-0004
99 SEAL; BODY,METAL
HIGH ROOF<S2F>,LOW ROOF<6XQ> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9906-0004
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9906-0004
99 SEAL; BODY,METAL
ENGINE NO PLATE<E6D> HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-2 04 1 0005-
99 SEAL; BODY,METAL
HIGH ROOF<S2F>,LOW ROOF<6XQ> (A) 30X30 ID=20 T=0.7 		1-61281-380-2 04 1 0005-
99 SEAL; BODY,METAL
HIGH ROOF<S2F>,LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> (A) 30X30 ID=20 T=0.7 		1-61281-380-2 04 1 0005-
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9807-9905
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9807-9905
99 SEAL; BODY,METAL
LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9906-0004
99 SEAL; BODY,METAL
HIGH ROOF<S2F>,LOW ROOF<6XQ> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9906-0004
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9906-0004
99 SEAL; BODY,METAL
ENGINE NO PLATE<E6D> HIGH ROOF<S2F> (A) 30X30 ID=9 T=0.7 		1-61281-444-1 01 1 0005-
99 SEAL; BODY,METAL
HIGH ROOF<S2F>,LOW ROOF<6XQ> (A) 30X30 ID=9 T=0.7 		1-61281-444-1 01 1 0005-
99 SEAL; BODY,METAL
HIGH ROOF<S2F>,LOW ROOF<6XQ> EXC. ENGINE NO PLATE<E6D> (A) 30X30 ID=9 T=0.7 		1-61281-444-1 01 1 0005-
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) 75X50 ID=36 		1-61281-458-0 02 1 9601-9608
99 SEAL; BODY,METAL
LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> (B) 75X50 ID=36 		1-61281-458-0 02 1 9609-9810
99 SEAL; BODY,METAL
MIR O/S RR VIEW LONG ARM<DH2> (C) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-0403
99 SEAL; BODY,METAL
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-0403
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0403
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0403
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW LONG ARM<DH2> (C) 14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404-
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (C) 14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404-
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61180-979-4 01 1 9601-
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61180-956-4 01 1 9601-
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61281-241-5 01 1 9601-
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61181-029-4 01 1 9601-
122 SEAL; FRT UPR 1-61270-919-0 02 1 9705-0809
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810-
