◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#64985) — 90 parça

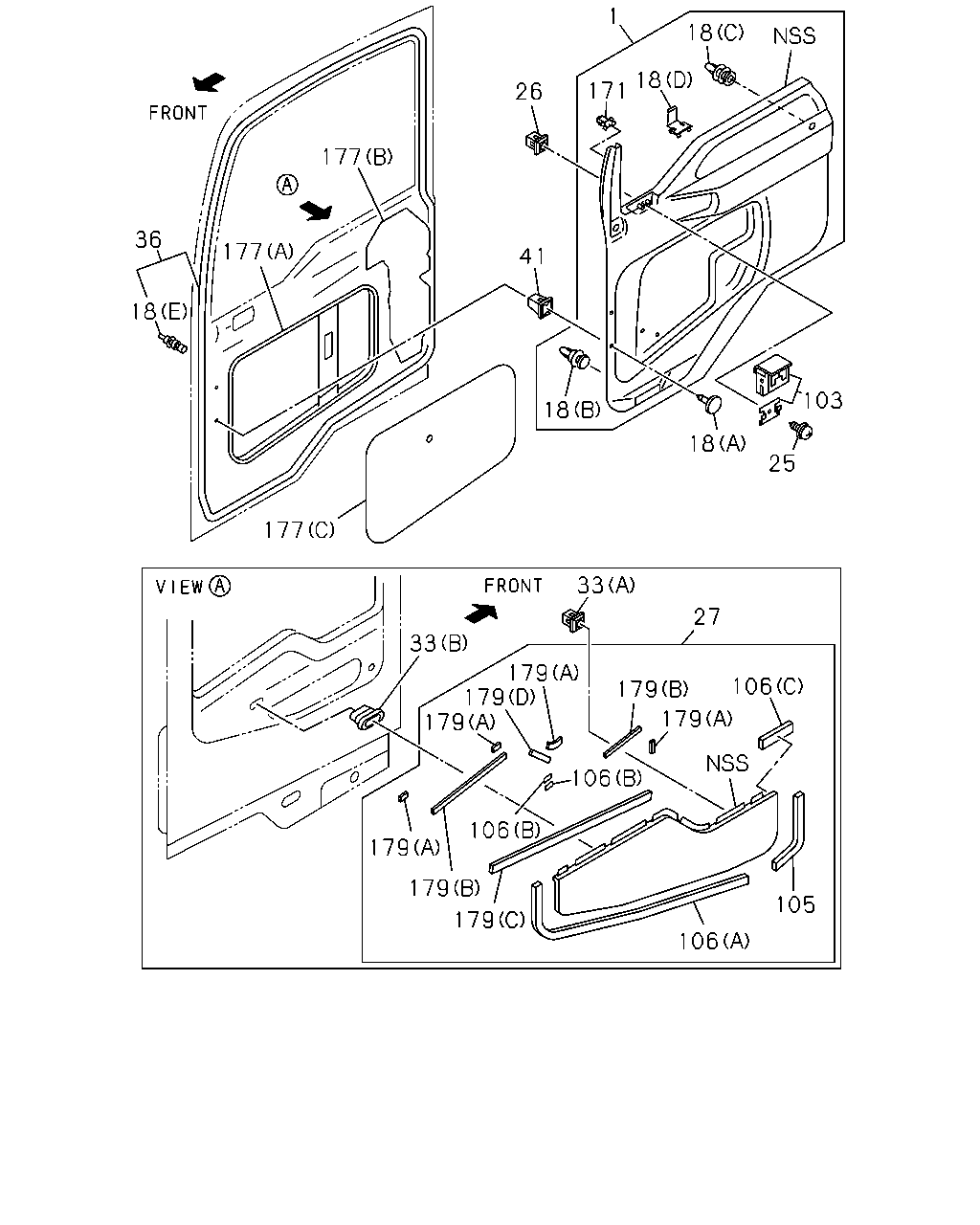

çizim 130896
106 105 106 179 179 27 33 179 179 179 106 106 179 179 179 33 177 177 36 18 177 26 41 18 18 103 25 18 18 171 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
AUSTRALIA EQUIPMENT(RR3) DOOR WINDOW MANUAL CONT<SKF> 		1-73338-471-4 01 1 9601-0004
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9601-0004
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-506-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-538-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-515-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73338-467-4 01 1 9601-0004
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-485-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-510-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-514-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9601-0004
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-509-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-516-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> AUSTRALIA EQUIPMENT(RR3) 		1-73338-472-4 01 1 9601-0004
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-73338-465-4 01 1 9601-0004
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-484-0 01 1 0005-0012
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0101-0702
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-513-1 01 1 0703-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9601-0004
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 46 1 9601-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9601-0004
18 CLIP; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 08 1 0005-0005
18 CLIP; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 10 1 0006-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9601-9804
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9805-0004
18 CLIP; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 0005-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9601-0004
18 CLIP; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0005-0010
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011-
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 10 1 0011-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 0011-0012
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0011-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9601-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9601-
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-125-7 01 1 9802-1210
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98229-329-0 01 1 1211-
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-095-7 01 1 9601-1210
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		8-98229-328-0 01 1 1211-
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-4 01 1 9601-9801
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-7 01 1 9802-
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-096-4 01 1 9601-9801
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-096-7 01 1 9802-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9601-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9601-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9601-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9601-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9601-
103 TRAY ASM; ASH,DOOR 1-76458-070-6 01 1 9601-9612
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9701-0004
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-069-6 01 1 9601-9612
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9701-0004
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9601-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9601-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9601-9801
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9601-9801
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9802-9806
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9802-9806
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-76218-104-0 02 1 9807-
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9807-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9601-9804
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9805-0004
171 RETAINER; DOOR PAD
POWER WINDOW<A30>,DOOR WINDOW MANUAL CONT<SKF> 		1-09987-264-0 02 1 0005-0010
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011-
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011-
171 RETAINER; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> 		1-09987-264-0 02 1 0011-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9601-
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9601-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 9601-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 9601-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 9601-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 9601-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 9601-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 9601-
