◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#64984) — 45 parça

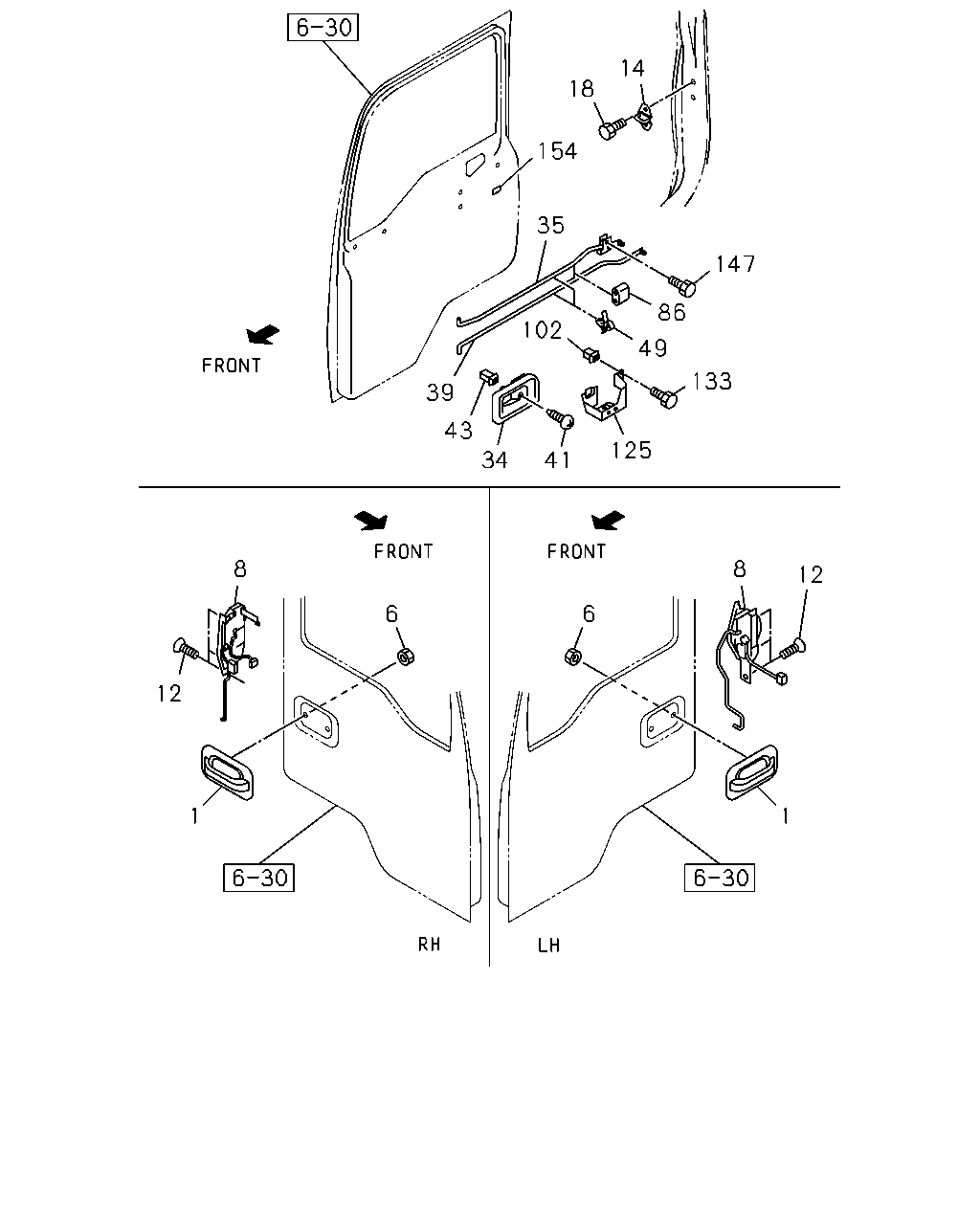

çizim 130781
14 18 154 35 147 86 102 49 133 39 43 125 34 41 8 8 12 6 6 12 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74618-040-0 01 1 0303-
1 HANDLE; OUTSIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74618-024-4 02 1 0303-
1 HANDLE; OUTSIDE,FRT DOOR 1-74618-024-4 02 1 9601-0302
1 HANDLE; OUTSIDE,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74618-024-4 01 1 0303-
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9601-
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-115-3 01 1 9601-
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-091-7 01 1 9601-9909
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. CUSTOM CAB(SR5) 		1-74518-091-7 01 1 9910-0004
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-091-7 01 1 0005-0302
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-125-3 01 1 0303-
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74518-119-2 01 1 9601-9909
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4>,CUSTOM CAB(SR5) 		1-74518-119-2 01 1 9910-0004
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74518-119-2 01 1 0005-
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74518-118-2 01 1 9601-9909
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4>,CUSTOM CAB(SR5) 		1-74518-118-2 01 1 9910-0004
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74518-118-2 01 1 0005-
8 LOCK; DOOR,FRT DOOR
CUSTOM CAB(SR5) 		1-74518-107-6 01 1 9910-0004
12 SCREW; DOOR LK
M6X16 		1-09981-447-1 06 1 9601-0805
12 SCREW; DOOR LK
M6X16 		8-97581-217-0 06 1 0806-
12 SCREW; DOOR LK
M6X14 		1-09981-512-1 04 1 9601-
14 STRIKER; FRT DOOR 8-97852-106-1 02 1 9601-9903
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 9904-
18 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9601-9903
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 9904-
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 9601-
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 9601-
35 LINK; DOOR LOCK,INSIDE
AUTO DOOR LOCK<AU4> 		1-74518-129-2 01 1 0303-
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 9601-
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 9601-0302
35 LINK; DOOR LOCK,INSIDE
EXC. AUTO DOOR LOCK<AU4> 		1-74518-093-3 01 1 0303-
39 LINK; INSIDE HANDLE,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74758-033-1 01 1 0303-
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 9601-
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 9601-0302
39 LINK; INSIDE HANDLE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74758-021-2 01 1 0303-
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 9601-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9601-
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 9601-
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 9601-
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9601-
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 9601-
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 9601-
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 9601-
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-
154 SEAL; DOOR
15X30 		1-74998-069-0 02 1 9601-0210
154 SEAL; DOOR
30X30 		1-74998-128-1 02 1 0211-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
