Sayfa 6-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶

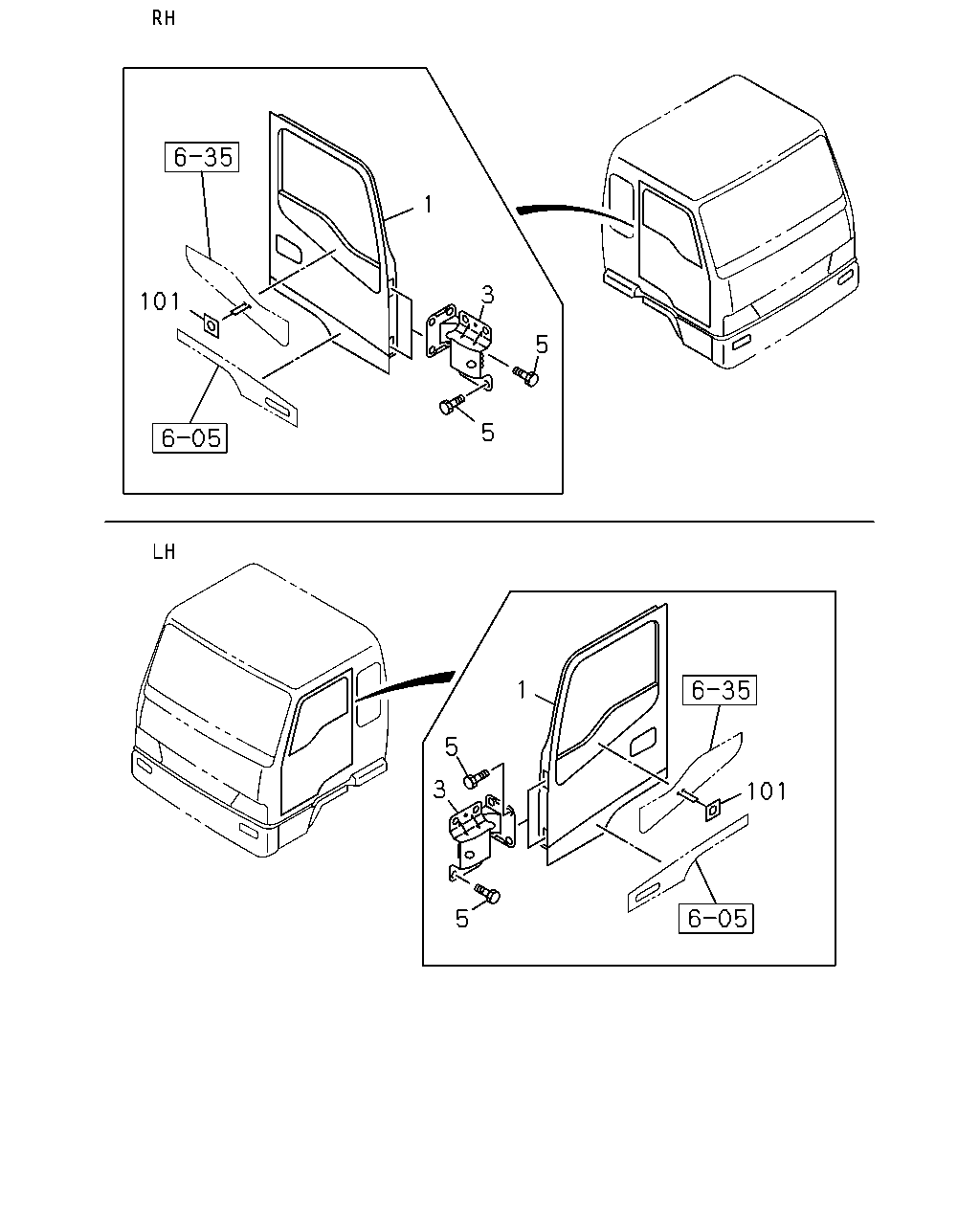

6-30 — FRONT DOOR AND HINGE (#64982) — 31 parça

1 3 101 5 5 1 5 3 101 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DOOR ASM; FRT,WO/TRIM	1-64080-325-0	01	1	9601-9801
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>	1-64080-325-0	01	1	9802-9901
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>	1-64080-390-2	01	1	9902-
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2> PRIMER	1-64080-333-0	01	1	9802-9901
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>	1-64080-388-2	01	1	9902-
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW WIDE<WU4>	1-64080-328-0	01	1	9601-9801
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-328-0	01	1	9802-9901
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-392-2	01	1	9902-
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW WIDE<WU4>	1-64080-326-0	01	1	9601-9801
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-326-0	01	1	9802-9901
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4>	1-64080-391-2	01	1	9902-
3	HINGE; DOOR FRT UPPER	1-64780-088-2	02	1	9601-9801
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2> UPPER	1-64780-088-2	02	1	9802-9804
3	HINGE; DOOR FRT UPPER	1-64780-088-2	02	1	9802-9804
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2> UPPER	1-64780-088-3	01	1	9805-
3	HINGE; DOOR FRT UPPER	1-64780-088-3	01	1	9805-
3	HINGE; DOOR FRT LOWER	1-64780-089-2	02	1	9601-9801
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2> LOWER	1-64780-089-2	02	1	9802-9804
3	HINGE; DOOR FRT LOWER	1-64780-089-2	02	1	9802-9804
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2> LOWER	1-64780-089-4	01	1	9805-
3	HINGE; DOOR FRT LOWER	1-64780-089-4	01	1	9805-
3	HINGE; DOOR FRT MIR O/S RR VIEW LONG ARM<DH2> LOWER	1-64780-090-2	01	1	9805-
3	HINGE; DOOR FRT MIR O/S RR VIEW LONG ARM<DH2> UPPER	1-64780-091-2	01	1	9805-
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	32	1	9601-9801
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	9802-0004
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	9802-0004
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0005-
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	0005-
101	SEAL; BODY METAL MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7	1-61281-427-0	02	1	9601-9806
101	SEAL; BODY METAL EXC. MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7	1-61281-427-0	04	1	9601-9801
101	SEAL; BODY METAL EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 14X14 ID=10 T=0.7	1-61281-427-0	04	1	9802-9806

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
