1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#6498) — 34 parça
◀
[110A] NO.1 (14 parça)
[110A] NO.2 (20 parça)
▶

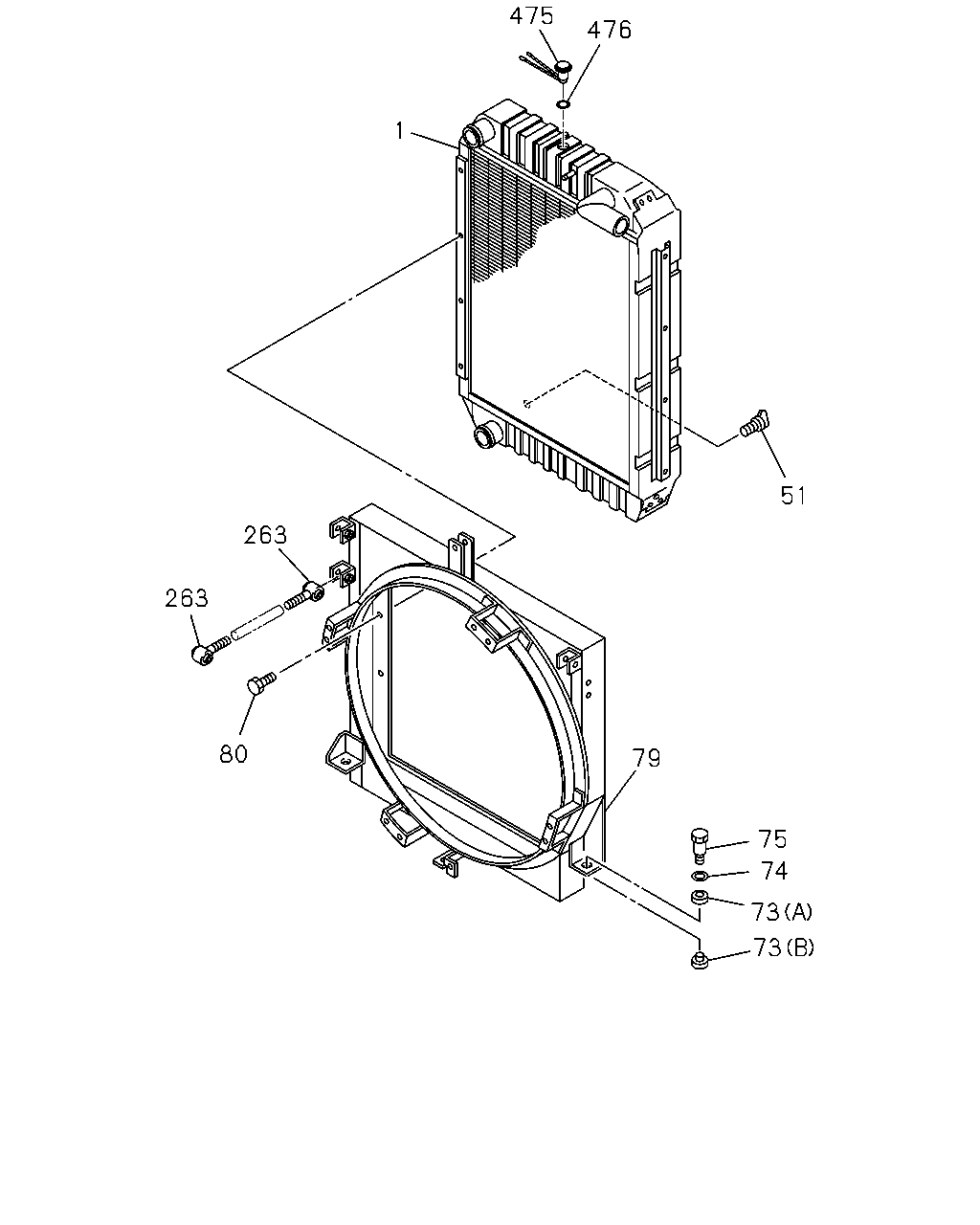

475
476
1
51
263
263
80
79
75
74
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-623-7
01
1
9705-
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
9705-
73
RUBBER; CUSHION,RAD MTG
(A) T=10
1-21467-001-1
02
1
9705-
73
RUBBER; CUSHION,RAD MTG
(B) T=10
1-21467-008-0
02
1
9705-
74
WASHER; PL,CUSHION RUBBER
T=4.5
1-09503-138-0
02
1
9705-
75
BOLT; CUSHION RUBBER,RAD MTG
M10X48
1-09000-253-2
02
1
9705-
79
GUIDE; FAN,RAD
1-21570-073-3
01
1
9705-
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28080-812-0
04
1
9705-
80
BOLT; FAN GUIDE
M8X80 FLANGE
0-28080-880-0
04
1
9705-
263
END ASM; RAD TIE ROD
RH THREAD
9-21460-134-1
03
1
9705-
263
END ASM; RAD TIE ROD
LH THREAD
9-21460-135-1
03
1
9705-
475
SWITCH; WATER LEVEL
1-82480-048-2
01
1
9705-9807
475
SWITCH; WATER LEVEL
1-82480-092-0
01
1
9808-
476
GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5
1-09630-126-0
01
1
9705-

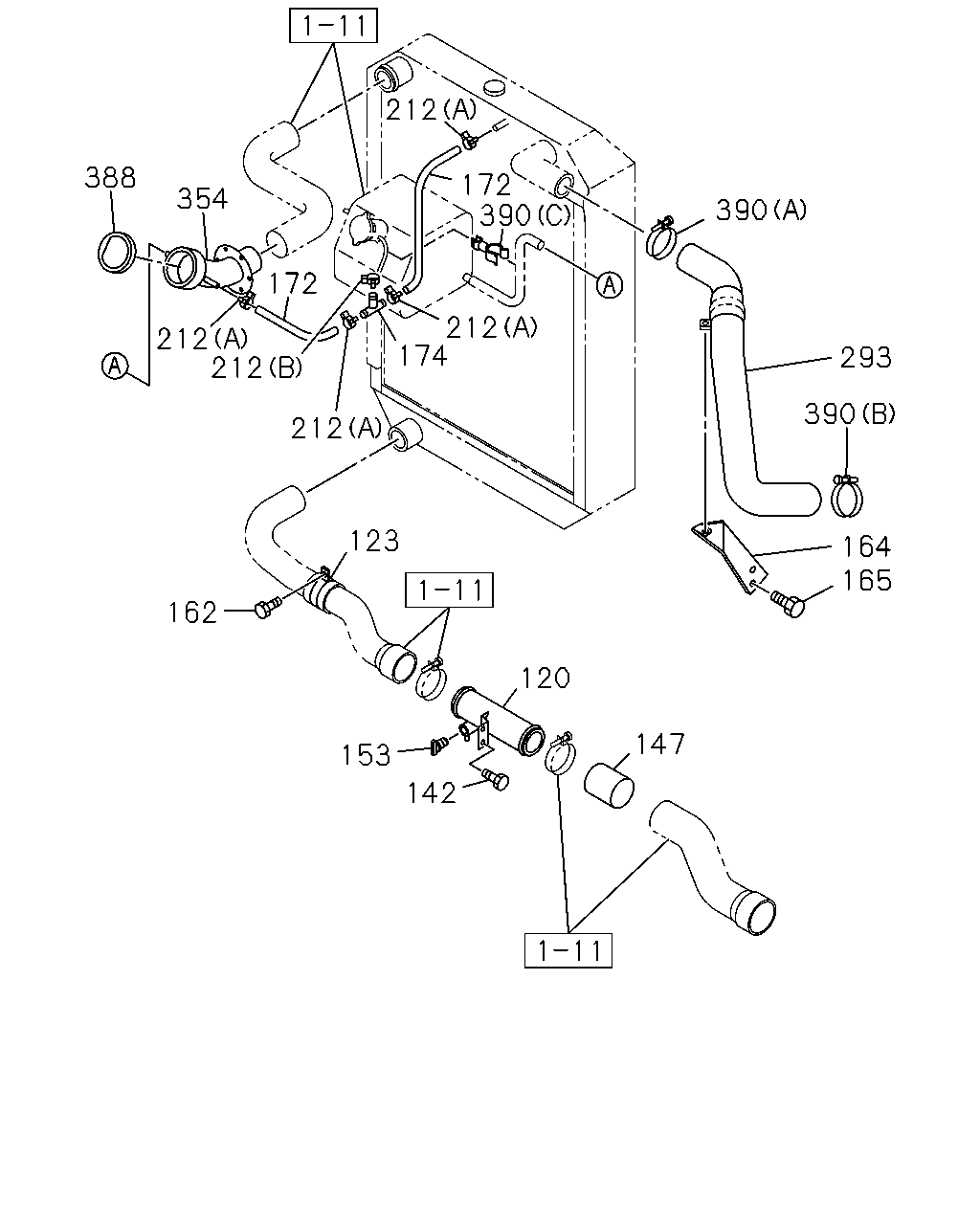

212
172
390
388
354
390
172
212
174
212
212
293
390
212
123
164
165
162
120
147
153
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
120
PIPE; HOSE TO HOSE,RAD OUTLET
1-21431-464-0
01
1
9705-
123
CLIP; PIPE
ID=68
8-94224-262-0
01
1
9705-
142
BOLT; PIPE
M8X20 FLANGE
0-28080-820-0
02
1
9705-
147
PIPE; HOSE CONN,OUT
1-21431-453-1
01
1
9705-
153
COCK; WATER DRAIN,RAD
W/GASKET
1-09609-009-0
01
1
9705-
162
BOLT; CABLE CLIP
M10X20 W/LK WASHER
0-50041-020-0
01
1
9705-0106
162
BOLT; CABLE CLIP
M8X20 FLANGE
0-28080-820-0
01
1
0107-
164
BRACKET; RAD PIPE TO C/MBR
1-21439-093-0
01
1
9705-
165
BOLT; BRKT TO C/MBR
M8X20 FLANGE
0-28080-820-0
02
1
9705-
172
HOSE; RUBBER,BREATHER,SUB TANK
L=600 SERVICED BY L=3000
0-03259-300-0
01
1
9705-0103
172
HOSE; RUBBER,BREATHER,SUB TANK
L=600 SERVICED BY L=3000
0-03559-300-0
01
1
0104-
174
PIPE; 3 WAY
1-09669-050-1
01
1
9705-
212
CLIP; HOSE
(A) ID=14
1-09704-102-0
04
1
9705-
212
CLIP; HOSE
(B) ID=19
8-94238-569-0
01
1
9705-
293
HOSE; RUBBER ENG TO RAD
1-21437-512-2
01
1
9705-
354
FILLER; WATER
1-21421-042-0
01
1
9705-
388
CAP; FILLER,RAD WATER
1-21450-131-0
01
1
9705-
390
CLIP; RUBBER HOSE
(B) ID=76
1-09704-069-0
01
1
9705-
390
CLIP; RUBBER HOSE
(A) ID=63
1-09704-106-0
01
1
9705-
390
CLIP; RUBBER HOSE
(C) ID=8.3 & 12
8-94155-469-0
01
1
9705-
