◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#64979) — 268 parça

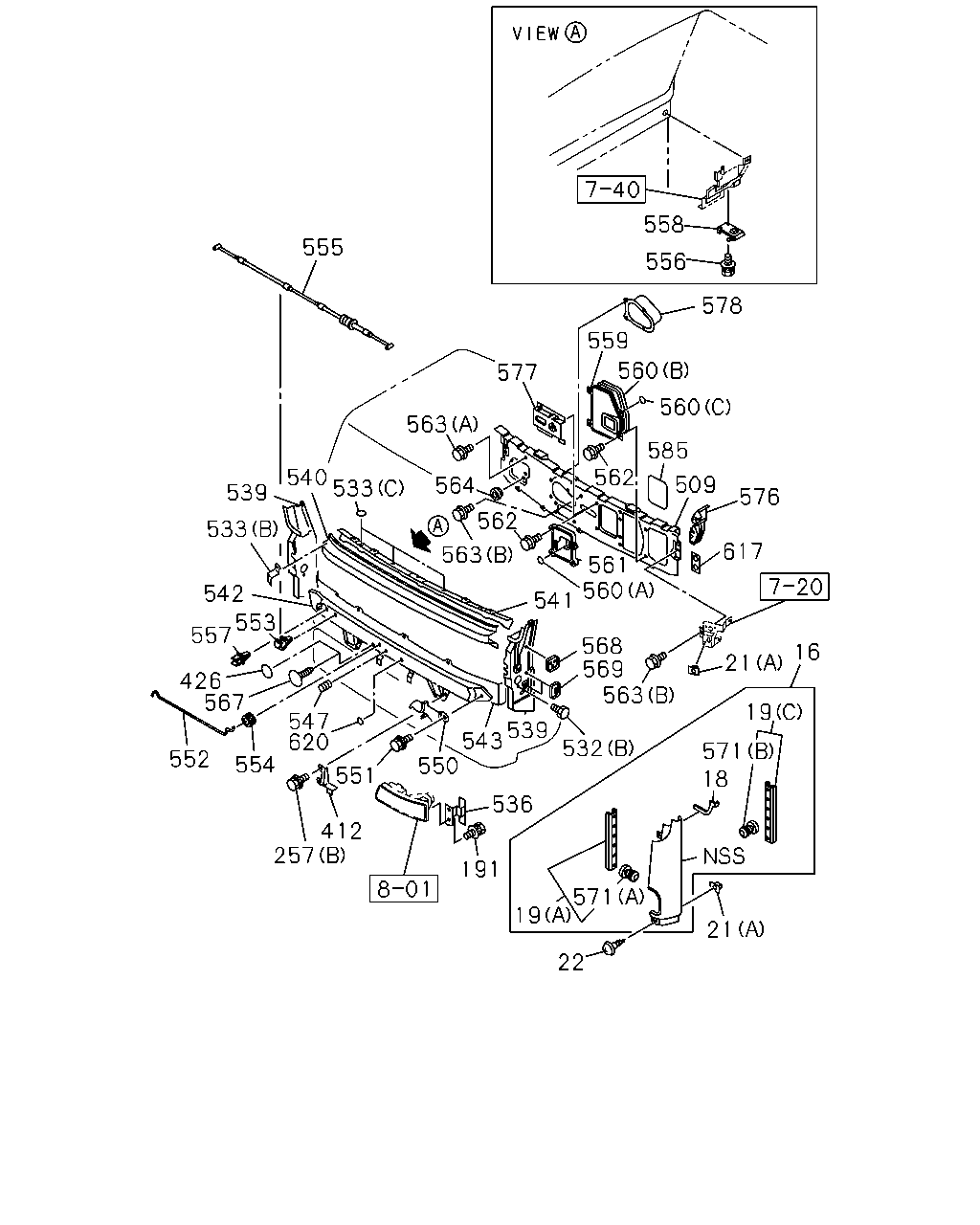

çizim 184468
558 555 556 578 559 560 577 560 563 585 540 533 562 509 564 539 576 562 533 561 560 617 563 542 541 553 557 21 568 569 563 16 426 567 547 620 19 539 543 550 532 571 18 552 554 551 536 412 257 191 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-1 01 1 9601-9801
16 PANEL; FRONT,SIDE
EXC. KENYA EQUIPMENT(PQ2) WHITE 		1-65481-590-1 01 1 9802-9803
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2> WHITE 		1-65481-590-2 01 1 9804-
16 PANEL; FRONT,SIDE
KENYA EQUIPMENT(PQ2) WHITE 		1-65481-562-2 01 1 9802-9803
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2> WHITE 		1-65481-562-3 01 1 9804-
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-2 01 1 9601-9803
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-563-3 01 1 9804-
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-1 01 1 9601-9803
16 PANEL; FRONT,SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> WHITE 		1-65481-591-1 01 1 9804-0004
16 PANEL; FRONT,SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW FLAT<YS1> WHITE 		1-65481-591-2 01 1 0005-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9601-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9601-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9601-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9601-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9601-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9601-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-0004
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0005-0102
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0103-0708
191 BOLT; HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9601-
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-0004
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0102
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0103-0904
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 9601-0004
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0005-0102
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-044-3 01 1 0103-
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 9601-0004
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0005-0102
412 BRACKET ASM; HD LAMP UPR
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-043-3 01 1 0103-
426 GASKET
OD=25 BLACK 		1-76798-019-0 04 1 9805-
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 02 1 0005-0604
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-2 01 1 0605-
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-62280-215-1 02 1 0005-0604
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-62280-215-2 01 1 0605-
509 PANEL; DASH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-1 01 1 9601-0004
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-62280-215-1 01 1 9601-0004
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9601-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9601-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0005-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9601-
533 SEAL; FRT PANEL
(C) 		1-76798-018-0 13 1 9601-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		5-76777-035-0 13 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9601-
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 9601-0004
536 HINGE 1-86830-004-5 01 1 0005-0102
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-004-5 01 1 0103-
536 HINGE
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 9601-0004
536 HINGE 1-86830-003-5 01 1 0005-0102
536 HINGE
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-86830-003-5 01 1 0103-
539 CLOSING; PILLAR 1-61480-673-6 01 1 9601-
539 CLOSING; PILLAR 1-61480-674-6 01 1 9601-
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 9601-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 9601-
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 9601-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 9601-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 9601-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 9601-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 9601-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9601-
552 STAY; FRT LID 1-71998-810-2 01 1 9601-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 9601-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 9601-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 9601-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9601-9611
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9612-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 9601-
558 LEVER; FRT LID 1-79338-003-1 01 1 9601-0212
558 LEVER; FRT LID 1-79338-007-1 01 1 0301-
559 COVER; EVAPOLATOR 1-71998-831-3 01 1 9601-9603
559 COVER; EVAPOLATOR 1-71996-162-0 01 1 9604-9608
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 9609-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9601-
560 SEAL; COVER
(C) OD=36 BLACK 		1-76798-018-0 01 1 9601-9804
560 SEAL; COVER
(C) OD=36 BLACK 		5-76777-035-0 01 1 9805-0004
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0005-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 BLACK 		1-76798-018-0 02 1 9601-9708
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 BLACK 		1-76798-018-0 02 1 9709-9806
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41) (A) OD=36 BLACK 		5-76777-035-0 02 1 9807-
561 COVER; HEATER CORE 1-71998-829-1 01 1 9601-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
563 BOLT; DASH PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 12 1 9601-9707
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 10 1 9708-9807
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 14 1 9808-0202
563 BOLT; DASH PANEL
(A) M8X20 		1-79198-002-0 12 1 0203-
563 BOLT; DASH PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 9601-9707
563 BOLT; DASH PANEL
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 9708-9807
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9601-
567 PLUG; FRT MTG RAIL
OD=15 BLACK 		8-94279-804-0 01 1 9601-9803
567 PLUG; FRT MTG RAIL
OD=25 BLACK 		1-76798-019-0 01 1 9804-9804
568 PATCH; INST REINF 1-61480-675-2 02 1 9601-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 9601-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 9601-
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 9601-9803
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9804-9810
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9804-9810
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0208-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9811-0207
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 9811-0207
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0208-0208
571 CLIP; SEAL
EXC. MIR O/S RR VIEW LONG ARM<DH2> (A) 		1-09987-228-0 06 1 0208-0208
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR SAHARA BEIGE(829) MIR O/S RR VIEW LONG ARM<DH2> (A) 		1-09987-228-0 06 1 0208-0208
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) MIR O/S RR VIEW LONG ARM<DH2> (A) 		1-09987-228-0 06 1 0208-0208
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0209-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0209-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 14 1 9601-0207
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0208-
576 FRAME; INST SIDE 1-62280-176-6 02 1 0005-0604
576 FRAME; INST SIDE 1-62280-176-6 01 1 0605-
576 FRAME; INST SIDE 1-62280-177-7 02 1 0005-0604
576 FRAME; INST SIDE 1-62280-177-7 01 1 0605-
576 FRAME; INST SIDE 1-62280-177-7 01 1 9601-0004
576 FRAME; INST SIDE 1-62280-176-6 01 1 9601-0004
577 BRACKET; IDLER 1-62280-195-0 02 1 0005-0604
577 BRACKET; IDLER 1-62280-195-0 01 1 0605-
577 BRACKET; IDLER 1-62280-195-0 01 1 9601-0004
578 COVER; WIPER MOTOR 1-62280-173-4 02 1 0005-0604
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0605-
578 COVER; WIPER MOTOR 1-62280-173-3 01 1 9601-0004
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) 		1-71996-084-1 01 1 9601-
617 SEAL; DASH 1-61281-497-0 04 1 0005-0604
617 SEAL; DASH 1-61281-497-1 02 1 0605-
617 SEAL; DASH 1-61281-497-0 02 1 9601-0004
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 9805-

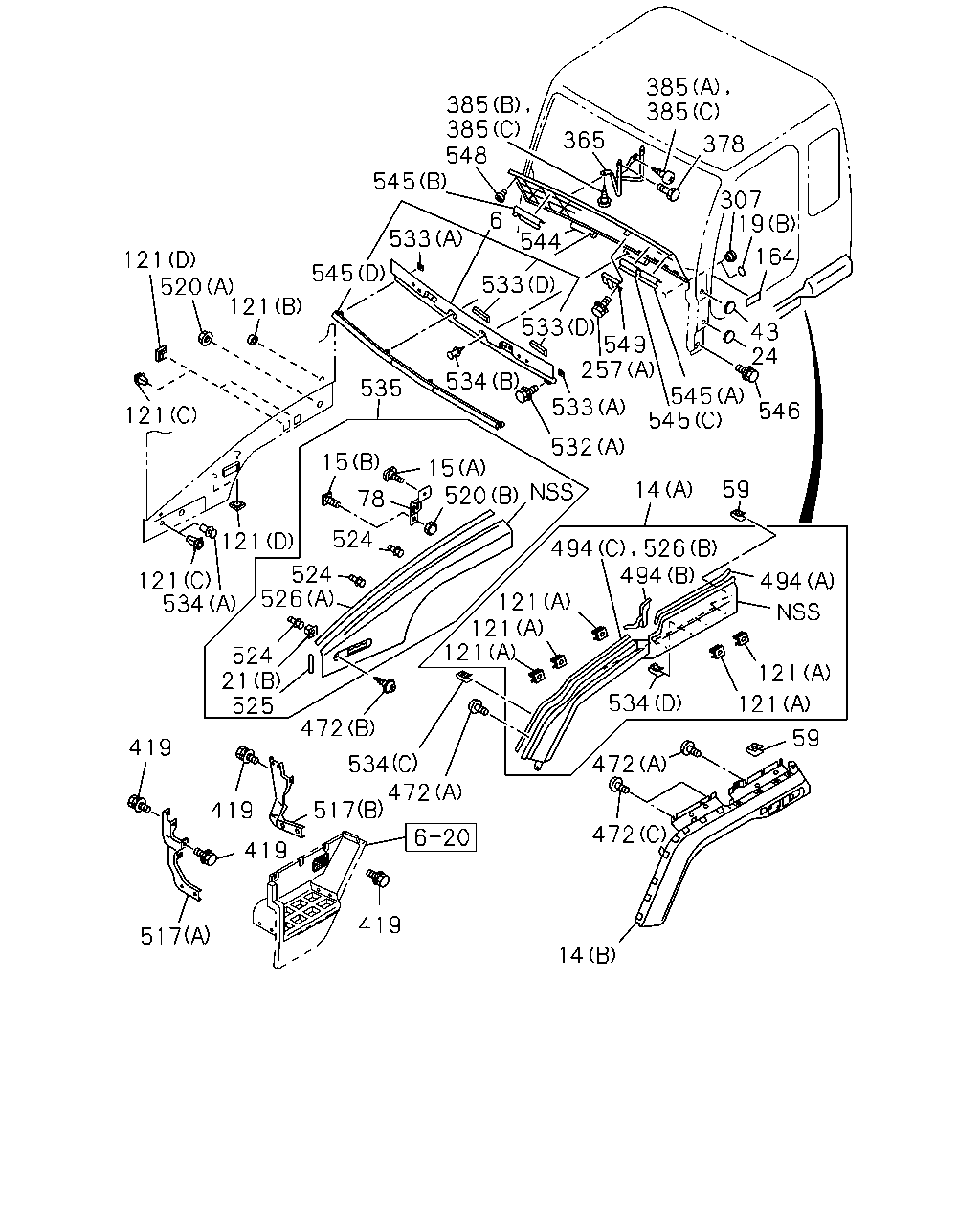

çizim 184472
385 385 385 385 548 545 365 378 307 19 6 533 544 164 121 520 545 533 121 533 549 257 534 43 24 535 545 545 533 546 121 532 15 15 520 59 14 78 524 121 494 524 526 121 534 494 121 121 121 524 21 525 121 534 121 472 59 419 472 534 472 517 419 419 472 419 517 14 494 526
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-556-2 01 1 9601-9807
6 PANEL; FRONT 1-65481-744-2 01 1 9808-
14 FENDER; FRT
(A) 		1-65481-638-1 01 1 9601-0209
14 FENDER; FRT
(A) WHITE 		1-65482-045-0 01 1 0210-
14 FENDER; FRT
(A) 		1-65481-637-1 01 1 9601-0209
14 FENDER; FRT
(A) WHITE 		1-65482-044-0 01 1 0210-
14 FENDER; FRT
(B) 		1-71996-149-5 01 1 9601-9703
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 9704-
14 FENDER; FRT
(B) 		1-71996-148-4 01 1 9601-9703
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 9704-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 9601-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 9601-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 9601-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 9601-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 9601-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9704-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9601-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9601-
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 04 1 9601-9601
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 06 1 9602-0004
24 SEAL; FRT PANEL LWR
DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK 		1-76798-019-0 08 1 0005-
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 02 1 9601-9903
24 SEAL; FRT PANEL LWR
POWER WINDOW<A30> OD=25 BLACK 		1-76798-019-0 04 1 9904-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9601-
59 GROMMET; SCREW 8-94279-723-0 03 1 9601-9705
59 GROMMET; SCREW 8-94279-723-0 02 1 9706-
78 BRACKET; FENDER 1-71268-323-0 01 1 9601-
78 BRACKET; FENDER 1-71268-322-0 01 1 9601-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 9601-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9601-9601
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 9602-9603
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9604-0304
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 9601-
121 GROMMET; FENDER
(D) 14.5X14.5 BLACK 		8-94279-714-0 10 1 9604-0304
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9601-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9601-
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9601-0004
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0005-0102
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0103-0904
257 BOLT; BRKT
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
307 GROMMET; FRT PANEL
OD=44 		8-94279-727-0 03 1 9601-9703
365 SUPPORT; FENDER 1-71996-147-1 01 1 9601-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9601-9804
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 9805-
385 SCREW; FENDER LWR
(B) M6X22 		1-65481-386-0 02 1 9601-9601
385 SCREW; FENDER LWR
(A) M6X30 		1-65481-387-0 02 1 9601-9601
385 SCREW; FENDER LWR
(C) M6X30 		1-65481-387-0 04 1 9602-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 18 1 9601-0009
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0010-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0010-0204
419 BOLT; STEP
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0301
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0302-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 21 1 9601-9601
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 06 1 9602-9606
472 SCREW; FENDER TO CAB
(C) M6X30 		1-65481-387-0 16 1 9601-9601
472 SCREW; FENDER TO CAB
(C) M6X30 		1-65481-387-0 27 1 9602-9606
472 SCREW; FENDER TO CAB
(C) M6X30 		1-65481-387-0 34 1 9607-9607
472 SCREW; FENDER TO CAB
(C) M6X30 		1-65481-387-0 32 1 9608-9802
472 SCREW; FENDER TO CAB
(C) M6X30 		1-65481-387-0 28 1 9803-9804
472 SCREW; FENDER TO CAB
(C) M6X30 		1-65481-387-0 26 1 9805-
472 SCREW; FENDER TO CAB
(B) M5X20 		5-09981-102-0 02 1 9601-9706
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9707-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 9602-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 02 1 9607-9802
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 07 1 9803-9804
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 9805-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 9601-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 9601-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9601-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9601-
517 SUPPORT; STEP PANEL
(B) REAR 		1-71996-083-4 01 1 9601-
517 SUPPORT; STEP PANEL
(A) FRONT 		1-71998-780-5 01 1 9601-0004
517 SUPPORT; STEP PANEL
(A) FRONT 		1-71996-078-3 01 1 0005-0212
517 SUPPORT; STEP PANEL
(A) FRONT 		1-71998-780-5 01 1 0301-
517 SUPPORT; STEP PANEL
(B) REAR 		1-71996-082-2 01 1 9601-
517 SUPPORT; STEP PANEL
(A) FRONT 		1-71998-779-5 01 1 9601-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 9601-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-174-0 08 1 9601-9803
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9804-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9601-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 9601-
526 FINISHER; FENDER
(B) 		1-71998-900-3 04 1 9805-0207
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 04 1 0208-0209
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 02 1 0210-0610
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71907-641-0 02 1 0611-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 9601-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9601-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 06 1 0005-0406
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0407-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9601-
533 SEAL; FRT PANEL
(C) 		1-76798-018-0 13 1 9601-9709
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		1-76798-018-0 13 1 9710-9806
533 SEAL; FRT PANEL
(C) OD=36 BLACK 		5-76777-035-0 13 1 9807-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9601-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-019-0 08 1 9601-9803
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9804-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(D) 		1-71996-035-1 20 1 9601-
534 FASTENER
(C) 		1-71996-035-1 04 1 9606-0404
534 FASTENER
(C) 		1-71996-035-1 06 1 0405-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9601-
534 FASTENER
(C) 		1-71996-035-1 02 1 9603-9605
535 FENDER; BLISTER
WHITE 		1-71268-361-3 01 1 9601-0209
535 FENDER; BLISTER
WHITE 		1-71268-429-0 01 1 0210-
535 FENDER; BLISTER
WHITE 		1-71268-360-3 01 1 9601-0209
535 FENDER; BLISTER
WHITE 		1-71268-428-0 01 1 0210-
544 LID; FRT 1-71108-073-3 01 1 9601-9703
544 LID; FRT
WHITE 		1-71108-118-1 01 1 9704-9804
544 LID; FRT
HITACHI CHEMICAL 		1-71108-152-0 01 1 9805-0004
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL 		1-71108-152-0 01 1 0005-
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> OR MITRAS 		1-71108-116-0 01 1 0007-0411
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0005-
545 SEAL; FRT LID
(D) 		1-71998-814-3 01 1 9601-9807
545 SEAL; FRT LID
(D) 		1-71998-814-3 02 1 9808-0406
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0407-
545 SEAL; FRT LID
(B) 		1-71998-871-2 01 1 9601-9908
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 9909-
545 SEAL; FRT LID
(C) 		1-71998-873-2 01 1 9601-9908
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 9909-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 9601-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9601-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 9601-
549 BRACKET; STOPPER,FRT LID 1-71108-033-4 01 1 9601-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
