◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#64978) — 10 parça

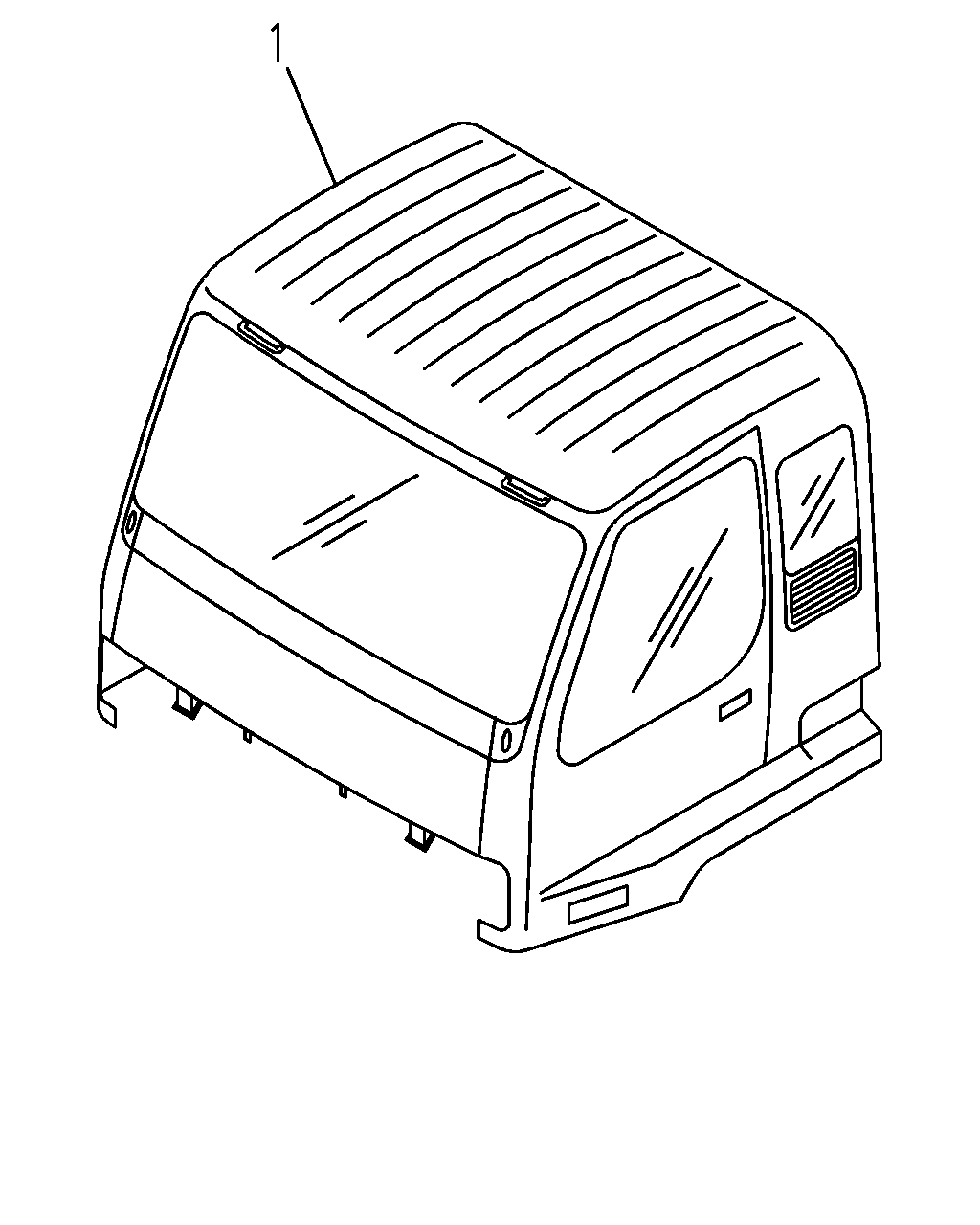

çizim 184464
1
BalonParca AdiParca NoAdetTipApplied Date
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> CUSTOM CAB(SR5) MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW FLAT<YS1> LAMPS TWO ROOF MARKER<TEC> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> EXC. MIR STAY O/S W/REMOTE<TBA> 		1-61084-415-0 01 1 9805-0004
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW FLAT<YS1> DOOR WINDOW MANUAL CONT<SKF> LAMPS TWO ROOF MARKER<TEC> SPEAKER SYSTEM RR 2 SPEAKERS<TLS> EXC. LAMPS FOUR ROOF MARKER<PJ5>,CUSTOM CAB(SR5), MIR STAY O/S W/REMOTE<TBA> 		1-61083-823-0 01 1 9805-0004
1 CAB ASM; SERVICE,WO/ELEC
HIGH ROOF<S2F> DOOR WINDOW MANUAL CONT<SKF> AUSTRALIA EQUIPMENT(RR3) 		1-61083-450-0 01 1 9601-9804
1 CAB ASM; SERVICE,WO/ELEC
HIGH ROOF<S2F> DOOR WINDOW MANUAL CONT<SKF> NEW ZEALAND EQUIPMENT(PK5) 		1-61083-457-0 01 1 9609-9804
1 CAB ASM; SERVICE,WO/ELEC
HIGH ROOF<S2F> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-61083-460-0 01 1 9601-9804
1 CAB ASM; SERVICE,WO/ELEC
HIGH ROOF<S2F> POWER WINDOW<A30> AUSTRALIA EQUIPMENT(RR3) 		1-61083-451-0 01 1 9601-9804
1 CAB ASM; SERVICE,WO/ELEC
LOW ROOF<6XQ> 		1-61083-462-0 01 1 9601-9804
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) LOW ROOF<6XQ> MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> DOOR WINDOW MANUAL CONT<SKF> EXC. LAMPS FOUR ROOF MARKER<PJ5>,MIR STAY O/S W/REMOTE<TBA>,LAMPS TWO ROOF MARKER<TEC> 		1-61084-476-0 01 1 0005-
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> POWER WINDOW<A30> LAMPS FOUR ROOF MARKER<PJ5> EXC. CUSTOM CAB(SR5),SPEAKER SYSTEM RR 2 SPEAKERS<TLS> 		1-61085-944-0 01 1 9805-0004
1 CAB ASM; SERVICE,WO/ELEC
HIGH ROOF<S2F> POWER WINDOW<A30> NEW ZEALAND EQUIPMENT(PK5) 		1-61085-940-0 01 1 9609-9804
