◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#64974) — 50 parça

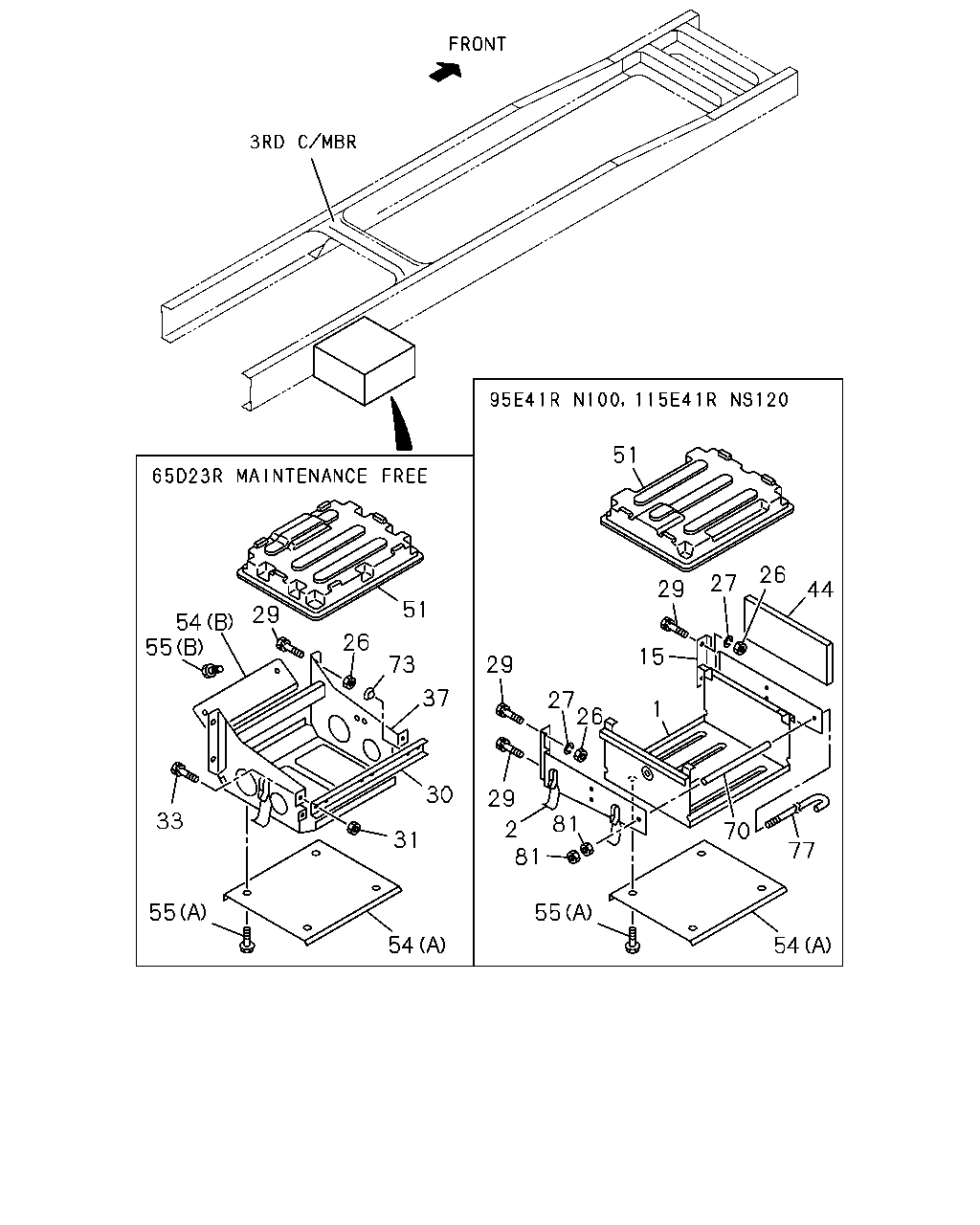

çizim 125861
51 26 27 29 44 51 29 54 55 26 15 29 73 37 27 26 1 30 29 33 81 2 81 70 31 77 55 55 54 54
BalonParca AdiParca NoAdetTipApplied Date
1 CARRIER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-398-1 01 1 9601-9804
1 CARRIER; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-398-1 01 1 9805-0004
1 CARRIER; BATTERY
6SD1 STD ENG(37L) BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-398-1 01 1 0005-
1 CARRIER; BATTERY
6HH1 STD ENG(65L) BATTERY 95E41R N100<SJ1> 		9-53613-584-3 01 1 9805-
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-339-3 01 1 9601-
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-340-3 01 1 9601-
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 FLANGE 		0-91150-210-0 04 1 9607-9608
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		9-09110-510-0 04 1 9609-0512
26 NUT; BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M10 		0-91110-510-0 04 1 0601-
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		9-99110-414-0 04 1 9601-0512
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		0-91110-514-0 04 1 0601-
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		9-09150-514-0 04 1 9601-0603
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		0-91510-514-0 04 1 0604-
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28681-035-0 04 1 9607-0512
29 BOLT; BRKT TO FRAME
BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 FLANGE 		0-28651-035-0 04 1 0601-
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40 		0-20801-440-0 04 1 9601-0512
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40 		0-20851-440-0 04 1 0601-
30 PLATE; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53616-046-3 01 1 9601-
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 FLANGE 		0-91150-108-0 02 1 9607-9608
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		9-09110-408-0 02 1 9609-0512
31 NUT; PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> M8 		0-91110-508-0 02 1 0601-
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9709
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28680-820-0 02 1 9710-0512
33 BOLT; PLATE TO BRKT
BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
37 BRACKET; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-407-0 01 1 9601-9804
37 BRACKET; BATTERY
6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-354-3 01 1 9805-
37 BRACKET; BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-407-0 01 1 9805-0004
37 BRACKET; BATTERY
6SD1 STD ENG(37L) BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53613-407-0 01 1 0005-
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 9601-
51 COVER; BATTERY
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-53612-019-1 01 1 9601-
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-1 01 1 9601-
54 PROTECTOR; HEAT,BATTERY
(A) 		1-53619-083-2 01 1 9601-9804
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) 		1-53619-083-2 01 1 9805-0004
54 PROTECTOR; HEAT,BATTERY
6SD1 STD ENG(37L) (A) 		1-53619-083-3 01 1 0005-
54 PROTECTOR; HEAT,BATTERY
6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) 		1-53619-069-1 01 1 9805-
55 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28280-816-0 04 1 9601-9606
55 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9804
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) M8X20 FLANGE 		0-28680-820-0 04 1 9805-0004
55 BOLT; HEAT PROTECTOR
6SD1 STD ENG(37L) (A) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512
55 BOLT; HEAT PROTECTOR
6SD1 STD ENG(37L) (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
55 BOLT; HEAT PROTECTOR
6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) M8X20 FLANGE 		0-28680-820-0 02 1 9805-0512
55 BOLT; HEAT PROTECTOR
6HH1 STD ENG(65L) BATTERY 65D23R MAINTENANCE FREE<WL4> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
70 SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-023-0 01 1 9609-
73 RUBBER; CUSHION,PLATE
BATTERY 65D23R MAINTENANCE FREE<WL4> 		1-09337-002-0 04 1 9601-
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 9601-
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 FLANGE 		0-91150-108-0 04 1 9607-9710
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		9-09110-408-0 04 1 9711-0512
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		0-91110-508-0 04 1 0601-
