◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#64971) — 176 parça
çizim 125248
23 25 23 25 13 25 18 24 27 26 25 11 26 27 46 25 27 25 39 26
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 1-53211-195-0 02 1 9805- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28681-235-0 08 1 9805-0512 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28651-235-0 08 1 0601- ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-112-0 08 1 9805-0602 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-112-0 08 1 0603- ●
23 BOLT; BRKT,SPR
(A) M14X50 		9-92061-450-0 06 1 9601-9804 ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 9805-0004 ● ● ●
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0005- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		9-92061-660-0 04 1 9601-9804 ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 9805-0004 ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0005-0512 ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9601-9804 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9805-0004 ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0005- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9601-9804 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9805-0004 ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0005- ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 9601-9804 ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 9805-0004 ● ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 0005- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 9601-9804 ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 9805-0004 ● ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 28 1 0005-1201 ● ●
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 28 1 1202- ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 9601-9804 ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 9805-0004 ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0005-0512 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601- ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 9601-9804 ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 9805-0004 ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0005-0512 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=14.2 		9-09150-814-0 14 1 9601-9804 ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=16.2 		9-09150-816-0 04 1 9601-9804 ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9601-9804 ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9805-0004 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0005- ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9601-9804 ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9805-0004 ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0005- ● ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 08 1 9601-9804 ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 9805-0004 ● ● ●
46 BOLT; BRKT FIX
M14X45 		9-92061-445-0 08 1 0005- ● ●

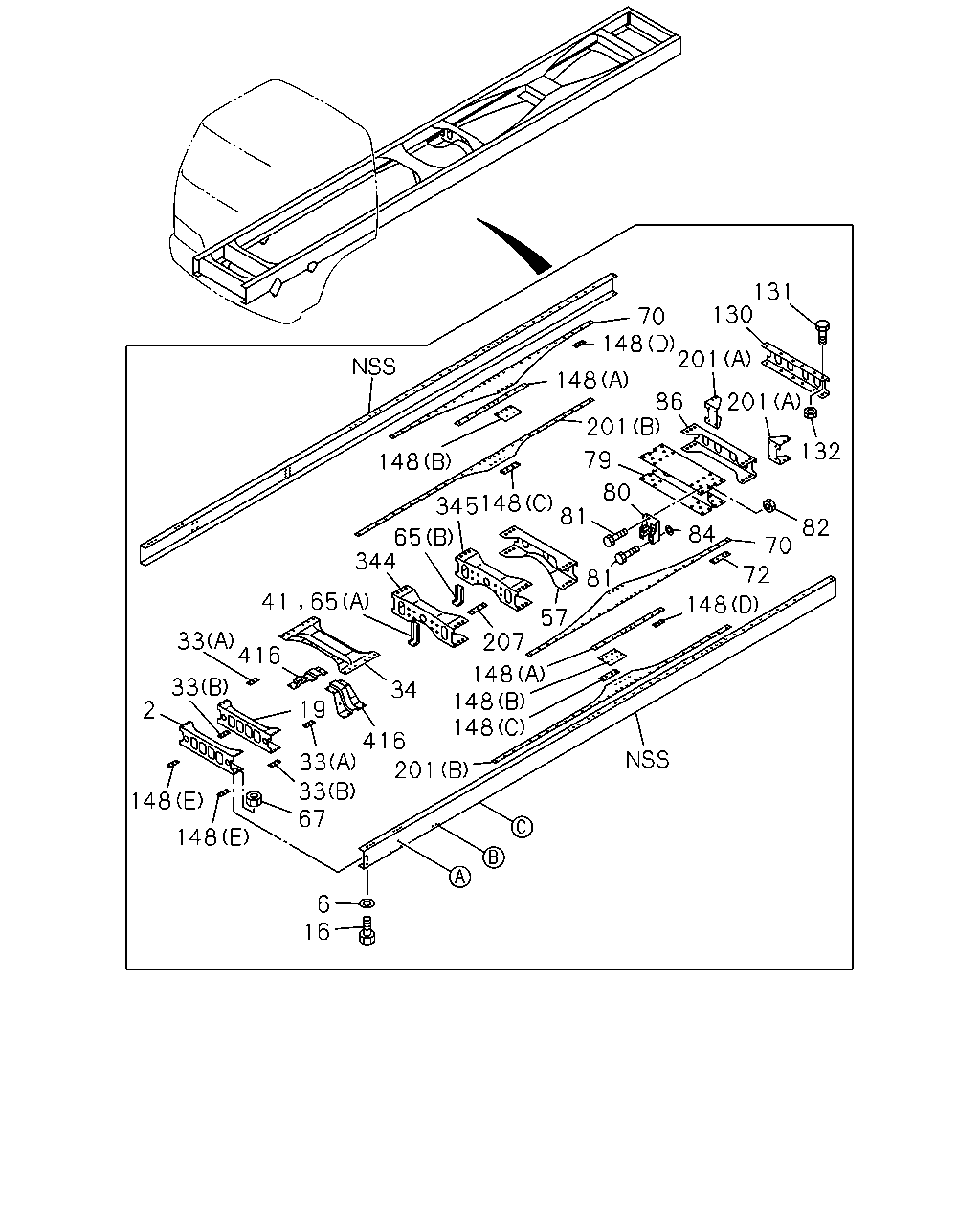

çizim 184458
131 130 70 148 201 148 86 201 148 148 345 81 65 344 201 132 79 84 81 148 57 207 148 148 148 80 82 70 72 65 416 41 33 33 34 19 2 416 33 201 33 67 148 148 6 16
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 1-53181-939-2 01 1 0010- ●
2 MEMBER; CROSS,1ST 1-53181-670-8 01 1 9601-9804 ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 9805-0004 ● ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0005-0009 ● ●
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0010- ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 01 1 9601-9804 ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 9805-0004 ● ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0005-0603 ● ●
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 01 1 9601-9804 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 9805-0004 ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0005-0512 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601- ● ●
19 MEMBER; CROSS,2ND 1-53181-671-7 01 1 9601-9804 ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 9805-0004 ● ● ●
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0005-0410 ● ●
19 MEMBER; CROSS,2ND 8-97606-306-0 01 1 0411- ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 9601-9804 ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 9805-0004 ● ● ●
33 SPACER; 2ND C/MBR,UPR
(A) 		1-53168-276-0 02 1 0005- ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 9601-9804 ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 9805-0004 ● ● ●
33 SPACER; 2ND C/MBR,UPR
(B) 		1-53168-287-0 02 1 0005- ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9601-9804 ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9805-0004 ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0005- ● ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=260 		1-53271-260-2 02 1 9805- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-3 01 1 9601-9804 ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 9805-0004 ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-190-4 01 1 0005- ● ●
65 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (B) L=270 		1-53271-271-1 02 1 9607-9804 ●
65 BRACKET; CENTER BRG
(B) L=270 		1-53271-271-1 02 1 9805- ●
65 BRACKET; CENTER BRG
6SD1 STD ENG(37L) (A) L=310 		1-53271-297-1 02 1 9607-9804 ●
65 BRACKET; CENTER BRG
(A) L=260 		1-53271-260-2 02 1 9601-9606 ● ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L) (A) L=260 		1-53271-260-2 02 1 9607-9804 ●
65 BRACKET; CENTER BRG
(A) L=260 		1-53271-260-2 02 1 9607-9804 ●
65 BRACKET; CENTER BRG
(A) L=280 		1-53271-303-1 02 1 9805-0004 ●
65 BRACKET; CENTER BRG
(B) L=285 		1-53271-261-2 02 1 9601-9606 ● ●
65 BRACKET; CENTER BRG
6SD1 TCN ENG(31L) (B) L=285 		1-53271-261-2 02 1 9607-9804 ●
65 BRACKET; CENTER BRG
(B) L=285 		1-53271-261-2 02 1 9607-9804 ●
65 BRACKET; CENTER BRG
(B) L=300 		1-53271-306-1 02 1 9805-0004 ●
67 NUT; C/MBR
M16 		9-99110-516-0 01 1 9601-9804 ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 9805-0004 ● ● ●
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0005-0512 ● ●
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601- ● ●
70 GUSSET; TRUNNION,UPR 1-53161-317-2 02 1 9601-9804 ● ●
70 GUSSET; TRUNNION,UPR 1-53161-317-2 02 1 9805-0004 ● ● ●
70 GUSSET; TRUNNION,UPR 1-53161-317-2 02 1 0005- ● ●
72 SPACER; TRUNNION 1-53168-338-0 04 1 9601-9804 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6SD1 STD ENG(37L) 		1-53181-403-1 01 1 9601-9804 ●
79 MEMBER; CROSS,TRUNNION ASM
6SD1 STD ENG(37L) 		1-53181-403-1 01 1 9805-0004 ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-403-1 01 1 9805-0004 ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-403-1 01 1 0005- ● ●
79 MEMBER; CROSS,TRUNNION ASM
6SD1 TCN ENG(31L) 		1-53181-188-4 01 1 9601-0004 ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-188-4 01 1 9601-0004 ●
80 BRACKET; C/MBR
6SD1 STD ENG(37L) 		1-53363-068-0 02 1 9601-9804 ●
80 BRACKET; C/MBR
6SD1 STD ENG(37L) 		1-53363-068-0 02 1 9805-0004 ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 9805-0004 ●
80 BRACKET; C/MBR 1-53363-068-0 02 1 0005- ● ●
81 BOLT; BRKT
6SD1 STD ENG(37L) M14X50 		9-91066-450-0 02 1 9601-9804 ●
81 BOLT; BRKT
6SD1 STD ENG(37L) M14X50 		9-91066-450-0 02 1 9805-0004 ●
81 BOLT; BRKT
M14X50 		9-91066-450-0 02 1 9805-0004 ●
81 BOLT; BRKT
M14X50 		9-91066-450-0 02 1 0005-0512 ● ●
81 BOLT; BRKT
M14X50 		0-10956-450-0 02 1 0601- ● ●
82 NUT; BRKT
6SD1 STD ENG(37L) M14 		9-99110-514-0 02 1 9601-9804 ●
82 NUT; BRKT
6SD1 STD ENG(37L) M14 		9-99110-514-0 02 1 9805-0004 ●
82 NUT; BRKT
M14 		9-99110-514-0 02 1 9805-0004 ●
82 NUT; BRKT
M14 		9-99110-514-0 02 1 0005-0512 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 02 1 0601- ● ●
84 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=15 		9-09651-069-0 04 1 9601-9804 ●
84 WASHER; PL,BRKT
6SD1 STD ENG(37L) ID=15 		9-09651-069-0 04 1 9805-0004 ●
84 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 9805-0004 ●
84 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0005-1201 ● ●
84 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1202- ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-2 01 1 9601-9804 ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 9805-0004 ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-191-3 01 1 0005- ● ●
130 MEMBER; CROSS,END 1-53181-151-1 01 1 9601-9804 ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 9805-0004 ● ● ●
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0005- ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9601-9804 ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 9805-0004 ● ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0005-0512 ● ●
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
132 NUT; END C/MBR
M12 		9-99110-512-0 04 1 9601-9804 ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 9805-0004 ● ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0005-0602 ● ●
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603- ● ●
148 SPACER; C/MBR
6SD1 TCN ENG(31L) (B) LOWER 		1-53168-380-0 02 1 9805-0004 ●
148 SPACER; C/MBR
(A) LOWER 		1-53168-029-1 02 1 9601-9804 ● ●
148 SPACER; C/MBR
(A) UPPER 		1-53168-339-0 02 1 9601-9804 ● ●
148 SPACER; C/MBR
(A) UPPER 		1-53168-339-0 02 1 9805-0004 ● ● ●
148 SPACER; C/MBR
(A) UPPER 		1-53168-339-0 02 1 0005- ● ●
148 SPACER; C/MBR
(B) UPPER 		1-53168-340-0 02 1 9601-9804 ● ●
148 SPACER; C/MBR
(B) UPPER 		1-53168-340-0 02 1 9805-0004 ● ● ●
148 SPACER; C/MBR
(B) UPPER 		1-53168-340-0 02 1 0005- ● ●
148 SPACER; C/MBR
(E) 		1-53168-341-0 02 1 9601-9804 ● ●
148 SPACER; C/MBR
(E) 		1-53168-341-0 02 1 9805-0004 ● ● ●
148 SPACER; C/MBR
(E) 		1-53168-341-0 02 1 0005- ● ●
148 SPACER; C/MBR
(B) LOWER 		1-53168-352-0 02 1 9601-9804 ● ●
148 SPACER; C/MBR
6SD1 STD ENG(37L) (B) LOWER 		1-53168-352-0 02 1 9805-0004 ●
148 SPACER; C/MBR
(B) LOWER 		1-53168-352-0 02 1 9805-0004 ●
148 SPACER; C/MBR
(B) LOWER 		1-53168-352-0 02 1 0005- ●
148 SPACER; C/MBR
(D) 		1-53168-337-0 04 1 9805-0004 ● ●
148 SPACER; C/MBR
(D) 		1-53168-337-0 04 1 0005- ●
148 SPACER; C/MBR
(A) LOWER 		1-53168-029-1 02 1 9805-0004 ● ● ●
148 SPACER; C/MBR
(C) 		1-53168-338-0 04 1 9805-0004 ● ● ●
148 SPACER; C/MBR
(C) 		1-53168-338-0 04 1 0005- ● ●
148 SPACER; C/MBR
(A) LOWER 		1-53168-029-1 02 1 0005- ● ●
148 SPACER; C/MBR
(B) LOWER 		1-53168-336-0 02 1 9805- ●
148 SPACER; C/MBR
(D) 		1-53168-337-0 02 1 9805- ●
201 GUSSET; C/MBR
(B) 		1-53161-553-2 02 1 9601-9802 ●
201 GUSSET; C/MBR
6SD1 TCN ENG(31L) (B) 		1-53161-553-2 02 1 9803-9804 ●
201 GUSSET; C/MBR
(B) 		1-53161-642-1 02 1 9805-0004 ●
201 GUSSET; C/MBR
6SD1 STD ENG(37L) (B) 		1-53161-680-0 02 1 9803-9804 ●
201 GUSSET; C/MBR
(B) 		1-53161-643-0 02 1 9805- ●
201 GUSSET; C/MBR
(A) 		1-53167-303-0 02 1 9601- ● ●
201 GUSSET; C/MBR
(B) 		1-53161-554-0 02 1 9601-9804 ●
201 GUSSET; C/MBR
(B) 		1-53161-638-0 02 1 9805- ●
207 SPACER; 4TH C/MBR 1-53168-162-2 02 1 9805-0004 ● ●
207 SPACER; 4TH C/MBR 1-53168-162-2 02 1 0005- ●
344 MEMBER; CROSS,4TH 1-53171-972-3 01 1 9601-9804 ● ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 9805-0004 ● ● ●
344 MEMBER; CROSS,4TH 1-53181-580-2 01 1 0005- ● ●
345 MEMBER; CROSS,5TH 1-53171-972-3 01 1 9601-9804 ● ●
345 MEMBER; CROSS,5TH 1-53181-580-2 01 1 9805-0004 ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9601-9804 ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9805-0004 ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 0005- ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9601-9804 ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9805-0004 ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
