Sayfa 4-60 - Isuzu EPC

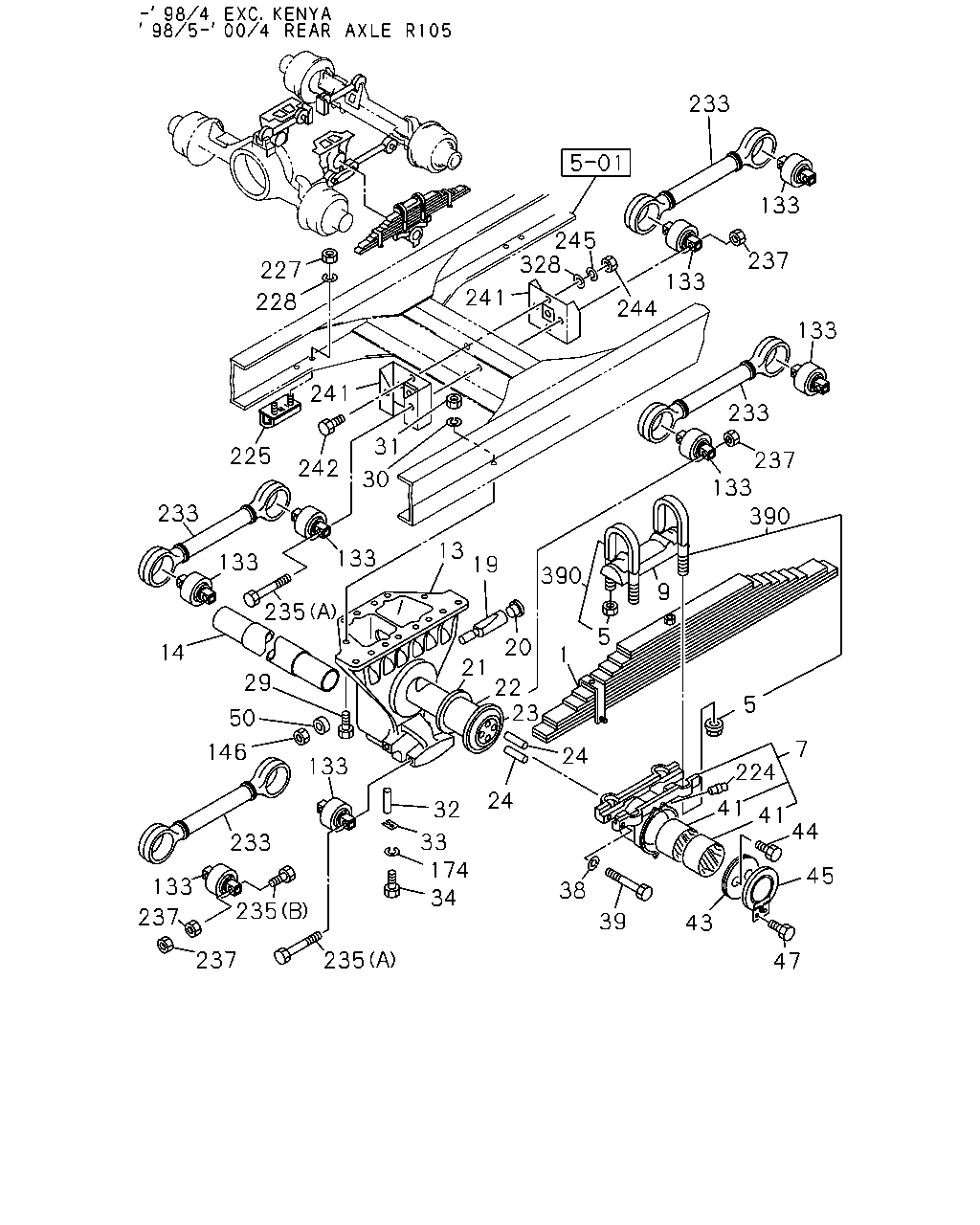

4-60 — REAR SUSPENSION (#64968) — 382 parça

233 133 237 133 133 245 328 241 244 233 237 133 390 390 9 5 1 5 7 224 24 23 22 20 21 19 13 31 30 133 241 242 227 228 225 233 133 235 14 29 50 146 133 32 24 38 39 41 41 44 45 47 43 34 174 33 235 235 233 133 237 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. KENYA EQUIPMENT(PQ2) 10-LEAF	1-51310-952-0	02	1	9601-9804
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR AXLE R130(B5V) 10-LEAF	1-51310-952-0	02	1	9805-0004
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-952-0	02	1	0005-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2) 11-LEAF	1-51310-729-1	02	1	9601-9804
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR AXLE R105(B5C) 11-LEAF	1-51310-729-1	02	1	9805-0004
5	NUT; U-BOLT,RR SPR KENYA EQUIPMENT(PQ2) M27 FLANGE	9-09844-662-1	08	1	9601-9804
5	NUT; U-BOLT,RR SPR EXC. KENYA EQUIPMENT(PQ2) M24 FLANGE	1-09440-001-1	08	1	9601-9804
5	NUT; U-BOLT,RR SPR REAR AXLE R105(B5C) M24 FLANGE	1-09440-001-1	08	1	9805-0004
5	NUT; U-BOLT,RR SPR REAR AXLE R130(B5V) M27 FLANGE	1-09440-058-0	08	1	9805-0004
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	0005-
7	SEAT; SPR,LWR KENYA EQUIPMENT(PQ2)	1-51385-091-0	02	1	9601-9804
7	SEAT; SPR,LWR REAR AXLE R130(B5V)	1-51385-091-0	02	1	9805-0004
7	SEAT; SPR,LWR	1-51385-091-2	02	1	0005-0604
7	SEAT; SPR,LWR	8-97614-049-2	02	1	0605-
7	SEAT; SPR,LWR EXC. KENYA EQUIPMENT(PQ2)	1-51385-071-0	02	1	9601-9803
7	SEAT; SPR,LWR EXC. KENYA EQUIPMENT(PQ2)	1-51385-097-0	02	1	9804-9804
7	SEAT; SPR,LWR REAR AXLE R105(B5C)	1-51385-097-0	02	1	9805-0004
9	PAD; U BOLT,RR SPR KENYA EQUIPMENT(PQ2)	1-51372-019-1	02	1	9601-9804
9	PAD; U BOLT,RR SPR REAR AXLE R130(B5V)	1-51372-019-1	02	1	9805-0004
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	0005-1010
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1011-
9	PAD; U BOLT,RR SPR EXC. KENYA EQUIPMENT(PQ2)	1-51372-028-0	02	1	9601-9804
9	PAD; U BOLT,RR SPR REAR AXLE R105(B5C)	1-51372-028-0	02	1	9805-0004
13	BRACKET; TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-53361-065-0	02	1	9601-9804
13	BRACKET; TRUNNION SHAFT REAR AXLE R130(B5V)	1-53361-065-0	02	1	9805-0004
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	0005-0709
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	0710-
13	BRACKET; TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-53361-066-0	02	1	9601-9804
13	BRACKET; TRUNNION SHAFT REAR AXLE R105(B5C)	1-53361-066-0	02	1	9805-0004
14	PIPE; TRUNNION BRKT KENYA EQUIPMENT(PQ2)	1-51389-032-0	01	1	9601-9804
14	PIPE; TRUNNION BRKT REAR AXLE R130(B5V)	1-51389-032-0	01	1	9805-0004
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	0005-
14	PIPE; TRUNNION BRKT EXC. KENYA EQUIPMENT(PQ2)	1-51541-014-0	01	1	9601-9804
14	PIPE; TRUNNION BRKT REAR AXLE R105(B5C)	1-51541-014-0	01	1	9805-0004
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9601-9805
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9806-
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9601-
21	WASHER; THRUST,TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-51389-058-0	02	1	9601-9804
21	WASHER; THRUST,TRUNNION SHAFT REAR AXLE R130(B5V)	1-51389-058-0	02	1	9805-0004
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	0005-
21	WASHER; THRUST,TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-51389-030-0	02	1	9601-9804
21	WASHER; THRUST,TRUNNION SHAFT REAR AXLE R105(B5C)	1-51389-030-0	02	1	9805-0004
22	SHAFT; TRUNNION,RR SUSP KENYA EQUIPMENT(PQ2)	1-51381-022-2	02	1	9601-9804
22	SHAFT; TRUNNION,RR SUSP REAR AXLE R130(B5V)	1-51381-022-2	02	1	9805-0004
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	0005-
22	SHAFT; TRUNNION,RR SUSP EXC. KENYA EQUIPMENT(PQ2)	1-51381-015-0	02	1	9601-9804
22	SHAFT; TRUNNION,RR SUSP REAR AXLE R105(B5C)	1-51381-015-0	02	1	9805-0004
23	SEAL; OIL,TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-51389-005-0	02	1	9601-9804
23	SEAL; OIL,TRUNNION SHAFT REAR AXLE R130(B5V)	1-51389-005-0	02	1	9805-0004
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	0005-
23	SEAL; OIL,TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-09625-146-0	02	1	9601-9804
23	SEAL; OIL,TRUNNION SHAFT REAR AXLE R105(B5C)	1-09625-146-0	02	1	9805-0004
24	PIN; SIDE PLATE TO SHAFT KENYA EQUIPMENT(PQ2)	1-09740-009-0	04	1	9601-9804
24	PIN; SIDE PLATE TO SHAFT REAR AXLE R130(B5V)	1-09740-009-0	04	1	9805-0004
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	0005-
24	PIN; SIDE PLATE TO SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-09740-022-0	04	1	9601-9804
24	PIN; SIDE PLATE TO SHAFT REAR AXLE R105(B5C)	1-09740-022-0	04	1	9805-0004
29	BOLT; BRKT TO FRAME M18X80	1-09000-428-1	24	1	9601-9708
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-2	24	1	9709-0712
29	BOLT; BRKT TO FRAME M18X75	8-98012-872-0	24	1	0801-
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9601-
30	WASHER; PL,TRUNNION BRKT KENYA EQUIPMENT(PQ2) ID=19	1-09503-162-0	28	1	9601-9804
30	WASHER; PL,TRUNNION BRKT REAR AXLE R105(B5C) ID=19	1-09503-162-0	32	1	9805-0004
30	WASHER; PL,TRUNNION BRKT EXC. KENYA EQUIPMENT(PQ2) ID=19	1-09503-162-0	32	1	9601-9804
30	WASHER; PL,TRUNNION BRKT REAR AXLE R130(B5V) ID=19	1-09503-162-0	28	1	9805-0004
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	0005-
31	NUT; TRUNNION BRKT KENYA EQUIPMENT(PQ2) M18	9-99110-518-0	28	1	9601-9804
31	NUT; TRUNNION BRKT REAR AXLE R105(B5C) M18	9-99110-518-0	24	1	9805-0004
31	NUT; TRUNNION BRKT EXC. KENYA EQUIPMENT(PQ2) M18	9-99110-518-0	24	1	9601-9804
31	NUT; TRUNNION BRKT REAR AXLE R130(B5V) M18	9-99110-518-0	28	1	9805-0004
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	0005-0512
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	0601-
32	PIN; STRAIGHT KENYA EQUIPMENT(PQ2)	1-09740-027-0	04	1	9601-9804
32	PIN; STRAIGHT REAR AXLE R105(B5C)	1-09740-027-0	02	1	9805-0004
32	PIN; STRAIGHT EXC. KENYA EQUIPMENT(PQ2)	1-09740-027-0	02	1	9601-9804
32	PIN; STRAIGHT REAR AXLE R130(B5V)	1-09740-027-0	04	1	9805-0004
32	PIN; STRAIGHT	1-09740-027-0	04	1	0005-
33	PLATE; LK KNOCK PIN KENYA EQUIPMENT(PQ2)	1-53369-032-1	02	1	9601-9804
33	PLATE; LK KNOCK PIN REAR AXLE R130(B5V)	1-53369-032-1	02	1	9805-0004
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	0005-
33	PLATE; LK KNOCK PIN EXC. KENYA EQUIPMENT(PQ2)	1-53369-012-0	02	1	9601-9804
33	PLATE; LK KNOCK PIN REAR AXLE R105(B5C)	1-53369-012-0	02	1	9805-0004
34	BOLT; LOCK PLATE KENYA EQUIPMENT(PQ2) M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9601-9606
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9607-0512
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	0601-
34	BOLT; LOCK PLATE EXC. KENYA EQUIPMENT(PQ2)	0-20801-014-0	02	1	9601-9606
38	WASHER; LK,SPR SETTING KENYA EQUIPMENT(PQ2) ID=22.5	9-09150-622-0	04	1	9601-9804
38	WASHER; LK,SPR SETTING REAR AXLE R130(B5V) ID=22.5	9-09150-622-0	04	1	9805-0004
38	WASHER; LK,SPR SETTING ID=22.5	9-09150-622-0	04	1	0005-0603
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	0604-
38	WASHER; LK,SPR SETTING EXC. KENYA EQUIPMENT(PQ2) ID=18.2	9-09150-618-0	04	1	9601-9804
38	WASHER; LK,SPR SETTING REAR AXLE R105(B5C) ID=18.2	9-09150-618-0	04	1	9805-0004
39	BOLT; SPR SETTING KENYA EQUIPMENT(PQ2) M22X155	9-09801-290-1	04	1	9601-9804
39	BOLT; SPR SETTING REAR AXLE R130(B5V) M22X155	9-09801-290-1	04	1	9805-0004
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	0005-
39	BOLT; SPR SETTING EXC. KENYA EQUIPMENT(PQ2)	1-09000-022-2	04	1	9601-9804
39	BOLT; SPR SETTING REAR AXLE R105(B5C)	1-09000-022-2	04	1	9805-0004
41	BUSHING; TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-51386-004-0	04	1	9601-9804
41	BUSHING; TRUNNION SHAFT REAR AXLE R130(B5V)	1-51386-004-0	04	1	9805-0004
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	0005-0902
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	0903-
41	BUSHING; TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-51386-003-0	04	1	9601-9804
41	BUSHING; TRUNNION SHAFT REAR AXLE R105(B5C)	1-51386-003-0	04	1	9805-0004
43	PLATE; SIDE,TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-51382-010-4	02	1	9601-9804
43	PLATE; SIDE,TRUNNION SHAFT REAR AXLE R130(B5V)	1-51382-010-4	02	1	9805-0004
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	0005-
43	PLATE; SIDE,TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-51382-004-1	02	1	9601-9804
43	PLATE; SIDE,TRUNNION SHAFT REAR AXLE R105(B5C)	1-51382-004-1	02	1	9805-0004
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	9601-
45	COVER; SPR SEAT KENYA EQUIPMENT(PQ2)	1-51387-013-2	02	1	9601-9804
45	COVER; SPR SEAT REAR AXLE R130(B5V)	1-51387-013-2	02	1	9805-0004
45	COVER; SPR SEAT	1-51387-013-2	02	1	0005-
45	COVER; SPR SEAT EXC. KENYA EQUIPMENT(PQ2)	1-51387-012-0	02	1	9601-9804
45	COVER; SPR SEAT REAR AXLE R105(B5C)	1-51387-012-0	02	1	9805-0004
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	0-50040-812-0	08	1	9601-9606
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9607-0512
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	0601-
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	9601-
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-0	12	1	9601-9804
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	04	1	9805-
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	08	1	9805-
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	12	1	9601-9804
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	04	1	9805-
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	08	1	9805-
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9601-0512
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	0601-
174	WASHER; LK,LOCK PLATE EXC. KENYA EQUIPMENT(PQ2) ID=10.2	9-09150-510-0	02	1	9601-9606
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-0512
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2)	1-53366-143-0	02	1	9601-9608
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2) FORWARD	1-53366-143-0	01	1	9609-9804
225	RUBBER; CUSHION,RR SPR REAR AXLE R130(B5V) FORWARD	1-53366-143-0	01	1	9805-0004
225	RUBBER; CUSHION,RR SPR FORWARD LH	1-53366-143-1	01	1	0005-
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2)	1-53366-072-1	02	1	9601-9608
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2) FORWARD	1-53366-072-1	01	1	9609-9804
225	RUBBER; CUSHION,RR SPR REAR AXLE R130(B5V) FORWARD RH,REARWARD	1-53366-072-1	03	1	9805-0004
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD	1-53366-072-2	03	1	0005-
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2) REARWARD	1-53366-072-1	02	1	9609-9804
225	RUBBER; CUSHION,RR SPR EXC. KENYA EQUIPMENT(PQ2) FORWARD RH	1-53366-082-1	01	1	9601-9804
225	RUBBER; CUSHION,RR SPR REAR AXLE R105(B5C) FORWARD RH	1-53366-082-1	01	1	9805-0004
225	RUBBER; CUSHION,RR SPR EXC. KENYA EQUIPMENT(PQ2) FORWARD LH,REARWARD	1-53366-093-2	03	1	9601-9804
225	RUBBER; CUSHION,RR SPR REAR AXLE R105(B5C) FORWARD LH,REARWARD	1-53366-093-2	03	1	9805-9807
225	RUBBER; CUSHION,RR SPR REAR AXLE R105(B5C) REARWARD	1-53366-093-2	02	1	9808-0004
225	RUBBER; CUSHION,RR SPR REAR AXLE R105(B5C) FORWARD LH	1-53366-146-0	01	1	9808-0004
227	NUT; CUSHION RUBBER M12	9-99110-412-0	08	1	9601-9606
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	08	1	9607-0602
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	0603-
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	08	1	9601-9611
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) REARWARD L=515	1-51511-655-0	03	1	9601-9608
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) REARWARD UPPER L=525	1-51511-656-0	01	1	9609-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R130(B5V) REARWARD UPPER L=525	1-51511-656-0	01	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP REARWARD UPPER L=525	1-51511-656-0	01	1	0005-
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) FORWARD UPPER L=555	1-51511-660-0	01	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R130(B5V) FORWARD UPPER L=545	1-51511-658-0	01	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP FORWARD UPPER L=545	1-51511-658-0	01	1	0005-
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) FORWARD LOWER L=585	1-51511-672-0	02	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R130(B5V) FORWARD LOWER L=590	1-51511-673-0	02	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=590	1-51511-673-0	02	1	0005-
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) REARWARD LOWER L=510	1-51511-671-0	02	1	9609-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R105(B5C) REARWARD UPPER L=510	1-51511-671-0	01	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP EXC. KENYA EQUIPMENT(PQ2) FORWARD LOWER L=520	1-51511-605-0	02	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R105(B5C) FORWARD LOWER L=520	1-51511-605-0	02	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP EXC. KENYA EQUIPMENT(PQ2) FORWARD UPPER L=505	1-51511-670-0	01	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R105(B5C) FORWARD UPPER L=505	1-51511-670-0	01	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP EXC. KENYA EQUIPMENT(PQ2) REARWARD L=510	1-51511-671-0	03	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=510	1-51511-671-0	02	1	9805-
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9601-0805
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	0806-
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9601-0805
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	0806-
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	9601-
241	BRACKET; TORQUE ROD EXC. KENYA EQUIPMENT(PQ2)	1-53363-053-1	02	1	9601-9804
241	BRACKET; TORQUE ROD REAR AXLE R105(B5C)	1-53363-053-1	02	1	9805-0004
242	BOLT; BRKT TO FRAME EXC. KENYA EQUIPMENT(PQ2) M14X50	0-10806-450-0	02	1	9601-9702
242	BOLT; BRKT TO FRAME EXC. KENYA EQUIPMENT(PQ2) M14X50	9-91066-450-0	02	1	9703-9804
242	BOLT; BRKT TO FRAME REAR AXLE R105(B5C) M14X50	9-91066-450-0	02	1	9805-0004
244	NUT; BRKT EXC. KENYA EQUIPMENT(PQ2) M14	9-99110-414-0	02	1	9601-9702
244	NUT; BRKT EXC. KENYA EQUIPMENT(PQ2) M14	9-99110-514-0	02	1	9703-9804
244	NUT; BRKT REAR AXLE R105(B5C) M14	9-99110-514-0	02	1	9805-0004
245	WASHER; LK,BRKT EXC. KENYA EQUIPMENT(PQ2) ID=14.2	9-09150-614-0	02	1	9601-9702
328	WASHER; PL,BRKT EXC. KENYA EQUIPMENT(PQ2) ID=15	9-09651-069-0	04	1	9703-9804
328	WASHER; PL,BRKT REAR AXLE R105(B5C) ID=15	9-09651-069-0	04	1	9805-0004
390	U-BOLT SET; RR SPRING KENYA EQUIPMENT(PQ2) L=340	1-87870-146-0	04	1	9601-9711
390	U-BOLT SET; RR SPRING KENYA EQUIPMENT(PQ2) L=330	1-87870-164-2	04	1	9712-9804
390	U-BOLT SET; RR SPRING REAR AXLE R130(B5V) L=330	1-87870-164-3	04	1	9805-9805
390	U-BOLT SET; RR SPRING REAR AXLE R130(B5V) L=340	1-87870-146-0	04	1	9806-0004
390	U-BOLT SET; RR SPRING L=340	1-87870-146-1	04	1	0005-
390	U-BOLT SET; RR SPRING EXC. KENYA EQUIPMENT(PQ2) L=350	1-87870-316-0	04	1	9601-9804
390	U-BOLT SET; RR SPRING REAR AXLE R105(B5C) L=350	1-87870-316-0	04	1	9805-0004

233 133 237 133 133 233 237 133 390 390 9 5 1 5 7 224 24 23 22 20 21 19 13 133 227 228 225 233 31 30 133 235 14 29 50 146 133 233 24 35 32 33 37 41 41 44 47 46 47 45 43 42 40 39 38 34 235 133 237 235 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. KENYA EQUIPMENT(PQ2) 10-LEAF	1-51310-952-0	02	1	9601-9804
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR AXLE R130(B5V) 10-LEAF	1-51310-952-0	02	1	9805-0004
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-952-0	02	1	0005-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. KENYA EQUIPMENT(PQ2) 11-LEAF	1-51310-729-1	02	1	9601-9804
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. REAR AXLE R105(B5C) 11-LEAF	1-51310-729-1	02	1	9805-0004
5	NUT; U-BOLT,RR SPR KENYA EQUIPMENT(PQ2) M27 FLANGE	9-09844-662-1	08	1	9601-9804
5	NUT; U-BOLT,RR SPR EXC. KENYA EQUIPMENT(PQ2) M24 FLANGE	1-09440-001-1	08	1	9601-9804
5	NUT; U-BOLT,RR SPR REAR AXLE R105(B5C) M24 FLANGE	1-09440-001-1	08	1	9805-0004
5	NUT; U-BOLT,RR SPR REAR AXLE R130(B5V) M27 FLANGE	1-09440-058-0	08	1	9805-0004
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	0005-
7	SEAT; SPR,LWR KENYA EQUIPMENT(PQ2)	1-51385-091-0	02	1	9601-9804
7	SEAT; SPR,LWR REAR AXLE R130(B5V)	1-51385-091-0	02	1	9805-0004
7	SEAT; SPR,LWR	1-51385-091-2	02	1	0005-0604
7	SEAT; SPR,LWR	8-97614-049-2	02	1	0605-
7	SEAT; SPR,LWR EXC. KENYA EQUIPMENT(PQ2)	1-51385-071-0	02	1	9601-9803
7	SEAT; SPR,LWR EXC. KENYA EQUIPMENT(PQ2)	1-51385-097-0	02	1	9804-9804
7	SEAT; SPR,LWR REAR AXLE R105(B5C)	1-51385-097-0	02	1	9805-0004
9	PAD; U BOLT,RR SPR KENYA EQUIPMENT(PQ2)	1-51372-019-1	02	1	9601-9804
9	PAD; U BOLT,RR SPR REAR AXLE R130(B5V)	1-51372-019-1	02	1	9805-0004
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	0005-1010
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1011-
9	PAD; U BOLT,RR SPR EXC. KENYA EQUIPMENT(PQ2)	1-51372-028-0	02	1	9601-9804
9	PAD; U BOLT,RR SPR REAR AXLE R105(B5C)	1-51372-028-0	02	1	9805-0004
13	BRACKET; TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-53361-065-0	02	1	9601-9804
13	BRACKET; TRUNNION SHAFT REAR AXLE R130(B5V)	1-53361-065-0	02	1	9805-0004
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	0005-0709
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	0710-
13	BRACKET; TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-53361-066-0	02	1	9601-9804
13	BRACKET; TRUNNION SHAFT REAR AXLE R105(B5C)	1-53361-066-0	02	1	9805-0004
14	PIPE; TRUNNION BRKT KENYA EQUIPMENT(PQ2)	1-51389-032-0	01	1	9601-9804
14	PIPE; TRUNNION BRKT REAR AXLE R130(B5V)	1-51389-032-0	01	1	9805-0004
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	0005-
14	PIPE; TRUNNION BRKT EXC. KENYA EQUIPMENT(PQ2)	1-51541-014-0	01	1	9601-9804
14	PIPE; TRUNNION BRKT REAR AXLE R105(B5C)	1-51541-014-0	01	1	9805-0004
19	BOLT; KEY,SHAFT	1-51389-018-2	02	1	9601-9805
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	9806-
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	9601-
21	WASHER; THRUST,TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-51389-058-0	02	1	9601-9804
21	WASHER; THRUST,TRUNNION SHAFT REAR AXLE R130(B5V)	1-51389-058-0	02	1	9805-0004
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	0005-
21	WASHER; THRUST,TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-51389-030-0	02	1	9601-9804
21	WASHER; THRUST,TRUNNION SHAFT REAR AXLE R105(B5C)	1-51389-030-0	02	1	9805-0004
22	SHAFT; TRUNNION,RR SUSP KENYA EQUIPMENT(PQ2)	1-51381-022-2	02	1	9601-9804
22	SHAFT; TRUNNION,RR SUSP REAR AXLE R130(B5V)	1-51381-022-2	02	1	9805-0004
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	0005-
22	SHAFT; TRUNNION,RR SUSP EXC. KENYA EQUIPMENT(PQ2)	1-51381-015-0	02	1	9601-9804
22	SHAFT; TRUNNION,RR SUSP REAR AXLE R105(B5C)	1-51381-015-0	02	1	9805-0004
23	SEAL; OIL,TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-51389-005-0	02	1	9601-9804
23	SEAL; OIL,TRUNNION SHAFT REAR AXLE R130(B5V)	1-51389-005-0	02	1	9805-0004
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	0005-
23	SEAL; OIL,TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-09625-146-0	02	1	9601-9804
23	SEAL; OIL,TRUNNION SHAFT REAR AXLE R105(B5C)	1-09625-146-0	02	1	9805-0004
24	PIN; SIDE PLATE TO SHAFT KENYA EQUIPMENT(PQ2)	1-09740-009-0	04	1	9601-9804
24	PIN; SIDE PLATE TO SHAFT REAR AXLE R130(B5V)	1-09740-009-0	04	1	9805-0004
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	0005-
24	PIN; SIDE PLATE TO SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-09740-022-0	04	1	9601-9804
24	PIN; SIDE PLATE TO SHAFT REAR AXLE R105(B5C)	1-09740-022-0	04	1	9805-0004
29	BOLT; BRKT TO FRAME M18X80	1-09000-428-1	24	1	9601-9708
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-2	24	1	9709-0712
29	BOLT; BRKT TO FRAME M18X75	8-98012-872-0	24	1	0801-
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	9601-
30	WASHER; PL,TRUNNION BRKT KENYA EQUIPMENT(PQ2) ID=19	1-09503-162-0	28	1	9601-9804
30	WASHER; PL,TRUNNION BRKT REAR AXLE R105(B5C) ID=19	1-09503-162-0	32	1	9805-0004
30	WASHER; PL,TRUNNION BRKT EXC. KENYA EQUIPMENT(PQ2) ID=19	1-09503-162-0	32	1	9601-9804
30	WASHER; PL,TRUNNION BRKT REAR AXLE R130(B5V) ID=19	1-09503-162-0	28	1	9805-0004
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	0005-
31	NUT; TRUNNION BRKT KENYA EQUIPMENT(PQ2) M18	9-99110-518-0	28	1	9601-9804
31	NUT; TRUNNION BRKT REAR AXLE R105(B5C) M18	9-99110-518-0	24	1	9805-0004
31	NUT; TRUNNION BRKT EXC. KENYA EQUIPMENT(PQ2) M18	9-99110-518-0	24	1	9601-9804
31	NUT; TRUNNION BRKT REAR AXLE R130(B5V) M18	9-99110-518-0	28	1	9805-0004
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	0005-0512
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	0601-
32	PIN; STRAIGHT KENYA EQUIPMENT(PQ2)	1-09740-027-0	04	1	9601-9804
32	PIN; STRAIGHT REAR AXLE R105(B5C)	1-09740-027-0	02	1	9805-0004
32	PIN; STRAIGHT EXC. KENYA EQUIPMENT(PQ2)	1-09740-027-0	02	1	9601-9804
32	PIN; STRAIGHT REAR AXLE R130(B5V)	1-09740-027-0	04	1	9805-0004
32	PIN; STRAIGHT	1-09740-027-0	04	1	0005-
33	PLATE; LK KNOCK PIN KENYA EQUIPMENT(PQ2)	1-53369-032-1	02	1	9601-9804
33	PLATE; LK KNOCK PIN REAR AXLE R130(B5V)	1-53369-032-1	02	1	9805-0004
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	0005-
33	PLATE; LK KNOCK PIN EXC. KENYA EQUIPMENT(PQ2)	1-53369-012-0	02	1	9601-9804
33	PLATE; LK KNOCK PIN REAR AXLE R105(B5C)	1-53369-012-0	02	1	9805-0004
34	BOLT; LOCK PLATE KENYA EQUIPMENT(PQ2) M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9601-9606
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	9607-0512
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	0601-
34	BOLT; LOCK PLATE EXC. KENYA EQUIPMENT(PQ2)	0-20801-014-0	02	1	9601-9606
35	PIN; TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-09749-030-1	04	1	9601-9804
35	PIN; TRUNNION SHAFT REAR AXLE R130(B5V)	1-09749-030-1	04	1	9805-0004
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	0005-
37	NUT; SPR SETTING KENYA EQUIPMENT(PQ2) M22	9-09110-522-0	04	1	9601-9804
37	NUT; SPR SETTING REAR AXLE R130(B5V) M22	9-09110-522-0	04	1	9805-0004
37	NUT; SPR SETTING M22	9-09110-522-0	04	1	0005-0512
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	0601-
38	WASHER; LK,SPR SETTING KENYA EQUIPMENT(PQ2) ID=22.5	9-09150-622-0	04	1	9601-9804
38	WASHER; LK,SPR SETTING REAR AXLE R130(B5V) ID=22.5	9-09150-622-0	04	1	9805-0004
38	WASHER; LK,SPR SETTING ID=22.5	9-09150-622-0	04	1	0005-0603
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	0604-
38	WASHER; LK,SPR SETTING EXC. KENYA EQUIPMENT(PQ2) ID=18.2	9-09150-618-0	04	1	9601-9804
38	WASHER; LK,SPR SETTING REAR AXLE R105(B5C) ID=18.2	9-09150-618-0	04	1	9805-0004
39	BOLT; SPR SETTING KENYA EQUIPMENT(PQ2) M22X155	9-09801-290-1	04	1	9601-9804
39	BOLT; SPR SETTING REAR AXLE R130(B5V) M22X155	9-09801-290-1	04	1	9805-0004
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	0005-
39	BOLT; SPR SETTING EXC. KENYA EQUIPMENT(PQ2)	1-09000-022-2	04	1	9601-9804
39	BOLT; SPR SETTING REAR AXLE R105(B5C)	1-09000-022-2	04	1	9805-0004
40	VALVE; GREASE ESCAPE KENYA EQUIPMENT(PQ2)	9-51389-010-0	02	1	9601-9804
40	VALVE; GREASE ESCAPE REAR AXLE R130(B5V)	9-51389-010-0	02	1	9805-0004
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	0005-
41	BUSHING; TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-51386-004-0	04	1	9601-9804
41	BUSHING; TRUNNION SHAFT REAR AXLE R130(B5V)	1-51386-004-0	04	1	9805-0004
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	0005-0902
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	0903-
41	BUSHING; TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-51386-003-0	04	1	9601-9804
41	BUSHING; TRUNNION SHAFT REAR AXLE R105(B5C)	1-51386-003-0	04	1	9805-0004
42	SHIM; SIDE PLATE TO SHAFT KENYA EQUIPMENT(PQ2)	1-51389-033-1	12	1	9601-9804
42	SHIM; SIDE PLATE TO SHAFT REAR AXLE R130(B5V)	1-51389-033-1	12	1	9805-0004
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	0005-
43	PLATE; SIDE,TRUNNION SHAFT KENYA EQUIPMENT(PQ2)	1-51382-010-4	02	1	9601-9804
43	PLATE; SIDE,TRUNNION SHAFT REAR AXLE R130(B5V)	1-51382-010-4	02	1	9805-0004
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	0005-
43	PLATE; SIDE,TRUNNION SHAFT EXC. KENYA EQUIPMENT(PQ2)	1-51382-004-1	02	1	9601-9804
43	PLATE; SIDE,TRUNNION SHAFT REAR AXLE R105(B5C)	1-51382-004-1	02	1	9805-0004
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	9601-
45	COVER; SPR SEAT KENYA EQUIPMENT(PQ2)	1-51387-013-2	02	1	9601-9804
45	COVER; SPR SEAT REAR AXLE R130(B5V)	1-51387-013-2	02	1	9805-0004
45	COVER; SPR SEAT	1-51387-013-2	02	1	0005-
45	COVER; SPR SEAT EXC. KENYA EQUIPMENT(PQ2)	1-51387-012-0	02	1	9601-9804
45	COVER; SPR SEAT REAR AXLE R105(B5C)	1-51387-012-0	02	1	9805-0004
46	BRACKET; COVER KENYA EQUIPMENT(PQ2)	1-51387-015-2	02	1	9601-9804
46	BRACKET; COVER REAR AXLE R130(B5V)	1-51387-015-2	02	1	9805-0004
46	BRACKET; COVER	1-51387-015-2	02	1	0005-
47	BOLT; COVER TO SEAT M8X12 W/LK WASHER	0-50040-812-0	08	1	9601-9606
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	9607-0512
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	0601-
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	9601-
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-0	12	1	9601-9804
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	04	1	9805-
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	08	1	9805-
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	12	1	9601-9804
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	04	1	9805-
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	08	1	9805-
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	9601-0512
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	0601-
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-0512
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2)	1-53366-143-0	02	1	9601-9608
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2) FORWARD	1-53366-143-0	01	1	9609-9804
225	RUBBER; CUSHION,RR SPR REAR AXLE R130(B5V) FORWARD	1-53366-143-0	01	1	9805-0004
225	RUBBER; CUSHION,RR SPR FORWARD LH	1-53366-143-1	01	1	0005-
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2)	1-53366-072-1	02	1	9601-9608
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2) FORWARD	1-53366-072-1	01	1	9609-9804
225	RUBBER; CUSHION,RR SPR REAR AXLE R130(B5V) FORWARD RH,REARWARD	1-53366-072-1	03	1	9805-0004
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD	1-53366-072-2	03	1	0005-
225	RUBBER; CUSHION,RR SPR KENYA EQUIPMENT(PQ2) REARWARD	1-53366-072-1	02	1	9609-9804
225	RUBBER; CUSHION,RR SPR EXC. KENYA EQUIPMENT(PQ2) FORWARD RH	1-53366-082-1	01	1	9601-9804
225	RUBBER; CUSHION,RR SPR REAR AXLE R105(B5C) FORWARD RH	1-53366-082-1	01	1	9805-0004
225	RUBBER; CUSHION,RR SPR EXC. KENYA EQUIPMENT(PQ2) FORWARD LH,REARWARD	1-53366-093-2	03	1	9601-9804
225	RUBBER; CUSHION,RR SPR REAR AXLE R105(B5C) FORWARD LH,REARWARD	1-53366-093-2	03	1	9805-9807
225	RUBBER; CUSHION,RR SPR REAR AXLE R105(B5C) REARWARD	1-53366-093-2	02	1	9808-0004
225	RUBBER; CUSHION,RR SPR REAR AXLE R105(B5C) FORWARD LH	1-53366-146-0	01	1	9808-0004
227	NUT; CUSHION RUBBER M12	9-99110-412-0	08	1	9601-9606
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	08	1	9607-0602
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	0603-
228	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	08	1	9601-9611
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) REARWARD L=515	1-51511-655-0	03	1	9601-9608
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) REARWARD UPPER L=525	1-51511-656-0	01	1	9609-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R130(B5V) REARWARD UPPER L=525	1-51511-656-0	01	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP REARWARD UPPER L=525	1-51511-656-0	01	1	0005-
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) FORWARD UPPER L=555	1-51511-660-0	01	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R130(B5V) FORWARD UPPER L=545	1-51511-658-0	01	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP FORWARD UPPER L=545	1-51511-658-0	01	1	0005-
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) FORWARD LOWER L=585	1-51511-672-0	02	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R130(B5V) FORWARD LOWER L=590	1-51511-673-0	02	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP FORWARD LOWER L=590	1-51511-673-0	02	1	0005-
233	ROD ASM; TORQUE,RR SUSP KENYA EQUIPMENT(PQ2) REARWARD LOWER L=510	1-51511-671-0	02	1	9609-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R105(B5C) REARWARD UPPER L=510	1-51511-671-0	01	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP EXC. KENYA EQUIPMENT(PQ2) FORWARD LOWER L=520	1-51511-605-0	02	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R105(B5C) FORWARD LOWER L=520	1-51511-605-0	02	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP EXC. KENYA EQUIPMENT(PQ2) FORWARD UPPER L=505	1-51511-670-0	01	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REAR AXLE R105(B5C) FORWARD UPPER L=505	1-51511-670-0	01	1	9805-0004
233	ROD ASM; TORQUE,RR SUSP EXC. KENYA EQUIPMENT(PQ2) REARWARD L=510	1-51511-671-0	03	1	9601-9804
233	ROD ASM; TORQUE,RR SUSP REARWARD LOWER L=510	1-51511-671-0	02	1	9805-
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	9601-0805
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	0806-
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	9601-0805
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	0806-
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	9601-
390	U-BOLT SET; RR SPRING KENYA EQUIPMENT(PQ2) L=340	1-87870-146-0	04	1	9601-9711
390	U-BOLT SET; RR SPRING KENYA EQUIPMENT(PQ2) L=330	1-87870-164-2	04	1	9712-9804
390	U-BOLT SET; RR SPRING REAR AXLE R130(B5V) L=330	1-87870-164-3	04	1	9805-9805
390	U-BOLT SET; RR SPRING REAR AXLE R130(B5V) L=340	1-87870-146-0	04	1	9806-0004
390	U-BOLT SET; RR SPRING L=340	1-87870-146-1	04	1	0005-
390	U-BOLT SET; RR SPRING EXC. KENYA EQUIPMENT(PQ2) L=350	1-87870-316-0	04	1	9601-9804
390	U-BOLT SET; RR SPRING REAR AXLE R105(B5C) L=350	1-87870-316-0	04	1	9805-0004

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
