4-50 — FRONT SUSPENSION (#64966) — 81 parça

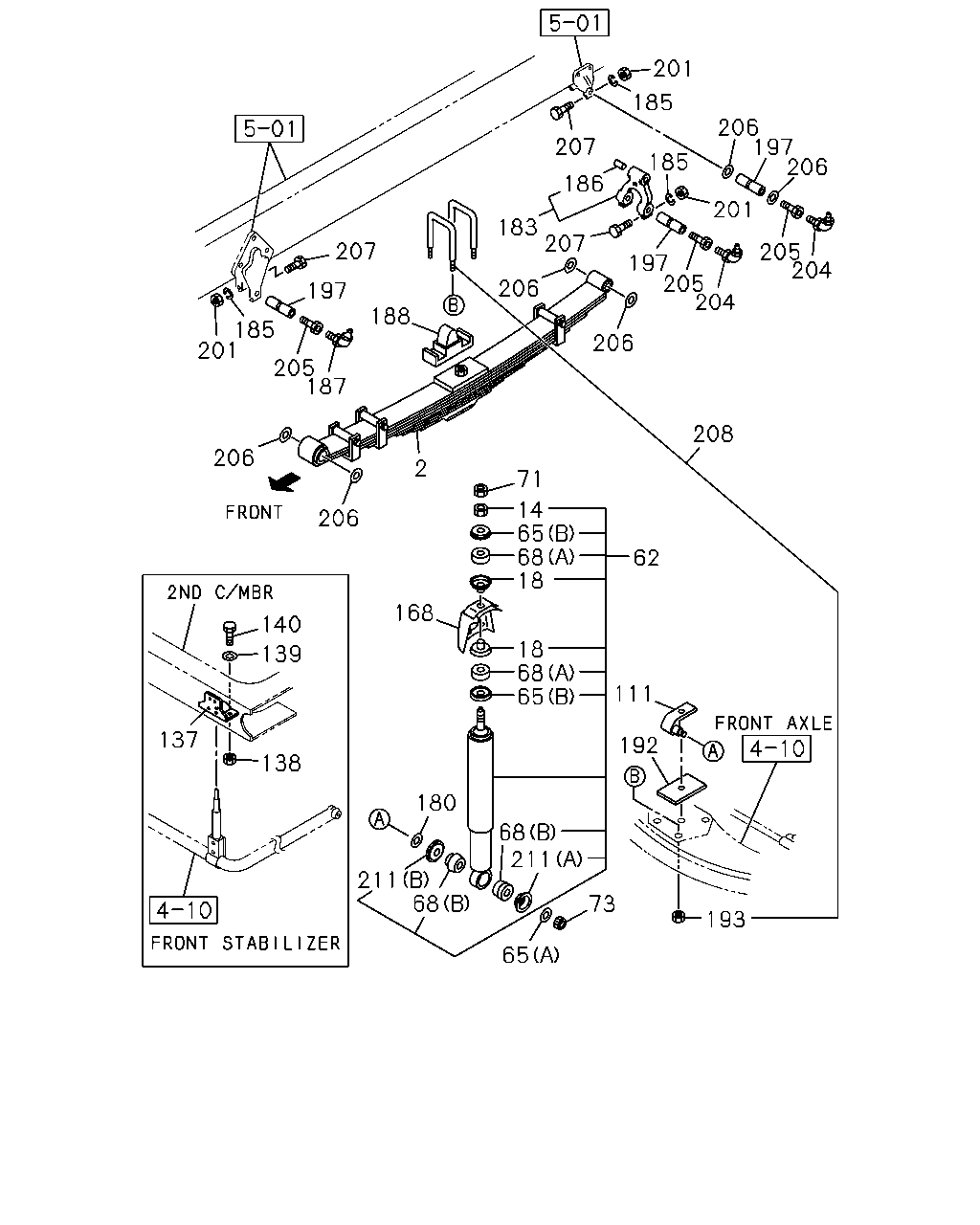

çizim 184560
201 185 206 197 206 207 185 186 201 183 207 207 205 204 197 205 204 206 197 188 185 201 206 205 187 208 206 2 71 14 65 68 18 206 62 168 140 18 68 65 139 111 137 192 138 180 68 211 211 68 73 193 65
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-349-0 01 1 9601-9711
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-343-0 01 1 9712-0004
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-476-0 01 1 9601-9711
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> 8-LEAF 		1-51130-474-0 01 1 9712-0004
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59> 9-LEAF 		1-51130-349-0 02 1 9601-0004
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 9-LEAF 		1-51130-349-0 02 1 0005-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9601-9711
18 WASHER; CENTERING,S/ABS
EXC. FRONT STABILIZER SHAFT<F59> ID=24 		1-51631-067-0 04 1 9712-9804
18 WASHER; CENTERING,S/ABS
FRONT STABILIZER SHAFT<F59> ID=20.8 		9-51631-041-0 04 1 9712-9804
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9805-
62 ABSORBER ASM; SHOCK,FRT 1-51630-433-1 02 1 9601-9711
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-433-1 02 1 9712-9804
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		1-51630-579-0 02 1 9805-0004
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0005-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		1-51630-644-0 02 1 9712-0004
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> BEST VALUE PARTS 		1-87610-155-0 02 1 9805-0004
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		1-87610-155-0 02 1 0005-
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9601-9711
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		1-09503-266-0 02 1 9712-9804
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9601-9711
65 WASHER; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) ID=16.5 		1-51631-068-0 04 1 9712-9804
65 WASHER; S/ABS
FRONT STABILIZER SHAFT<F59> (B) ID=16.5 		9-51631-040-0 04 1 9712-9804
65 WASHER; S/ABS
(B) ID=16.5 		9-51631-040-0 04 1 9805-
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9601-9711
68 BUSHING; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (A) ID=16 T=25 		1-51631-069-0 04 1 9712-9804
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9601-
68 BUSHING; S/ABS
FRONT STABILIZER SHAFT<F59> (A) 		9-51631-039-0 04 1 9712-9804
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 9805-
71 NUT; LK,S/ABS,UPR
M14 		9-99111-414-0 02 1 9601-0512
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0601-
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9601-0311
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0312-0512
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0601-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-723-0 01 1 9601-0004
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-723-1 01 1 0005-1004
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-484-0 01 1 1005-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-722-0 01 1 9601-0004
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-722-1 01 1 0005-1004
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-483-0 01 1 1005-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> 		1-51781-046-2 02 1 9601-0004
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 		9-09110-510-0 08 1 9601-9606
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M10 FLANGE 		0-91150-210-0 08 1 9607-0004
139 WASHER; PL,BRKT
FRONT STABILIZER SHAFT<F59> ID=10.5 OD=26 		9-09160-710-0 08 1 9601-9606
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28081-030-0 08 1 9601-9606
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X35 FLANGE 		0-28681-035-0 08 1 9607-0001
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M10X30 FLANGE 		0-28681-030-0 08 1 0002-0004
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9601-
180 WASHER; PL,PIN
ID=21 		9-09160-520-0 02 1 9601-0605
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0606-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 9601-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9601-0902
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-0512
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 9601-
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 01 1 9601-0004
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 0005-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9601-0512
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 9601-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9601-0512
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		9-09031-210-0 02 1 9601-0512
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-0512
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9601-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9601-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9601-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 9601-9606
208 U-BOLT SET; FRT SPRING
EXC. FRONT STABILIZER SHAFT<F59> L=210 		1-87870-380-0 04 1 9607-9711
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 9712-1206
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
FRONT STABILIZER SHAFT<F59> L=230 		1-87870-269-1 04 1 9607-9711
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9601-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9601-
