4-36 — POWER STEERING CONTROL; ENGINE SIDE (#64963) — 59 parça

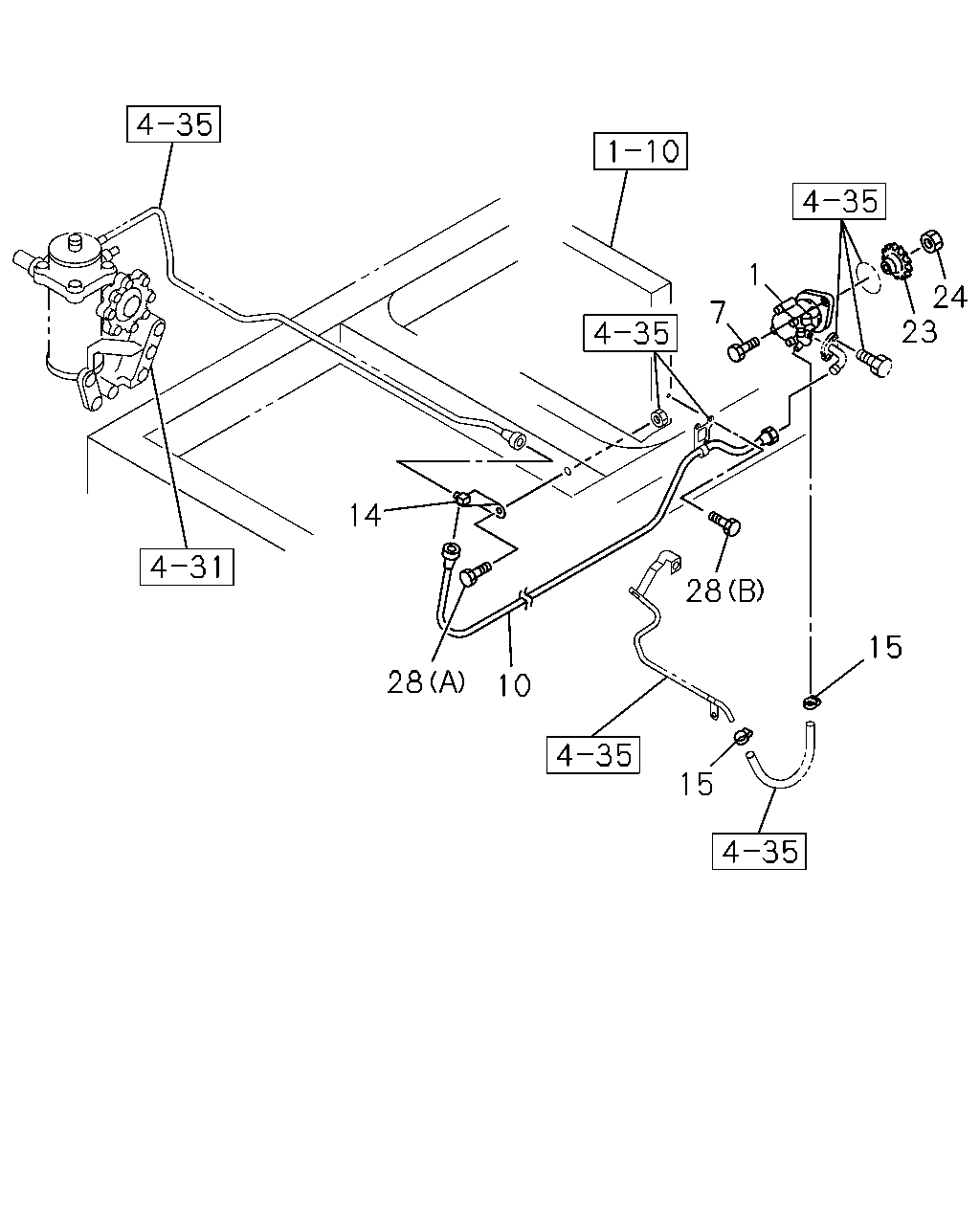

çizim 124084
1 24 23 7 14 28 15 28 10 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-0 01 1 9601-9804
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-0 01 1 9805-0004
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 STD ENG(37L) 		1-19500-504-2 01 1 0005-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) 		1-19500-548-1 01 1 9805-
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 9601-9804
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 9805-0004
7 BOLT; OIL PUMP,P/S
6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 0005-
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9805-
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 9805-0805
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X55 FLANGE 		8-97365-449-0 01 1 0806-
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09539-520-0 01 1 9601-9804
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) 		1-09364-983-1 01 1 9805-
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		0-09539-520-0 01 1 9805-0004
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 STD ENG(37L) 		0-09539-520-0 01 1 0005-0606
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 STD ENG(37L) 		0-89539-520-0 01 1 0607-
14 UNION; FLEX HOSE,P/S
6HH1 STD ENG(65L) 		1-47470-463-1 01 1 9805-
15 CLIP; OIL PIPE SUCTION
6HH1 STD ENG(65L) ID=32 		1-09704-085-0 02 1 9805-
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 9601-9804
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 9805-0004
23 GEAR; OIL PUMP
6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 0005-
23 GEAR; OIL PUMP
6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 9805-
24 NUT; GEAR,P/S PUMP
6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 9601-
24 NUT; GEAR,P/S PUMP
6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 9805-0712
24 NUT; GEAR,P/S PUMP
6HH1 STD ENG(65L) M14 FLANGE 		0-91180-114-0 01 1 0801-
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9805-0512
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9805-

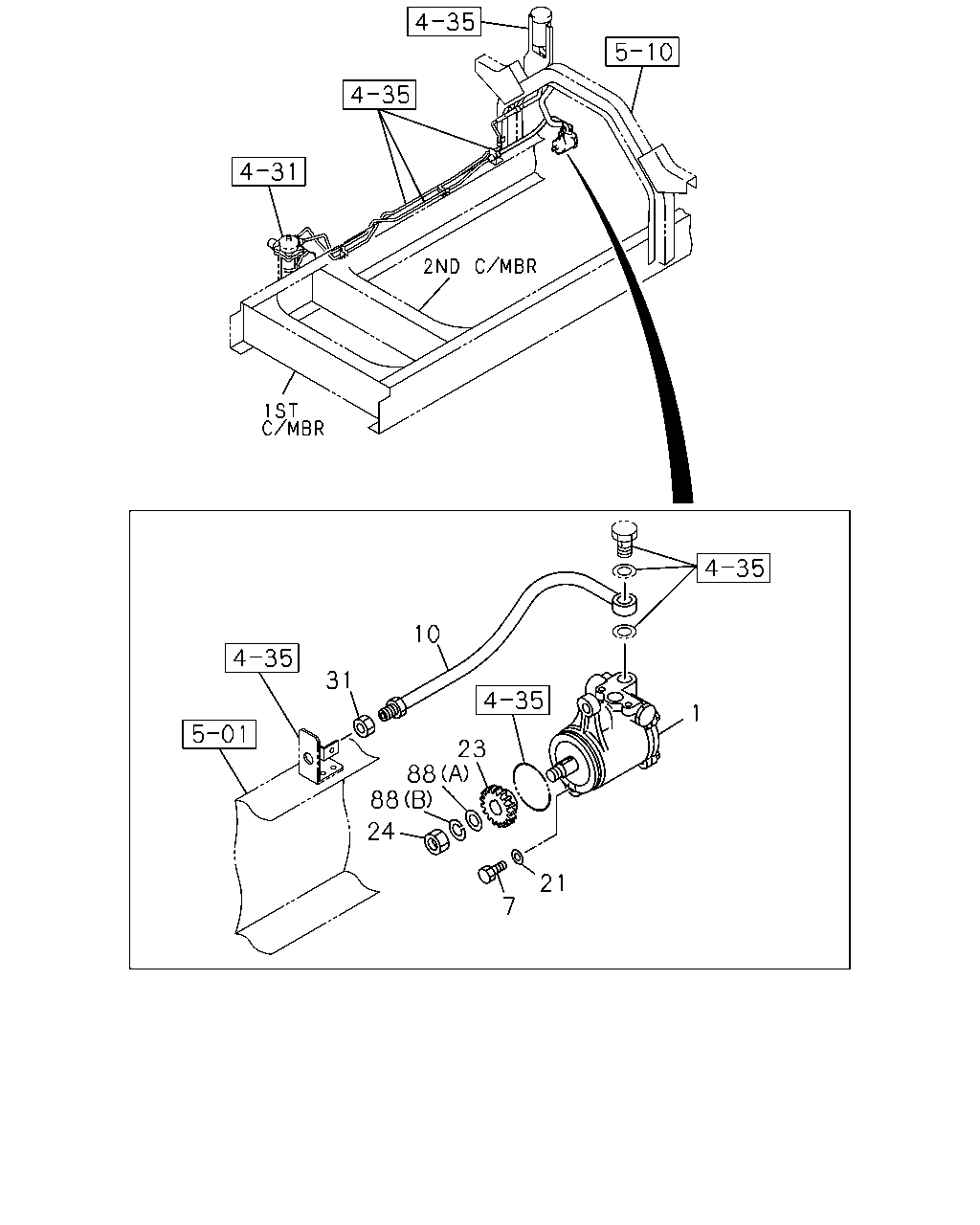

çizim 184554
10 31 1 23 88 88 24 21 7
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-0 01 1 9601-9804
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		1-19500-504-0 01 1 9805-0004
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 STD ENG(37L) 		1-19500-504-2 01 1 0005-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) 		1-19500-548-1 01 1 9805-
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 9601-9804
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 9805-0004
7 BOLT; OIL PUMP,P/S
6SD1 STD ENG(37L) M12X75 		9-01666-275-0 02 1 0005-
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 9805-
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 9805-0805
7 BOLT; OIL PUMP,P/S
6HH1 STD ENG(65L) M10X55 FLANGE 		8-97365-449-0 01 1 0806-
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09539-520-0 01 1 9601-9804
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) 		1-09364-983-1 01 1 9805-
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) 		0-09539-520-0 01 1 9805-0004
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 STD ENG(37L) 		0-09539-520-0 01 1 0005-0606
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 STD ENG(37L) 		0-89539-520-0 01 1 0607-
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 9601-9804
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 		9-09160-512-0 02 1 9805-0004
21 WASHER; PL,P/S OIL PUMP
6SD1 STD ENG(37L) ID=12.5 		9-09160-512-0 02 1 0005-0605
21 WASHER; PL,P/S OIL PUMP
6SD1 STD ENG(37L) ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 9601-9804
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 9805-0004
23 GEAR; OIL PUMP
6SD1 STD ENG(37L) Z=17 		1-19581-030-0 01 1 0005-
23 GEAR; OIL PUMP
6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 9805-
24 NUT; GEAR,P/S PUMP
6SD1 STD ENG(37L) M16 		9-19519-112-0 01 1 9601-
24 NUT; GEAR,P/S PUMP
6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 9805-0712
24 NUT; GEAR,P/S PUMP
6HH1 STD ENG(65L) M14 FLANGE 		0-91180-114-0 01 1 0801-
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 9601-9804
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 9805-0004
31 NUT; FLEX HOSE
6SD1 STD ENG(37L) M20 		9-99111-420-0 01 1 0005-0512
31 NUT; FLEX HOSE
6SD1 STD ENG(37L) M20 		0-91111-520-0 01 1 0601-
88 WASHER; GEAR,P/S PUMP
6SD1 STD ENG(37L) (A) 		1-19519-293-0 01 1 9601-
88 WASHER; GEAR,P/S PUMP
6SD1 STD ENG(37L) (B) 		9-09150-016-0 01 1 9601-
