4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#64962) — 283 parça

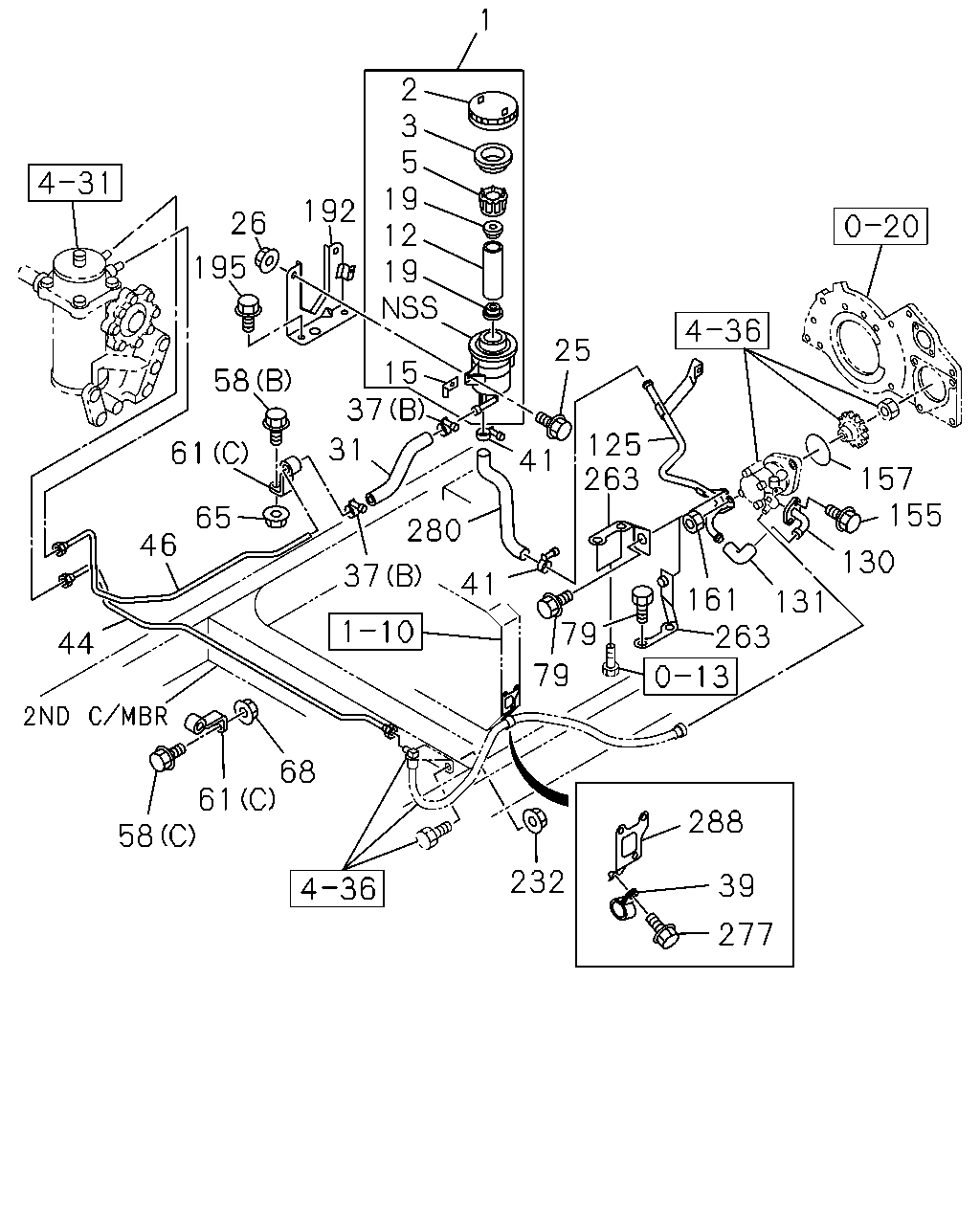

1 2 3 5 19 12 19 192 26 195 25 15 37 58 125 263 31 61 41 157 155 280 65 37 46 130 41 161 131 263 79 44 79 68 61 58 288 232 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9601-9804
1	TANK ASM; OIL,P/S 6HH1 STD ENG(65L)	1-21210-205-0	01	1	9805-0508
1	TANK ASM; OIL,P/S 6HH1 STD ENG(65L)	1-21210-238-1	01	1	0509-1006
1	TANK ASM; OIL,P/S 6HH1 STD ENG(65L)	8-98166-928-0	01	1	1007-
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21210-152-6	01	1	9805-0004
1	TANK ASM; OIL,P/S 6SD1 STD ENG(37L)	1-21210-152-6	01	1	0005-0508
1	TANK ASM; OIL,P/S 6SD1 STD ENG(37L)	1-21210-237-2	01	1	0509-1006
1	TANK ASM; OIL,P/S 6SD1 STD ENG(37L)	8-98166-927-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9601-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9601-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9601-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9601-9804
12	FILTER; MICROBON,OIL TANK,P/S 6HH1 STD ENG(65L)	1-21235-011-0	01	1	9805-
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21235-004-1	01	1	9805-0004
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 STD ENG(37L)	1-21235-004-1	01	1	0005-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9601-9804
15	PLATE; FILTER,OIL TANK 6HH1 STD ENG(65L)	1-21249-007-1	02	1	9805-0508
15	PLATE; FILTER,OIL TANK 6HH1 STD ENG(65L)	1-21249-016-0	02	1	0509-
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21249-007-1	04	1	9805-0004
15	PLATE; FILTER,OIL TANK 6SD1 STD ENG(37L)	1-21249-007-1	04	1	0005-0508
15	PLATE; FILTER,OIL TANK 6SD1 STD ENG(37L)	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21249-004-0	02	1	9601-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9601-9606
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	9607-0602
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
31	HOSE; P/S OIL TANK,INL	1-21115-465-1	01	1	9601-9804
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L)	1-21113-590-0	01	1	9805-
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21115-465-1	01	1	9805-0004
31	HOSE; P/S OIL TANK,INL 6SD1 STD ENG(37L)	1-21115-465-2	01	1	0005-
37	CLIP; HOSE,P/S (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-9804
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9805-0004
37	CLIP; HOSE,P/S 6SD1 STD ENG(37L) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0005-0108
37	CLIP; HOSE,P/S 6SD1 STD ENG(37L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0109-
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	9601-
39	CLIP; FLEX HOSE 6HH1 STD ENG(65L) ID=40	8-94226-553-0	01	1	9805-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9601-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HH1 STD ENG(65L)	1-21115-902-0	01	1	9805-
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-566-0	01	1	9601-9804
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD ENG(65L) L=786	1-21115-336-0	01	1	9805-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21115-566-0	01	1	9805-0004
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 STD ENG(37L)	1-21115-566-0	01	1	0005-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	9607-9804
58	BOLT; CLIP 6HH1 STD ENG(65L) (C) M8X20 FLANGE	0-28680-820-0	01	1	9805-0512
58	BOLT; CLIP 6HH1 STD ENG(65L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28080-840-0	02	1	9601-9606
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9804
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9805-0004
58	BOLT; CLIP 6SD1 STD ENG(37L),6HH1 STD ENG(65L) (B) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512
58	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
58	BOLT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) M8X45 FLANGE	0-28080-845-0	02	1	9805-0004
58	BOLT; CLIP 6SD1 STD ENG(37L) (A) M8X45 FLANGE	0-28080-845-0	02	1	0005-0512
58	BOLT; CLIP 6SD1 STD ENG(37L) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9601-9804
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) (C) ID=12 H=24 L=20	1-09700-605-0	01	1	9805-
61	CLIP; OIL PIPE (B) ID=16 L=40	9-09525-576-0	01	1	9601-9804
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9805-
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9805-0004
61	CLIP; OIL PIPE 6SD1 STD ENG(37L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) ID=16 L=40	9-09525-576-0	01	1	9805-0004
61	CLIP; OIL PIPE 6SD1 STD ENG(37L) (B) ID=16 L=40	9-09525-576-0	01	1	0005-0606
61	CLIP; OIL PIPE 6SD1 STD ENG(37L) (B) ID=16 L=40	0-95235-576-0	01	1	0607-
65	NUT; BRKT M8	9-09110-408-0	03	1	9601-9606
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9607-9804
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9805-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
65	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9805-0004
65	NUT; BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	0005-0602
65	NUT; BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	02	1	0603-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9804
68	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9805-0602
68	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9805-0004
68	NUT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	0005-0602
68	NUT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	02	1	0603-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9610
79	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9611-9804
79	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	02	1	9805-0004
79	BOLT; BRKT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512
79	BOLT; BRKT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28050-825-0	02	1	0601-
79	BOLT; BRKT 6HH1 STD ENG(65L) M8X12 FLANGE	0-28080-812-0	02	1	9805-0512
79	BOLT; BRKT 6HH1 STD ENG(65L) M8X12 FLANGE	0-28050-812-0	02	1	0601-
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	9601-9804
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21122-019-2	01	1	9805-0004
125	CONNECTOR; P/S PUMP 6SD1 STD ENG(37L)	1-21122-019-2	01	1	0005-
125	CONNECTOR; P/S PUMP 6HH1 STD ENG(65L)	8-94390-584-1	01	1	9805-
130	ADAPTER; P/S PUMP 6HH1 STD ENG(65L)	8-94390-583-0	01	1	9805-
131	HOSE; RUBBER,P/S 6HH1 STD ENG(65L)	8-94396-331-1	01	1	9805-
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9601-9804
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9805-0004
155	BOLT; CONNECTOR 6SD1 STD ENG(37L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0005-0906
155	BOLT; CONNECTOR 6SD1 STD ENG(37L) M8X18 W/LK&PL WASHER	0-50640-818-0	02	1	0907-
155	BOLT; CONNECTOR 6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	02	1	9805-0512
155	BOLT; CONNECTOR 6HH1 STD ENG(65L) M8X16 FLANGE	0-28050-816-0	02	1	0601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 STD ENG(37L) ID=77	1-09623-143-0	01	1	9601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD ENG(65L) ID=96.4	1-09623-178-0	01	1	9805-
161	NUT; P/S PIPE 6HH1 STD ENG(65L) M10 FLANGE	0-91150-110-0	01	1	9805-0602
161	NUT; P/S PIPE 6HH1 STD ENG(65L) M10 FLANGE	0-91180-110-0	01	1	0603-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	9601-9804
192	BRACKET; P/S OIL TANK 6HH1 STD ENG(65L)	1-21119-142-1	01	1	9805-
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21219-093-2	01	1	9805-0004
192	BRACKET; P/S OIL TANK 6SD1 STD ENG(37L)	1-21219-093-2	01	1	0005-
195	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	03	1	9601-9606
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	9607-9804
195	BOLT; BRKT 6HH1 STD ENG(65L) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
195	BOLT; BRKT 6HH1 STD ENG(65L) M10X30 FLANGE	0-28651-030-0	02	1	0601-
195	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M10X25 FLANGE	0-28681-025-0	03	1	9805-0004
195	BOLT; BRKT 6SD1 STD ENG(37L) M10X25 FLANGE	0-28681-025-0	03	1	0005-0406
195	BOLT; BRKT 6SD1 STD ENG(37L) M10X25 FLANGE	0-28081-025-0	03	1	0407-0512
195	BOLT; BRKT 6SD1 STD ENG(37L) M10X25 FLANGE	0-28051-025-0	03	1	0601-
232	NUT; BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9805-0602
232	NUT; BRKT 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-
263	BRACKET; P/S PIPE 6HH1 STD ENG(65L)	8-94393-981-0	01	1	9805-9901
263	BRACKET; P/S PIPE 6HH1 STD ENG(65L)	8-97600-117-0	01	1	9902-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9804
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	01	1	9805-0512
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L) M8X16 FLANGE	0-28050-816-0	01	1	0601-
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	01	1	9805-0004
277	BOLT; HOSE CLIP 6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512
277	BOLT; HOSE CLIP 6SD1 STD ENG(37L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	9601-9804
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-21115-491-0	01	1	9805-0206
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-21116-721-0	01	1	0207-
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21115-048-1	01	1	9805-0004
280	HOSE; P/S OIL PUMP,INL 6SD1 STD ENG(37L)	1-21115-048-1	01	1	0005-
288	BRACKET; CLIP,P/S 6HH1 STD ENG(65L)	1-82659-149-0	01	1	9805-

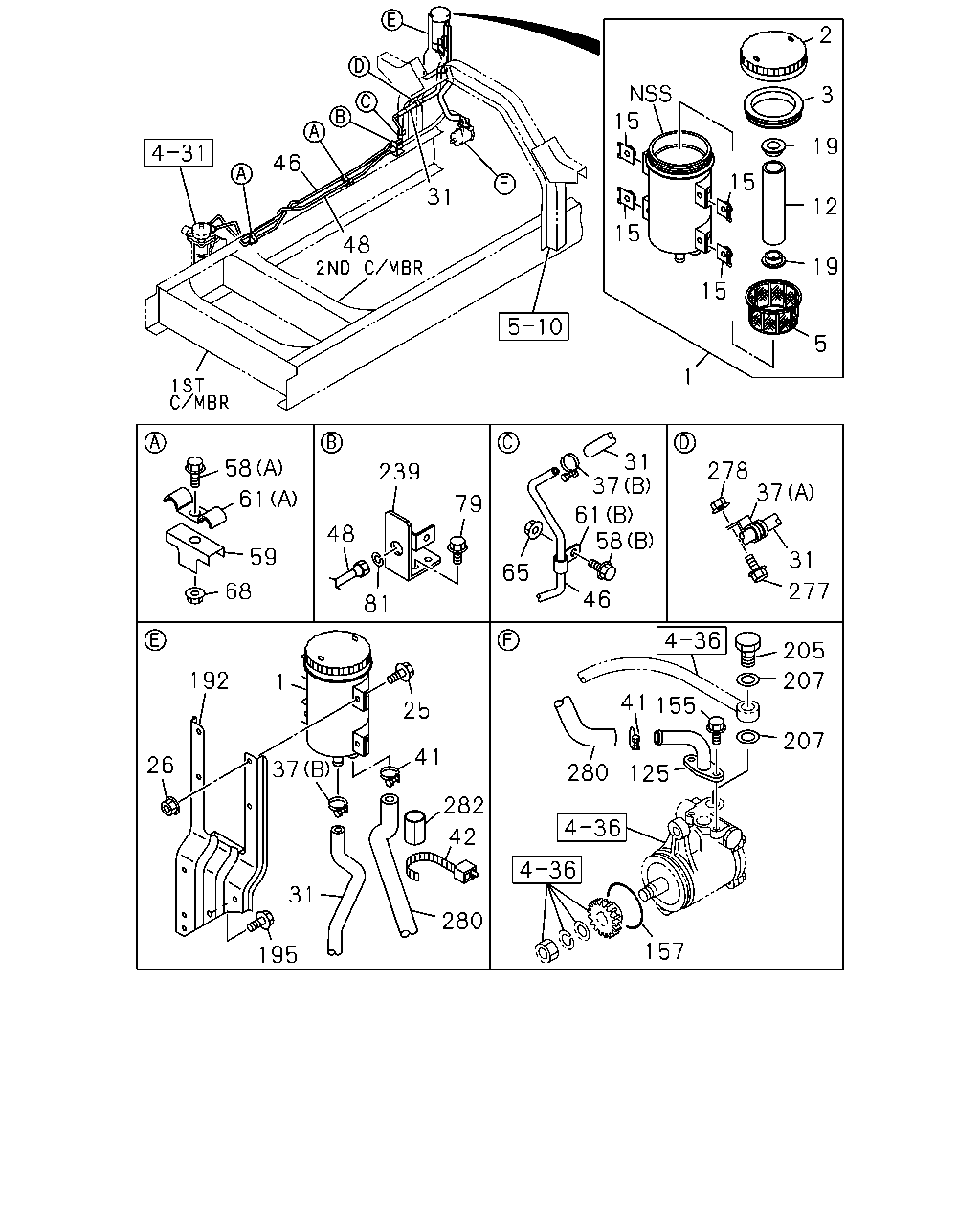

2 15 3 19 46 15 31 12 15 48 19 15 5 1 31 37 58 278 37 239 61 79 61 58 48 59 31 65 277 68 46 81 205 192 207 1 41 155 25 207 41 26 37 280 125 282 42 31 280 157 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9601-9804
1	TANK ASM; OIL,P/S 6HH1 STD ENG(65L)	1-21210-205-0	01	1	9805-0508
1	TANK ASM; OIL,P/S 6HH1 STD ENG(65L)	1-21210-238-1	01	1	0509-1006
1	TANK ASM; OIL,P/S 6HH1 STD ENG(65L)	8-98166-928-0	01	1	1007-
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21210-152-6	01	1	9805-0004
1	TANK ASM; OIL,P/S 6SD1 STD ENG(37L)	1-21210-152-6	01	1	0005-0508
1	TANK ASM; OIL,P/S 6SD1 STD ENG(37L)	1-21210-237-2	01	1	0509-1006
1	TANK ASM; OIL,P/S 6SD1 STD ENG(37L)	8-98166-927-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9601-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9601-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9601-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9601-9804
12	FILTER; MICROBON,OIL TANK,P/S 6HH1 STD ENG(65L)	1-21235-011-0	01	1	9805-
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21235-004-1	01	1	9805-0004
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 STD ENG(37L)	1-21235-004-1	01	1	0005-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9601-9804
15	PLATE; FILTER,OIL TANK 6HH1 STD ENG(65L)	1-21249-007-1	02	1	9805-0508
15	PLATE; FILTER,OIL TANK 6HH1 STD ENG(65L)	1-21249-016-0	02	1	0509-
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21249-007-1	04	1	9805-0004
15	PLATE; FILTER,OIL TANK 6SD1 STD ENG(37L)	1-21249-007-1	04	1	0005-0508
15	PLATE; FILTER,OIL TANK 6SD1 STD ENG(37L)	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21249-004-0	02	1	9601-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9601-9606
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	9607-0602
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
31	HOSE; P/S OIL TANK,INL	1-21115-465-1	01	1	9601-9804
31	HOSE; P/S OIL TANK,INL 6HH1 STD ENG(65L)	1-21113-590-0	01	1	9805-
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21115-465-1	01	1	9805-0004
31	HOSE; P/S OIL TANK,INL 6SD1 STD ENG(37L)	1-21115-465-2	01	1	0005-
37	CLIP; HOSE,P/S (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-9804
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9805-0004
37	CLIP; HOSE,P/S 6SD1 STD ENG(37L) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0005-0108
37	CLIP; HOSE,P/S 6SD1 STD ENG(37L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0109-
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	9601-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9601-
42	CLIP; HOSE,P/S L=250	1-09707-126-0	01	1	9601-9804
42	CLIP; HOSE,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=250	1-09707-126-0	01	1	9805-0004
42	CLIP; HOSE,P/S 6SD1 STD ENG(37L) L=250	1-09707-126-0	01	1	0005-
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-566-0	01	1	9601-9804
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HH1 STD ENG(65L) L=786	1-21115-336-0	01	1	9805-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21115-566-0	01	1	9805-0004
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 STD ENG(37L)	1-21115-566-0	01	1	0005-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-563-0	01	1	9601-9804
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21115-563-0	01	1	9805-0004
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 STD ENG(37L)	1-21115-563-0	01	1	0005-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
58	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	9607-9804
58	BOLT; CLIP 6HH1 STD ENG(65L) (C) M8X20 FLANGE	0-28680-820-0	01	1	9805-0512
58	BOLT; CLIP 6HH1 STD ENG(65L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-
58	BOLT; CLIP (A) M8X40 FLANGE	0-28080-840-0	02	1	9601-9606
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9804
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9805-0004
58	BOLT; CLIP 6SD1 STD ENG(37L),6HH1 STD ENG(65L) (B) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512
58	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
58	BOLT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) M8X45 FLANGE	0-28080-845-0	02	1	9805-0004
58	BOLT; CLIP 6SD1 STD ENG(37L) (A) M8X45 FLANGE	0-28080-845-0	02	1	0005-0512
58	BOLT; CLIP 6SD1 STD ENG(37L) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	9601-9804
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-47475-427-1	02	1	9805-0004
59	BRACKET; CLIP,OIL PIPE 6SD1 STD ENG(37L)	1-47475-427-1	02	1	0005-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9601-9804
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) (C) ID=12 H=24 L=20	1-09700-605-0	01	1	9805-
61	CLIP; OIL PIPE (B) ID=16 L=40	9-09525-576-0	01	1	9601-9804
61	CLIP; OIL PIPE 6HH1 STD ENG(65L) (C) ID=15 H=24 L=20	1-09700-606-0	01	1	9805-
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9805-0004
61	CLIP; OIL PIPE 6SD1 STD ENG(37L) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) ID=16 L=40	9-09525-576-0	01	1	9805-0004
61	CLIP; OIL PIPE 6SD1 STD ENG(37L) (B) ID=16 L=40	9-09525-576-0	01	1	0005-0606
61	CLIP; OIL PIPE 6SD1 STD ENG(37L) (B) ID=16 L=40	0-95235-576-0	01	1	0607-
65	NUT; BRKT M8	9-09110-408-0	03	1	9601-9606
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9607-9804
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9805-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
65	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9805-0004
65	NUT; BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	0005-0602
65	NUT; BRKT 6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	02	1	0603-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9804
68	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9805-0602
68	NUT; CLIP,OIL PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9805-0004
68	NUT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	0005-0602
68	NUT; CLIP,OIL PIPE 6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	02	1	0603-
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9610
79	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9611-9804
79	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	02	1	9805-0004
79	BOLT; BRKT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512
79	BOLT; BRKT 6SD1 STD ENG(37L) M8X25 FLANGE	0-28050-825-0	02	1	0601-
79	BOLT; BRKT 6HH1 STD ENG(65L) M8X12 FLANGE	0-28080-812-0	02	1	9805-0512
79	BOLT; BRKT 6HH1 STD ENG(65L) M8X12 FLANGE	0-28050-812-0	02	1	0601-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-9804
81	WASHER; LK,FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=20.2	9-09150-520-0	01	1	9805-0004
81	WASHER; LK,FLEX HOSE 6SD1 STD ENG(37L) ID=20.2	9-09150-520-0	01	1	0005-0603
81	WASHER; LK,FLEX HOSE 6SD1 STD ENG(37L) ID=20.2	0-91510-520-0	01	1	0604-
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	9601-9804
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21122-019-2	01	1	9805-0004
125	CONNECTOR; P/S PUMP 6SD1 STD ENG(37L)	1-21122-019-2	01	1	0005-
125	CONNECTOR; P/S PUMP 6HH1 STD ENG(65L)	8-94390-584-1	01	1	9805-
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9601-9804
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9805-0004
155	BOLT; CONNECTOR 6SD1 STD ENG(37L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0005-0906
155	BOLT; CONNECTOR 6SD1 STD ENG(37L) M8X18 W/LK&PL WASHER	0-50640-818-0	02	1	0907-
155	BOLT; CONNECTOR 6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	02	1	9805-0512
155	BOLT; CONNECTOR 6HH1 STD ENG(65L) M8X16 FLANGE	0-28050-816-0	02	1	0601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 STD ENG(37L) ID=77	1-09623-143-0	01	1	9601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HH1 STD ENG(65L) ID=96.4	1-09623-178-0	01	1	9805-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	9601-9804
192	BRACKET; P/S OIL TANK 6HH1 STD ENG(65L)	1-21119-142-1	01	1	9805-
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21219-093-2	01	1	9805-0004
192	BRACKET; P/S OIL TANK 6SD1 STD ENG(37L)	1-21219-093-2	01	1	0005-
195	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	03	1	9601-9606
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	9607-9804
195	BOLT; BRKT 6HH1 STD ENG(65L) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
195	BOLT; BRKT 6HH1 STD ENG(65L) M10X30 FLANGE	0-28651-030-0	02	1	0601-
195	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M10X25 FLANGE	0-28681-025-0	03	1	9805-0004
195	BOLT; BRKT 6SD1 STD ENG(37L) M10X25 FLANGE	0-28681-025-0	03	1	0005-0406
195	BOLT; BRKT 6SD1 STD ENG(37L) M10X25 FLANGE	0-28081-025-0	03	1	0407-0512
195	BOLT; BRKT 6SD1 STD ENG(37L) M10X25 FLANGE	0-28051-025-0	03	1	0601-
205	BOLT; EYE,FLEX HOSE,P/S M18X36	1-09675-205-0	01	1	9601-9804
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M18X36	1-09675-205-0	01	1	9805-0004
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 STD ENG(37L) M18X36	1-09675-205-0	01	1	0005-
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=26.0	9-09571-418-0	02	1	9601-9804
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=18.2 OD=26.0	9-09571-418-0	02	1	9805-0004
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 STD ENG(37L) ID=18.2 OD=26.0	9-09571-418-0	02	1	0005-
239	BRACKET; FLEX HOSE	1-47477-639-0	01	1	9601-9804
239	BRACKET; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-47477-639-0	01	1	9805-0004
239	BRACKET; FLEX HOSE 6SD1 STD ENG(37L)	1-47477-639-0	01	1	0005-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9804
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	01	1	9805-0512
277	BOLT; HOSE CLIP 6HH1 STD ENG(65L) M8X16 FLANGE	0-28050-816-0	01	1	0601-
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	01	1	9805-0004
277	BOLT; HOSE CLIP 6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512
277	BOLT; HOSE CLIP 6SD1 STD ENG(37L) M8X25 FLANGE	0-28650-825-0	01	1	0601-
278	NUT; HOSE CLIP M8	9-09110-408-0	01	1	9601-9606
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9804
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	9805-0004
278	NUT; HOSE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0005-0602
278	NUT; HOSE CLIP 6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	01	1	0603-
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	9601-9804
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-21115-491-0	01	1	9805-0206
280	HOSE; P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-21116-721-0	01	1	0207-
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-21115-048-1	01	1	9805-0004
280	HOSE; P/S OIL PUMP,INL 6SD1 STD ENG(37L)	1-21115-048-1	01	1	0005-
282	SLEEVE; RUBBER,PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	9601-9804
282	SLEEVE; RUBBER,PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=32 OD=36 L=50	1-09337-023-0	01	1	9805-0004
282	SLEEVE; RUBBER,PIPE 6SD1 STD ENG(37L) ID=32 OD=36 L=50	1-09337-023-0	01	1	0005-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
