◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#64954) — 225 parça

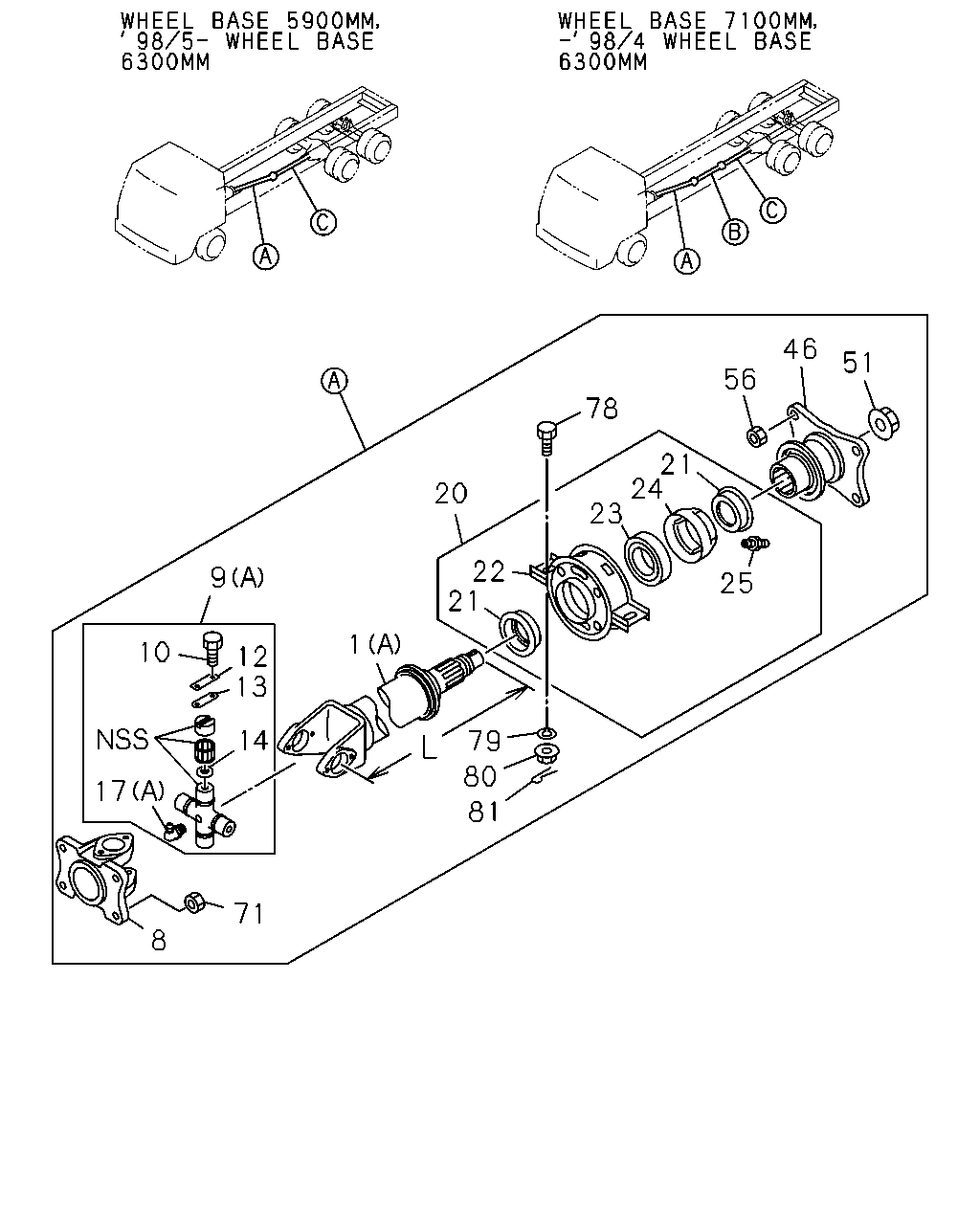

çizim 122858
46 51 56 78 21 24 23 20 22 21 9 25 1 10 12 13 14 79 80 81 17 71 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(C) L=1027 		1-37123-835-0 01 1 9601-9804 ●
1 SHAFT; PROP
(C) L=1217 		1-37124-115-0 01 1 9805- ● ●
1 SHAFT; PROP
(B) L=673 		1-37151-762-0 01 1 9601-9804 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=673 		1-37151-762-0 01 1 9609-9804 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=1218 		1-37152-349-0 01 1 9805-0004 ●
1 SHAFT; PROP
MAL6S M/T(Y1V) (A) L=778 		1-37152-065-0 01 1 9601-9804 ●
1 SHAFT; PROP
MAL6S M/T(Y1V) (A) L=1323 		1-37152-348-0 01 1 9805-0004 ●
1 SHAFT; PROP
(A) L=1323 		1-37152-348-0 01 1 0005- ●
1 SHAFT; PROP
(C) L=1227 		1-37124-101-0 01 1 9601-9804 ●
1 SHAFT; PROP
(C) L=1202 		1-37124-356-0 01 1 9805-0004 ●
1 SHAFT; PROP
(B) L=1047 		1-37151-861-0 01 1 9601-9804 ●
1 SHAFT; PROP
(A) L=843 		1-37152-161-0 01 1 9601-9804 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 9805-0004 ●
1 SHAFT; PROP
(A) L=918 		1-37152-162-0 01 1 9805-0004 ●
1 SHAFT; PROP
(A) L=1092 		1-37151-592-0 01 1 9805- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 04 1 9601-9804 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 9805- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 9805-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 9805-0004 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 9601-9608 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 9609-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0005- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 9601-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-1 AR 1 0005- ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 9601-9804 ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 9805-0004 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0005-0512 ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 9805-0004 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0005-0512 ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 0601- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 9601-9608 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 9609-0004 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 0005- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 9601-9608 ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 9609-0004 ● ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 0005- ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 9601-9804 ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 9805-0004 ● ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 0005- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-9608 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9609-0004 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0005-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9804 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9805-0004 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 02 1 9601-9804 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 9805-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 9805-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 04 1 9601-9804 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 9805-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 9805-0004 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 02 1 9601-9804 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 9805-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 9805-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 02 1 9601-9804 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 9805-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 9805-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 02 1 9601-9804 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 9805-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 9805-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 9601-9804 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9805-0004 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9805-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 02 1 9601-9804 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 9805-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 9805-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 02 1 9601-9804 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 9805-0004 ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 9805-0004 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805-0004 ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805-0004 ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805-0004 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-0004 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9601-9804 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 9805-0004 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0005- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9601-9804 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 9805-0004 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0005- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9601-9804 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 9805-0004 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0005-0605 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9601-9804 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9805-0004 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0606 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ●

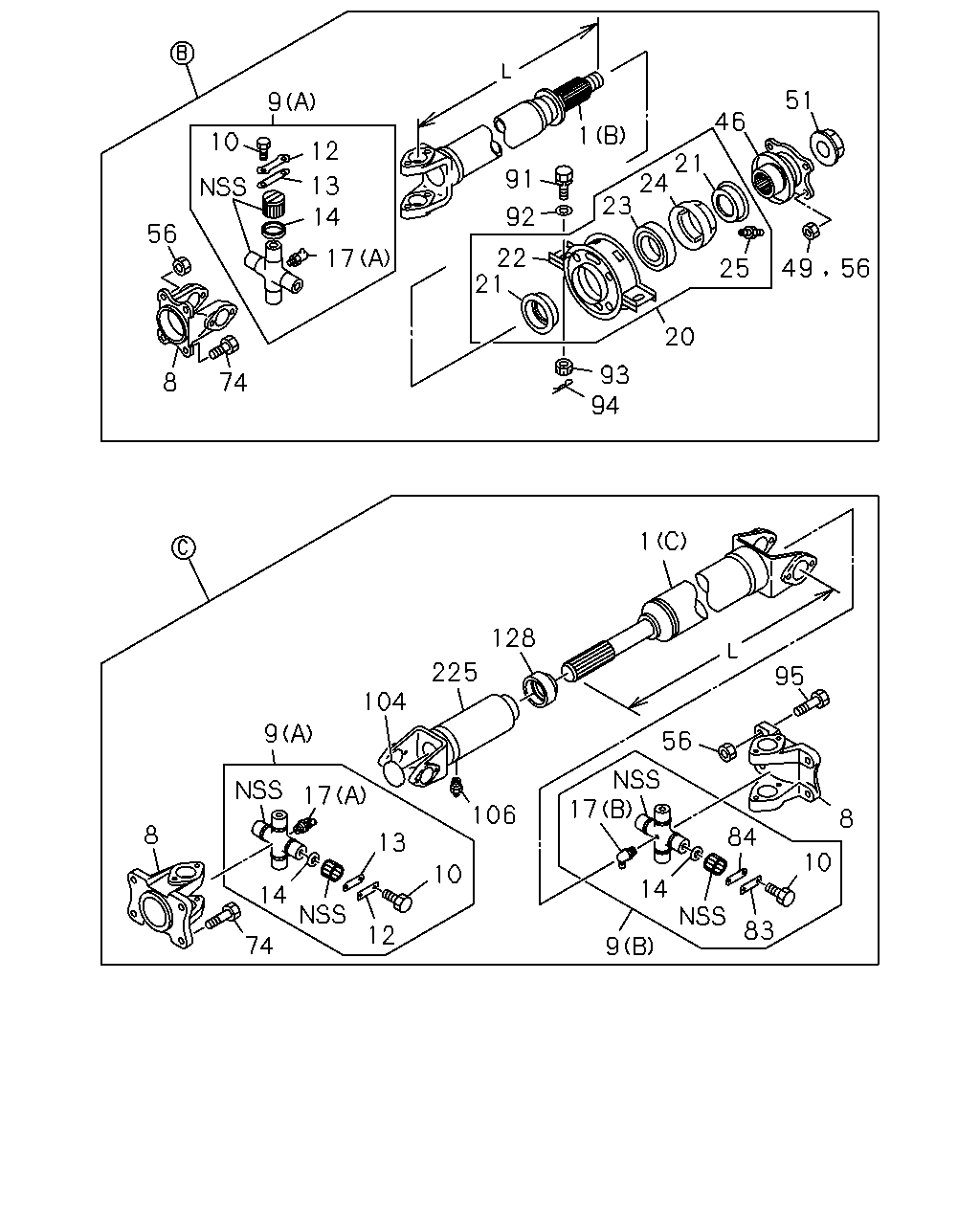

çizim 184548
51 9 46 1 10 12 21 24 23 91 13 14 92 56 22 21 17 49 56 25 20 93 94 8 74 1 128 225 95 104 9 56 17 17 106 8 8 84 13 10 10 14 14 83 12 74 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(C) L=1027 		1-37123-835-0 01 1 9601-9804 ●
1 SHAFT; PROP
(C) L=1217 		1-37124-115-0 01 1 9805- ● ●
1 SHAFT; PROP
(B) L=673 		1-37151-762-0 01 1 9601-9804 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=673 		1-37151-762-0 01 1 9609-9804 ●
1 SHAFT; PROP
FULLER RT7608LL M/T(X8P) (A) L=1218 		1-37152-349-0 01 1 9805-0004 ●
1 SHAFT; PROP
MAL6S M/T(Y1V) (A) L=778 		1-37152-065-0 01 1 9601-9804 ●
1 SHAFT; PROP
MAL6S M/T(Y1V) (A) L=1323 		1-37152-348-0 01 1 9805-0004 ●
1 SHAFT; PROP
(A) L=1323 		1-37152-348-0 01 1 0005- ●
1 SHAFT; PROP
(C) L=1227 		1-37124-101-0 01 1 9601-9804 ●
1 SHAFT; PROP
(C) L=1202 		1-37124-356-0 01 1 9805-0004 ●
1 SHAFT; PROP
(B) L=1047 		1-37151-861-0 01 1 9601-9804 ●
1 SHAFT; PROP
(A) L=843 		1-37152-161-0 01 1 9601-9804 ●
1 SHAFT; PROP
(B) L=1073 		1-37151-744-0 01 1 9805-0004 ●
1 SHAFT; PROP
(A) L=918 		1-37152-162-0 01 1 9805-0004 ●
1 SHAFT; PROP
(A) L=1092 		1-37151-592-0 01 1 9805- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 04 1 9601-9804 ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 02 1 9805- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 9805-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 01 1 0005- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-066-1 03 1 9805-0004 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 9601-9608 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-0 AR 1 9609-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0005- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-0 AR 1 9601-0004 ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-092-1 AR 1 0005- ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 9601-9804 ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 9805-0004 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0005-0512 ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 0601- ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 9805-0004 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0005-0512 ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 08 1 0601- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 9601-9608 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 9609-0004 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-008-0 AR 1 0005- ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 9601-9608 ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 9609-0004 ● ● ●
13 COVER; FRT UJT,PROP SHAFT 1-37355-020-0 AR 1 0005- ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 9601-9804 ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 9805-0004 ● ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 AR 1 0005- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-9608 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9609-0004 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0005-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9804 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9805-0004 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 02 1 9601-9804 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 9805-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 9805-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-094-3 01 1 0005- ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 04 1 9601-9804 ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 9805-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 9805-0004 ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-127-0 02 1 0005- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 02 1 9601-9804 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 9805-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 9805-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 0005- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 02 1 9601-9804 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 9805-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 9805-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 0005- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 02 1 9601-9804 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 9805-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 9805-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-041-0 01 1 0005- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 9601-9804 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9805-0004 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9805-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 02 1 9601-9804 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 9805-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 9805-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-271-1 01 1 0005- ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805-0004 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 02 1 9601-9804 ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 9805-0004 ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 9805-0004 ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 0005- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9804 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805-0004 ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805-0004 ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9805-0004 ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005- ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 08 1 9601-9804 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9805-0004 ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9805-0004 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 9805-0004 ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0005- ● ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 9601-0004 ● ● ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-008-0 04 1 0005- ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 9601-0004 ● ● ●
84 COVER; UJT,PROP SHAFT 1-37355-020-0 04 1 0005- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 9601-9804 ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 9805-0004 ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 9601-9804 ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 9805-0004 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 9601-9804 ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 9805-0004 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9601-9804 ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 9805-0004 ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 9601-0004 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0005- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 9601-0004 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0005- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-0004 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 9601-0004 ● ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 0005- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 9601-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-103-1 01 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
