4 |
CLIP; AIR PIPE
ID=11 H=20 L=20
|
5-09700-351-0 |
01 |
1 |
9601-9804 |
| |
4 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
5-09700-351-0 |
01 |
1 |
9805-0707 |
| |
4 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
8-98033-780-0 |
01 |
1 |
0708- |
| |
6 |
NUT; PIPE CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
| |
6 |
NUT; PIPE CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9804 |
| |
6 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0602 |
| |
6 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
13 |
CLIP; AIR PIPE
(C)
|
8-94435-553-0 |
03 |
1 |
9601-9804 |
| |
13 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9805- |
| |
13 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9805-0606 |
| |
13 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
ID=7 L=40
|
0-95234-675-0 |
01 |
1 |
0607- |
| |
13 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
(C)
|
8-94435-553-0 |
03 |
1 |
9805- |
| |
14 |
BOLT; PIPE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9601-9606 |
| |
14 |
BOLT; PIPE CLIP
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9804 |
| |
14 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9805-0512 |
| |
14 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
| |
20 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9805-0512 |
| |
20 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
| |
20 |
BOLT; CLIP
6SD1 STD ENG(37L)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9601-9608 |
| |
20 |
BOLT; CLIP
6SD1 STD ENG(37L)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9608 |
| |
20 |
BOLT; CLIP
6SD1 TCN ENG(31L)
FULLER RT7608LL M/T(X8P)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9609-9804 |
| |
20 |
BOLT; CLIP
6SD1 STD ENG(37L)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9609-9804 |
| |
20 |
BOLT; CLIP
6SD1 TCN ENG(31L)
FULLER RT7608LL M/T(X8P)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9805-0004 |
| |
20 |
BOLT; CLIP
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9805-0004 |
| |
20 |
BOLT; CLIP
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0005-0512 |
| |
20 |
BOLT; CLIP
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
| |
21 |
NUT; CLIP
6SD1 STD ENG(37L)
M8
|
9-09110-408-0 |
02 |
1 |
9601-9605 |
| |
21 |
NUT; CLIP
M8
|
9-09110-408-0 |
02 |
1 |
9601-9605 |
| |
21 |
NUT; CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9606-9606 |
| |
21 |
NUT; CLIP
6SD1 STD ENG(37L)
M8
|
9-09110-408-0 |
01 |
1 |
9606-9606 |
| |
21 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9608 |
| |
21 |
NUT; CLIP
6SD1 STD ENG(37L)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9608 |
| |
21 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9804 |
| |
21 |
NUT; CLIP
6SD1 TCN ENG(31L)
FULLER RT7608LL M/T(X8P)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9804 |
| |
21 |
NUT; CLIP
6SD1 STD ENG(37L)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9804 |
| |
21 |
NUT; CLIP
6SD1 TCN ENG(31L)
FULLER RT7608LL M/T(X8P)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0004 |
| |
21 |
NUT; CLIP
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0004 |
| |
21 |
NUT; CLIP
MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0004 |
| |
21 |
NUT; CLIP
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005-0602 |
| |
21 |
NUT; CLIP
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005-0602 |
| |
21 |
NUT; CLIP
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
21 |
NUT; CLIP
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
21 |
NUT; CLIP
6SD1 STD ENG(37L)
M8
|
9-09110-408-0 |
01 |
1 |
9607-9608 |
| |
27 |
CLIP; FLEX HOSE
(A)
ID=25 H=30 L=35
|
1-09700-875-0 |
04 |
1 |
9601-9605 |
| |
27 |
CLIP; FLEX HOSE
MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S)
(A)
ID=25 H=30 L=35
|
1-09700-875-0 |
03 |
1 |
9606-0004 |
| |
27 |
CLIP; FLEX HOSE
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=25 H=30 L=35
|
1-09700-875-0 |
03 |
1 |
0005- |
| |
27 |
CLIP; FLEX HOSE
(A)
ID=25 H=30 L=35
|
1-09700-875-0 |
01 |
1 |
9606-9804 |
| |
27 |
CLIP; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=25 H=30 L=35
|
1-09700-875-0 |
01 |
1 |
9805- |
| |
27 |
CLIP; FLEX HOSE
(C)
ID=12 & 12
|
1-09709-280-1 |
01 |
1 |
0007-0112 |
| |
27 |
CLIP; FLEX HOSE
FULLER RT7608LL M/T(X8P)
(B)
ID=25 L=40
|
1-09700-215-1 |
03 |
1 |
9609-0004 |
| |
28 |
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
|
0-28080-820-0 |
04 |
1 |
9601-9606 |
| |
28 |
BOLT; CLIP,FLEX HOSE
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
9607-9804 |
| |
28 |
BOLT; CLIP,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
9805-0209 |
| |
28 |
BOLT; CLIP,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0210-0512 |
| |
28 |
BOLT; CLIP,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
| |
30 |
BOLT; CLIP BRKT
M8X30 FLANGE
|
0-28080-830-0 |
01 |
1 |
9601-9606 |
| |
30 |
BOLT; CLIP BRKT
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9607-9804 |
| |
30 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
9805-0512 |
| |
30 |
BOLT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0601- |
| |
30 |
BOLT; CLIP BRKT
FULLER FS8209 DD M/T(Y2S)
M10X20 FLANGE
|
0-28081-020-0 |
02 |
1 |
9601-0004 |
| |
30 |
BOLT; CLIP BRKT
FULLER FS8209 DD M/T(Y2S)
M10X20 FLANGE
|
0-28181-020-0 |
01 |
1 |
9601-9606 |
| |
31 |
NUT; CLIP BRKT
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
| |
31 |
NUT; CLIP BRKT
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9804 |
| |
31 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0602 |
| |
31 |
NUT; CLIP BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
31 |
NUT; CLIP BRKT
MAL6S M/T(Y1V)
M10 FLANGE
|
5-09440-006-0 |
02 |
1 |
9601-9605 |
| |
31 |
NUT; CLIP BRKT
MAL6S M/T(Y1V)
M10 FLANGE
|
5-09440-006-0 |
03 |
1 |
9606-9608 |
| |
31 |
NUT; CLIP BRKT
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V)
M10 FLANGE
|
5-09440-006-0 |
03 |
1 |
9609-0004 |
| |
31 |
NUT; CLIP BRKT
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10 FLANGE
|
5-09440-006-0 |
03 |
1 |
0005- |
| |
32 |
CLIP; BAND,RUBBER SLEEVE
FULLER FS8209 DD M/T(Y2S)
L=250
|
1-09707-126-0 |
01 |
1 |
9606-0004 |
| |
34 |
NUT; BRKT
M8 FLANGE
|
8-94279-517-0 |
03 |
1 |
9601-9611 |
| |
34 |
NUT; BRKT
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
03 |
1 |
9612-0004 |
| |
34 |
NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
03 |
1 |
0005-0605 |
| |
34 |
NUT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
02 |
1 |
0606- |
| |
34 |
NUT; BRKT
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0105-0602 |
| |
34 |
NUT; BRKT
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
35 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
9805- |
| |
36 |
NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0602 |
| |
36 |
NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
37 |
BRACKET; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=50
|
1-47475-299-2 |
02 |
1 |
9805- |
| |
37 |
BRACKET; PIPE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-47475-427-1 |
03 |
1 |
9805- |
| |
39 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
9601-9804 |
| |
39 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
04 |
1 |
9805- |
| |
39 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
9805-0004 |
| |
39 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0005-0109 |
| |
39 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0110- |
| |
55 |
BOLT; PIPE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9601-9606 |
| |
55 |
BOLT; PIPE CLIP
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9804 |
| |
55 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9805-0512 |
| |
55 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
| |
74 |
CLIP; NYLON TUBE
L=250
|
1-09707-126-0 |
06 |
1 |
9601-9602 |
| |
78 |
CLIP; AIR PIPE
AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
9601-9601 |
| |
78 |
CLIP; AIR PIPE
AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
04 |
1 |
9602-9804 |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
9805-0004 |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0005-0109 |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0110- |
| |
78 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
9601-9601 |
| |
78 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
9602-9804 |
| |
78 |
CLIP; AIR PIPE
WHEEL BASE 6300MM(63W)
AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
04 |
1 |
9805-0004 |
| |
78 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
9805-9806 |
| |
78 |
CLIP; AIR PIPE
WHEEL BASE 6300MM(63W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
04 |
1 |
0110- |
| |
78 |
CLIP; AIR PIPE
WHEEL BASE 7100MM(71W)
AIR DRYER<PS7>
(A)
ID=6.35 & 15
|
1-09709-276-1 |
05 |
1 |
9805-0004 |
| |
79 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X50 FLANGE
|
0-28080-850-0 |
01 |
1 |
9805-9806 |
| |
80 |
NUT; CLIP,AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-9806 |
| |
91 |
CLIP; AIR PIPE
ID=11 H=20 L=20
|
5-09700-351-0 |
02 |
1 |
9601-9804 |
| |
91 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
5-09700-351-0 |
02 |
1 |
9805-0707 |
| |
91 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
8-98033-780-0 |
02 |
1 |
0708- |
| |
92 |
NUT; PIPE CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
| |
92 |
NUT; PIPE CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9804 |
| |
92 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0602 |
| |
92 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
97 |
CLIP; AIR PIPE
ID=11 H=20 L=20
|
5-09700-351-0 |
01 |
1 |
9601-9804 |
| |
97 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
5-09700-351-0 |
01 |
1 |
9805-0707 |
| |
97 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
8-98033-780-0 |
01 |
1 |
0708- |
| |
98 |
BOLT; PIPE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9601-9606 |
| |
98 |
BOLT; PIPE CLIP
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9804 |
| |
98 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9805-0512 |
| |
98 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
| |
99 |
NUT; PIPE CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
| |
99 |
NUT; PIPE CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9804 |
| |
99 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0602 |
| |
99 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
103 |
NUT; PIPE CLIP
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
| |
103 |
NUT; PIPE CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9804 |
| |
103 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9805-0602 |
| |
103 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
107 |
CLIP; NYLON TUBE
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
02 |
1 |
9601-9804 |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
01 |
1 |
9805- |
| |
107 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
14 |
1 |
9601-9602 |
| |
107 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
13 |
1 |
9603-9804 |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
14 |
1 |
9805- |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9805- |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
ID=18 L=28
|
1-09701-067-0 |
01 |
1 |
0005-0206 |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
ID=18 L=28
|
1-09701-067-0 |
01 |
1 |
0207- |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
(D)
ID=18 L=28
|
1-09701-067-0 |
01 |
1 |
0207- |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>
(D)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0005-0010 |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
(D)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0011-0206 |
| |
108 |
BOLT; TUBE CLIP
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9601-9606 |
| |
108 |
BOLT; TUBE CLIP
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9804 |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9805-0512 |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9805-0512 |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0005-0010 |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0005-0010 |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0011-0512 |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0011-0512 |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
109 |
NUT; TUBE CLIP
M8
|
9-09110-408-0 |
02 |
1 |
9601-9606 |
| |
109 |
NUT; TUBE CLIP
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9804 |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9805-0004 |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0005-0602 |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005-0010 |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0011-0104 |
| |
109 |
NUT; TUBE CLIP
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0105-0602 |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0105-0602 |
| |
109 |
NUT; TUBE CLIP
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
| |
125 |
CLIP; NYLON TUBE
L=250
|
1-09707-126-0 |
18 |
1 |
9601-9602 |
| |
128 |
CLIP; NYLON TUBE
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9601-9601 |
| |
128 |
CLIP; NYLON TUBE
BRAKE REGULATION ADR<TDU>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
01 |
1 |
9602-9602 |
| |
128 |
CLIP; NYLON TUBE
BRAKE REGULATION ADR<TDU>
(C)
ID=35 L=33
|
1-09700-945-0 |
01 |
1 |
9603-9804 |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE REGULATION ADR<TDU>
(C)
ID=35 L=33
|
1-09700-945-0 |
01 |
1 |
9805-0004 |
| |
128 |
CLIP; NYLON TUBE
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9602-9804 |
| |
128 |
CLIP; NYLON TUBE
EXC. BRAKE REGULATION ADR<TDU>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9602-9804 |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9805-0004 |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR<TDU>
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9805-0004 |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
0005- |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
0005- |
| |
128 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(D)
ID=12 & 12
|
1-09709-280-1 |
02 |
1 |
0101-0205 |
| |
128 |
CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W)
(A)
L=250
|
1-09707-126-0 |
21 |
1 |
9603-0012 |
| |
128 |
CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W)
(A)
L=250
|
1-09707-126-0 |
22 |
1 |
0101- |
| |
128 |
CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W)
(A)
L=250
|
1-09707-126-0 |
27 |
1 |
9603-0004 |
| |
133 |
BOLT; BRKT
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9601-9606 |
| |
133 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9804 |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9805-0512 |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0601- |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9805-0512 |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
| |
170 |

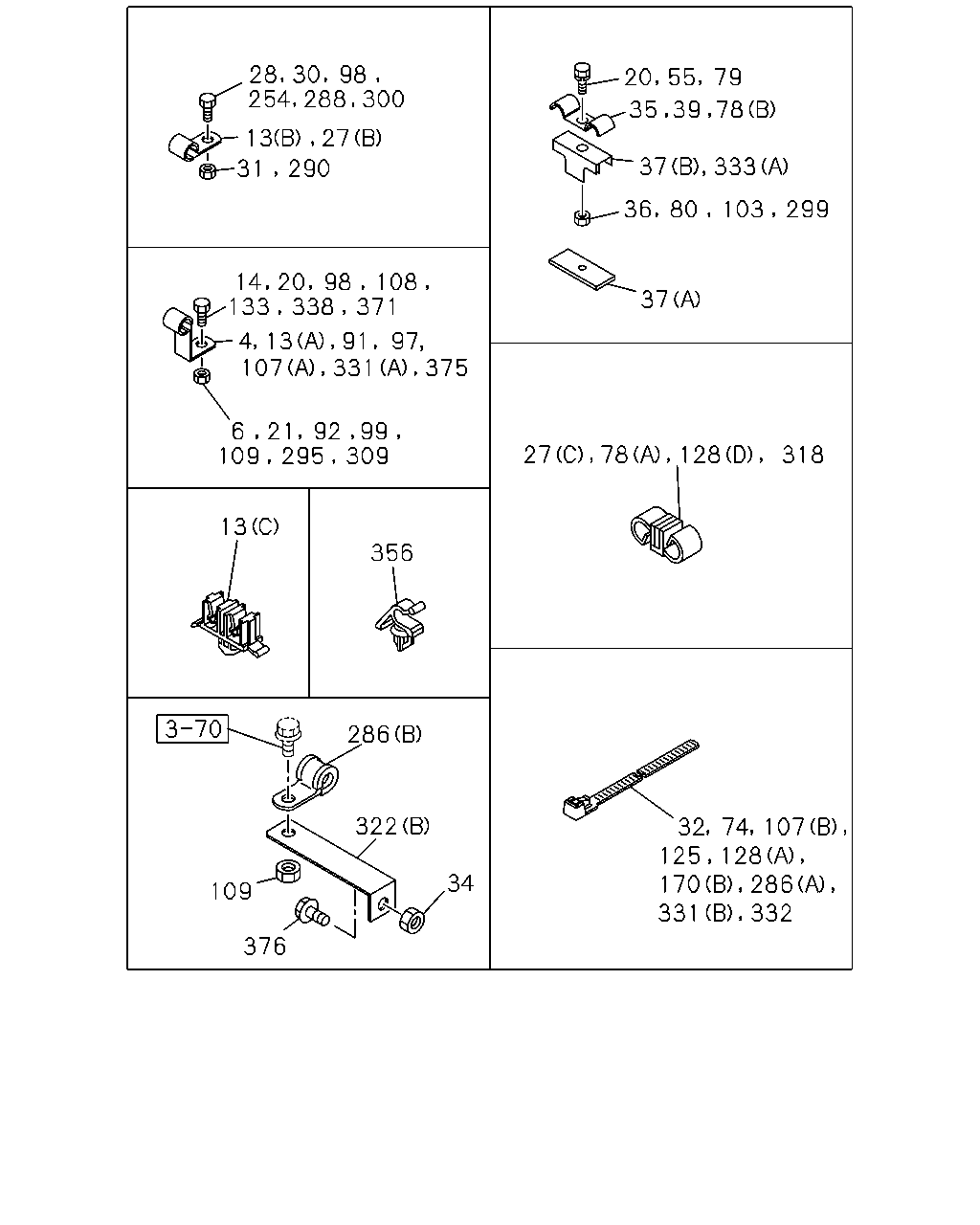

CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=27.5 H=23 L=24
|
1-09700-863-0 |
01 |
1 |
9805- |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
24 |
1 |
9805- |
| |
254 |
BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
02 |
1 |
9601-0204 |
| |
254 |
BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER
|
8-94279-207-0 |
02 |
1 |
0205-0205 |
| |
286 |
CLIP; NYLON TUBE
(A)
L=250
|
1-09707-126-0 |
01 |
1 |
0201- |
| |
286 |
CLIP; NYLON TUBE
(A)
L=250
|
1-09707-126-0 |
07 |
1 |
9603-9610 |
| |
286 |
CLIP; NYLON TUBE
(A)
L=250
|
1-09707-126-0 |
09 |
1 |
9611-9804 |
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE REGULATION ADR<TDU>
(A)
L=250
|
1-09707-126-0 |
07 |
1 |
9805-0004 |
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
10 |
1 |
0005-0008 |
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
11 |
1 |
0009-0009 |
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
12 |
1 |
0010-0112 |
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
L=250
|
1-09707-126-0 |
09 |
1 |
0201- |
| |
286 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE REGULATION ADR<TDU>
(A)
L=250
|
1-09707-126-0 |
10 |
1 |
9805-0004 |
| |
286 |
CLIP; NYLON TUBE
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0105-0208 |
| |
286 |
CLIP; NYLON TUBE
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
ID=18 L=28
|
1-09701-067-0 |
01 |
1 |
0209- |
| |
288 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9805-0512 |
| |
288 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
290 |
NUT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9805-0602 |
| |
290 |
NUT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
295 |
NUT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7>
M8
|
9-09110-408-0 |
01 |
1 |
9601-9606 |
| |
295 |
NUT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9804 |
| |
295 |
NUT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9805-0602 |
| |
295 |
NUT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
| |
299 |
NUT; CLIP
FULLER RT7608LL M/T(X8P)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9609-9804 |
| |
300 |
BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
02 |
1 |
0206-0904 |
| |
300 |
BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER
|
8-98059-720-0 |
02 |
1 |
0905- |
| |
309 |
NUT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0605- |
| |
309 |
NUT; BRKT FIX
M8 FLANGE
|
8-94279-517-0 |
02 |
1 |
9601-9611 |
| |
309 |
NUT; BRKT FIX
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
02 |
1 |
9612-9804 |
| |
309 |
NUT; BRKT FIX
DUAL AIR GAUGE<UG2>
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
02 |
1 |
9805- |
| |
309 |
NUT; BRKT FIX
M8
|
9-09110-408-0 |
02 |
1 |
9601-9606 |
| |
309 |
NUT; BRKT FIX
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9804 |
| |
309 |
NUT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9805-0211 |
| |
309 |
NUT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0212-0602 |
| |
309 |
NUT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603-0604 |
| |
309 |
NUT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0605- |
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9601-9804 |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9805-0004 |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0110- |
| |
322 |
BRACKET; CLIP
BRAKE REGULATION ADR<TDU>
(A)
L=100
|
1-47477-620-1 |
02 |
1 |
9606-0004 |
| |
322 |
BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-42129-411-0 |
02 |
1 |
0104- |
| |
322 |
BRACKET; CLIP
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=95
|
1-82699-085-0 |
01 |
1 |
0105- |
| |
331 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0605- |
| |
331 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
02 |
1 |
9601-9602 |
| |
331 |
CLIP; NYLON TUBE
6SD1 STD ENG(37L)
(B)
L=250
|
1-09707-126-0 |
06 |
1 |
9603-9804 |
| |
331 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=35 H=45 L=33
|
1-09700-947-0 |
02 |
1 |
9805- |
| |
331 |
CLIP; NYLON TUBE
FULLER RT7608LL M/T(X8P)
(A)
ID=13 H=75 L=25
|
1-09700-601-0 |
01 |
1 |
9609-9804 |
| |
331 |
CLIP; NYLON TUBE
6SD1 TCN ENG(31L)
(B)
L=250
|
1-09707-126-0 |
07 |
1 |
9603-9804 |
| |
331 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
06 |
1 |
9805-0012 |
| |
331 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
07 |
1 |
0101-0112 |
| |
331 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
09 |
1 |
0201-0201 |
| |
331 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
07 |
1 |
0202- |
| |
332 |
CLIP; BAND
L=250
|
1-09707-126-0 |
04 |
1 |
9603-0004 |
| |
332 |
CLIP; BAND
KENYA EQUIPMENT(PQ2)
L=250
|
1-09707-126-0 |
04 |
1 |
9603-0004 |
| |
332 |
CLIP; BAND
L=250
|
1-09707-126-0 |
04 |
1 |
0005- |
| |
332 |
CLIP; BAND
L=250
|
1-09707-126-0 |
04 |
1 |
0005- |
| |
332 |
CLIP; BAND
BRAKE REGULATION ADR<TDU>
L=250
|
1-09707-126-0 |
05 |
1 |
9603-9702 |
| |
333 |

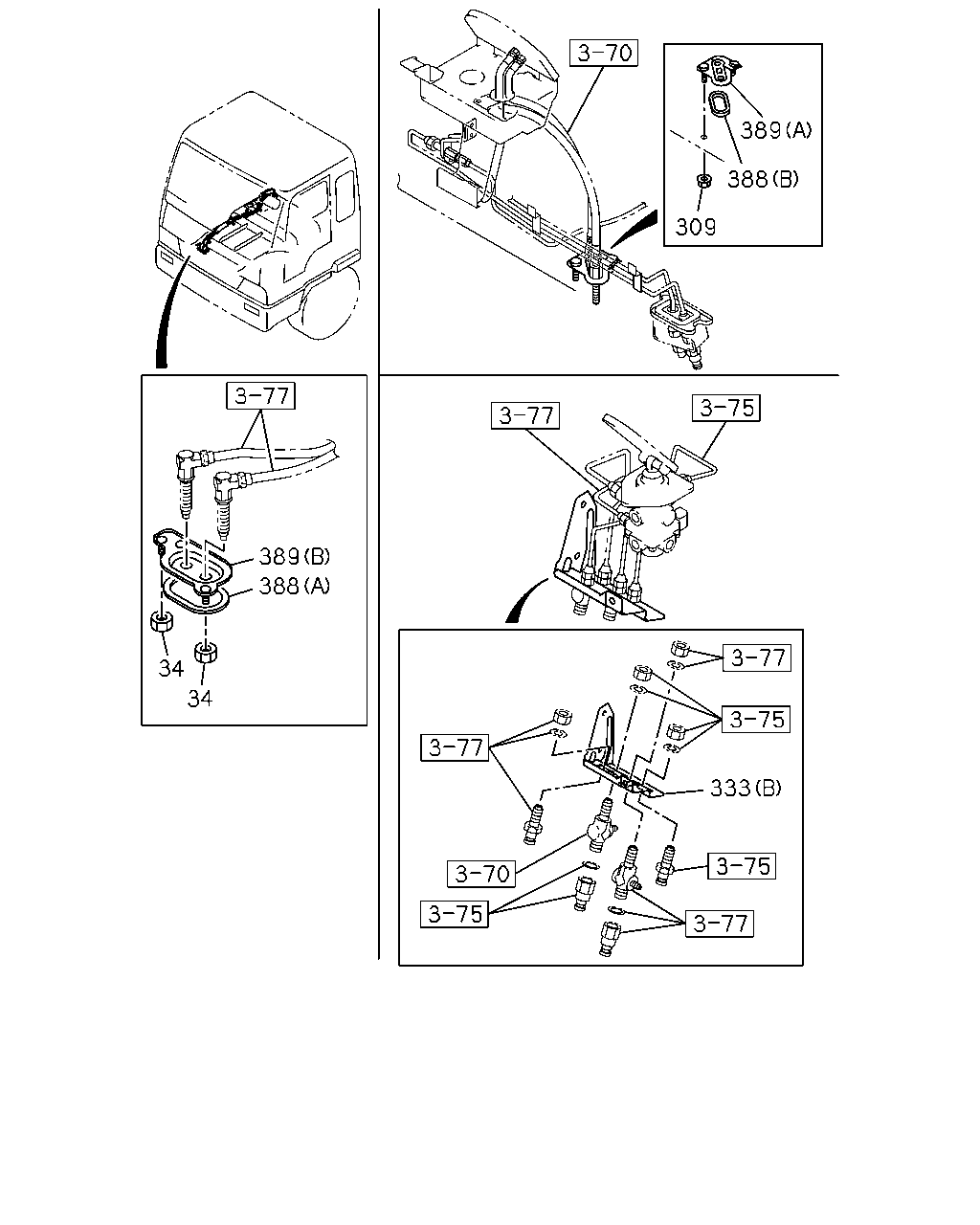

BRACKET; BRK AIR PIPE
(B)
|
1-79738-815-2 |
01 |
1 |
9601- |
| |
333 |
BRACKET; BRK AIR PIPE
EXC. AIR DRYER<PS7>
(A)
|
1-47475-427-1 |
01 |
1 |
9601-9804 |
| |
333 |
BRACKET; BRK AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
|
1-47475-427-1 |
01 |
1 |
9805-0004 |
| |
333 |
BRACKET; BRK AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47475-427-1 |
01 |
1 |
0005-0109 |
| |
333 |
BRACKET; BRK AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
|
1-47475-427-1 |
01 |
1 |
0110- |
| |
338 |
BOLT; PIPE CLIP
FULLER RT7608LL M/T(X8P)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9609-9804 |
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9601-9804 |
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9805-9810 |
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9805-9810 |
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,
DRIVER ISRINGHAUSEN SEAT<SJA>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9811-0004 |
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
9811-0004 |
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0005-0010 |
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0005-0010 |
| |
356 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN
SEAT<SJA>
DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0011- |
| |
356 |
CLIP; AIR PIPE
EXC. DUAL AIR GAUGE<UG2>
ID=4.8
|
8-94128-483-0 |
01 |
1 |
0011- |
| |
371 |
BOLT; CLIP,AIR PIPE
EXC. AIR DRYER<PS7>
M8X50 FLANGE
|
0-28080-850-0 |
01 |
1 |
9601-9804 |
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8X50 FLANGE
|
0-28080-850-0 |
01 |
1 |
9805-0004 |
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X50 FLANGE
|
0-28080-850-0 |
01 |
1 |
0005-0109 |
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8X50 FLANGE
|
0-28080-850-0 |
01 |
1 |
0110-0512 |
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
M8X50 FLANGE
|
0-28050-850-0 |
01 |
1 |
0601- |
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9805-0512 |
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X45 FLANGE
|
0-28080-845-0 |
03 |
1 |
9805-0512 |
| |
371 |
BOLT; CLIP,AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X45 FLANGE
|
0-28050-845-0 |
03 |
1 |
0601- |
| |
375 |
CLIP; AIR PIPE
6SD1 STD ENG(37L)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
9601-9608 |
| |
375 |
CLIP; AIR PIPE
6SD1 TCN ENG(31L)
FULLER RT7608LL M/T(X8P)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
9609-9804 |
| |
375 |
CLIP; AIR PIPE
6SD1 STD ENG(37L)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
9609-9804 |
| |
375 |
CLIP; AIR PIPE
6SD1 TCN ENG(31L)
FULLER RT7608LL M/T(X8P)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
9805-0004 |
| |
375 |
CLIP; AIR PIPE
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
9805-0004 |
| |
375 |
CLIP; AIR PIPE
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
0005-0401 |
| |
375 |
CLIP; AIR PIPE
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=9 H=60
|
1-09700-956-0 |
01 |
1 |
0402- |
| |
376 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X16 FLANGE
|
0-28080-816-0 |
04 |
1 |
0104-0512 |
| |
376 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0601- |
| |
376 |
BOLT; BRKT
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0105-0211 |
| |
376 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0212-0512 |
| |
376 |
BOLT; BRKT
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0212-0512 |
| |
376 |
BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
| |
376 |
BOLT; BRKT
MAL6S M/T(Y1V)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
