◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#64952) — 258 parça
çizim 121768
206 1 7 6 7 285 6 285 10 10 42 42 129 129 192 192
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,FLEX HOSE TO BRK VLV
L=279 		1-47492-449-4 01 1 9601-9902
1 PIPE; AIR,FLEX HOSE TO BRK VLV
L=277 		1-49121-487-0 01 1 9903-
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9601-0603
6 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604-
7 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9601-0512
7 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601-
10 CONNECTOR; FLEX HOSE
(B) 		1-09654-324-0 01 1 9601-9804
10 CONNECTOR; FLEX HOSE
(D) M16 STRAIGHT 		1-09654-380-0 01 1 9805-
10 CONNECTOR; FLEX HOSE
(A) 		1-09656-451-1 01 1 9601-9804
10 CONNECTOR; FLEX HOSE
(C) 		1-09656-721-0 01 1 9805-0103
10 CONNECTOR; FLEX HOSE
(C) 		1-09656-754-0 01 1 0104-
42 GASKET; CONNECTOR
ID=11 OD=18 		9-09572-510-0 02 1 9601-9804
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
129 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 9805-0004
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0005-
129 CONNECTOR; NYLON TUBE
(A) 		1-09660-728-1 01 1 9601-9804
129 CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9805-0004
129 CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9601-9804
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9805-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9601-9804
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) BRAKE REGULATION ADR<TDU> SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0005-0007
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-9710
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0004
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603-9605
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9805-
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=406 		1-47492-451-3 01 1 9601-
285 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 02 1 9601-0605
285 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 02 1 0606-

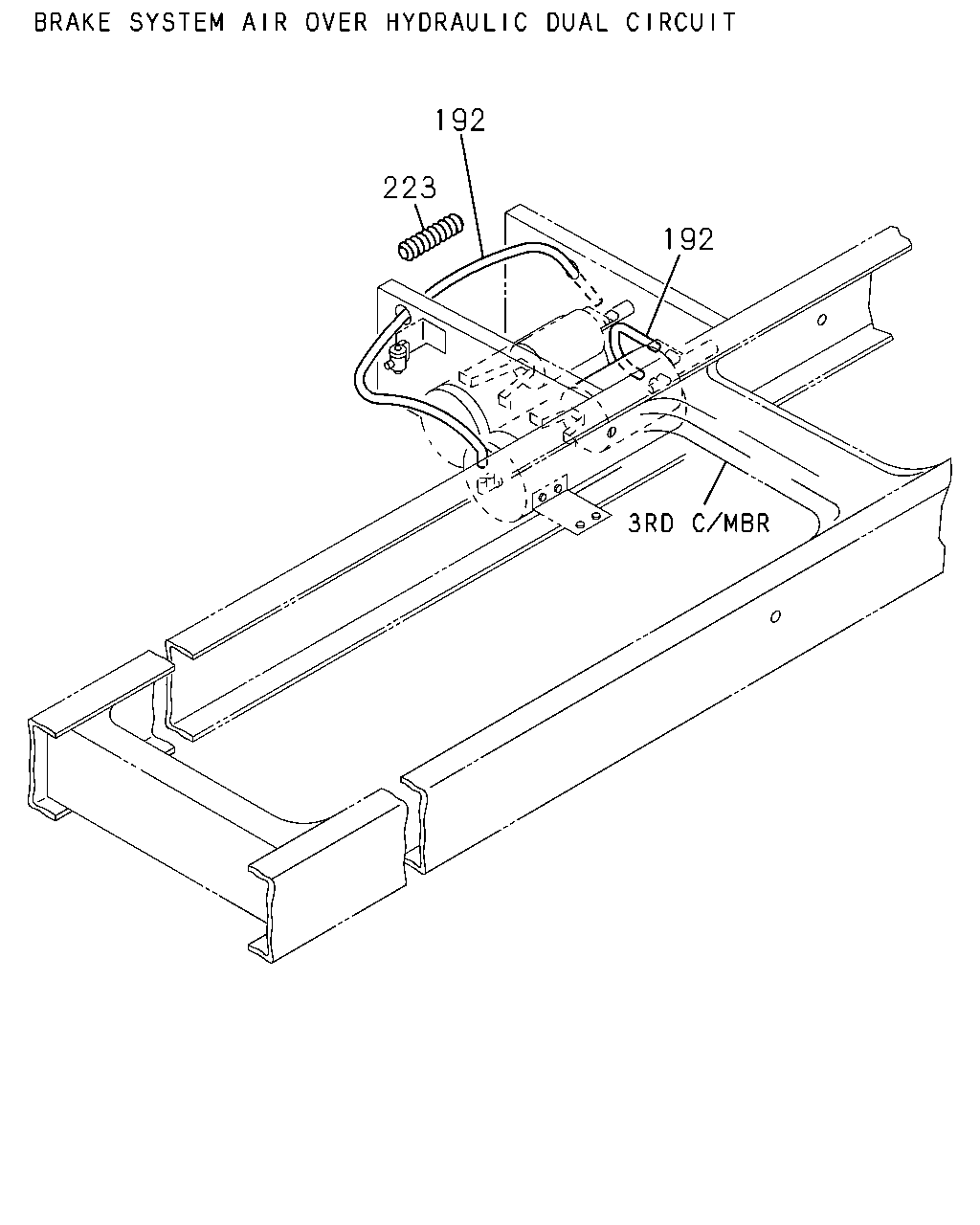

çizim 122245
192 223 192
BalonParca AdiParca NoAdetTipApplied Date
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9601-9804
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9805-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9601-9804
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) BRAKE REGULATION ADR<TDU> SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0005-0007
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-9710
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0004
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603-9605
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9805-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9601-0004
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9601-9804
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9606-9608
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9609-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9711-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9805-0104
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0104-
çizim 122292
206 1 7 6 7 285 6 285 10 129 10 129 192 192
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,FLEX HOSE TO BRK VLV
L=279 		1-47492-449-4 01 1 9601-9902
1 PIPE; AIR,FLEX HOSE TO BRK VLV
L=277 		1-49121-487-0 01 1 9903-
6 WASHER; LK,FLEX HOSE
ID=16.2 		9-09150-516-0 02 1 9601-0603
6 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0604-
7 NUT; FLEX HOSE
M16 		9-99111-416-0 02 1 9601-0512
7 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0601-
10 CONNECTOR; FLEX HOSE
(B) 		1-09654-324-0 01 1 9601-9804
10 CONNECTOR; FLEX HOSE
(D) M16 STRAIGHT 		1-09654-380-0 01 1 9805-
10 CONNECTOR; FLEX HOSE
(A) 		1-09656-451-1 01 1 9601-9804
10 CONNECTOR; FLEX HOSE
(C) 		1-09656-721-0 01 1 9805-0103
10 CONNECTOR; FLEX HOSE
(C) 		1-09656-754-0 01 1 0104-
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
129 CONNECTOR; NYLON TUBE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 9805-0004
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0005-
129 CONNECTOR; NYLON TUBE
(A) 		1-09660-728-1 01 1 9601-9804
129 CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 9805-0004
129 CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005-
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9601-9804
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9805-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9601-9804
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) BRAKE REGULATION ADR<TDU> SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0005-0007
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-9710
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0004
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603-9605
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9805-
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=406 		1-47492-451-3 01 1 9601-
285 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 02 1 9601-0605
285 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 02 1 0606-

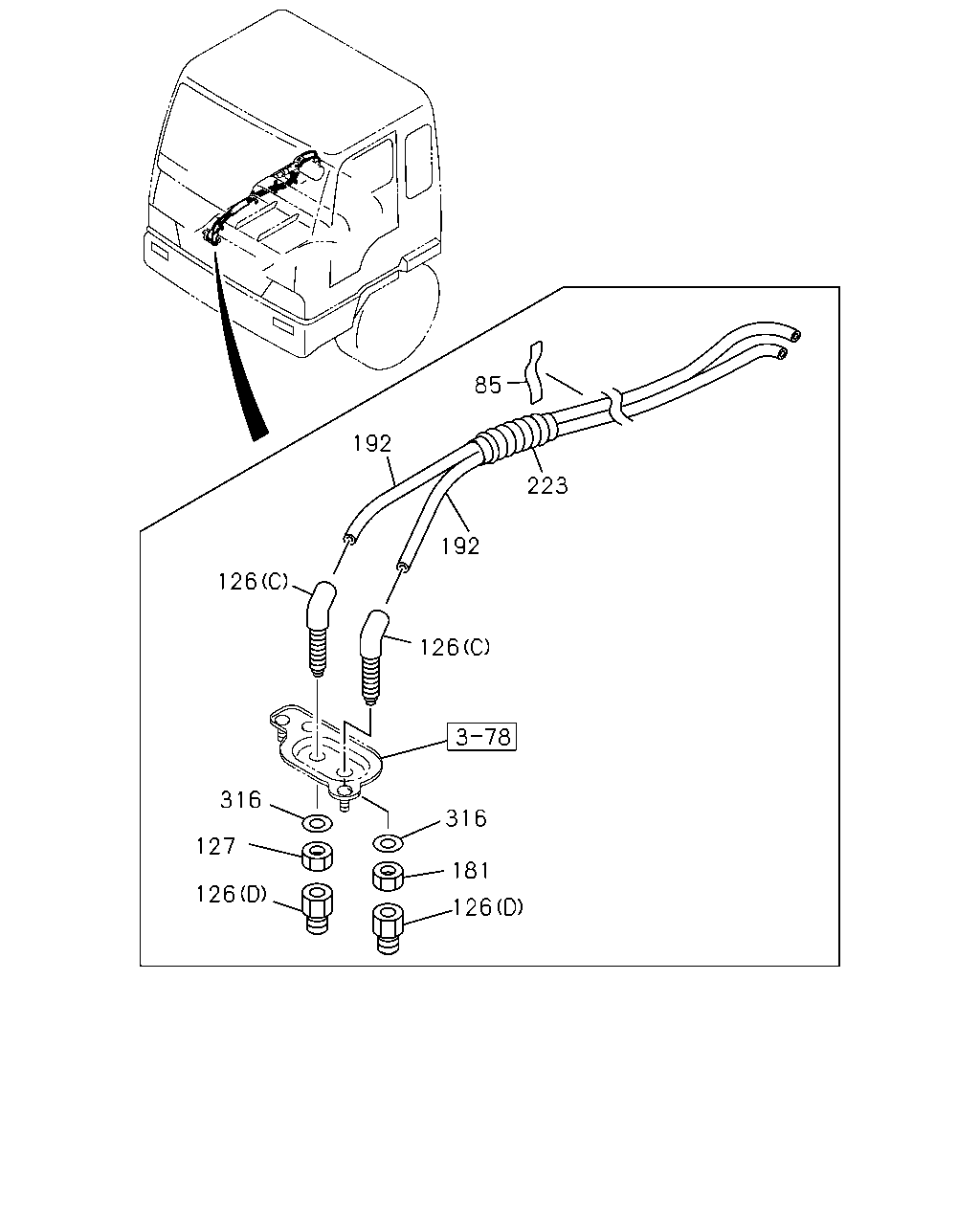

çizim 122335
85 192 223 192 126 126 316 316 127 181 126 126
BalonParca AdiParca NoAdetTipApplied Date
85 GASKET; NYLON TUBE
100X30 		1-72498-014-1 05 1 9601-9903
85 GASKET; NYLON TUBE
100X40 		1-72498-022-0 05 1 9904-0004
85 GASKET; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40 		1-72498-022-1 05 1 0005-
126 UNION; NYLON TUBE
(A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 9601-9804
126 UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 9805-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005-0706
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		8-98078-117-0 02 1 0707-
126 UNION; NYLON TUBE
(B) 		1-09660-743-0 02 1 9601-9804
126 UNION; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-056-0 02 1 9805-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT 		1-09661-056-0 02 1 0005-0007
126 UNION; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-381-0 02 1 0008-0706
127 NUT; UNION
M18 		9-99111-418-0 01 1 9601-9804
127 NUT; UNION
M20 		9-99111-420-0 01 1 9805-0004
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		9-99111-420-0 01 1 0005-0512
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		0-91111-520-0 01 1 0601-
181 NUT; TUBE UNION
M18 		9-99111-418-0 01 1 9601-9804
181 NUT; TUBE UNION
M20 		9-99111-420-0 01 1 9805-0004
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		9-99111-420-0 01 1 0005-0512
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		0-91111-520-0 01 1 0601-
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9601-9804
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9805-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9601-9804
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) BRAKE REGULATION ADR<TDU> SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0005-0007
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-9710
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0004
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603-9605
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9805-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9601-0004
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9601-9804
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9606-9608
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9609-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9711-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9805-0104
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0104-
316 WASHER; PL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 		9-09160-520-0 02 1 9805-0605
316 WASHER; PL
ID=21 		0-91610-520-0 02 1 0606-

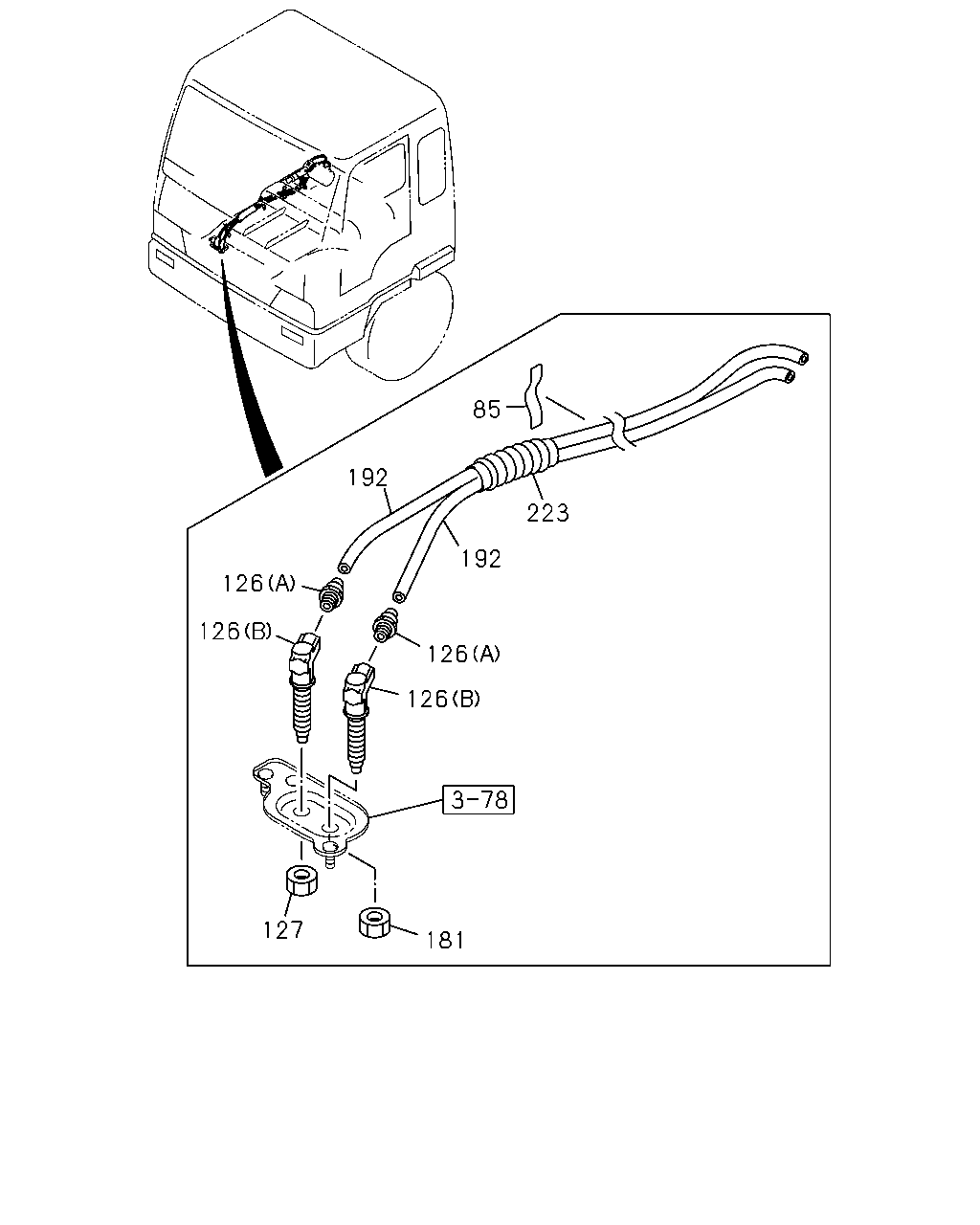

çizim 184545
85 192 223 192 126 126 126 126 127 181
BalonParca AdiParca NoAdetTipApplied Date
85 GASKET; NYLON TUBE
100X30 		1-72498-014-1 05 1 9601-9903
85 GASKET; NYLON TUBE
100X40 		1-72498-022-0 05 1 9904-0004
85 GASKET; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40 		1-72498-022-1 05 1 0005-
126 UNION; NYLON TUBE
(A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 02 1 9601-9804
126 UNION; NYLON TUBE
(C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 9805-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005-0706
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW 		8-98078-117-0 02 1 0707-
126 UNION; NYLON TUBE
(B) 		1-09660-743-0 02 1 9601-9804
126 UNION; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-056-0 02 1 9805-0004
126 UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT 		1-09661-056-0 02 1 0005-0007
126 UNION; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-381-0 02 1 0008-0706
127 NUT; UNION
M18 		9-99111-418-0 01 1 9601-9804
127 NUT; UNION
M20 		9-99111-420-0 01 1 9805-0004
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		9-99111-420-0 01 1 0005-0512
127 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		0-91111-520-0 01 1 0601-
181 NUT; TUBE UNION
M18 		9-99111-418-0 01 1 9601-9804
181 NUT; TUBE UNION
M20 		9-99111-420-0 01 1 9805-0004
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		9-99111-420-0 01 1 0005-0512
181 NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 		0-91111-520-0 01 1 0601-
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9601-9804
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9805-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9601-9804
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) BRAKE REGULATION ADR<TDU> SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0005-0007
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-9710
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0004
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603-9605
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9805-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9601-0004
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9601-9804
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9606-9608
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9609-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9711-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9805-0104
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0104-

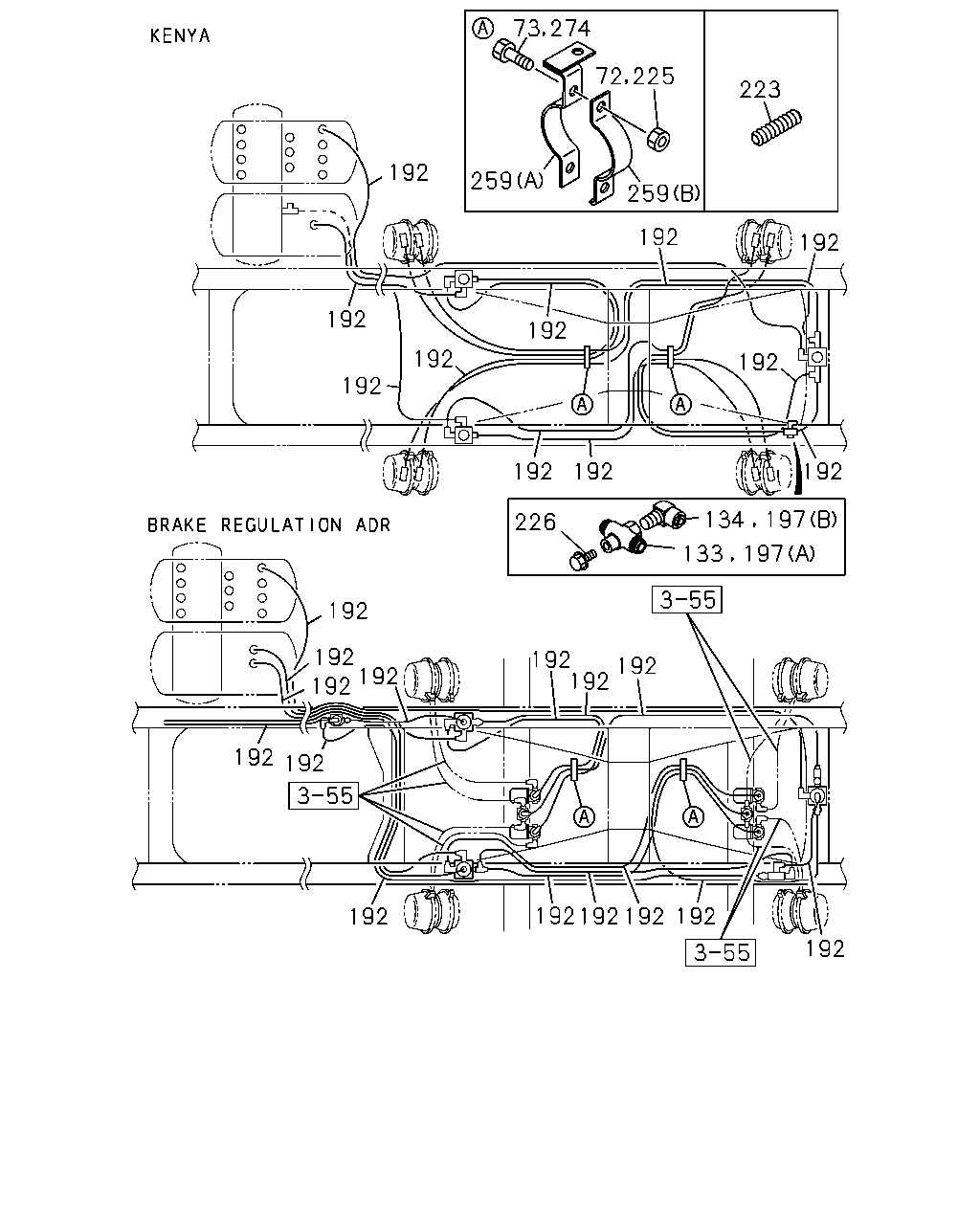

çizim 184546
72 225 223 192 259 259 192 192 192 192 192 192 192 192 192 192 134 197 226 133 197 192 192 192 192 192 192 192 192 192 192 192 192 73 274 192 192 192
BalonParca AdiParca NoAdetTipApplied Date
72 NUT; BRKT
M8 		9-09110-408-0 04 1 9601-9606
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9607-9804
72 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 04 1 9805-0602
72 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 04 1 0603-
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0008-0211
72 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0212-0602
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
73 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9601
73 BOLT; CLIP
BRAKE REGULATION ADR<TDU> M8X20 FLANGE 		0-28080-820-0 01 1 9602-9606
73 BOLT; CLIP
BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28680-825-0 01 1 9607-9804
73 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 02 1 9805-0004
73 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28680-825-0 02 1 9805-0004
73 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512
73 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512
73 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
73 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
73 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 02 1 9602-9606
73 BOLT; CLIP
EXC. BRAKE REGULATION ADR<TDU> M8X20 FLANGE 		0-28080-820-0 02 1 9602-9606
73 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9804
73 BOLT; CLIP
EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9804
73 BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28680-825-0 01 1 9805-0004
133 UNION; NIPPLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0005-
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005-
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0301-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9601-9804
192 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9805-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9601-9804
192 TUBE; NYLON
WHEEL BASE 7100MM(71W) BRAKE REGULATION ADR<TDU> SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 9805-0004
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0005-0007
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9601-9710
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9711-9804
192 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0004
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9603-9605
192 TUBE; NYLON
BRAKE REGULATION ADR<TDU> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
WHEEL BASE 6300MM(63W) BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9606-9804
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9805-
197 UNION ASM; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 RC3/8 & M8 3WAY 		1-09660-758-1 01 1 9805-0004
197 UNION ASM; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9805-0004
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9601-0004
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 9601-9804
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9606-9608
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 9609-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 AR 1 9711-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9805-0104
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 0104-
225 NUT; TUBE CLIP
M8 		9-09110-408-0 02 1 9601-9601
225 NUT; TUBE CLIP
BRAKE REGULATION ADR<TDU> M8 		9-09110-408-0 01 1 9602-9606
225 NUT; TUBE CLIP
BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 01 1 9607-9804
225 NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 02 1 9805-0004
225 NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 02 1 9805-0004
225 NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 02 1 0005-0602
225 NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 02 1 0005-0602
225 NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 0603-
225 NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 0603-
225 NUT; TUBE CLIP
M8 		9-09110-408-0 02 1 9602-9606
225 NUT; TUBE CLIP
EXC. BRAKE REGULATION ADR<TDU> M8 		9-09110-408-0 02 1 9602-9606
225 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9804
225 NUT; TUBE CLIP
EXC. BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 02 1 9607-9804
225 NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8 FLANGE 		0-91150-108-0 01 1 9805-0004
226 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> M8X25 FLANGE 		0-28680-825-0 01 1 9805-0004
226 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512
226 BOLT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
259 BRACKET; ROD,NYLON TUBE
(A) 		1-47476-428-0 02 1 9601-9804
259 BRACKET; ROD,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-47476-428-0 02 1 9805-0102
259 BRACKET; ROD,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-47479-226-0 02 1 0103-
259 BRACKET; ROD,NYLON TUBE
(B) 		1-47476-429-0 02 1 9601-9804
259 BRACKET; ROD,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-47476-429-0 02 1 9805-
274 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606
274 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9804
274 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28680-825-0 04 1 9805-0512
274 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
