Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#64951) — 173 parça

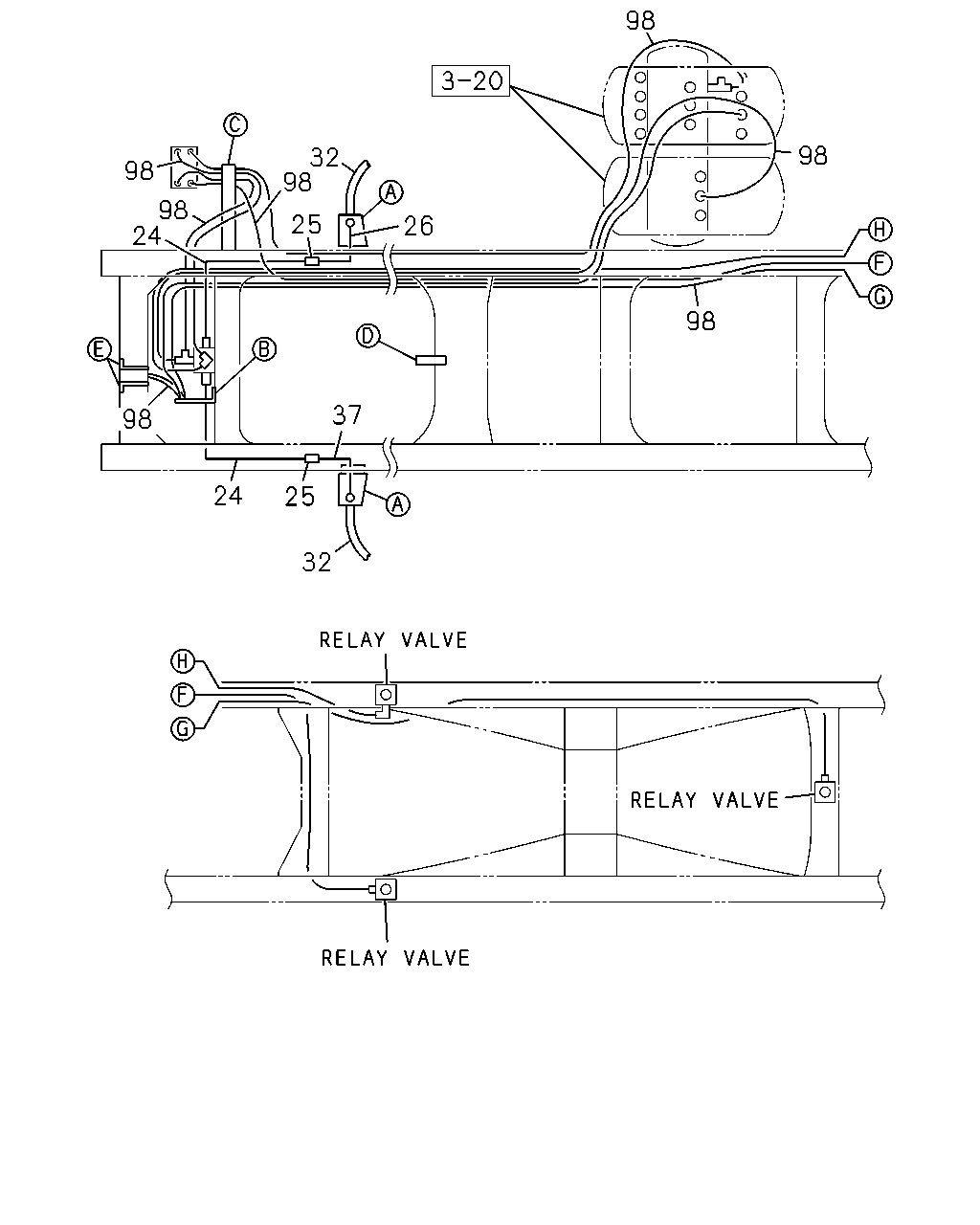

98 98 32 98 98 98 24 25 26 98 37 98 24 25 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-326-0	01	1	9601-9804
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49113-326-0	01	1	9805-
24	PIPE; AIR,RELAY VLV TO UNION	1-49113-324-0	01	1	9601-9804
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49113-324-0	01	1	9805-0301
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49124-019-0	01	1	0302-
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	9601-9804
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=42	9-09233-010-1	02	1	9805-0607
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 STRAIGHT L=42	0-92123-010-0	02	1	0608-
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	9601-9804
26	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=332	1-49113-325-0	01	1	9805-
32	HOSE; FLEX,FRT L=630	0-07475-630-1	02	1	9601-9804
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=630	0-07475-630-1	02	1	9805-0605
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=630	0-57475-630-1	02	1	0606-
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	9601-9804
37	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=332	1-49113-327-0	01	1	9805-
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9805-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9805-
98	TUBE; NYLON L=6000 OD=12	1-87410-071-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9805-0004
98	TUBE; NYLON WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9805-0004
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9805-0004
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-
98	TUBE; NYLON L=6000 OD=8	1-87410-075-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9805-
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0007-0102
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0103-0205
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0206-
98	TUBE; NYLON WHEEL BASE 7100MM(71W) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9805-0004

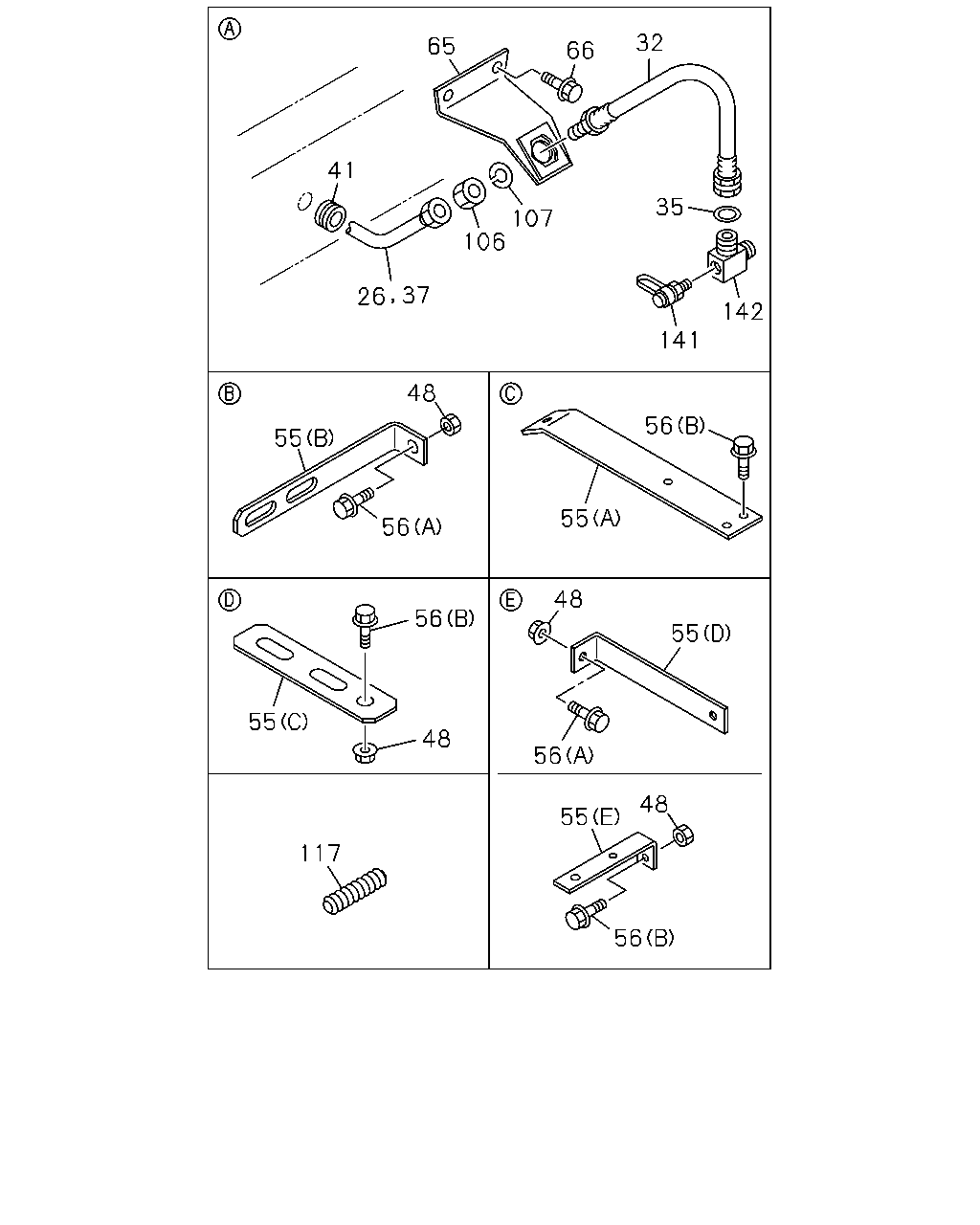

32 65 66 41 35 107 106 142 141 48 56 55 55 56 48 56 55 55 48 56 48 55 117 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT L=630	0-07475-630-1	02	1	9601-9804
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=630	0-07475-630-1	02	1	9805-0605
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=630	0-57475-630-1	02	1	0606-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9601-9804
35	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9805-
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-9804
41	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	9805-
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	07	1	0109-0112
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	06	1	0201-0211
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	07	1	0212-0602
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	07	1	0603-
48	NUT; UNION BRKT M8	9-09110-408-0	01	1	9601-9606
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9804
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	9805-9807
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9808-0004
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91150-108-0	01	1	0005-0010
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91150-108-0	01	1	0011-0602
48	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> M8 FLANGE	0-91180-108-0	01	1	0603-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=60 H=30	1-47477-716-1	01	1	0212-
55	BRACKET; TUBE UNION (A)	1-47477-256-1	01	1	9601-9804
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-256-1	01	1	9805-
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	9601-9804
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	01	1	9805-9807
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47477-514-3	01	1	9805-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=225	1-47477-646-3	01	1	9805-0004
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	01	1	0005-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=160 B=25	1-53441-518-0	01	1	0005-0010
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (D) L=160 B=25	1-53441-518-0	01	1	0005-0010
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=160 B=25	1-53441-518-0	01	1	0011-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (D) L=160 B=25	1-53441-518-0	01	1	0011-
55	BRACKET; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=100 H=30	1-47477-645-2	01	1	0109-0112
56	BOLT; UNION BRKT (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
56	BOLT; UNION BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9804
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	02	1	9805-0004
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	05	1	0109-0112
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	04	1	0201-0512
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	04	1	0601-
56	BOLT; UNION BRKT (B) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
56	BOLT; UNION BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9804
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	03	1	9805-9807
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	02	1	9808-0211
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28680-830-0	03	1	0212-0512
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	03	1	0601-
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0010
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X25 FLANGE	0-28680-825-0	01	1	0011-0512
56	BOLT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9601-9804
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	9805-
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9601-9804
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	9805-
66	BOLT; HOSE BRKT M8X16 FLANGE	0-28080-816-0	04	1	9601-9602
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	9603-9804
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 FLANGE	0-28080-812-0	04	1	9805-0512
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X12 FLANGE	0-28050-812-0	04	1	0601-
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9601-9804
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9805-0512
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9805-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9601-9804
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	02	1	9805-0603
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9805-0603
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-516-0	02	1	0604-
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-088-0	AR	1	9601-9804
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9805-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-9804
117	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9805-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9601-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0007-
141	CONNECTOR; TEST BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9601-9804
141	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9805-0004
142	UNION; 3-WAY BRAKE REGULATION ADR<TDU>	1-09660-838-0	01	1	9601-9804
142	UNION; 3-WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-09660-838-0	01	1	9805-0004

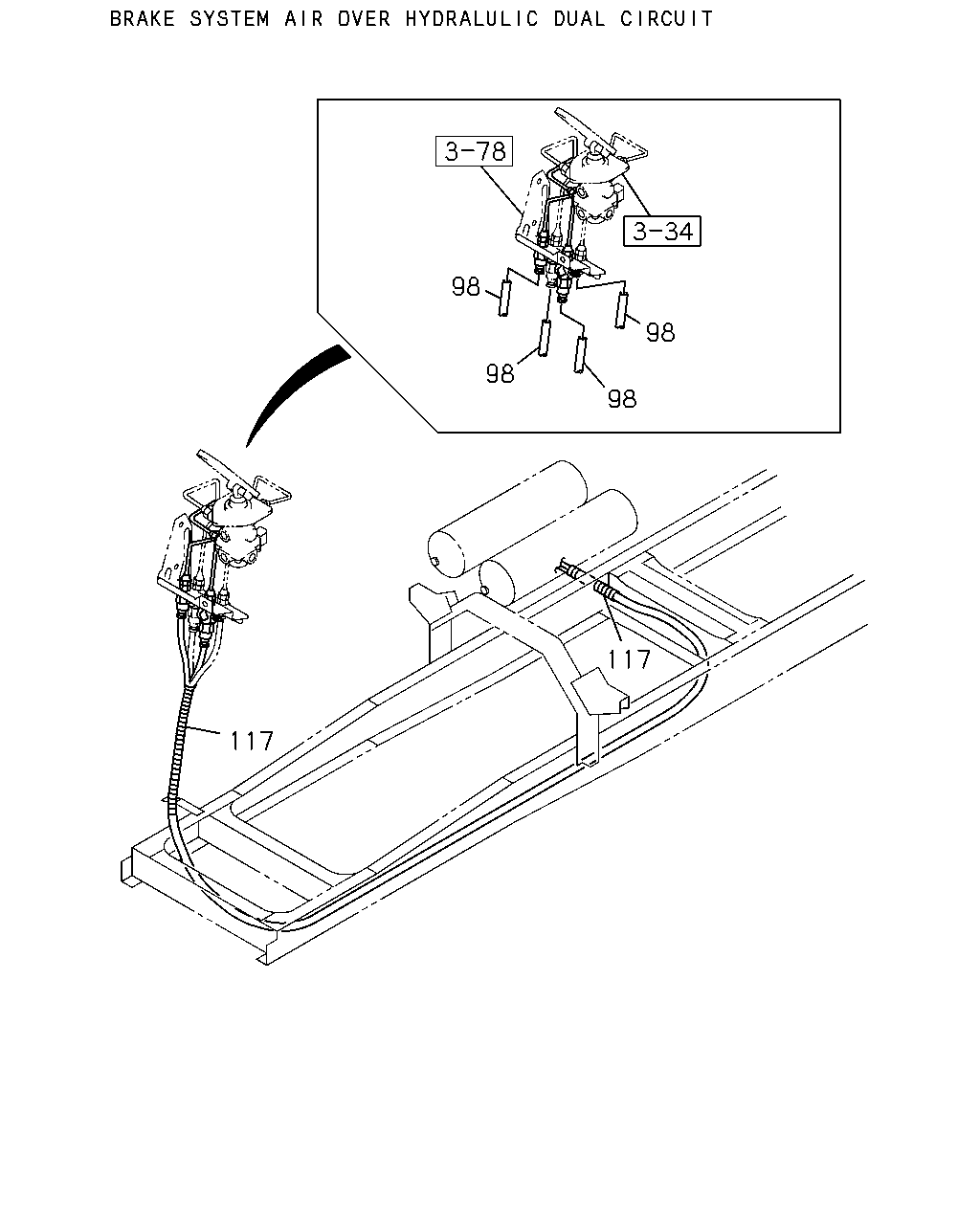

98 98 98 98 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9805-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9805-
98	TUBE; NYLON L=6000 OD=12	1-87410-071-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9805-0004
98	TUBE; NYLON WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9805-0004
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9805-0004
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-
98	TUBE; NYLON L=6000 OD=8	1-87410-075-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9805-
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0007-0102
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0103-0205
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0206-
98	TUBE; NYLON WHEEL BASE 7100MM(71W) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9805-0004
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-088-0	AR	1	9601-9804
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9805-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-9804
117	TUBE; CORRUGATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9805-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	9601-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0007-

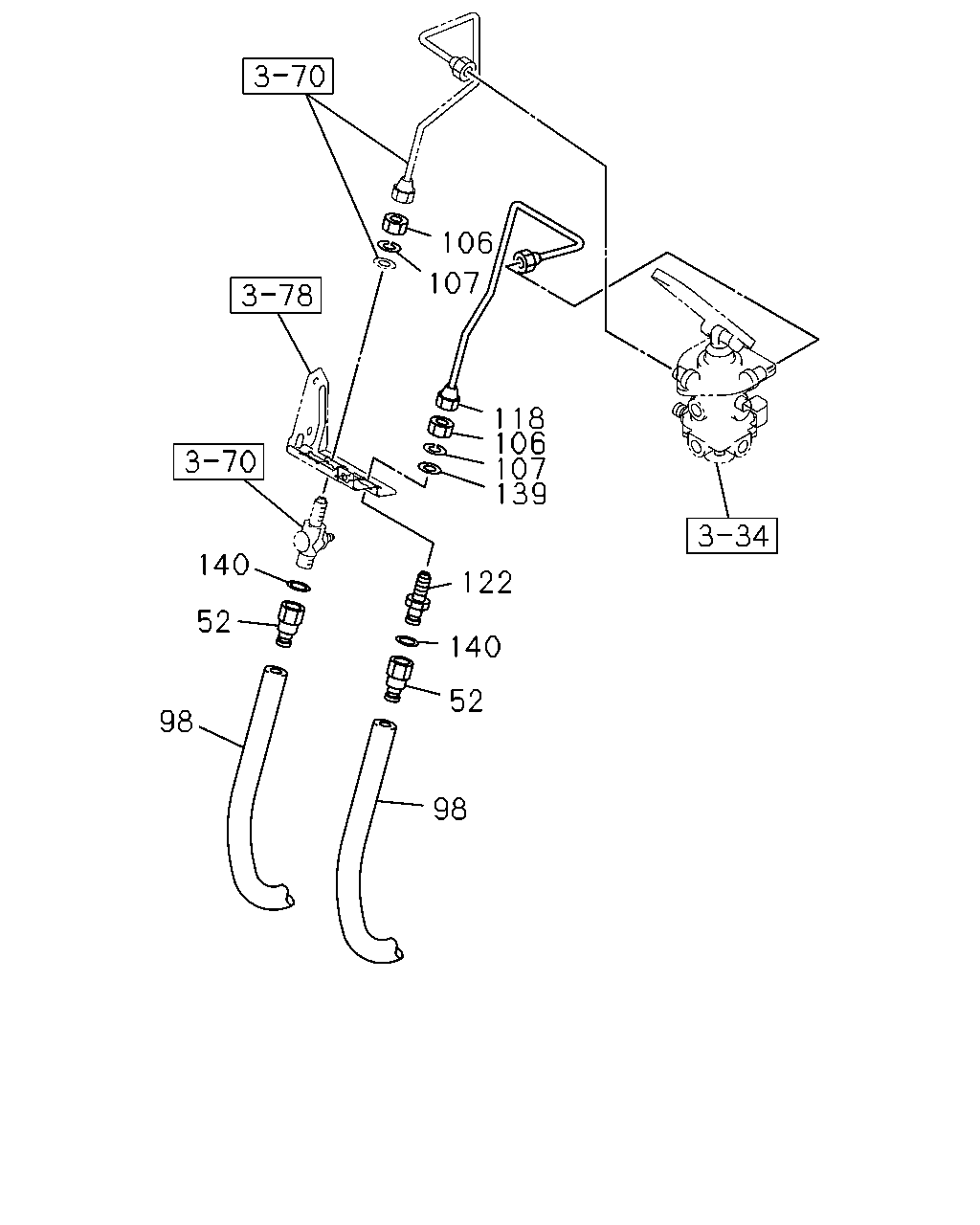

106 107 118 106 107 139 140 122 52 140 52 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	CONNECTOR; NYLON TUBE	1-09660-728-1	02	1	9601-9804
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	9805-0004
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9805-
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9805-
98	TUBE; NYLON L=6000 OD=12	1-87410-071-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9805-0004
98	TUBE; NYLON WHEEL BASE 6300MM(63W) SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9805-0004
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9805-0004
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-
98	TUBE; NYLON L=6000 OD=8	1-87410-075-0	AR	1	9601-9804
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	9805-
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0007-0102
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0103-0205
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0206-
98	TUBE; NYLON WHEEL BASE 7100MM(71W) SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9805-0004
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	9601-9804
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9805-0512
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9805-0512
106	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	0601-
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	9601-9804
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	02	1	9805-0603
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9805-0603
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-516-0	02	1	0604-
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0604-
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	9601-
122	CONNECTOR; FLEX HOSE	1-09654-324-0	01	1	9601-9804
122	CONNECTOR; FLEX HOSE M16 STRAIGHT	1-09654-380-0	01	1	9805-
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9601-0605
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-
140	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9601-9804

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
