◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#64950) — 854 parça

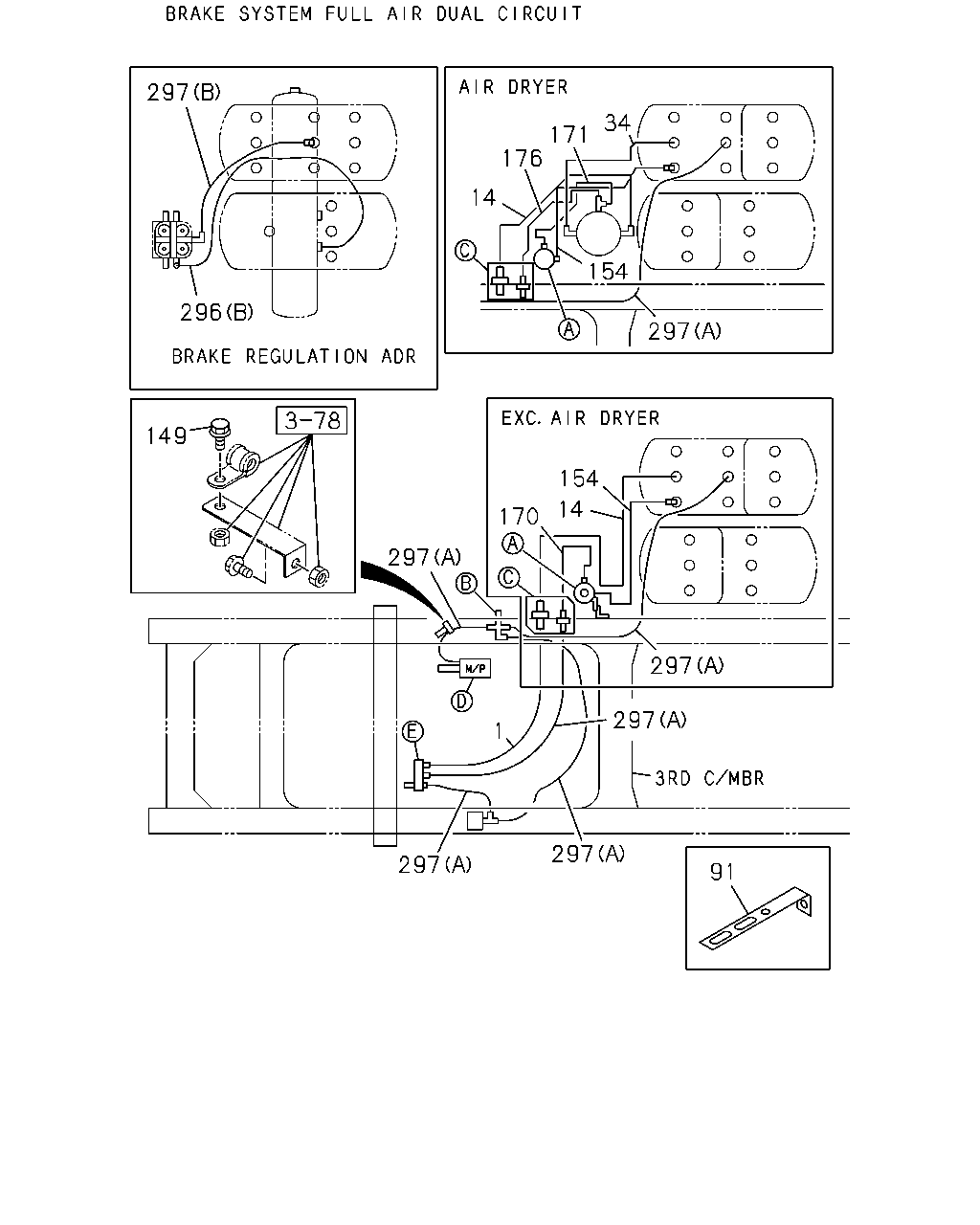

çizim 121245
297 34 171 176 14 154 296 297 149 154 14 170 297 297 297 1 3 297 297 91
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9804
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9805-9807
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9808-0605
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9805-
3 WASHER; LK,FLEX HOSE,AIR TANK
(B) ID=20.2 		9-09150-520-0 01 1 9601-9804
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 9805-9807
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 9808-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 01 1 0604-
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		9-09150-522-0 01 1 9601-9804
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=22.5 		9-09150-522-0 01 1 9805-0004
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		9-09150-522-0 01 1 0005-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		0-91510-522-0 01 1 0604-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 9805-0004
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-419-0 01 1 9805-0103
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49123-076-0 01 1 0104-0212
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49124-002-0 01 1 0301-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AIR DRYER<PS7> 		1-49115-547-0 01 1 9601-9601
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9602-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-0004
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49118-372-0 01 1 0005-0109
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9805-0004
34 PIPE; AIR
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-408-0 01 1 0110-
34 PIPE; AIR
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) AIR DRYER<PS7> 		1-49115-546-0 01 1 9601-9804
34 PIPE; AIR
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-408-0 01 1 9805-0004
34 PIPE; AIR
WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-129-0 01 1 9805-0004
91 BRACKET; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=225 		1-47477-646-3 01 1 0010-
149 BOLT; TUBE CLIP
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE 		0-28080-816-0 01 1 0105-0512
149 BOLT; TUBE CLIP
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-172-0 01 1 0110-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) AIR DRYER<PS7> 		1-49115-556-0 01 1 9601-9601
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) AIR DRYER<PS7> 		1-49117-156-0 01 1 9602-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49118-410-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1096 		1-49122-170-0 01 1 0005-0104
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49123-061-0 01 1 0105-0109
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-061-0 01 1 0110-
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AIR DRYER<PS7> 		1-49115-557-0 01 1 9601-9601
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AIR DRYER<PS7> 		1-49117-157-0 01 1 9602-9804
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-375-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49119-131-0 01 1 9805-0004
154 PIPE; AIR,AIR TANK TO AIR GOV
WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-132-0 01 1 9805-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9805-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49123-060-0 01 1 0105-0109
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0110-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-420-0 01 1 9805-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-195-0 01 1 0005-
171 PIPE; AIR,GOV TO AIR DRYER
AIR DRYER<PS7> 		1-49114-366-0 01 1 9601-9804
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=1004 SERVICED BY L=1100 		1-47426-351-0 01 1 9805-0004
171 PIPE; AIR,GOV TO AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49122-192-0 01 1 0110-
176 PIPE; AIR,AIR DRYER TO UNION
AIR DRYER<PS7> 		1-49115-551-0 01 1 9601-9804
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-551-0 01 1 9805-0004
176 PIPE; AIR,AIR DRYER TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-551-0 01 1 0110-
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301-
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
(A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9601-9804
296 TUBE; NYLON
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9805-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9601-9606
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 9607-9804
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9707-9804
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9805-0004
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
297 TUBE; NYLON
6SD1 STD ENG(37L) MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0301-
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212
297 TUBE; NYLON
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=600 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9601-9606
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=550 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9607-9804
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9805-0212
297 TUBE; NYLON
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0301-
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 9805-0004

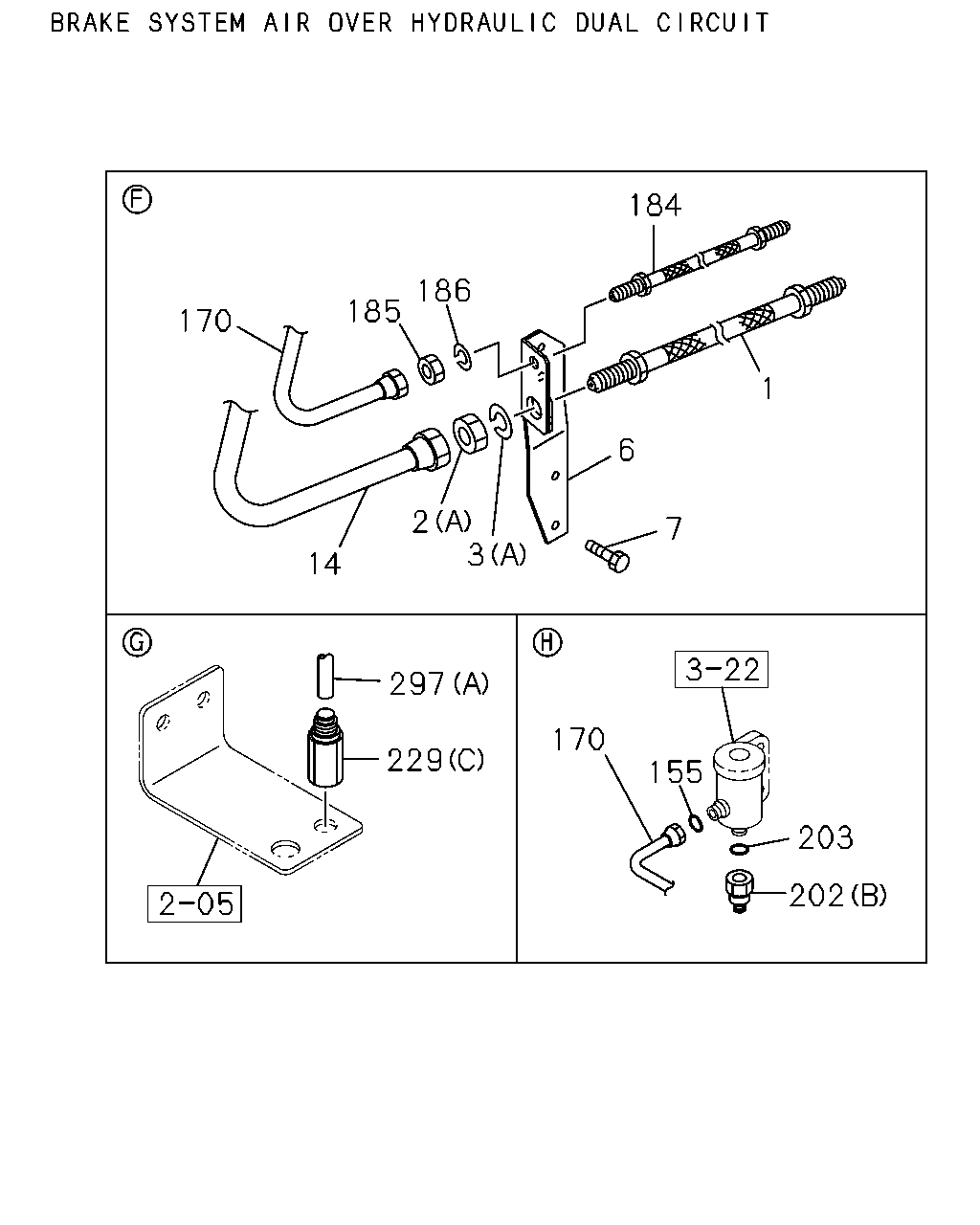

çizim 121288
184 186 185 170 1 6 2 3 7 14 297 170 229 155 203 202
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9804
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9805-9807
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9808-0605
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9805-
2 NUT; FLEX HOSE,AIR TANK
(A) M22 		9-09111-422-0 01 1 9601-9804
2 NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 		9-09111-422-0 01 1 9805-0004
2 NUT; FLEX HOSE,AIR TANK
(A) M22 		9-09111-422-0 01 1 0005-0512
2 NUT; FLEX HOSE,AIR TANK
(A) M22 		0-91111-522-0 01 1 0601-
2 NUT; FLEX HOSE,AIR TANK
(B) M20 		9-99111-420-0 01 1 9601-9804
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 9805-9807
2 NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 9808-0512
2 NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
(B) ID=20.2 		9-09150-520-0 01 1 9601-9804
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 9805-9807
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 9808-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 01 1 0604-
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		9-09150-522-0 01 1 9601-9804
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=22.5 		9-09150-522-0 01 1 9805-0004
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		9-09150-522-0 01 1 0005-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47476-693-1 01 1 9601-9804
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9805-0304
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47478-864-0 01 1 0305-
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-693-2 01 1 9805-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 9607-9804
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9805-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28680-835-0 02 1 9805-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 9805-0004
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-419-0 01 1 9805-0103
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49123-076-0 01 1 0104-0212
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49124-002-0 01 1 0301-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AIR DRYER<PS7> 		1-49115-547-0 01 1 9601-9601
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9602-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-0004
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49118-372-0 01 1 0005-0109
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9805-0004
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-9804
155 GASKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18 		9-09572-510-0 01 1 9805-0004
155 GASKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 02 1 9805-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9805-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49123-060-0 01 1 0105-0109
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0110-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-420-0 01 1 9805-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-195-0 01 1 0005-
184 HOSE; FLEX,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350 		1-09363-651-0 01 1 9805-
185 NUT; FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 9805-
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		9-09150-512-0 01 1 9805-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		0-91510-512-0 01 1 0604-
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-0004
202 ADAPTER
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9804
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9805-9810
202 ADAPTER
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9805-9810
202 ADAPTER
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9811-9901
202 ADAPTER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9811-9901
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9902-0004
202 ADAPTER
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9902-0004
203 GASKET; ADAPTER,GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18 		9-09572-510-0 01 1 9805-0004
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9601-9804
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9805-0004
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 9601-9804
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 & PT1/4 		9-48319-149-0 01 1 9805-0004
229 ADAPTER; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403
229 ADAPTER; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404-
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9805-0004
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0005
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006-
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
297 TUBE; NYLON
6SD1 STD ENG(37L) MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0301-
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212
297 TUBE; NYLON
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=600 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9601-9606
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=550 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9607-9804
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9805-0212
297 TUBE; NYLON
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0301-
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 9805-0004

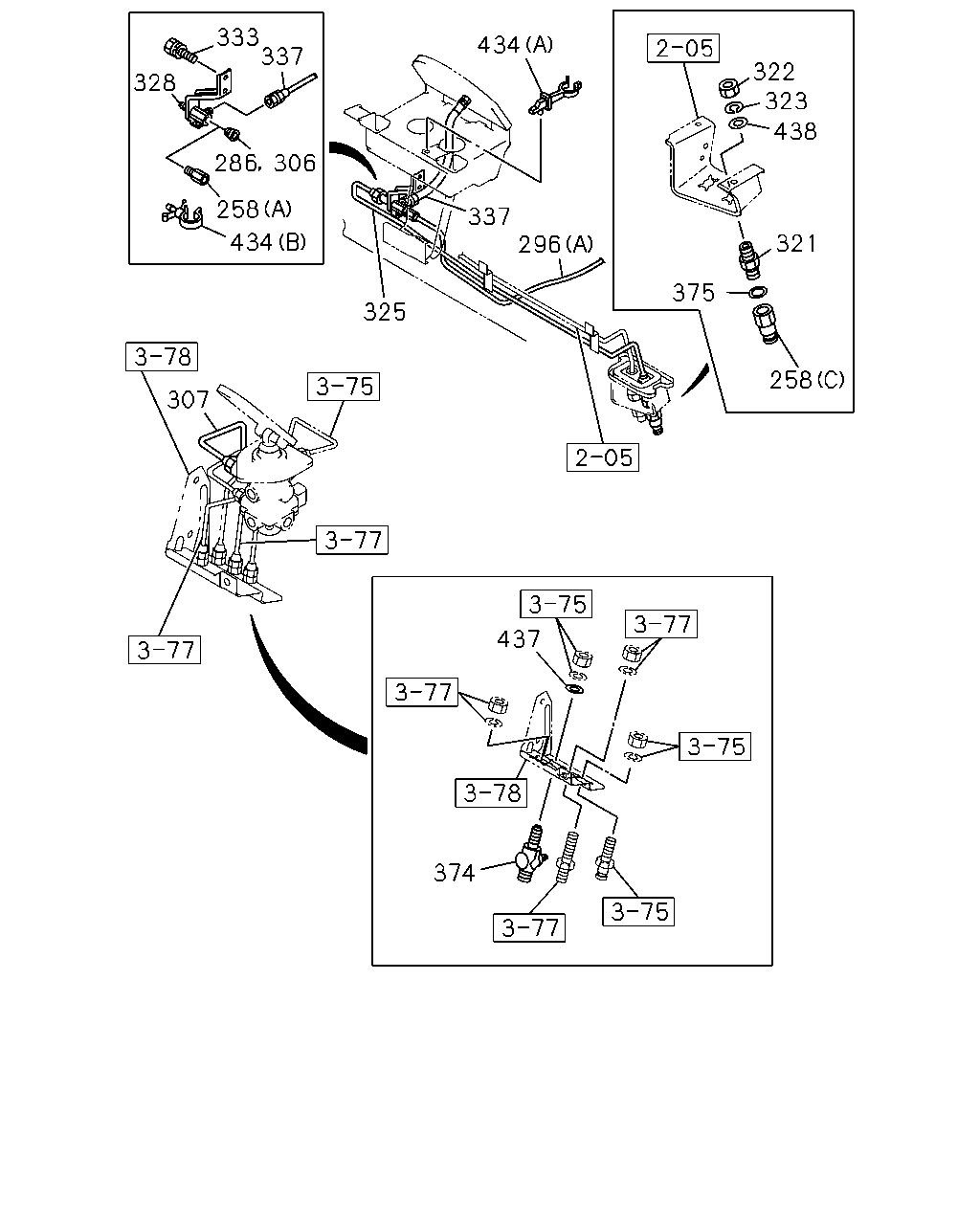

çizim 121363
333 337 434 322 323 328 438 286 306 258 337 296 434 321 375 325 258 307 437 374
BalonParca AdiParca NoAdetTipApplied Date
258 CONNECTOR; NYLON TUBE
(B),(E) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
KENYA EQUIPMENT(PQ2) (B),(E) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56> (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9901
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9805-9806
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR HORN<WB8> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR HORN<WB8> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> 		9-09204-510-0 01 1 9601-9804
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9805-9810
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 9811-0004
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 0005-0010
286 PLUG; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> 		9-09204-510-0 01 1 0011-
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301-
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
(A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9601-9804
296 TUBE; NYLON
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9805-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9601-9606
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 9607-9804
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9707-9804
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9805-0004
306 PLUG; NYLON TUBE
AIR CONTROL SEAT<A60> PT1/8 		1-09605-050-0 01 1 9805-0004
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9601-9902
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 9903-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09654-362-1 01 1 9601-9804
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9805-9810
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09654-362-1 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9811-9811
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09654-362-1 01 1 9811-9811
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011-
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> AIR HORN<WB8> 		1-09656-663-0 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> 		1-09656-663-0 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> 		1-09656-663-0 01 1 9811-0004
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> 		1-09656-663-0 01 1 9811-0004
321 JOINT; FLEX HOSE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-09656-728-0 01 1 9805-9810
321 JOINT; FLEX HOSE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-728-1 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9601-9804
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9805-9810
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9805-9810
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9805-9810
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011-
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011-
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9601-9804
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9805-9810
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9805-9810
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9805-9810
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9811-0004
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604-
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47492-452-2 01 1 9601-9804
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9805-9810
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9805-9810
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011-
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011-
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 9601-9804
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9805-9810
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9811-0004
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 0005-0010
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 0011-
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-362-2 01 1 9805-
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9804
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9805-9810
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9805-9810
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011-
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9601-9804
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9805-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9805-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606-
374 CONNECTOR 1-09656-451-1 01 1 9601-9804
374 CONNECTOR 1-09656-721-0 01 1 9805-0103
374 CONNECTOR 1-09656-754-0 01 1 0104-
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9601-9804
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9805-9810
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9805-9810
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9805-9810
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (A) ID=17 		1-09987-105-1 01 1 9805-
434 CLIP
EXC. DUAL AIR GAUGE<UG2> (B) 		8-94297-486-0 02 1 9805-
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9601-0605
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9804
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9805-9810
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9805-9810
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9805-9810
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011-
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011-

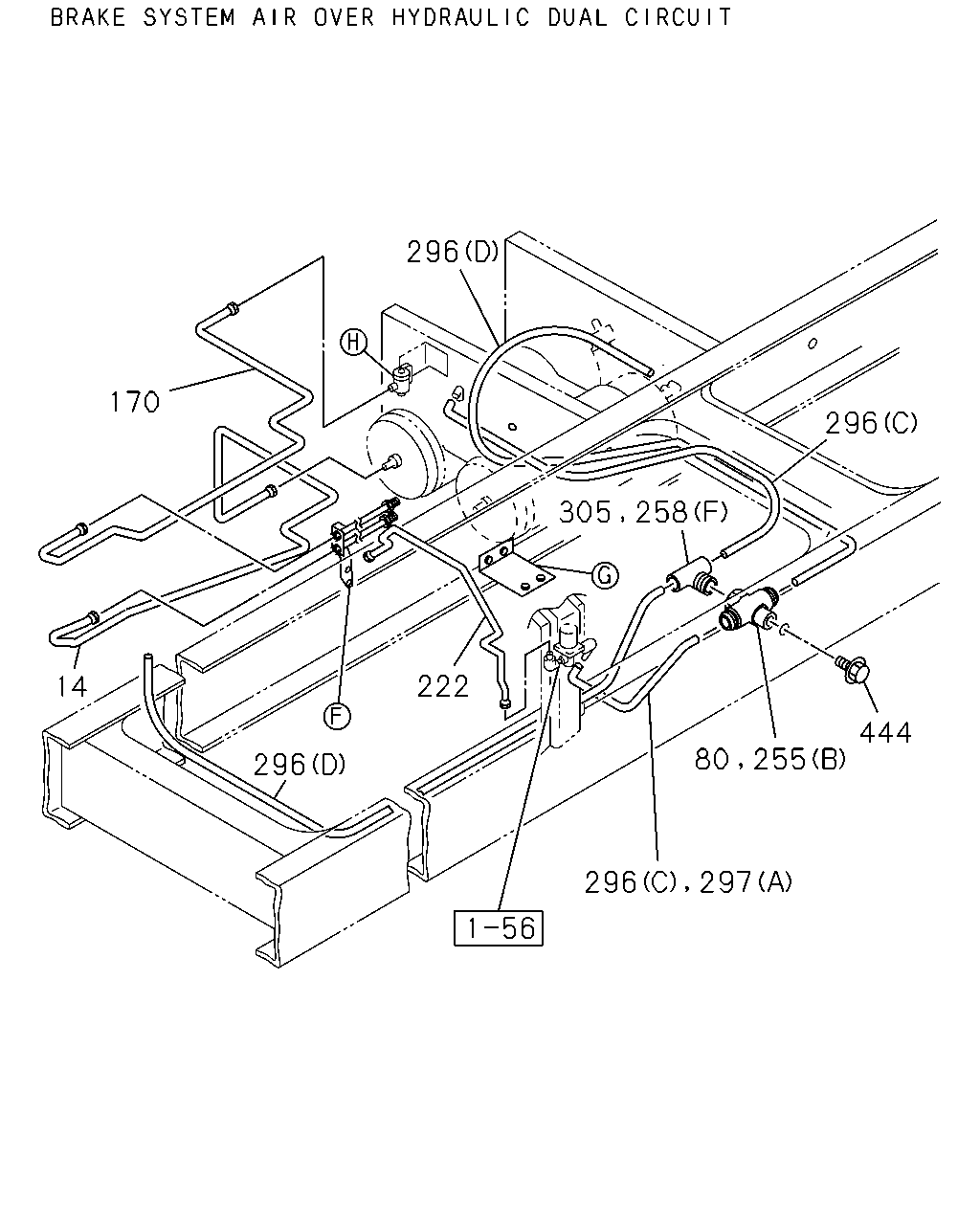

çizim 121700
296 170 296 222 14 444 296 305 258 80 255 297 296
BalonParca AdiParca NoAdetTipApplied Date
14 PIPE; AIR,FLEX HOSE TO AIR TANK
AIR DRYER<PS7> 		1-49115-575-0 01 1 9601-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 9805-0004
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-419-0 01 1 9805-0103
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49123-076-0 01 1 0104-0212
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49124-002-0 01 1 0301-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-49115-575-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AIR DRYER<PS7> 		1-49115-547-0 01 1 9601-9601
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) EXC. AIR DRYER<PS7> 		1-49117-176-0 01 1 9602-9804
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 9805-0004
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49118-372-0 01 1 0005-0109
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 6300MM(63W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49118-372-0 01 1 0110-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49119-130-0 01 1 9805-0004
80 UNION; 3 WAY
KENYA EQUIPMENT(PQ2) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9804
80 UNION; 3 WAY
FULLER FS8209 DD M/T(Y2S) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9804
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-
80 UNION; 3 WAY
MAL6S M/T(Y1V) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9601-9804
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49116-227-0 01 1 9805-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=401 		1-49122-185-0 01 1 0005-0104
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-49123-060-0 01 1 0105-0109
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> 		1-49123-060-0 01 1 0110-
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49118-420-0 01 1 9805-0004
170 PIPE; AIR,AIR GOV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-49122-195-0 01 1 0005-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1105 SERVICED BY L=1250 		1-47434-389-0 01 1 9805-
255 UNION; NYLON TUBE
FULLER RT7608LL M/T(X8P) (A) 		1-09660-912-0 01 1 9609-9804
255 UNION; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-0004
255 UNION; NYLON TUBE
FULLER RT7608LL M/T(X8P) (A) 		1-09660-912-0 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
(B),(E) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
KENYA EQUIPMENT(PQ2) (B),(E) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56> (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9901
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9805-9806
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR HORN<WB8> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR HORN<WB8> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301-
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
(A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9601-9804
296 TUBE; NYLON
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9805-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9601-9606
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 9607-9804
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9707-9804
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9805-0004
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
297 TUBE; NYLON
6SD1 STD ENG(37L) MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0301-
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212
297 TUBE; NYLON
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=600 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9601-9606
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=550 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9607-9804
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9805-0212
297 TUBE; NYLON
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0301-
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 9805-0004
305 UNION ASM; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 9805-0004
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 9601-9804
444 BOLT; UNION
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
FULLER FS8209 DD M/T(Y2S) M8X25 FLANGE 		0-28680-825-0 01 1 9807-0004
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9807-0004
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
çizim 121704
333 322 323 328 258 438 337 296 339 321 337 231 375 325 330 232 258 307 437 374 230 230
BalonParca AdiParca NoAdetTipApplied Date
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 9601-9804
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49116-429-1 01 1 9805-0103
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (A) 		1-49122-777-0 01 1 0104-
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 9601-9804
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49116-430-1 01 1 9805-0103
230 PIPE; AIR,UNION TO UNION
DUAL AIR GAUGE<UG2> (B) 		1-49122-778-0 01 1 0104-
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 9601-9804
231 UNION; AIR PIPE
DUAL AIR GAUGE<UG2> M10 STRAIGHT 		1-09654-361-0 02 1 9805-
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 9601-9804
232 NUT; UNION,AIR PIPE
DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 02 1 9805-
258 CONNECTOR; NYLON TUBE
(B),(E) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
KENYA EQUIPMENT(PQ2) (B),(E) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56> (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9901
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9805-9806
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR HORN<WB8> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR HORN<WB8> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87411-011-0 04 1 0301-
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0301-
296 TUBE; NYLON
(A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9601-9804
296 TUBE; NYLON
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9805-9806
296 TUBE; NYLON
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
6SD1 TCN ENG(31L) FULLER FS8209 DD M/T(Y2S) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9807-0004
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0212
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9805-9810
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) SERVICED BY L=30000 OD=6 		1-09366-235-0 01 1 9811-0001
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-0 01 1 0002-0004
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> (A) L=1200 OD=6 		1-09366-256-0 01 1 0005-0010
296 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) L=1200 OD=6 		1-09366-256-1 01 1 0011-
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9601-9606
296 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 9607-9804
296 TUBE; NYLON
EXC. BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9707-9804
296 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) SERVICED BY L=2000 OD=12 		1-87410-069-0 02 1 9805-0004
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-47492-448-5 01 1 9601-9902
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 9903-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> 		1-09654-362-1 01 1 9601-9804
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9805-9810
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09654-362-1 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09654-362-1 01 1 9811-9811
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09654-362-1 01 1 9811-9811
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> EXC. AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2>,AIR HORN<WB8> 		1-09656-738-0 01 1 9812-0004
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0005-0010
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011-
321 JOINT; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> 		1-09656-738-0 01 1 0011-
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> AIR HORN<WB8> 		1-09656-663-0 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DUAL AIR GAUGE<UG2> 		1-09656-663-0 01 1 9805-9810
321 JOINT; FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> 		1-09656-663-0 01 1 9811-0004
321 JOINT; FLEX HOSE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> 		1-09656-663-0 01 1 9811-0004
321 JOINT; FLEX HOSE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> 		1-09656-728-0 01 1 9805-9810
321 JOINT; FLEX HOSE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> 		1-09656-728-1 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> M10 H=8 		1-09400-029-0 01 1 9601-9804
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9805-9810
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9805-9810
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9805-9810
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR HORN<WB8> M10 H=8 		1-09400-029-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 9811-0004
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0005-0010
322 NUT; JOINT,FLEX HOSE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011-
322 NUT; JOINT,FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> M10 H=8 		1-09400-029-0 01 1 0011-
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.2 		9-09150-510-0 01 1 9601-9804
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9805-9810
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9805-9810
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9805-9810
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004
323 WASHER; LK,JOINT
AIR HORN<WB8> ID=10.2 		9-09150-510-0 01 1 9811-0004
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 9811-0004
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0005-0010
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 01 1 0011-0603
323 WASHER; LK,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604-
323 WASHER; LK,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> 		1-47492-452-2 01 1 9601-9804
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9805-9810
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9805-9810
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 9811-0004
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0005-0010
325 PIPE; AIR,FLEX HOSE TO UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011-
325 PIPE; AIR,FLEX HOSE TO UNION
EXC. DUAL AIR GAUGE<UG2> 		1-47492-452-2 01 1 0011-
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> 		1-47470-392-0 01 1 9601-9804
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9805-9810
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 9811-0004
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 0005-0010
328 UNION; AIR PIPE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> 		1-47470-392-0 01 1 0011-
328 UNION; AIR PIPE
EXC. DUAL AIR GAUGE<UG2> 		1-47470-362-2 01 1 9805-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 9601-9804
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		9-09150-510-0 02 1 9805-0603
330 WASHER; LK,UNION,AIR PIPE
DUAL AIR GAUGE<UG2> ID=10.2 		0-91510-510-0 02 1 0604-
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9804
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9805-9810
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9805-9810
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9811-0004
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0010
333 BOLT; PIPE UNION
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011-
333 BOLT; PIPE UNION
EXC. DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 9601-9804
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-07210-720-0 02 1 9805-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=720 		0-57210-720-0 02 1 0609-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-07210-810-0 01 1 9805-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
EXC. DUAL AIR GAUGE<UG2> L=810 		0-57210-810-0 01 1 0606-
339 GROMMET; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 9601-9804
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> OD=28 		8-94279-720-0 01 1 9805-9810
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 9811-0004
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> OD=28 		8-94279-720-0 01 1 0005-0010
339 GROMMET; AIR PIPE
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> OD=28 		8-94279-720-0 01 1 0011-
374 CONNECTOR 1-09656-451-1 01 1 9601-9804
374 CONNECTOR 1-09656-721-0 01 1 9805-0103
374 CONNECTOR 1-09656-754-0 01 1 0104-
375 GASKET
AIR SUSP DRIVER SEAT<A56> ID=11 OD=18 		9-09572-510-0 01 1 9601-9804
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9805-9810
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9805-9810
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9805-9810
375 GASKET
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811
375 GASKET
AIR HORN<WB8> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811
375 GASKET
EXC. DUAL AIR GAUGE<UG2> ID=11 OD=18 		9-09572-510-0 01 1 9811-9811
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 9601-0605
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601-9804
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9805-9810
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9805-9810
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9805-9810
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004
438 WASHER; PL,JOINT
AIR HORN<WB8> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9811-0004
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005-0010
438 WASHER; PL,JOINT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011-
438 WASHER; PL,JOINT
EXC. DUAL AIR GAUGE<UG2> ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0011-
çizim 184542
367 155 259 155 444 255 444 258 80 80 258 258 2 3 248 247 229 297 8 6 7 1 202 312 281 88 258 343 1 5 229 2 3 227 249
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1500 		0-17716-150-0 01 1 9601-9804
1 HOSE; FLEX,AIR TANK
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9805-9807
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-17716-150-0 01 1 9808-0605
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1500 		0-77716-150-0 01 1 0606-
1 HOSE; FLEX,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=360 		1-09363-530-0 01 1 9805-
2 NUT; FLEX HOSE,AIR TANK
(A) M22 		9-09111-422-0 01 1 9601-9804
2 NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 		9-09111-422-0 01 1 9805-0004
2 NUT; FLEX HOSE,AIR TANK
(A) M22 		9-09111-422-0 01 1 0005-0512
2 NUT; FLEX HOSE,AIR TANK
(A) M22 		0-91111-522-0 01 1 0601-
2 NUT; FLEX HOSE,AIR TANK
(B) M20 		9-99111-420-0 01 1 9601-9804
2 NUT; FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 9805-9807
2 NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		9-99111-420-0 01 1 9808-0512
2 NUT; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20 		0-91111-520-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
(B) ID=20.2 		9-09150-520-0 01 1 9601-9804
3 WASHER; LK,FLEX HOSE,AIR TANK
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 9805-9807
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		9-09150-520-0 01 1 9808-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2 		0-91510-520-0 01 1 0604-
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		9-09150-522-0 01 1 9601-9804
3 WASHER; LK,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=22.5 		9-09150-522-0 01 1 9805-0004
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		9-09150-522-0 01 1 0005-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		0-91510-522-0 01 1 0604-
5 SLEEVE; FLEX HOSE
FULLER FS8209 DD M/T(Y2S) L=1300 		1-09360-677-1 01 1 9606-0004
6 BRACKET; FLEX HOSE,AIR TANK 1-47476-693-1 01 1 9601-9804
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47477-264-2 01 1 9805-0304
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-47478-864-0 01 1 0305-
6 BRACKET; FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47476-693-2 01 1 9805-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28080-830-0 02 1 9601-9606
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 9607-9804
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28680-830-0 02 1 9805-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28680-835-0 02 1 9805-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 		9-09110-408-0 02 1 9601-9606
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 9607-9804
8 NUT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91150-108-0 02 1 9805-0602
8 NUT; BRKT,FLEX HOSE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 0603-
80 UNION; 3 WAY
KENYA EQUIPMENT(PQ2) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9804
80 UNION; 3 WAY
FULLER FS8209 DD M/T(Y2S) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9601-9804
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-9805
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004
80 UNION; 3 WAY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9806-0004
80 UNION; 3 WAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-
80 UNION; 3 WAY
MAL6S M/T(Y1V) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 9601-9804
88 GASKET; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0 		9-09572-014-0 01 1 9805-0004
88 GASKET; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0005-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 9601-9804
155 GASKET; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18 		9-09572-510-0 01 1 9805-0004
155 GASKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18 		9-09572-510-0 02 1 9805-0004
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-0004
202 ADAPTER
6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9601-9804
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9805-9810
202 ADAPTER
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9805-9810
202 ADAPTER
MLD6Q M/T(X5J) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9811-9901
202 ADAPTER
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9811-9901
202 ADAPTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9902-0004
202 ADAPTER
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9902-0004
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 9601-9804
227 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9805-0603
227 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		0-91510-512-0 01 1 0604-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9601-9804
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 9805-0004
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 9601-9804
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 & PT1/4 		9-48319-149-0 01 1 9805-0004
229 ADAPTER; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 & PT1/4 		9-48319-149-0 01 1 0005-0403
229 ADAPTER; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404-
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 9805-0004
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09661-093-0 02 1 0005-0005
229 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0006-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 02 1 9601-9804
247 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 L=66.5 		9-09223-306-1 02 1 9805-0607
247 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 L=66.5 		0-92113-306-0 02 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 02 1 9601-9804
248 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 02 1 9805-0604
248 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 0605-
248 NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 0605-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 9602-9804
249 WASHER; LK,PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9805-0603
249 WASHER; LK,PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		0-91510-512-0 01 1 0604-
255 UNION; NYLON TUBE
FULLER RT7608LL M/T(X8P) (A) 		1-09660-912-0 01 1 9609-9804
255 UNION; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 RC1/4 & M8 		1-09660-735-1 01 1 9805-0004
255 UNION; NYLON TUBE
FULLER RT7608LL M/T(X8P) (A) 		1-09660-912-0 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
(B),(E) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
KENYA EQUIPMENT(PQ2) (B),(E) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9806-9806
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) AIR HORN<WB8> (B) DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56> (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (F) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9811-9811
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9812-9911
258 CONNECTOR; NYLON TUBE
DUAL AIR GAUGE<UG2> AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
EXC. DUAL AIR GAUGE<UG2> (C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (C) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9805-9810
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 9811-0004
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0011-0302
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
AIR HORN<WB8> EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>,DUAL AIR GAUGE<UG2> (C) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9912-0004
258 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9805-9901
258 CONNECTOR; NYLON TUBE
6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-0004
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
6SD1 STD ENG(37L) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9601-9804
258 CONNECTOR; NYLON TUBE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9805-9806
258 CONNECTOR; NYLON TUBE
FULLER FS8209 DD M/T(Y2S) (D) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 9807-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR HORN<WB8> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9805-9805
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) AIR HORN<WB8> (B) DIN8X2 & R1/4 3WAY 		1-09660-659-1 01 1 9806-0004
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005-0010
258 CONNECTOR; NYLON TUBE
MAL6S M/T(Y1V) EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0011-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9601-9610
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 03 1 9611-9804
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 04 1 9805-0004
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 03 1 0005-0112
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40 		1-09337-013-0 02 1 0201-
259 SLEEVE; RUBBER,NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=29 OD=39 L=40 		1-09337-013-0 03 1 9805-0004
281 WASHER; LK UNION
6SD1 TCN ENG(31L) ID=12.2 		9-09150-512-0 01 1 9601-9804
281 WASHER; LK UNION
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9805-9810
281 WASHER; LK UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9811-9901
281 WASHER; LK UNION
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2 		9-09150-512-0 01 1 9902-0004
297 TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
297 TUBE; NYLON
6SD1 STD ENG(37L) MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0301-
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9805-0212
297 TUBE; NYLON
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=600 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9601-9606
297 TUBE; NYLON
BRAKE REGULATION ADR<TDU> (B) L=550 SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9607-9804
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 9805-0212
297 TUBE; NYLON
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0301-
297 TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 04 1 9805-0004
312 NUT; UNION
6SD1 TCN ENG(31L) M12 		9-09840-280-0 01 1 9601-9804
312 NUT; UNION
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9805-9810
312 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9811-9901
312 NUT; UNION
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 		9-09840-280-0 01 1 9902-0004
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) M12 L=66.5 		9-09223-306-1 01 1 9601-9804
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 L=66.5 		9-09223-306-1 01 1 9805-9810
343 UNION; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 L=66.5 		9-09223-306-1 01 1 9811-9901
343 UNION; NYLON TUBE
6SD1 TCN ENG(31L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 L=66.5 		9-09223-306-1 01 1 9902-0004
367 TUBE; CORRUGATE
KENYA EQUIPMENT(PQ2) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9609-9804
367 TUBE; CORRUGATE
FULLER RT7608LL M/T(X8P) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9609-9804
367 TUBE; CORRUGATE
FULLER FS8209 DD M/T(Y2S) EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9609-9804
367 TUBE; CORRUGATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 9805-0004
367 TUBE; CORRUGATE
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0005-0112
367 TUBE; CORRUGATE
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0201-
367 TUBE; CORRUGATE
MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0201-
444 BOLT; UNION
M8X20 FLANGE 		0-28080-820-0 01 1 9601-9804
444 BOLT; UNION
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9805-9806
444 BOLT; UNION
FULLER FS8209 DD M/T(Y2S) M8X25 FLANGE 		0-28680-825-0 01 1 9807-0004
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 9807-0004
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
