0-85 — AUTO TIMER; INJECTION PUMP (#6495) — 34 parça

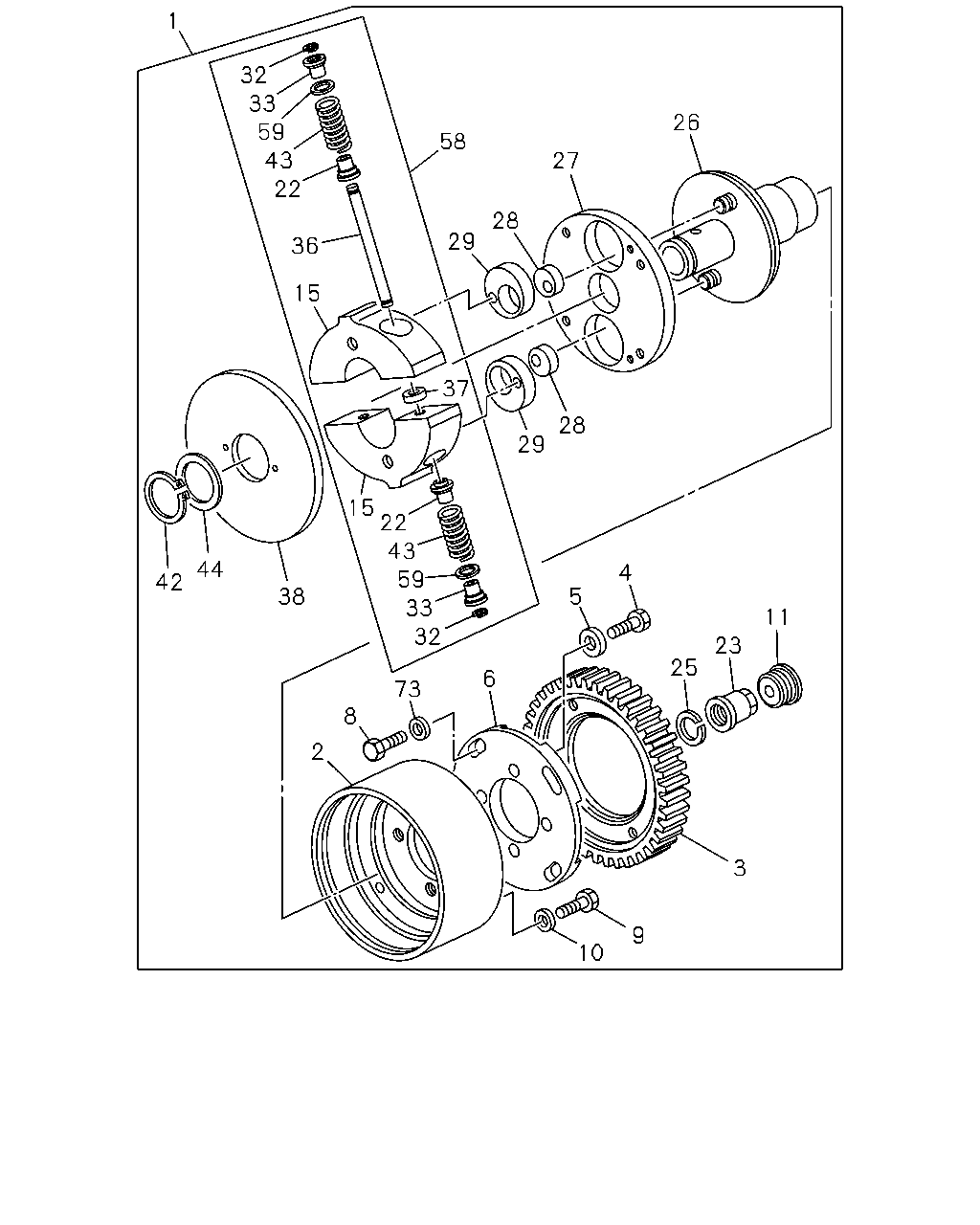

çizim 8733
1 32 33 26 59 58 43 27 22 28 29 36 15 37 28 29 15 22 43 44 4 59 42 38 5 33 11 32 23 25 6 73 8 2 3 9 10
BalonParca AdiParca NoAdetTipApplied Date
1 TIMER ASM; INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15740-480-1 01 1 -
2 HOUSING; TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15741-016-0 01 1 -
3 GEAR; DRIVE,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15789-190-0 01 1 -
4 BOLT; DRIVE GEAR FLANGE,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-188-0 04 1 -
5 WASHER; DRIVE GEAR FLANGE,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-189-0 04 1 -
6 FLANGE; DRIVE GEAR,INJ PUMP
T=1.00 ASM PART: A = 1-15603-200-1 		1-15742-036-0 01 1 -
8 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-186-0 04 1 -
9 BOLT; TIMER HSG,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-190-0 04 1 -
10 WASHER; HSG FIX BOLT,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-191-0 04 1 -
11 CAP; TIMER HSG,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-698-0 01 1 -
15 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15743-143-0 02 1 -
22 SEAT; INNER SPRING,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-635-0 04 1 -
23 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-144-0 01 1 -
25 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-145-0 01 1 -
26 FLANGE; TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15742-150-0 01 1 -
27 PLATE; CAM,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-239-0 01 1 -
28 CAM; INNER,ECCENTRIC,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-152-0 02 1 -
29 CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-151-0 02 1 -
32 RING; SNAP,SPRING SEAT,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-159-0 04 1 -
33 SEAT; OUTER SPRING,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-176-0 04 1 -
36 PIN; PILOT,TIMER SPRING,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-174-0 02 1 -
37 SPACER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-402-0 02 1 -
38 COVER; TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-283-0 01 1 -
42 RING; SNAP,TIMER COVER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-185-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-855-0 04 1 -
44 SHIM; TIMER COVER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-184-0 01 1 -
58 FLYWEIGHT ASM; TIMER,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15743-142-0 01 1 -
59 SHIM; SPR,TIMER
T=0.10 ASM PART: A = 1-15603-200-1 		1-15749-390-0 AR 1 -
59 SHIM; SPR,TIMER
T=0.30 ASM PART: A = 1-15603-200-1 		1-15749-391-0 AR 1 -
59 SHIM; SPR,TIMER
T=0.50 ASM PART: A = 1-15603-200-1 		1-15749-392-0 AR 1 -
59 SHIM; SPR,TIMER
T=1.00 ASM PART: A = 1-15603-200-1 		1-15749-393-0 AR 1 -
59 SHIM; SPR,TIMER
T=0.40 ASM PART: A = 1-15603-200-1 		1-15749-493-0 AR 1 -
59 SHIM; SPR,TIMER
T=0.70 ASM PART: A = 1-15603-200-1 		1-15749-494-0 AR 1 -
73 WASHER; DRIVE GEAR,INJ PUMP
ASM PART: A = 1-15603-200-1 		1-15749-187-0 04 1 -
