3-45 — LOAD SENSING PROPORTIONING VALVE (#64945) — 121 parça

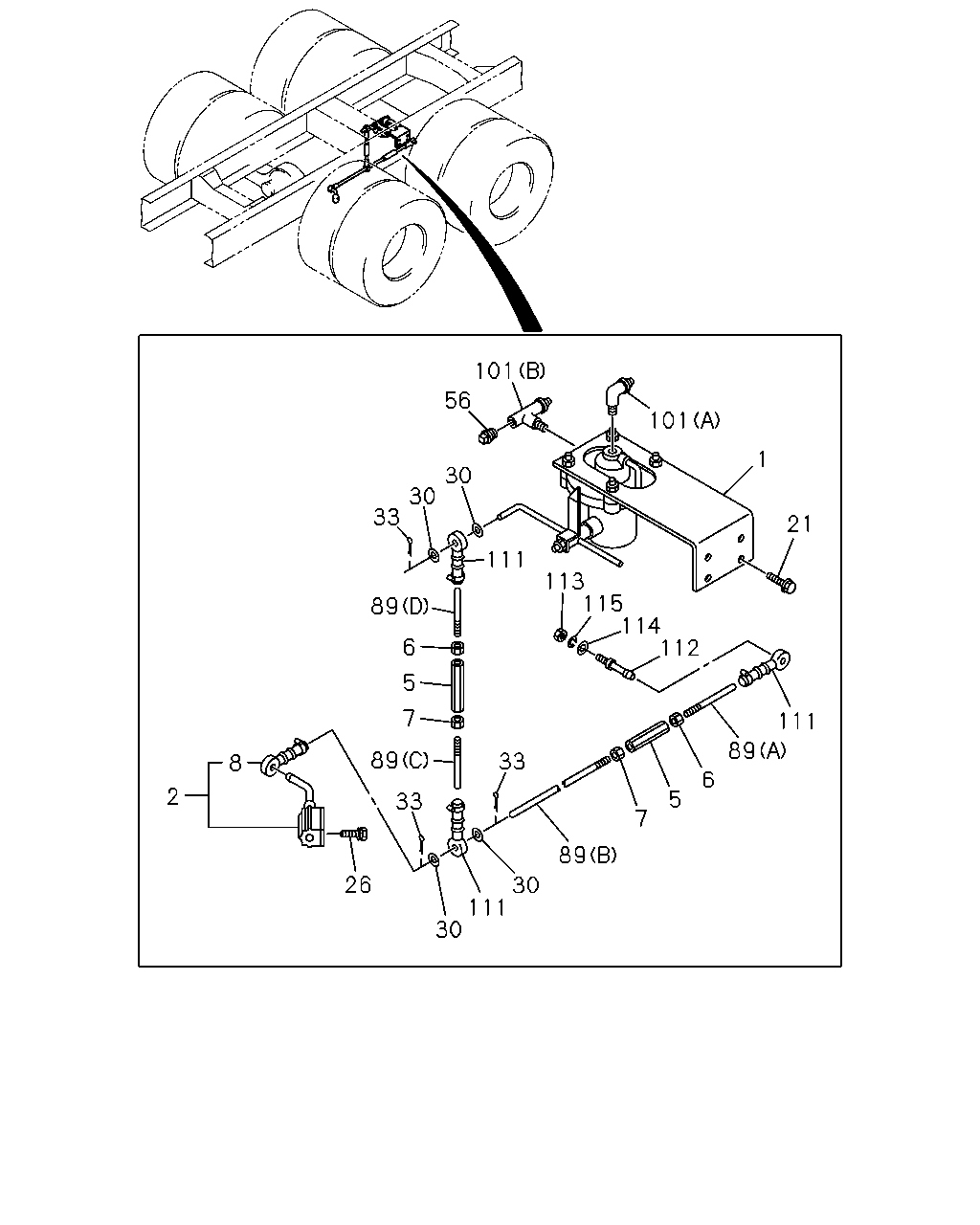

101 56 101 1 30 30 33 21 111 113 115 114 112 89 6 5 7 111 89 89 33 8 6 2 5 33 7 89 26 30 111 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-094-0	01	1	9805-0004
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-061-0	01	1	9601-9804
2	DAMPER LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-016-0	01	1	9601-9804
2	DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47725-016-0	01	1	9805-0004
5	JOINT LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-004-0	02	1	9601-9804
5	JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-09768-004-0	02	1	9805-0004
6	NUT; LK,UPR LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09111-408-0	02	1	9601-9804
6	NUT; LK,UPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09111-408-0	02	1	9805-0004
7	NUT; LK,LWR LOAD SENSING PROPORTIONING VALVE<JR7> M8 LH THREAD	1-09400-002-0	02	1	9601-9804
7	NUT; LK,LWR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8 LH THREAD	1-09400-002-0	02	1	9805-0004
8	ROD END LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	9601-9804
8	ROD END BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	01	1	9805-0004
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X30 FLANGE	0-28080-830-0	04	1	9601-9605
21	BOLT; BRKT LOAD SENSING PROPORTIONING VALVE<JR7> M8X35 FLANGE	0-28680-835-0	04	1	9606-0004
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> M8X18 W/LK WASHER	0-50040-818-0	02	1	9601-9611
26	BOLT; DAMPER LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28080-812-0	02	1	9612-9804
26	BOLT; DAMPER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8X12 FLANGE	0-28080-812-0	02	1	9805-0004
30	WASHER; PL LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	04	1	9601-9611
30	WASHER; PL LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	9612-9804
30	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	9805-0004
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	01	1	9601-9804
33	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	01	1	9805-0004
33	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	02	1	9601-9804
33	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=25	9-08112-025-0	02	1	9805-0004
56	PLUG; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> PT1/4	9-99204-513-0	01	1	9805-
56	PLUG; LSPV KENYA EQUIPMENT(PQ2) PT1/4	9-99204-513-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (E)	1-47769-083-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-270-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-270-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-275-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-275-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-276-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-276-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (D)	1-09765-277-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (D)	1-09765-277-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (E)	1-47769-083-0	01	1	9601-9804
101	CONNECTOR; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
101	CONNECTOR; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN8 & RC1/4 & R3/8 3WAY	1-09660-988-0	01	1	9805-0004
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
101	CONNECTOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09660-839-0	01	1	9601-9804
111	RUBBER; JOINT,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	03	1	9601-9804
111	RUBBER; JOINT,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47723-001-0	03	1	9805-0004
112	PIN; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-052-0	01	1	9601-9611
112	PIN; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-123-0	01	1	9612-9804
112	PIN; JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-09744-123-0	01	1	9805-0004
113	NUT; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> M8	9-09110-408-0	01	1	9601-9611
113	NUT; JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	01	1	9612-9804
113	NUT; JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> M8 FLANGE	0-91150-108-0	01	1	9805-0004
114	WASHER; PL,JOINT RUBBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	02	1	9805-0004
114	WASHER; PL,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.4	9-09160-508-0	01	1	9601-9804
115	WASHER; LK,JOINT RUBBER LOAD SENSING PROPORTIONING VALVE<JR7> ID=8.2	9-09150-508-0	01	1	9601-9804

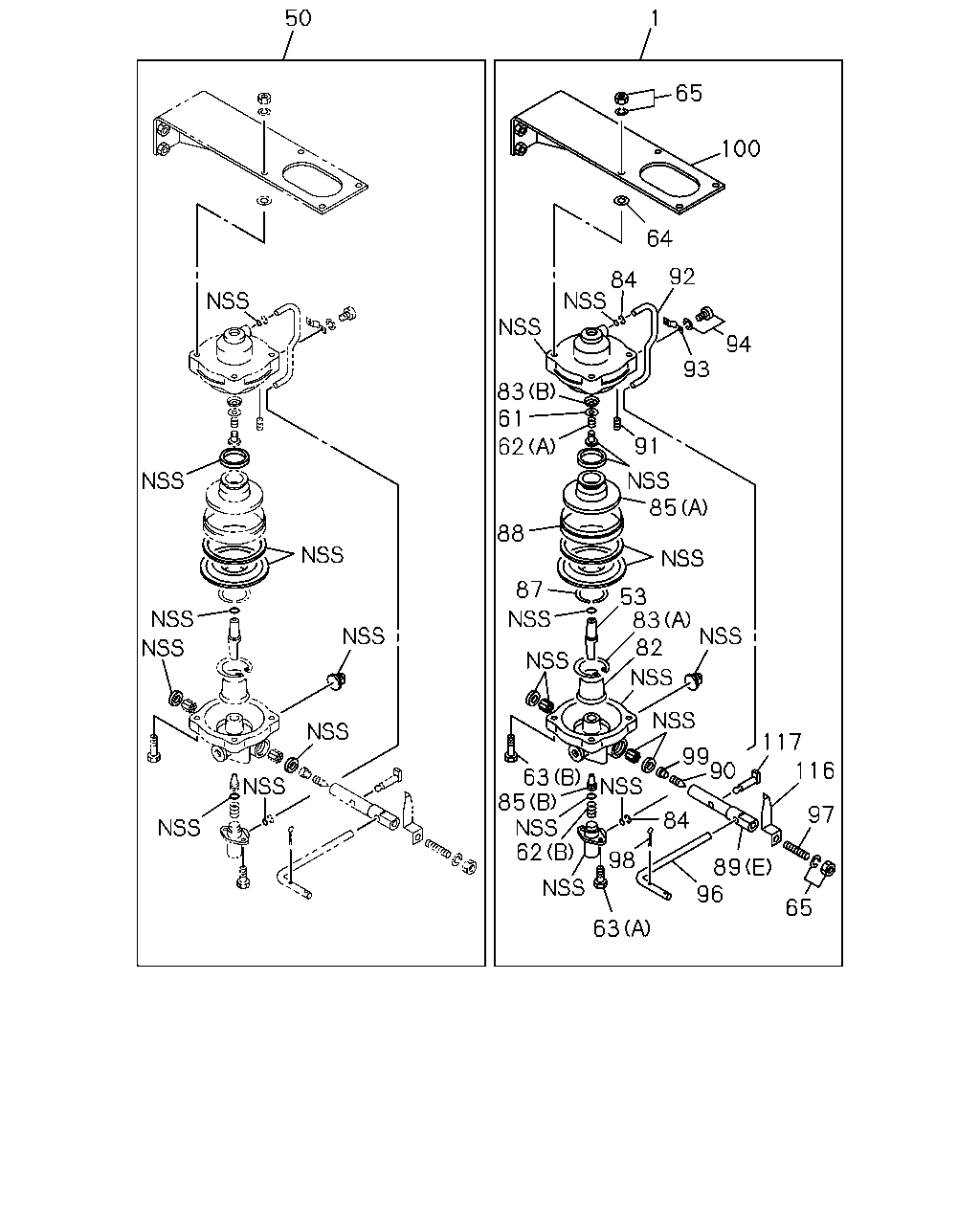

50 1 65 100 64 92 84 94 93 83 61 62 91 85 88 87 53 83 82 117 63 85 62 99 90 98 116 97 84 89 96 65 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-094-0	01	1	9805-0004
1	VALVE ASM; LOAD SENSING PROPORTIONING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47720-061-0	01	1	9601-9804
50	REPAIR KIT; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-088-0	01	1	9805-0004
50	REPAIR KIT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-088-0	01	1	9601-9804
53	PLUNGER; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-033-0	01	1	9805-0004
53	PLUNGER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-033-0	01	1	9601-9804
61	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-026-0	01	1	9805-0004
61	RETAINER; SPRING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-026-0	01	1	9601-9804
62	SPRING; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-025-0	01	1	9805-0004
62	SPRING; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-042-0	01	1	9805-0004
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-025-0	01	1	9601-9804
62	SPRING; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-042-0	01	1	9601-9804
63	BOLT; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-045-0	02	1	9805-0004
63	BOLT; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-094-0	04	1	9805-0004
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-045-0	02	1	9601-9804
63	BOLT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-094-0	04	1	9601-9804
64	WASHER; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-079-0	04	1	9805-0004
64	WASHER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-079-0	04	1	9601-9804
65	NUT; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-48199-320-0	05	1	9805-0004
65	NUT; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-48199-320-0	05	1	9601-9804
82	GUIDE; PISTON,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-016-0	01	1	9805-0004
82	GUIDE; PISTON,LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-016-0	01	1	9601-9804
83	RING; SNAP,RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-017-0	01	1	9805-0004
83	RING; SNAP,RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-027-0	01	1	9805-0004
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-017-0	01	1	9601-9804
83	RING; SNAP,RET LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-027-0	01	1	9601-9804
84	RETAINER; GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-021-0	02	1	9805-0004
84	RETAINER; GASKET LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-021-0	02	1	9601-9804
85	PISTON; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-023-0	01	1	9805-0004
85	PISTON; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-043-0	01	1	9805-0004
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-47769-023-0	01	1	9601-9804
85	PISTON; LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-47769-043-0	01	1	9601-9804
87	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-086-0	01	1	9805-0004
87	RETAINER; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-086-0	01	1	9601-9804
88	GUIDE; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-032-0	01	1	9805-0004
88	GUIDE; DIAPH LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-032-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (E)	1-47769-083-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-270-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (A)	1-09765-270-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-275-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (B)	1-09765-275-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-276-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (C)	1-09765-276-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (D)	1-09765-277-0	01	1	9601-9804
89	ROD; CONN,LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (D)	1-09765-277-0	01	1	9805-0004
89	ROD; CONN,LSPV LOAD SENSING PROPORTIONING VALVE<JR7> (E)	1-47769-083-0	01	1	9601-9804
90	SCREW; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-039-0	01	1	9805-0004
90	SCREW; CAM LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-039-0	01	1	9601-9804
91	FILTER; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-047-0	01	1	9805-0004
91	FILTER; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-047-0	01	1	9601-9804
92	PIPE; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-048-0	01	1	9805-0004
92	PIPE; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-048-0	01	1	9601-9804
93	CLIP; PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-050-0	01	1	9805-0004
93	CLIP; PIPE LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-050-0	01	1	9601-9804
94	SCREW; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-144-0	02	1	9805-0004
94	SCREW; CLIP LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-144-0	02	1	9601-9804
96	ARM; OPERATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-143-0	01	1	9805-0004
96	ARM; OPERATING LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-143-0	01	1	9601-9804
97	BOLT; OPERATING ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-081-0	01	1	9805-0004
97	BOLT; OPERATING ARM LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-081-0	01	1	9601-9804
98	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=15	9-08112-015-0	01	1	9805-0004
98	PIN; SPLIT LOAD SENSING PROPORTIONING VALVE<JR7> OD=1.8 L=15	9-08112-015-0	01	1	9601-9804
99	CAP; SCREW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-055-0	01	1	9805-0004
99	CAP; SCREW LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-055-0	01	1	9601-9804
100	BRACKET; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-147-0	01	1	9805-0004
100	BRACKET; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-147-0	01	1	9601-9804
116	INDICATOR; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-078-0	01	1	9805-0004
116	INDICATOR; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-078-0	01	1	9601-9804
117	CAM; LSPV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-038-0	01	1	9805-0004
117	CAM; LSPV LOAD SENSING PROPORTIONING VALVE<JR7>	1-47769-038-0	01	1	9601-9804
