Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#64944) — 471 parça

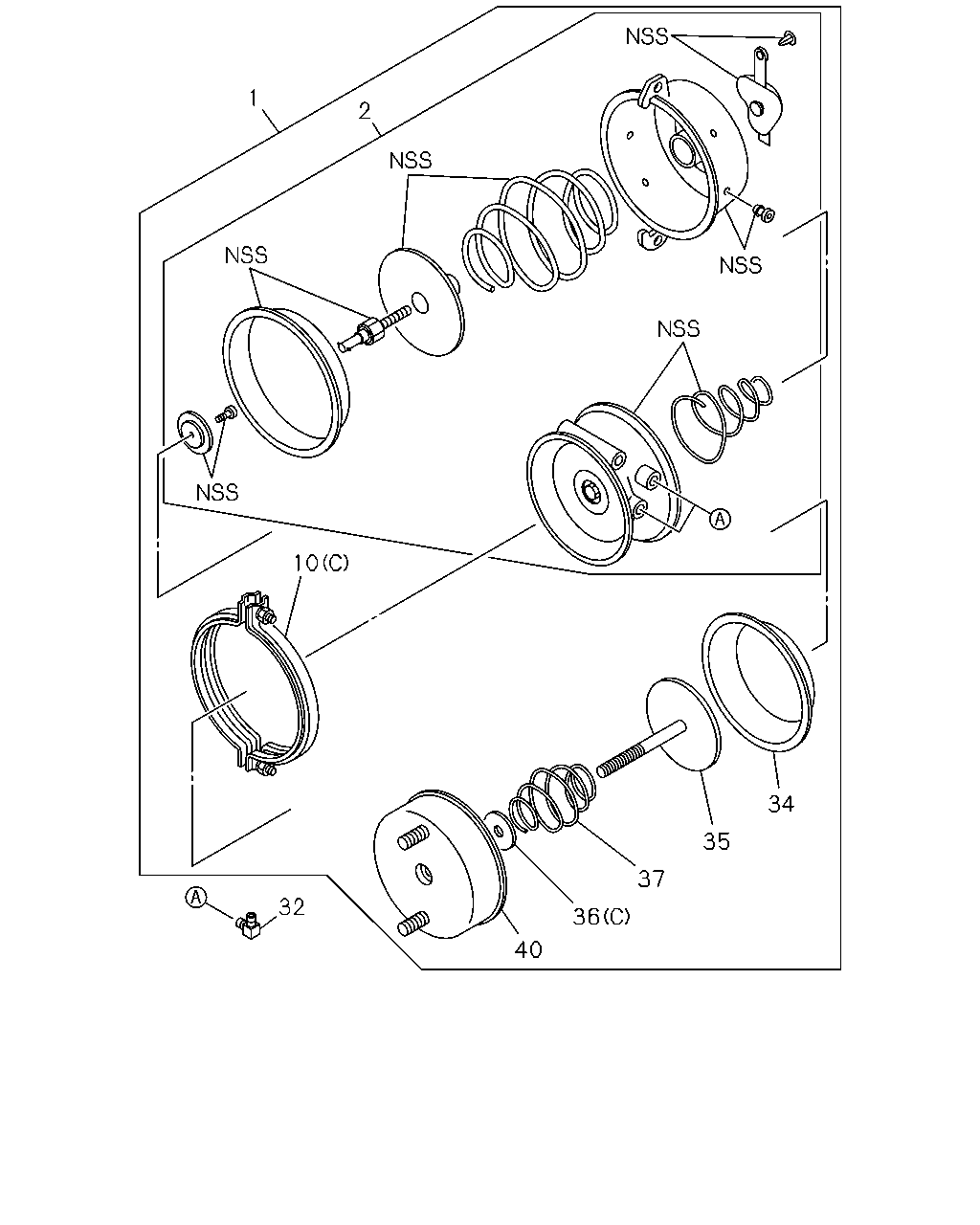

1 2 10 34 35 37 32 36 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FWD-RH,RWD-LH	1-48250-176-1	02	1	9601-9804
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48250-176-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48250-176-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-176-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-176-2	01	1	0110-
1	CHAMBER ASM; SPRING FWD-LH,RWD-RH	1-48250-177-1	02	1	9601-9804
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48250-177-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48250-177-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-177-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-177-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-562-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-562-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-808-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-808-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-871-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-871-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-563-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-563-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-809-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-809-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-872-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-872-0	01	1	0510-
2	CHAMBER; EMERGENCY FWD-RH,RWD-LH	1-48252-020-0	02	1	9601-9804
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48252-020-0	01	1	9805-0109
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48252-020-0	01	1	9805-0109
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48252-020-0	01	1	0110-
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48252-020-0	01	1	0110-
2	CHAMBER; EMERGENCY FWD-LH,RWD-RH	1-48252-021-0	02	1	9601-9804
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48252-021-0	01	1	9805-0109
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48252-021-0	01	1	9805-0109
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48252-021-0	01	1	0110-
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48252-021-0	01	1	0110-
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-254-0	02	1	0110-0509
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-254-0	02	1	0110-0509
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	08	1	9601-9804
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-016-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-016-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	08	1	9601-9804
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-031-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-031-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) (C)	1-48259-229-0	02	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) (C)	1-48259-229-0	02	1	0110-
32	CONNECTOR; SPR CHAMBER KENYA EQUIPMENT(PQ2) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0110-0202
32	CONNECTOR; SPR CHAMBER KENYA EQUIPMENT(PQ2) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	0203-
34	DIAPHRAGM	1-48252-011-0	04	1	9601-9804
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-011-0	02	1	9805-0109
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-011-0	02	1	9805-0109
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48252-011-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48252-011-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-148-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-148-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER	1-48253-011-0	04	1	9601-9804
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-011-0	02	1	9805-0109
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-011-0	02	1	9805-0109
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48253-011-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48253-011-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-143-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-143-0	02	1	0110-
36	RETAINER; SPR CHAMBER (B)	1-48259-033-0	04	1	9601-9804
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-033-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-033-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-033-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-033-0	02	1	0110-
36	RETAINER; SPR CHAMBER (A)	1-48259-043-0	04	1	9601-9804
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-043-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-043-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-043-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-043-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) (C)	1-48259-226-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) (C)	1-48259-226-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	04	1	9601-9804
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	9805-0109
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	9805-0109
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48255-003-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48255-003-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-142-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-142-0	02	1	0110-
40	COVER ASM; LWR,SPR CHAMBER FWD-RH,RWD-LH	1-48259-081-1	02	1	9601-9804
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-081-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-081-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-081-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-081-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER FWD-LH,RWD-RH	1-48259-082-1	02	1	9601-9804
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-082-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-082-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-082-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-082-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-227-0	02	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-227-0	02	1	0110-

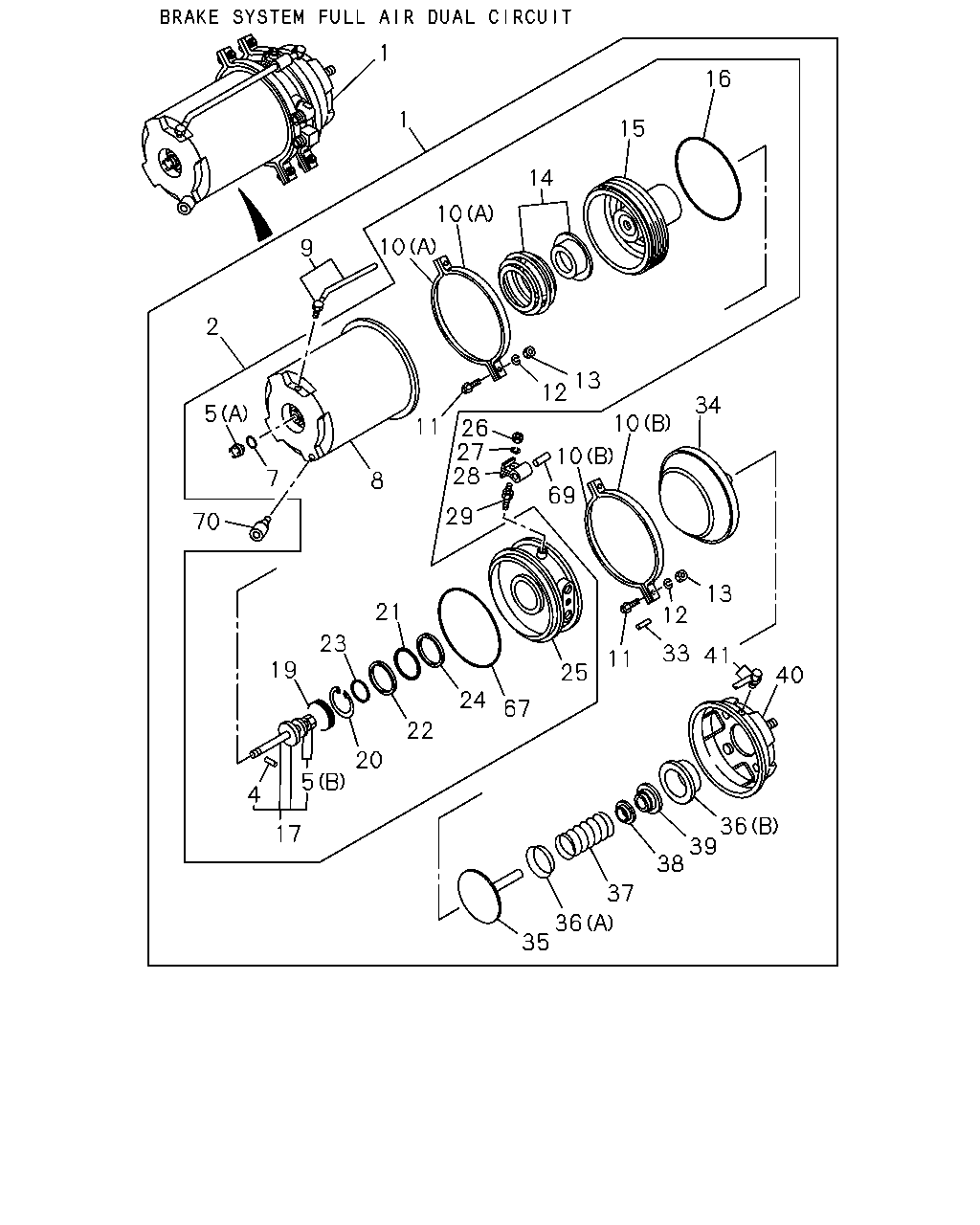

1 40 36 37 34 35 10 8 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FWD-RH,RWD-LH	1-48250-176-1	02	1	9601-9804
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48250-176-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48250-176-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-176-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-176-2	01	1	0110-
1	CHAMBER ASM; SPRING FWD-LH,RWD-RH	1-48250-177-1	02	1	9601-9804
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48250-177-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48250-177-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-177-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-177-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-562-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-562-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-808-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-808-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-871-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-871-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-563-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-563-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-809-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-809-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-872-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-872-0	01	1	0510-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-320-0	02	1	0510-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-320-0	02	1	0510-
8	SHELL; CYL,SPR CHAMBER FWD-RH,RWD-LH	1-48259-069-0	02	1	9601-9804
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-069-0	01	1	9805-0109
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-069-0	01	1	9805-0109
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-069-0	01	1	0110-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-069-0	01	1	0110-
8	SHELL; CYL,SPR CHAMBER FWD-LH,RWD-RH	1-48259-070-0	02	1	9601-9804
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-070-0	01	1	9805-0109
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-070-0	01	1	9805-0109
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-070-0	01	1	0110-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-070-0	01	1	0110-
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	08	1	9601-9804
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-016-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-016-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	08	1	9601-9804
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-031-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-031-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) (C)	1-48259-229-0	02	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) (C)	1-48259-229-0	02	1	0110-
32	CONNECTOR; SPR CHAMBER KENYA EQUIPMENT(PQ2) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0110-0202
32	CONNECTOR; SPR CHAMBER KENYA EQUIPMENT(PQ2) DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	0203-
34	DIAPHRAGM	1-48252-011-0	04	1	9601-9804
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-011-0	02	1	9805-0109
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-011-0	02	1	9805-0109
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48252-011-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48252-011-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-148-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-148-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER	1-48253-011-0	04	1	9601-9804
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-011-0	02	1	9805-0109
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-011-0	02	1	9805-0109
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48253-011-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48253-011-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-143-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-143-0	02	1	0110-
36	RETAINER; SPR CHAMBER (B)	1-48259-033-0	04	1	9601-9804
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-033-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-033-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-033-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-033-0	02	1	0110-
36	RETAINER; SPR CHAMBER (A)	1-48259-043-0	04	1	9601-9804
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-043-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-043-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-043-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-043-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) (C)	1-48259-226-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) (C)	1-48259-226-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	04	1	9601-9804
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	9805-0109
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	9805-0109
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48255-003-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48255-003-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-142-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-142-0	02	1	0110-
40	COVER ASM; LWR,SPR CHAMBER FWD-RH,RWD-LH	1-48259-081-1	02	1	9601-9804
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-081-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-081-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-081-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-081-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER FWD-LH,RWD-RH	1-48259-082-1	02	1	9601-9804
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-082-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-082-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-082-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-082-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-227-0	02	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-227-0	02	1	0110-

1 31 31 1 31 1 31 1 1 31 31 1 1 1

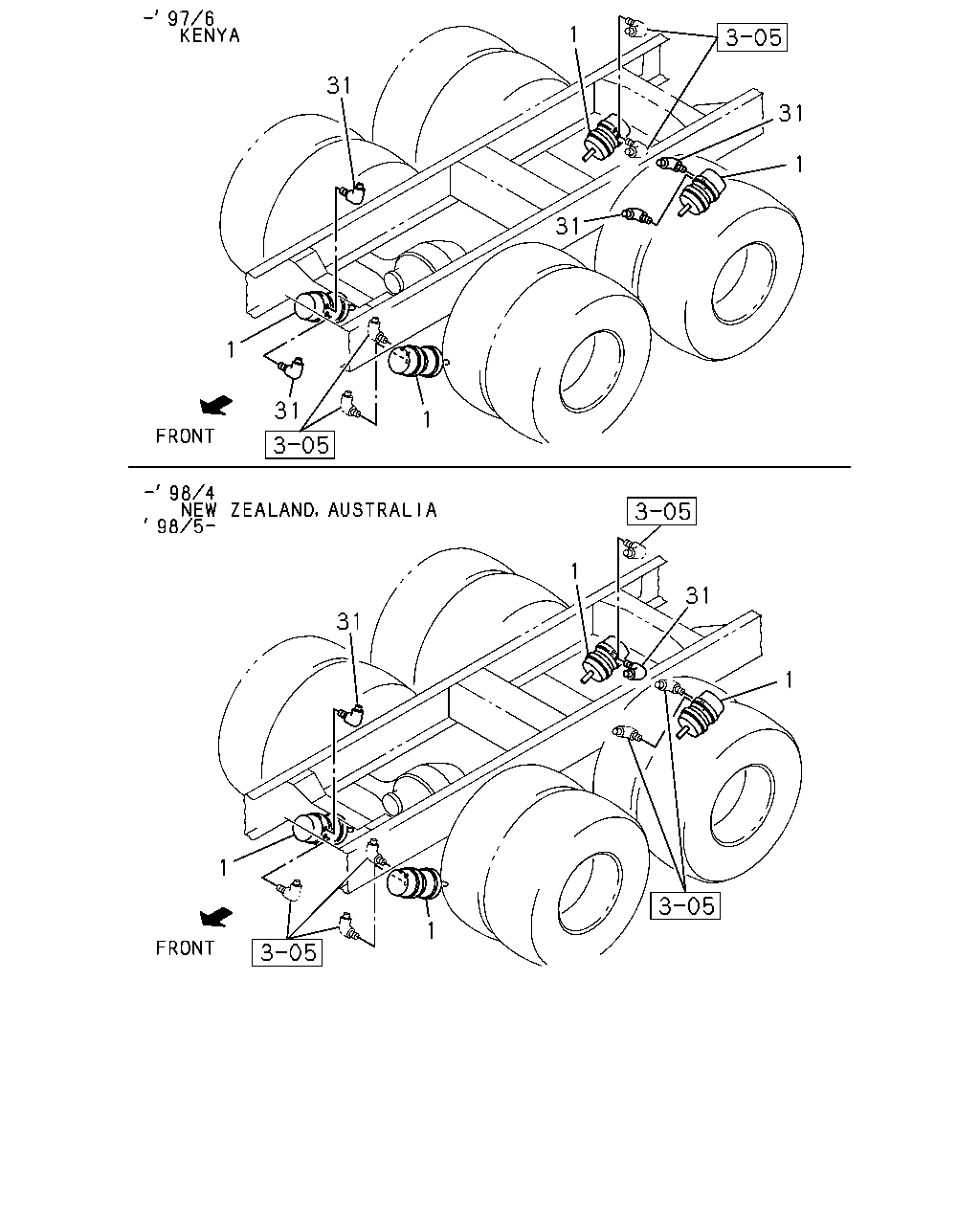

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FWD-RH,RWD-LH	1-48250-176-1	02	1	9601-9804
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48250-176-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48250-176-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-176-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-176-2	01	1	0110-
1	CHAMBER ASM; SPRING FWD-LH,RWD-RH	1-48250-177-1	02	1	9601-9804
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48250-177-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48250-177-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-177-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-177-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-562-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-562-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-808-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-808-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-871-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-871-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-563-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-563-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-809-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-809-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-872-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-872-0	01	1	0510-
31	CONNECTOR AUSTRALIA EQUIPMENT(RR3) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9608
31	CONNECTOR NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9609-9804
31	CONNECTOR FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 43/11 17.5" HYPOID(W4S) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9805-0004
31	CONNECTOR REAR AXLE R105(B5C) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9805-0004
31	CONNECTOR KENYA EQUIPMENT(PQ2)	1-09660-574-0	04	1	9601-9706

1 16 1 15 14 10 10 9 2 13 12 34 5 10 11 26 27 28 10 7 8 69 29 70 13 12 21 23 33 41 11 19 25 40 24 67 22 20 5 4 36 39 38 17 37 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FWD-RH,RWD-LH	1-48250-176-1	02	1	9601-9804
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48250-176-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48250-176-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-176-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-176-2	01	1	0110-
1	CHAMBER ASM; SPRING FWD-LH,RWD-RH	1-48250-177-1	02	1	9601-9804
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48250-177-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48250-177-1	01	1	9805-0109
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-177-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-177-2	01	1	0110-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-562-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-562-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-808-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-808-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-871-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48250-871-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-563-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-563-0	01	1	0110-0201
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-809-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-809-0	01	1	0202-0509
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-872-0	01	1	0510-
1	CHAMBER ASM; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48250-872-0	01	1	0510-
2	CHAMBER; EMERGENCY FWD-RH,RWD-LH	1-48252-020-0	02	1	9601-9804
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48252-020-0	01	1	9805-0109
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48252-020-0	01	1	9805-0109
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48252-020-0	01	1	0110-
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48252-020-0	01	1	0110-
2	CHAMBER; EMERGENCY FWD-LH,RWD-RH	1-48252-021-0	02	1	9601-9804
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48252-021-0	01	1	9805-0109
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48252-021-0	01	1	9805-0109
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48252-021-0	01	1	0110-
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48252-021-0	01	1	0110-
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-254-0	02	1	0110-0509
2	CHAMBER; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-254-0	02	1	0110-0509
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	08	1	9601-9804
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	9805-0109
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	9805-0109
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-056-0	04	1	0110-
4	PIN; STRAIGHT,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-056-0	04	1	0110-
5	NUT; SHELL (A)	1-48259-054-0	04	1	9601-9804
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	9805-0109
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	9805-0109
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-054-0	02	1	0110-
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-054-0	02	1	0110-
5	NUT; SHELL (B)	1-48259-074-0	04	1	9601-9804
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	9805-0109
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	9805-0109
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-074-0	02	1	0110-
5	NUT; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-074-0	02	1	0110-
7	GASKET	1-48259-055-0	04	1	9601-9804
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	9805-0109
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	9805-0109
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-055-0	02	1	0110-
7	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-055-0	02	1	0110-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-320-0	02	1	0510-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-320-0	02	1	0510-
8	SHELL; CYL,SPR CHAMBER FWD-RH,RWD-LH	1-48259-069-0	02	1	9601-9804
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-069-0	01	1	9805-0109
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-069-0	01	1	9805-0109
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-069-0	01	1	0110-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-069-0	01	1	0110-
8	SHELL; CYL,SPR CHAMBER FWD-LH,RWD-RH	1-48259-070-0	02	1	9601-9804
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-070-0	01	1	9805-0109
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-070-0	01	1	9805-0109
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-070-0	01	1	0110-
8	SHELL; CYL,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-070-0	01	1	0110-
9	PIPE ASM; SHELL	1-48259-076-0	04	1	9601-9804
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	9805-0109
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	9805-0109
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-076-0	02	1	0110-
9	PIPE ASM; SHELL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-076-0	02	1	0110-
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-016-0	08	1	9601-9804
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-016-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-016-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-016-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-031-0	08	1	9601-9804
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-031-0	04	1	9805-0109
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-031-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-031-0	04	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) (C)	1-48259-229-0	02	1	0110-
10	RING; CLAMP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) (C)	1-48259-229-0	02	1	0110-
11	BOLT; CLAMP RING	1-48259-035-0	16	1	9601-9804
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-035-0	08	1	9805-0109
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-035-0	08	1	9805-0109
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-035-0	08	1	0110-
11	BOLT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-035-0	08	1	0110-
12	WASHER; LK,CLAMP RING	1-48259-046-0	16	1	9601-9804
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-046-0	08	1	9805-0109
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-046-0	08	1	9805-0109
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-046-0	08	1	0110-
12	WASHER; LK,CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-046-0	08	1	0110-
13	NUT; CLAMP RING M10	9-09110-510-0	16	1	9601-9804
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	08	1	9805-0109
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	08	1	9805-0109
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) M10	9-09110-510-0	08	1	0110-
13	NUT; CLAMP RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) M10	9-09110-510-0	08	1	0110-
14	SPRING & SEAT SET	1-48259-037-0	04	1	9601-9804
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-037-0	02	1	9805-0109
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-037-0	02	1	9805-0109
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-037-1	02	1	0110-
14	SPRING & SEAT SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-037-1	02	1	0110-
15	PISTON	1-48262-005-0	04	1	9601-9804
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	9805-0109
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	9805-0109
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48262-005-0	02	1	0110-
15	PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48262-005-0	02	1	0110-
16	GASKET	1-48259-048-0	04	1	9601-9804
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	9805-0109
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	9805-0109
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-048-0	02	1	0110-
16	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-048-0	02	1	0110-
17	BOLT ASM; EMERGENCY	1-48259-073-0	04	1	9601-9804
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	9805-0109
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	9805-0109
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-073-0	02	1	0110-
17	BOLT ASM; EMERGENCY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-073-0	02	1	0110-
19	COVER; PISTON	1-48269-011-0	04	1	9601-9804
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	9805-0109
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	9805-0109
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48269-011-0	02	1	0110-
19	COVER; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48269-011-0	02	1	0110-
20	RING; RET	1-48259-060-0	04	1	9601-9804
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	9805-0109
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-060-0	02	1	9805-0109
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-060-0	02	1	0110-
20	RING; RET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-060-0	02	1	0110-
21	GASKET; SPR CHAMBER	1-48259-049-0	04	1	9601-9804
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-049-0	02	1	9805-0109
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-049-0	02	1	9805-0109
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-049-0	02	1	0110-
21	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-049-0	02	1	0110-
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	04	1	9601-9804
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	9805-0109
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	9805-0109
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-019-0	02	1	0110-
22	RING; BACKUP,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-019-0	02	1	0110-
23	GASKET; SPR CHAMBER	1-48259-047-0	04	1	9601-9804
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-047-0	02	1	9805-0109
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-047-0	02	1	9805-0109
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-047-0	02	1	0110-
23	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-047-0	02	1	0110-
24	BEARING; SPR CHAMBER	1-48259-020-0	04	1	9601-9804
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	9805-0109
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	9805-0109
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-020-0	02	1	0110-
24	BEARING; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-020-0	02	1	0110-
25	PLATE; PRESSURE,SPR CHAMBER FWD-RH,RWD-LH	1-48259-087-0	02	1	9601-9804
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-087-0	01	1	9805-0109
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-087-0	01	1	9805-0109
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-087-0	01	1	0110-
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-087-0	01	1	0110-
25	PLATE; PRESSURE,SPR CHAMBER FWD-LH,RWD-RH	1-48259-088-0	02	1	9601-9804
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-088-0	01	1	9805-0109
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-088-0	01	1	9805-0109
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-088-0	01	1	0110-
25	PLATE; PRESSURE,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-088-0	01	1	0110-
26	NUT; PRESSURE PLATE	1-48259-058-0	08	1	9601-9804
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	9805-0109
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	9805-0109
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-058-0	04	1	0110-
26	NUT; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-058-0	04	1	0110-
27	WASHER; PRESSURE PLATE	1-48259-057-0	04	1	9601-9804
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-057-0	02	1	9805-0109
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-057-0	02	1	9805-0109
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-057-0	02	1	0110-
27	WASHER; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-057-0	02	1	0110-
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	04	1	9601-9804
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	9805-0109
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	9805-0109
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-059-0	02	1	0110-
28	BRACKET; PRESSURE PLATE,HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-059-0	02	1	0110-
29	STUD; PRESSURE PLATE	1-48259-050-0	04	1	9601-9804
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	9805-0109
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	9805-0109
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-050-0	02	1	0110-
29	STUD; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-050-0	02	1	0110-
33	RETAINER; DIAPH	1-48259-044-0	08	1	9601-9804
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-044-0	04	1	9805-0109
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-044-0	04	1	9805-0109
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-044-0	04	1	0110-
33	RETAINER; DIAPH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-044-0	04	1	0110-
34	DIAPHRAGM	1-48252-011-0	04	1	9601-9804
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-011-0	02	1	9805-0109
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-011-0	02	1	9805-0109
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48252-011-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48252-011-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-148-0	02	1	0110-
34	DIAPHRAGM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-148-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER	1-48253-011-0	04	1	9601-9804
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-011-0	02	1	9805-0109
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-011-0	02	1	9805-0109
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48253-011-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48253-011-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-143-0	02	1	0110-
35	PLATE; ROD END,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-143-0	02	1	0110-
36	RETAINER; SPR CHAMBER (B)	1-48259-033-0	04	1	9601-9804
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-033-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-033-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-033-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (B)	1-48259-033-0	02	1	0110-
36	RETAINER; SPR CHAMBER (A)	1-48259-043-0	04	1	9601-9804
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-043-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-043-0	02	1	9805-0109
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-043-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) (A)	1-48259-043-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2) (C)	1-48259-226-0	02	1	0110-
36	RETAINER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2) (C)	1-48259-226-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	04	1	9601-9804
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	9805-0109
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-003-0	02	1	9805-0109
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48255-003-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48255-003-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-142-0	02	1	0110-
37	SPRING; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-142-0	02	1	0110-
38	COVER; ROD & PLATE	1-48259-066-0	04	1	9601-9804
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	9805-0109
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	9805-0109
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-066-0	02	1	0110-
38	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-066-0	02	1	0110-
39	COVER; ROD & PLATE	1-48259-065-0	04	1	9601-9804
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	9805-0109
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	9805-0109
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-065-0	02	1	0110-
39	COVER; ROD & PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-065-0	02	1	0110-
40	COVER ASM; LWR,SPR CHAMBER FWD-RH,RWD-LH	1-48259-081-1	02	1	9601-9804
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-081-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-RH,RWD-LH	1-48259-081-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-081-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-RH,RWD-LH	1-48259-081-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER FWD-LH,RWD-RH	1-48259-082-1	02	1	9601-9804
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-082-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FWD-LH,RWD-RH	1-48259-082-1	01	1	9805-0109
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-082-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) FWD-LH,RWD-RH	1-48259-082-1	01	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) KENYA EQUIPMENT(PQ2)	1-48259-227-0	02	1	0110-
40	COVER ASM; LWR,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) KENYA EQUIPMENT(PQ2)	1-48259-227-0	02	1	0110-
41	PIPE ASM; LWR COVER	1-48259-080-0	04	1	9601-9804
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	9805-0109
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-080-0	02	1	9805-0109
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-080-0	02	1	0110-
41	PIPE ASM; LWR COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-080-0	02	1	0110-
67	GASKET; SPR CHAMBER	1-48259-053-0	04	1	9601-9804
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	9805-0109
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	9805-0109
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-053-0	02	1	0110-
67	GASKET; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-053-0	02	1	0110-
69	HOSE; PRESSURE PLATE	1-48259-051-0	04	1	9601-9804
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	9805-0109
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	9805-0109
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-051-0	02	1	0110-
69	HOSE; PRESSURE PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-051-0	02	1	0110-
70	COVER; EXH,SPR CHAMBER	1-48259-052-0	04	1	9601-9804
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-052-0	02	1	9805-0109
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-052-0	02	1	9805-0109
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2)	1-48259-052-0	02	1	0110-
70	COVER; EXH,SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2)	1-48259-052-0	02	1	0110-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
