◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10706 - FVM-RHD ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#64943) — 45 parça

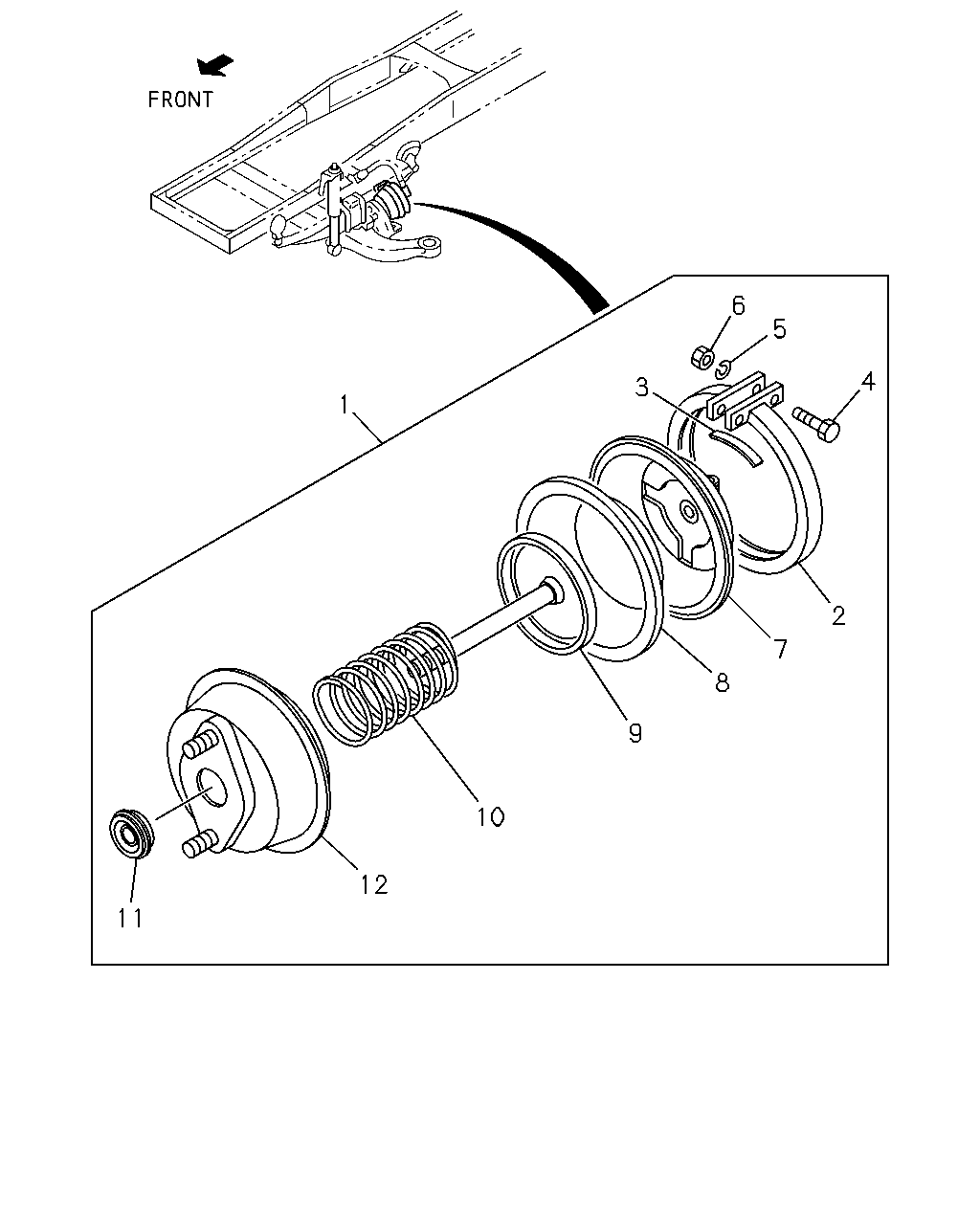

çizim 184537
6 5 4 3 1 2 7 8 9 10 12 11
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ADR<TDU> 		1-48250-338-0 01 1 9601-9804
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> 		1-48250-338-0 01 1 9805-0004
1 CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ADR<TDU> 		1-48250-524-0 01 1 9601-9804
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> 		1-48250-524-0 01 1 9805-0004
1 CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE REGULATION ADR<TDU> 		1-48250-338-0 02 1 9601-9804
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> 		1-48250-338-0 02 1 9805-0004
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-338-0 02 1 0005-0203
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-062-2 02 1 0204-
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 9601-9804
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-001-0 02 1 9805-
3 RETAINER; DIAPH
BRAKE REGULATION ADR<TDU> 		9-48259-016-0 03 1 9601-9804
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> 		9-48259-016-0 03 1 9805-0004
3 RETAINER; DIAPH
EXC. BRAKE REGULATION ADR<TDU> 		9-48259-016-0 04 1 9601-9804
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> 		9-48259-016-0 04 1 9805-0004
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-48259-016-0 04 1 0005-0203
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-48259-016-0 02 1 0204-
4 BOLT; CLAMP RING 1-48259-002-0 04 1 9601-9804
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-002-0 04 1 9805-
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 9601-9804
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2 		9-09150-510-0 04 1 9805-
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 9601-9804
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-010-0 04 1 9805-
7 COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ADR<TDU> 		1-48251-039-0 01 1 9601-9804
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> 		1-48251-039-0 01 1 9805-0004
7 COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ADR<TDU> 		1-48251-007-0 01 1 9601-9804
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> 		1-48251-007-0 01 1 9805-0004
7 COVER ASM; UPR,SPR CHAMBER
EXC. BRAKE REGULATION ADR<TDU> 		1-48251-039-0 02 1 9601-9804
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> 		1-48251-039-0 02 1 9805-0004
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-039-0 02 1 0005-
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 9601-9804
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-006-0 02 1 9805-0203
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-054-0 02 1 0204-
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 9601-9804
9 PISTON; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-001-0 02 1 9805-
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 9601-9804
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-001-0 02 1 9805-
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 9601-9804
11 SEAL; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-025-0 02 1 9805-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE REGULATION ADR<TDU> 		1-48251-019-0 01 1 9601-9804
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> 		1-48251-019-0 01 1 9805-0004
12 COVER ASM; LWR,SPR CHAMBER
BRAKE REGULATION ADR<TDU> 		1-48251-018-0 01 1 9601-9804
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> 		1-48251-018-0 01 1 9805-0004
12 COVER ASM; LWR,SPR CHAMBER
EXC. BRAKE REGULATION ADR<TDU> 		1-48251-019-0 02 1 9601-9804
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> 		1-48251-019-0 02 1 9805-0004
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-019-0 02 1 0005-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
