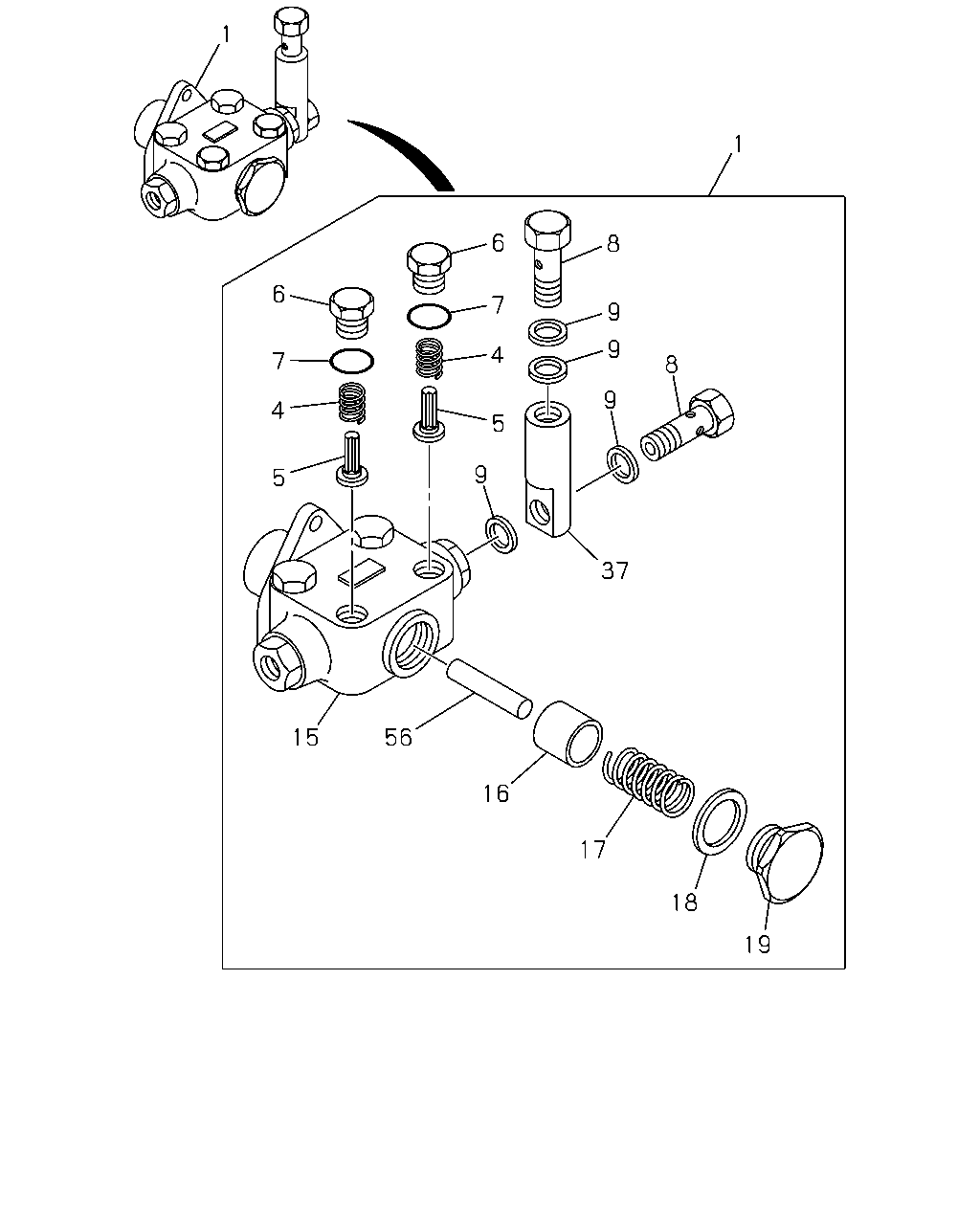

0-84 — FEED PUMP; INJECTION PUMP (#6494) — 26 parça

1 1 6 8 6 7 9 9 4 7 8 9 4 5 9 5 37 15 56 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-200-1	1-15750-170-0	01	1	-0011
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-200-1	1-15750-182-0	01	1	0012-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15755-002-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-009-0	03	1	0012-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-066-0	04	1	-0011
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-066-0	01	1	0012-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-19623-016-0	01	1	0012-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-19623-016-0	04	1	-0011
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	9-81355-031-0	03	1	0012-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-011-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-200-1	1-09630-085-0	04	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	9-81355-062-0	01	1	0012-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15751-034-0	01	1	-0011
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15751-042-0	01	1	0012-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15752-001-0	01	1	-0011
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15752-002-0	01	1	0012-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15753-004-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-042-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15754-006-0	01	1	0012-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-055-0	01	1	0012-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-056-0	01	1	0012-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-057-0	02	1	0012-
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: A = 1-15603-200-1	1-15759-068-0	01	1	-
56	PUSH ROD ASM PART: A = 1-15603-200-1	1-15759-069-0	01	1	-0011
