Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#64939) — 431 parça

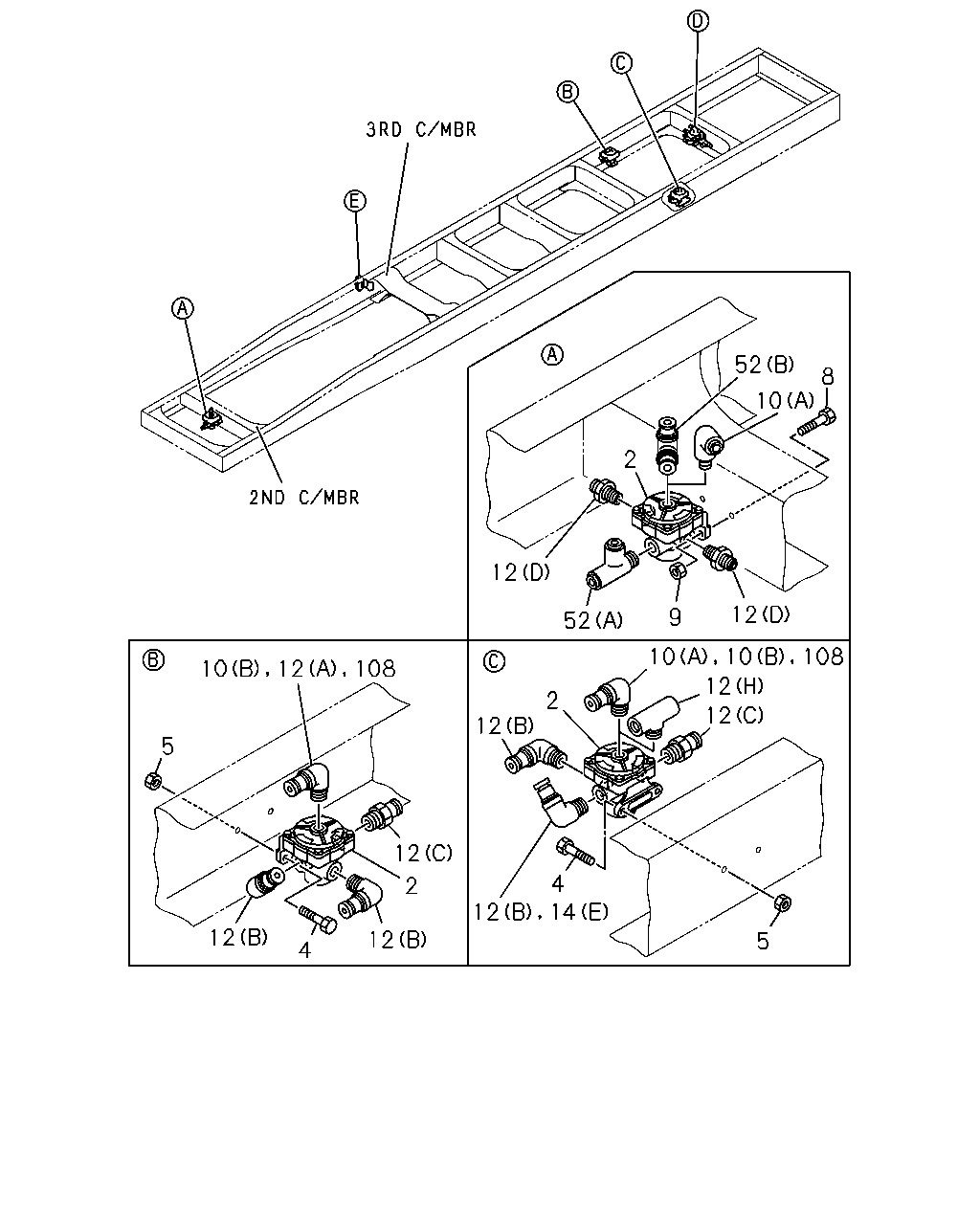

52 8 10 2 12 12 9 52 10 10 12 12 108 10 12 108 2 12 5 12 4 14 2 12 12 12 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-278-0	03	1	9601-9804
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28081-035-0	04	1	9601-9702
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	9703-9804
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28681-035-0	04	1	9805-0512
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	04	1	0601-
5	NUT M10	9-09110-410-0	04	1	9601-9606
5	NUT M10 FLANGE	0-91150-210-0	04	1	9607-9804
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	04	1	9805-0602
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	04	1	0603-
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9601-9602
8	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9603-9702
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-9804
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28651-030-0	02	1	0601-
9	NUT M10	9-09110-510-0	02	1	9601-9606
9	NUT M10 FLANGE	0-91150-210-0	02	1	9607-9804
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9805-0602
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0201-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0201-
10	CONNECTOR BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-654-1	04	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-9804
12	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9805-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (E) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (G)	1-09660-742-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (H) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-0004
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (H) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (G)	1-09660-719-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (C)	1-09656-476-0	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C)	1-09656-476-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9805-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (F) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (B)	1-09660-719-1	02	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (G) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	0005-0112
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (C) PT1/2	1-09664-041-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (C) PT1/2	1-09664-041-1	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/2	1-09664-041-1	01	1	0005-0112
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/2	1-09664-041-1	03	1	0201-
52	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (A)	1-09660-719-1	01	1	9601-9804
52	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (A)	1-09660-719-1	01	1	9601-9804
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9805-
52	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (B) DIN12X2 & R3/8 3WAY	1-09660-657-1	01	1	9601-9804
108	CONNECTOR; ELBOW BRAKE REGULATION ADR<TDU> DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9607-9804
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9805-0004

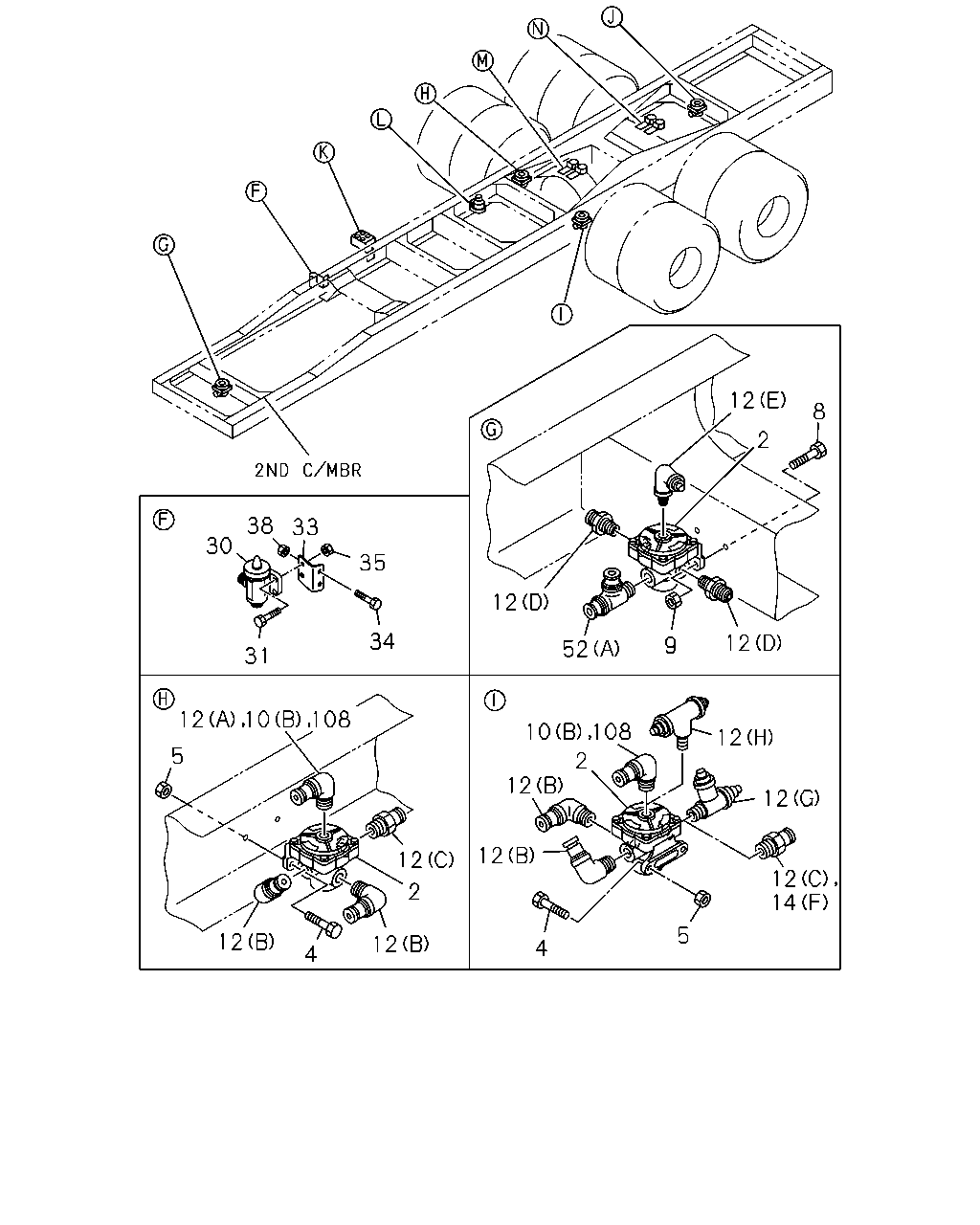

12 8 2 38 33 30 35 12 34 12 9 52 31 12 12 5 2 12 12 12 12 12 14 2 12 12 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-278-0	03	1	9601-9804
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28081-035-0	04	1	9601-9702
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	9703-9804
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28681-035-0	04	1	9805-0512
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	04	1	0601-
5	NUT M10	9-09110-410-0	04	1	9601-9606
5	NUT M10 FLANGE	0-91150-210-0	04	1	9607-9804
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	04	1	9805-0602
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	04	1	0603-
8	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9601-9602
8	BOLT; BRKT M10X30 FLANGE	0-28081-030-0	02	1	9603-9702
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9703-9804
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28651-030-0	02	1	0601-
9	NUT M10	9-09110-510-0	02	1	9601-9606
9	NUT M10 FLANGE	0-91150-210-0	02	1	9607-9804
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9805-0602
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-654-1	04	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-9804
12	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9805-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (E) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (G)	1-09660-742-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (H) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-0004
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (H) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (G)	1-09660-719-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (C)	1-09656-476-0	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C)	1-09656-476-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9805-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (F) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (B)	1-09660-719-1	02	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (G) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	0005-0112
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (C) PT1/2	1-09664-041-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (C) PT1/2	1-09664-041-1	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/2	1-09664-041-1	01	1	0005-0112
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/2	1-09664-041-1	03	1	0201-
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-9804
30	GOVERNOR; AIR CONT EXC. BRAKE REGULATION ADR<TDU>	1-48350-059-0	01	1	9805-0004
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-
30	GOVERNOR; AIR CONT BRAKE REGULATION ADR<TDU>	1-48350-062-0	01	1	9805-0004
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9601-9601
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9602-9606
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9601-9804
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48359-045-0	01	1	9805-0004
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48359-107-1	01	1	0005-
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48359-022-0	01	1	9805-
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28080-825-0	02	1	9601-9601
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28080-830-0	02	1	9602-9606
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	9607-9804
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9805-0512
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28650-835-0	02	1	0601-
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9805-0512
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9601-9606
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9607-0602
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-
52	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (A)	1-09660-719-1	01	1	9601-9804
52	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (A)	1-09660-719-1	01	1	9601-9804
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	9805-
52	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (B) DIN12X2 & R3/8 3WAY	1-09660-657-1	01	1	9601-9804

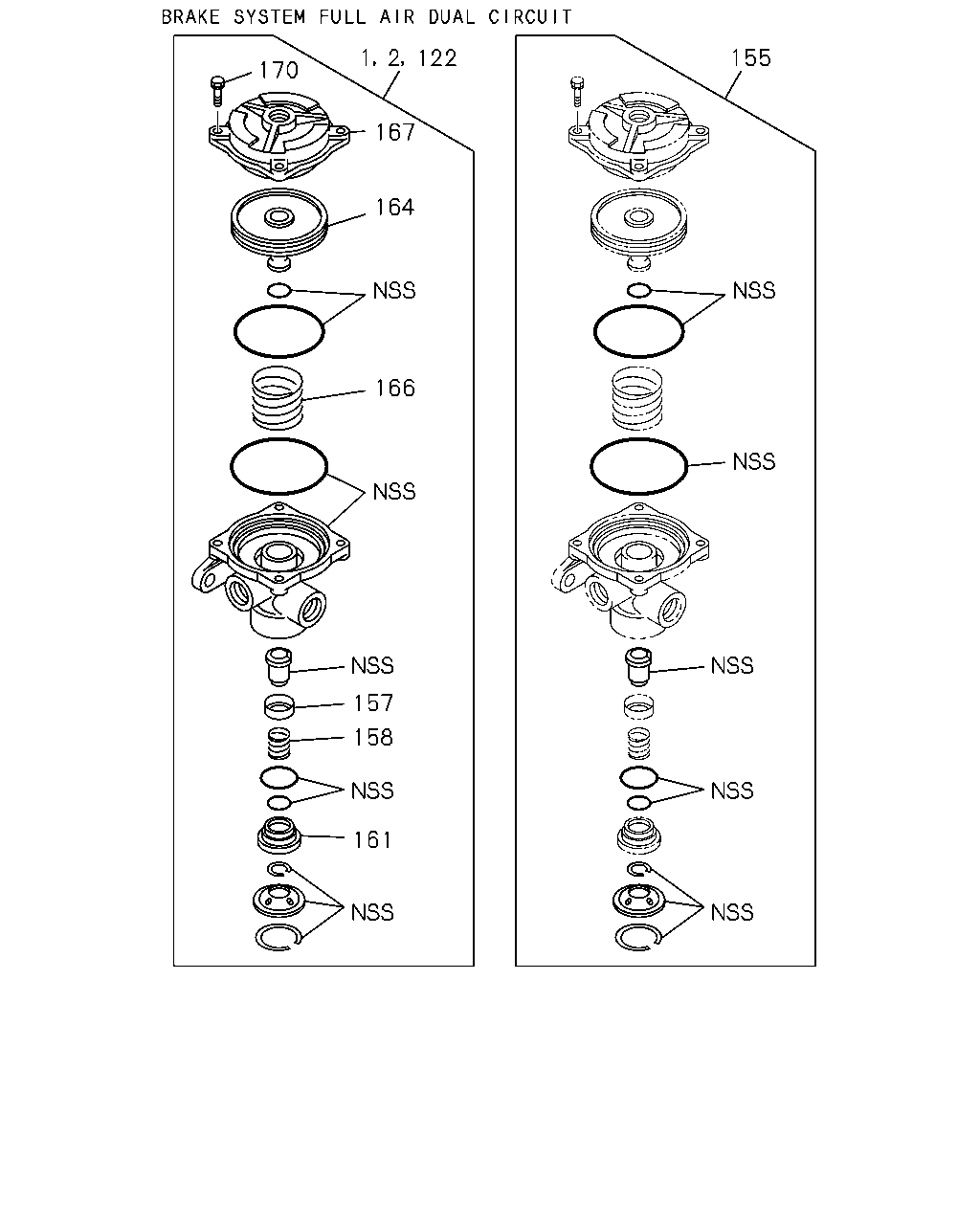

2 122 155 1 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR KENYA EQUIPMENT(PQ2)	1-48210-278-0	01	1	9601-9804
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48210-278-0	01	1	9805-0004
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
2	VALVE; RELAY	1-48210-278-0	03	1	9601-9804
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9805-0004
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
122	VALVE ASM; CONT,WHEEL PARKING BRAKE REGULATION ADR<TDU>	1-48210-278-0	01	1	9601-9804
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48210-278-0	01	1	9805-0004
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	04	1	9601-9804
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	9805-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	9805-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	9805-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	9805-
157	RETAINER; VALVE	1-48213-002-0	04	1	9601-9804
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	9805-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	9805-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	9805-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	9805-
158	SPRING; VALVE	1-47819-089-0	04	1	9601-9804
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	9805-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	9805-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	9805-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	9805-
161	GUIDE; VALVE	1-48129-014-0	04	1	9601-9804
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9805-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9805-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9805-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9805-
164	PISTON; RELAY VALVE	1-48219-071-0	04	1	9601-9804
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	9805-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	9805-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	9805-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	9805-
166	SPRING; PISTON	1-47819-090-0	04	1	9601-9804
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	9805-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	9805-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	9805-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	9805-
167	COVER; VALVE	1-48219-070-0	04	1	9601-9804
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	9805-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	9805-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	9805-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	9805-
170	SCREW; COVER TO BODY	1-48219-039-0	16	1	9601-9804
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	9805-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	9805-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	9805-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	9805-

10 79 25 181 6 122 14 12 14 7 14 99 29 29 99 29 29 29 29 29 224 103 103 29 104 104 105 105 60 54 60 13 54 15 59 13 59 102

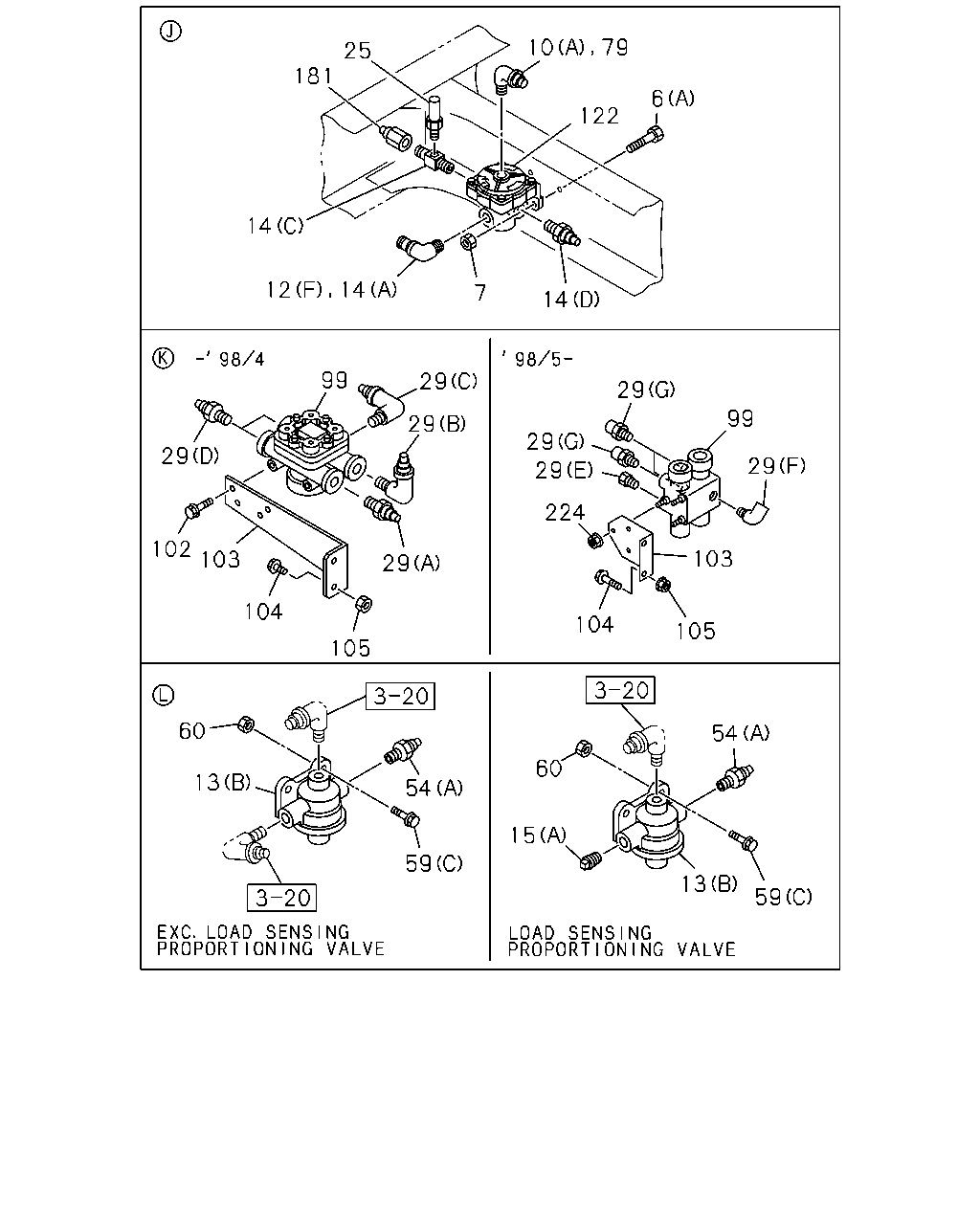

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9703-9804
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	08	1	9601-9804
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28680-825-0	08	1	9805-0004
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9601-9606
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9607-9804
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9805-0602
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0201-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0201-
10	CONNECTOR BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-654-1	04	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-9804
12	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	9805-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (E) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
12	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (G)	1-09660-742-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ADR<TDU> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> (H) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-0004
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (H) DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
12	CONNECTOR; RELAY VLV LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (G)	1-09660-719-1	01	1	9601-9804
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-320-0	01	1	9601-9804
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	04	1	9805-0004
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	04	1	9601-9804
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B)	1-48410-234-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (C)	1-09656-476-0	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C)	1-09656-476-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9805-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (F) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (B)	1-09660-719-1	02	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (G) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	0005-0112
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (C) PT1/2	1-09664-041-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (C) PT1/2	1-09664-041-1	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/2	1-09664-041-1	01	1	0005-0112
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/2	1-09664-041-1	03	1	0201-
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	04	1	9601-9804
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (A) NPTF3/8-18	8-94231-272-1	01	1	9805-0004
15	PLUG; VALVE LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	9601-9804
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	04	1	9805-0004
25	SWITCH; PRESSURE BRAKE REGULATION ADR<TDU>	1-82410-163-0	01	1	9601-9804
25	SWITCH; PRESSURE KENYA EQUIPMENT(PQ2)	1-82410-163-0	01	1	9601-9804
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-1	01	1	9805-
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9804
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9805-0004
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (C) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	9805-0004
29	CONNECTOR; AIR VLV BRAKE REGULATION ADR<TDU> (D) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9601-9804
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9804
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9805-0004
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	03	1	9601-9605
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9606-9804
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A)	1-09660-968-0	01	1	9805-0004
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (A) M8X16 FLANGE	0-28080-816-0	08	1	9601-9804
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A) M8X16 FLANGE	0-28080-816-0	08	1	9805-0004
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9804
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28680-825-0	04	1	9805-0004
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (C) M8X30 FLANGE	0-28080-830-0	02	1	9601-9804
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C) M8X30 FLANGE	0-28080-830-0	02	1	9805-0004
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9601-9606
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9607-9804
60	NUT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9805-0004
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	04	1	9601-9606
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	04	1	9607-9804
60	NUT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	04	1	9805-0004
79	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
79	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>	1-48110-079-0	01	1	9601-9804
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>	1-48110-135-4	01	1	9805-0004
102	BOLT; PROTECTION VALVE BRAKE REGULATION ADR<TDU> M8X25 FLANGE	0-28080-825-0	02	1	9603-9804
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU>	1-47477-412-2	01	1	9603-9804
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR<TDU>	1-47477-860-0	01	1	9805-0004
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
104	BOLT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8X35 FLANGE	0-28680-835-0	02	1	9607-0004
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9603-9606
105	NUT; BRKT,VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9607-0004
122	VALVE ASM; CONT,WHEEL PARKING BRAKE REGULATION ADR<TDU>	1-48210-278-0	01	1	9601-9804
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48210-278-0	01	1	9805-0004
181	ADAPTER; PRESSURE SW BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9601-9804
181	ADAPTER; PRESSURE SW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9805-0004
224	NUT; PROTECTION VALVE BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	03	1	9805-0004

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0005-

14 79 6 1 7 14 25 14 14 14 10 6 1 10 14 14 10 25 7 10 10 14 38 33 33 35 35 30 30 31 31 93 93 34 34 14 14 93 38

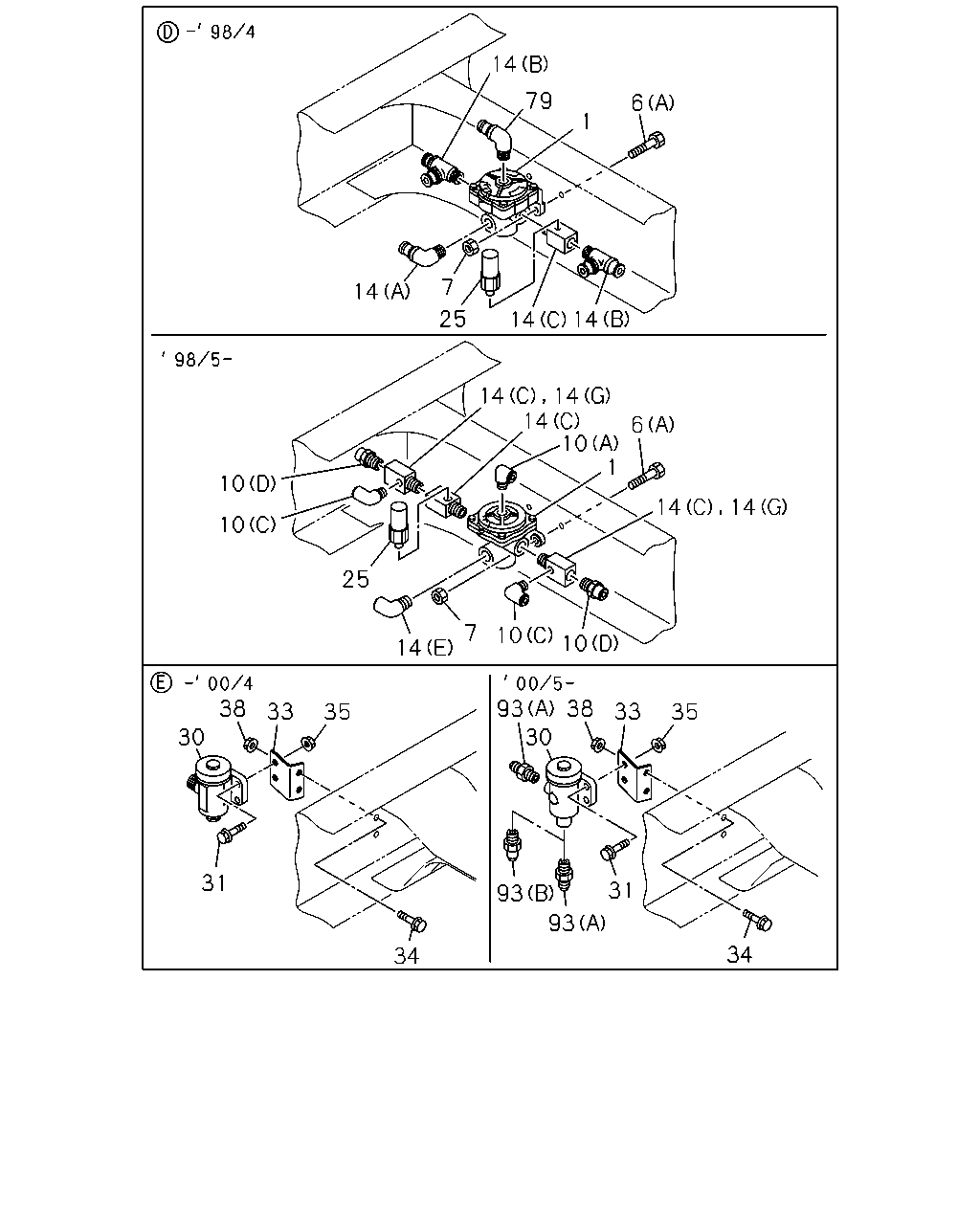

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR KENYA EQUIPMENT(PQ2)	1-48210-278-0	01	1	9601-9804
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48210-278-0	01	1	9805-0004
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0005-
6	BOLT; VLV (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9703-9804
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	08	1	9601-9804
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28680-825-0	08	1	9805-0004
7	NUT; RELAY VLV M10	9-09110-510-0	02	1	9601-9606
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	9607-9804
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	9805-0602
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0201-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0201-
10	CONNECTOR BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. LOAD SENSING PROPORTIONING VALVE<JR7> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9805-0004
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-
10	CONNECTOR EXC. BRAKE REGULATION ADR<TDU> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (C)	1-09656-476-0	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C)	1-09656-476-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9805-
14	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> (D) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (F) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9805-0004
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (B)	1-09660-719-1	02	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (G) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	0005-0112
14	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) (C) PT1/2	1-09664-041-1	01	1	9601-9804
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (C) PT1/2	1-09664-041-1	01	1	9805-0004
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/2	1-09664-041-1	01	1	0005-0112
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT1/2	1-09664-041-1	03	1	0201-
25	SWITCH; PRESSURE BRAKE REGULATION ADR<TDU>	1-82410-163-0	01	1	9601-9804
25	SWITCH; PRESSURE KENYA EQUIPMENT(PQ2)	1-82410-163-0	01	1	9601-9804
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-1	01	1	9805-
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9601-9804
30	GOVERNOR; AIR CONT EXC. BRAKE REGULATION ADR<TDU>	1-48350-059-0	01	1	9805-0004
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-
30	GOVERNOR; AIR CONT BRAKE REGULATION ADR<TDU>	1-48350-062-0	01	1	9805-0004
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28080-830-0	02	1	9601-9601
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9602-9606
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-0512
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	9601-9804
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48359-045-0	01	1	9805-0004
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48359-107-1	01	1	0005-
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48359-022-0	01	1	9805-
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28080-825-0	02	1	9601-9601
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28080-830-0	02	1	9602-9606
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	9607-9804
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9805-0512
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28650-835-0	02	1	0601-
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9805-0512
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9601-9606
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
38	NUT; BRKT,GOV M8	9-09110-408-0	02	1	9601-9606
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	9607-0602
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-
79	CONNECTOR; RELAY VLV BRAKE REGULATION ADR<TDU> DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
79	CONNECTOR; RELAY VLV KENYA EQUIPMENT(PQ2) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
93	CONNECTOR; GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0005-
93	CONNECTOR; GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0005-
93	CONNECTOR; GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-

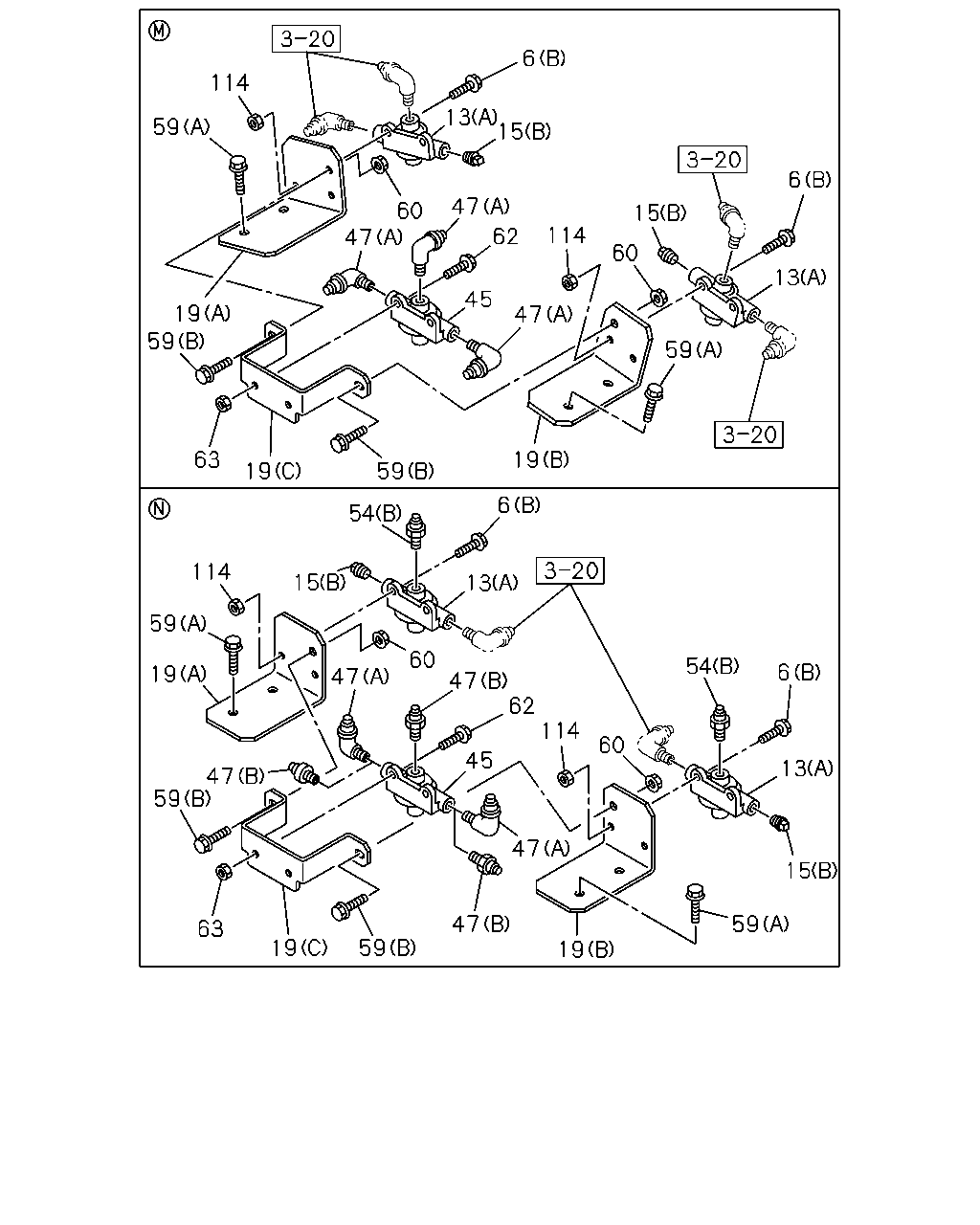

6 114 13 15 59 6 47 60 15 114 62 47 60 13 45 19 59 47 59 19 63 19 59 6 54 114 15 13 59 60 54 6 19 47 47 62 114 60 45 13 47 59 47 15 47 59 63 19 59 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV (A) M10X30 FLANGE	0-28081-030-0	02	1	9601-9702
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	9703-9804
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-
6	BOLT; VLV BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	08	1	9601-9804
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28680-825-0	08	1	9805-0004
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (B)	1-48410-320-0	01	1	9601-9804
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	04	1	9805-0004
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION ADR<TDU> (A)	1-48410-320-0	04	1	9601-9804
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B)	1-48410-234-0	01	1	9805-0004
15	PLUG; VALVE BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	04	1	9601-9804
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (A) NPTF3/8-18	8-94231-272-1	01	1	9805-0004
15	PLUG; VALVE LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	9601-9804
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	04	1	9805-0004
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (C)	1-47477-518-0	02	1	9601-9804
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C)	1-47477-518-0	02	1	9805-0004
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A),(B)	1-47477-585-0	04	1	9601-9602
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B)	1-48495-153-0	02	1	9603-9804
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B)	1-48495-153-0	02	1	9805-0004
19	BRACKET; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A)	1-48495-154-0	02	1	9603-9804
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A)	1-48495-154-0	02	1	9805-0004
45	VALVE; QUICK RELEASE BRAKE REGULATION ADR<TDU>	1-48410-320-0	02	1	9601-9804
45	VALVE; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48410-320-0	02	1	9805-0004
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	03	1	9601-9605
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9606-9804
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9805-0004
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	03	1	9601-9605
47	CONNECTOR; RELAY VLV,CONT BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9606-9804
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9805-0004
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (A) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9804
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	9805-0004
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	03	1	9601-9605
54	CONNECTOR; QUICK RELEASE VLV BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	02	1	9606-9804
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A)	1-09660-968-0	01	1	9805-0004
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (A) M8X16 FLANGE	0-28080-816-0	08	1	9601-9804
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A) M8X16 FLANGE	0-28080-816-0	08	1	9805-0004
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28680-825-0	04	1	9607-9804
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M8X25 FLANGE	0-28680-825-0	04	1	9805-0004
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> (C) M8X30 FLANGE	0-28080-830-0	02	1	9601-9804
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C) M8X30 FLANGE	0-28080-830-0	02	1	9805-0004
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	02	1	9601-9606
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9607-9804
60	NUT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	02	1	9805-0004
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	04	1	9601-9606
60	NUT; RELEASE VALVE FIX BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	04	1	9607-9804
60	NUT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	04	1	9805-0004
62	BOLT; BRKT FIX BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9601-9804
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	04	1	9805-0004
63	NUT; BRKT FIX BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	04	1	9601-9804
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	04	1	9805-0004
114	NUT; VLV BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	08	1	9601-9804
114	NUT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91150-108-0	08	1	9805-0004

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
