Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#64938) — 961 parça

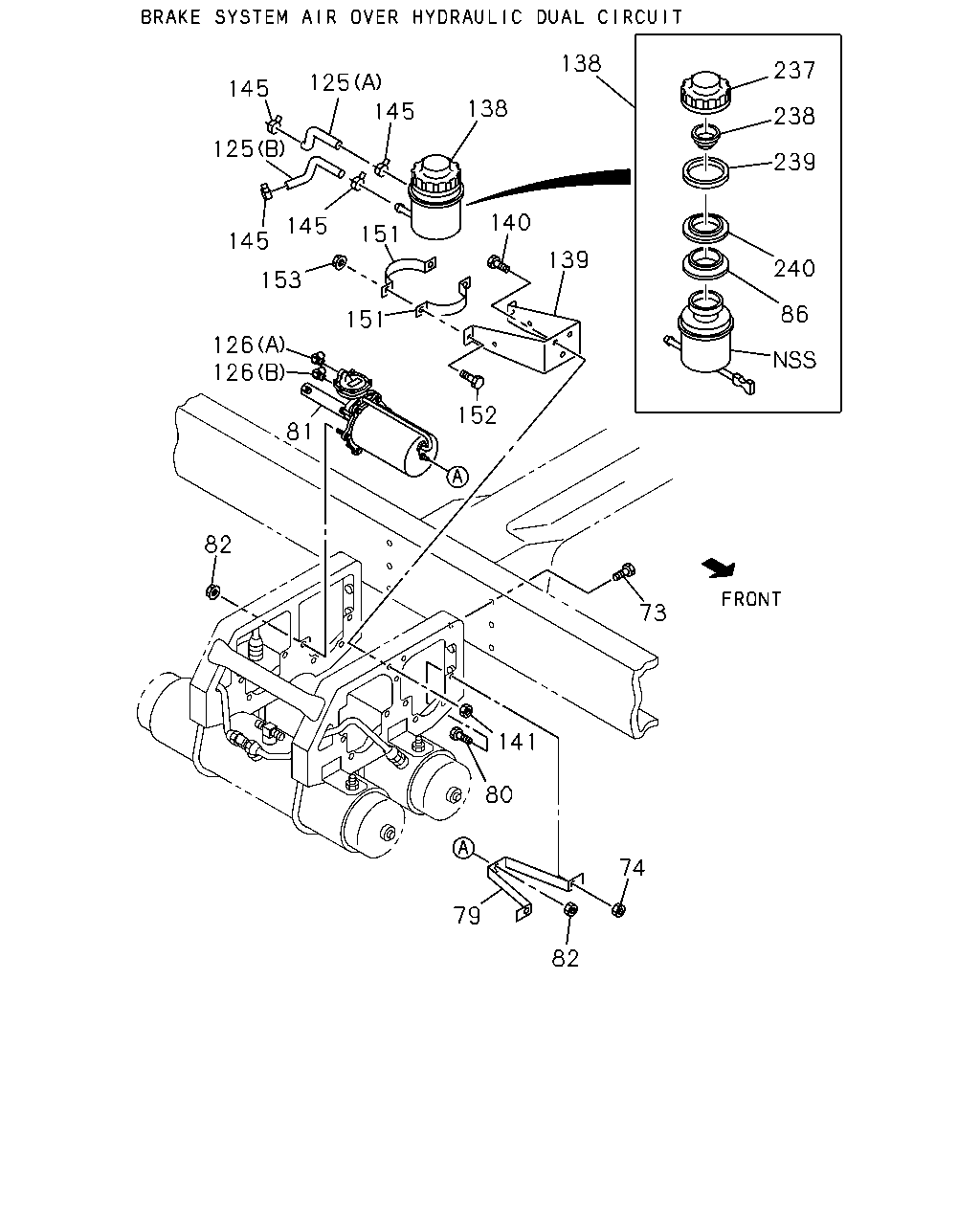

138 237 125 145 138 145 238 125 239 140 145 151 145 139 240 153 86 151 126 126 152 81 82 73 141 80 74 79 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28681-240-0	06	1	9805-0512
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	0601-
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	04	1	9805-0602
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	0603-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H=197.8	1-53318-347-0	01	1	9805-0805
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H=197.8	8-98120-254-0	01	1	0806-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H=143.9	1-53318-348-0	01	1	9805-
80	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	06	1	9601-9601
80	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	06	1	9602-9605
80	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	04	1	9606-9606
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9607-9804
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	02	1	9805-0512
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	0601-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9805-0512
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	04	1	0601-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28681-025-0	04	1	9805-0512
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28651-025-0	04	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-671-2	01	1	9805-0206
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) SECONDARY	1-47800-794-0	01	1	0207-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-687-1	01	1	9805-0206
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PRIMARY	1-47800-795-0	01	1	0207-
82	NUT; STAY,AIR MASTER BRKT M8	9-09110-408-0	06	1	9601-9601
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	06	1	9602-9605
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	04	1	9606-9606
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9607-9804
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	16	1	9805-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	16	1	0603-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	04	1	9805-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	04	1	0603-
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9805-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47469-118-0	01	1	9805-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47469-119-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-0004
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-0004
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9805-0004
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-170-1	01	1	9805-0011
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-184-0	01	1	0012-0206
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	0207-
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-153-0	01	1	9805-
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	03	1	9805-0512
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	03	1	0601-
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	03	1	9805-0602
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	03	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	9805-
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-113-0	02	1	9805-
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9805-0512
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	0601-
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9805-0602
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-019-2	01	1	9805-0004
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-024-0	01	1	0005-0011
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	0012-
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9805-
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9805-
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9805-

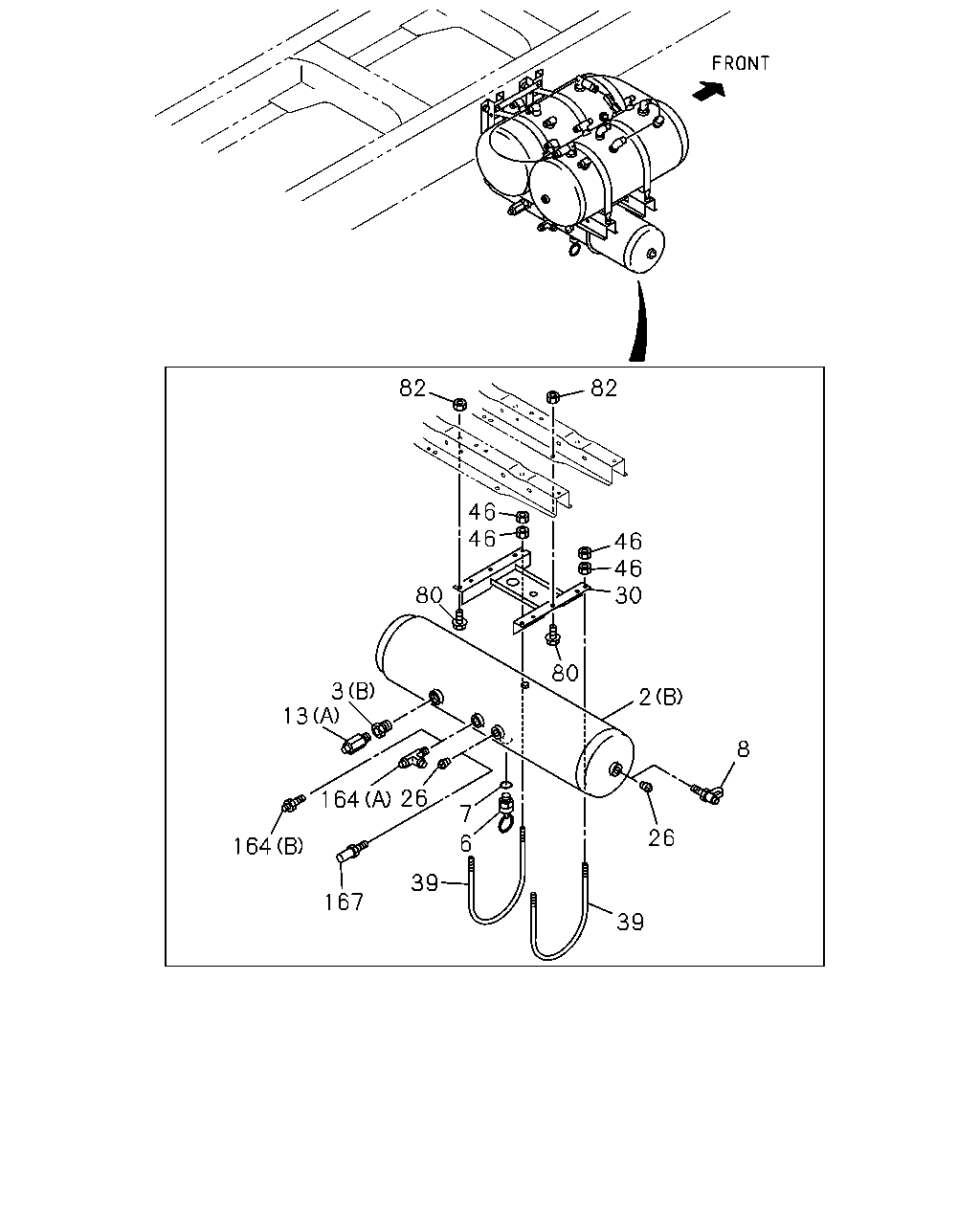

82 82 46 46 46 46 30 80 80 3 2 13 8 164 7 26 6 164 39 167 39 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-585-0	01	1	9805-9810
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-810-0	01	1	9811-
2	TANK; AIR BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR KENYA EQUIPMENT(PQ2) (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9805-9903
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9904-9904
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9905-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-182-1	01	1	9805-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK KENYA EQUIPMENT(PQ2) (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48410-182-3	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	9601-9702
6	COCK; DRAIN,AIR TANK KENYA EQUIPMENT(PQ2)	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	9805-9903
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9601-9702
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9703-9904
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	0005-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9601-9702
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	0005-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-9609
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9610-9702
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	9805-9903
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9609-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9610-9702
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9703-9904
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	0005-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9606
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9610-9702
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	0005-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9804
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9805-0004
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9601-9702
13	ADAPTER; NYLON TUBE KENYA EQUIPMENT(PQ2) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9702
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9703-9804
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9601-9702
26	PLUG; SUB AIR TANK KENYA EQUIPMENT(PQ2) PT1/4	9-99204-513-0	02	1	9601-9804
26	PLUG; SUB AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> PT1/4	9-99204-513-0	01	1	9805-0004
26	PLUG; SUB AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4	9-99204-513-0	01	1	0005-
30	BRACKET; AIR TANK,SUB BRAKE REGULATION ADR<TDU>	1-48317-695-0	01	1	9601-9804
30	BRACKET; AIR TANK,SUB KENYA EQUIPMENT(PQ2)	1-48317-695-0	01	1	9601-9804
30	BRACKET; AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-695-0	01	1	9805-9903
30	BRACKET; AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48317-695-0	01	1	9904-9904
30	BRACKET; AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-695-0	01	1	9905-
39	U-BOLT; AIR TANK BRAKE REGULATION ADR<TDU> L=250	1-48317-308-0	02	1	9601-9804
39	U-BOLT; AIR TANK KENYA EQUIPMENT(PQ2) L=250	1-48317-308-0	02	1	9601-9804
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-48317-308-0	02	1	9805-9903
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> L=250	1-48317-308-0	02	1	9904-9904
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-48317-308-0	02	1	9905-
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-301-0	02	1	9805-
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-302-0	01	1	9805-
46	NUT; U-BOLT BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	08	1	9601-9804
46	NUT; U-BOLT KENYA EQUIPMENT(PQ2) M8	9-09110-408-0	08	1	9601-9804
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	12	1	9805-0512
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	12	1	0601-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	08	1	9805-9903
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	08	1	9904-9904
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	08	1	9905-0512
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	08	1	0601-
80	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	06	1	9601-9601
80	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	06	1	9602-9605
80	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	04	1	9606-9606
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	9607-9804
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	02	1	9805-0512
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	0601-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9805-0512
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	04	1	0601-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28681-025-0	04	1	9805-0512
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28651-025-0	04	1	0601-
82	NUT; STAY,AIR MASTER BRKT M8	9-09110-408-0	06	1	9601-9601
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	06	1	9602-9605
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	04	1	9606-9606
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9607-9804
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	16	1	9805-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	16	1	0603-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	04	1	9805-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	04	1	0603-
164	CONNECTOR; SUB AIR TANK BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-669-1	01	1	9601-9804
164	CONNECTOR; SUB AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9805-9903
164	CONNECTOR; SUB AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9904-9904
164	CONNECTOR; SUB AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	9905-
164	CONNECTOR; SUB AIR TANK KENYA EQUIPMENT(PQ2) (A) DIN12X2 & R3/8 3WAY	1-09660-657-1	01	1	9601-9804
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9601-9804
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	01	1	9805-9903
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9904-9904
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	01	1	9905-

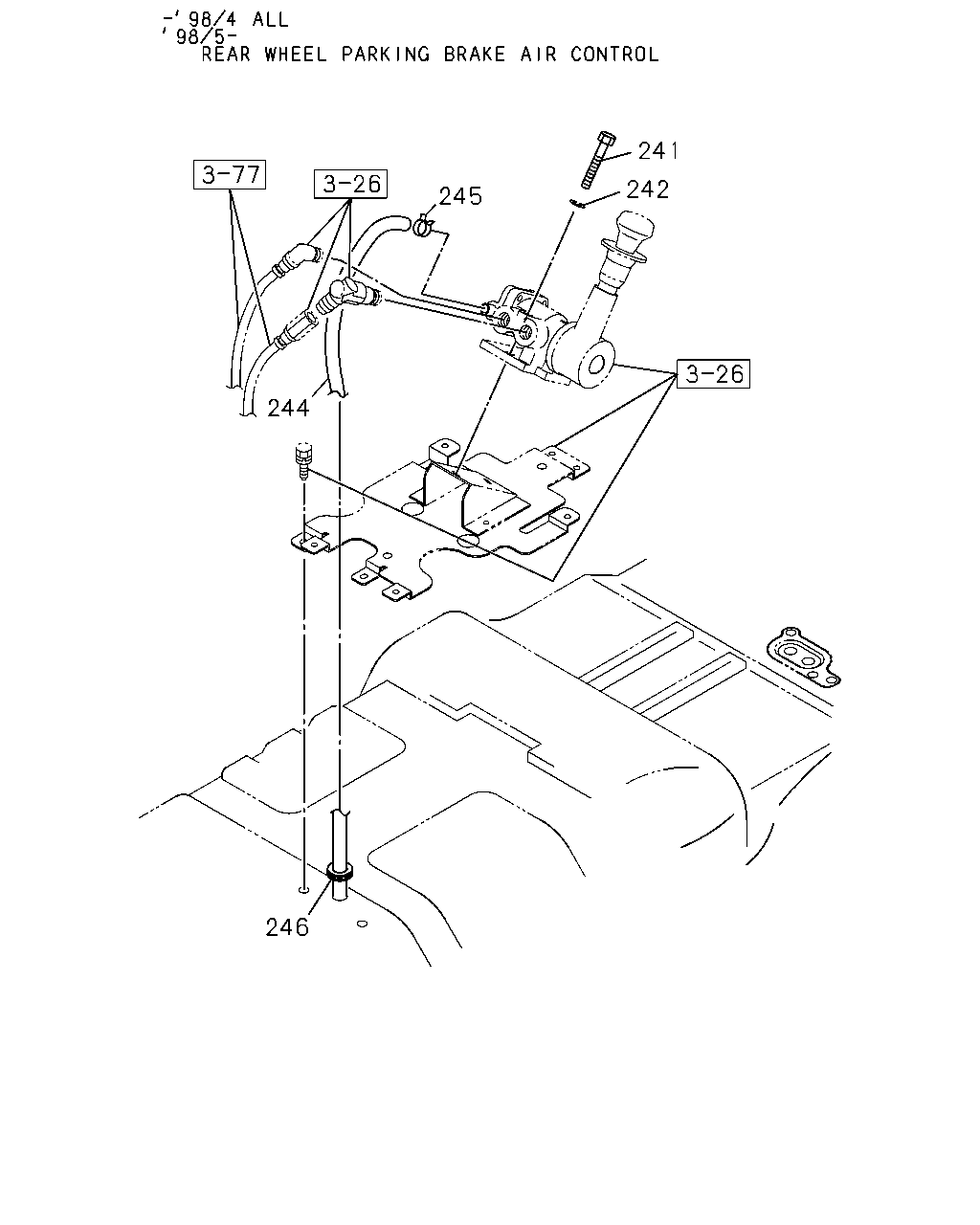

241 242 245 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	BOLT; SET,CONT VLV M8X65	0-10805-865-0	02	1	9601-9704
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	9705-9804
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28080-870-0	02	1	9805-0512
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
242	WASHER; LK,CONT VLV ID=8.2	9-09150-508-0	02	1	9601-9704
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9601-9804
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9805-
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	9601-9804
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	9805-
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	9601-9804
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9805-

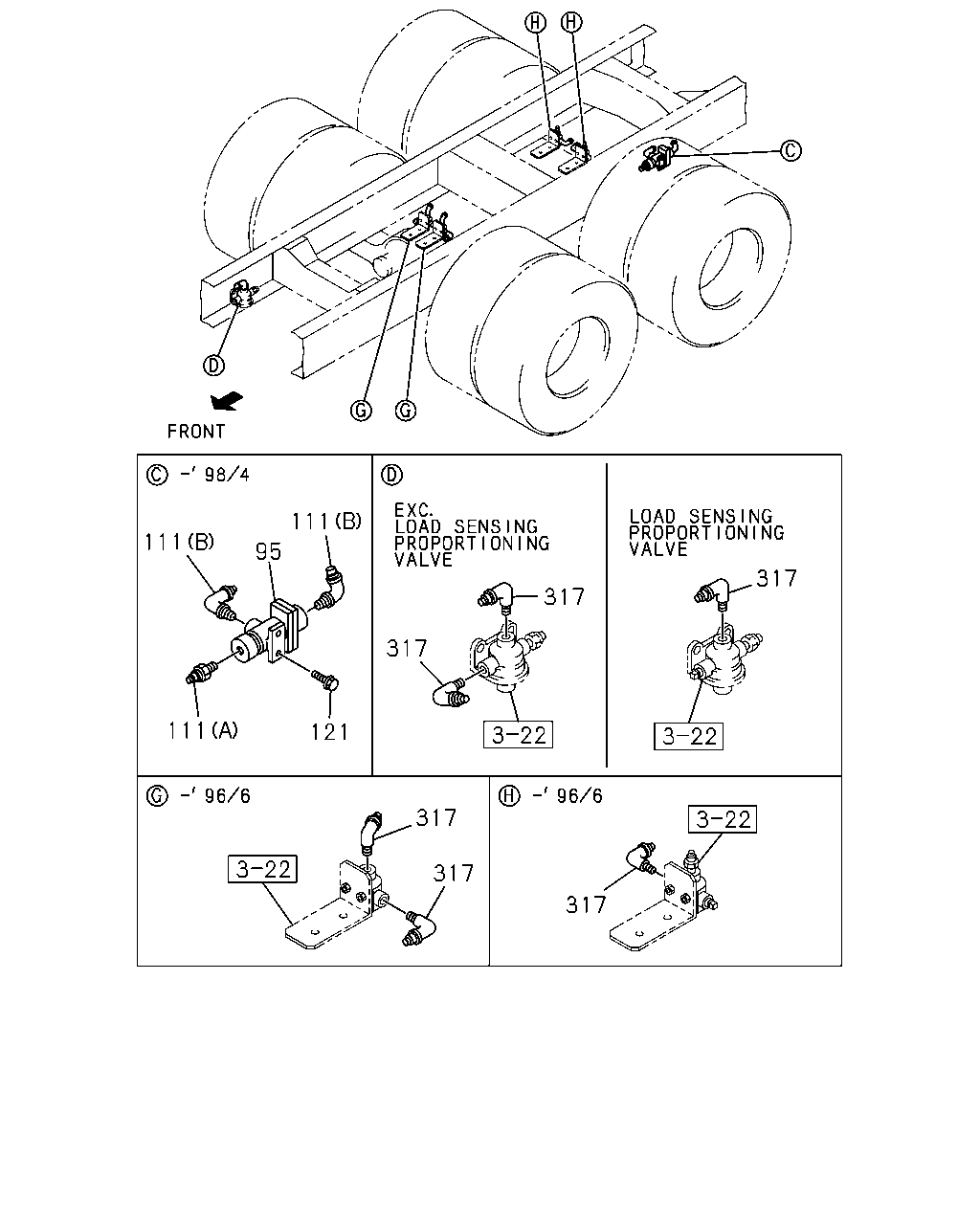

111 111 95 317 317 317 111 121 317 317 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	VALVE; DOUBLE CHECK BRAKE REGULATION ADR<TDU>	1-48410-050-0	01	1	9601-9804
111	CONNECTOR; CHECK VLV BRAKE REGULATION ADR<TDU> (A) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9804
111	CONNECTOR; CHECK VLV BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9804
121	BOLT; DOUBLE CHECK VLV BRAKE REGULATION ADR<TDU> M8X20 FLANGE	0-28080-820-0	02	1	9601-9804
317	CONNECTOR; MODULATOR BRAKE REGULATION ADR<TDU> DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9605
317	CONNECTOR; MODULATOR BRAKE REGULATION ADR<TDU> DIN12 & R3/8 ELBOW	1-09660-653-1	06	1	9606-9606
317	CONNECTOR; MODULATOR BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9804
317	CONNECTOR; MODULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> EXC. LOAD SENSING PROPORTIONING VALVE<JR7> DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	9805-0004
317	CONNECTOR; MODULATOR LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9804
317	CONNECTOR; MODULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE REGULATION ADR<TDU> DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	9805-0004

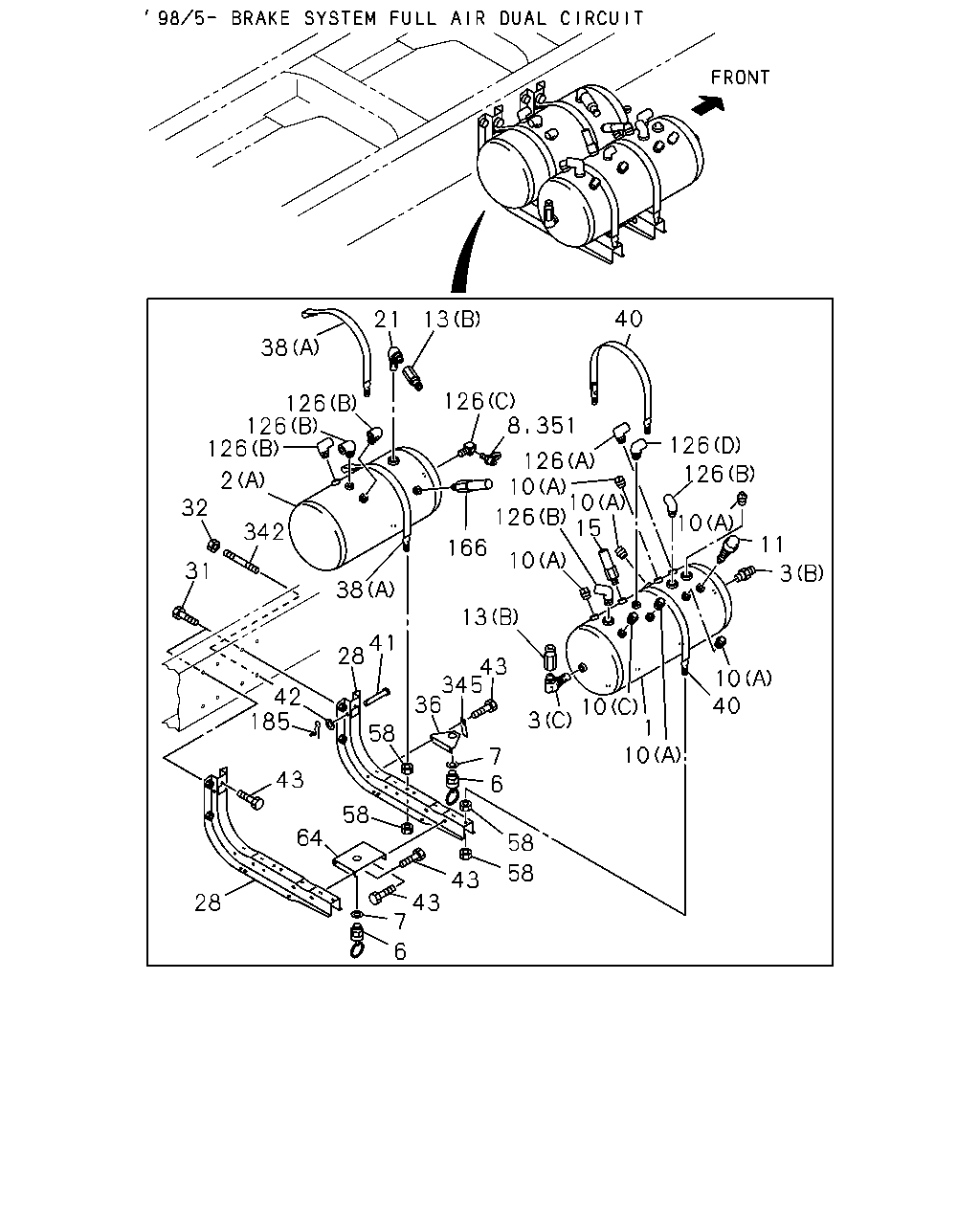

21 13 261 38 40 126 126 126 10 166 2 176 126 14 174 32 126 126 10 126 15 342 31 10 38 11 175 3 10 41 28 261 13 345 36 42 185 126 40 43 58 7 6 10 1 10 43 3 58 64 58 58 43 43 28 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-493-0	01	1	9805-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-585-0	01	1	9805-9810
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-810-0	01	1	9811-
2	TANK; AIR BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR KENYA EQUIPMENT(PQ2) (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9805-9903
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9904-9904
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9905-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-182-1	01	1	9805-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK KENYA EQUIPMENT(PQ2) (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48410-182-3	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	9601-9702
6	COCK; DRAIN,AIR TANK KENYA EQUIPMENT(PQ2)	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	9805-9903
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9601-9702
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9703-9904
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	0005-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9601-9702
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	0005-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-9609
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9610-9702
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	9805-9903
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9609-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9610-9702
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9703-9904
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	0005-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9606
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9610-9702
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	0005-
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9601-9605
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9606-9804
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT3/8	9-09204-517-0	01	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/4	9-09204-526-0	01	1	9805-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	9601-9605
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	04	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-0004
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9601-9702
13	ADAPTER; NYLON TUBE KENYA EQUIPMENT(PQ2) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9702
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9703-9804
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9601-9702
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	9805-
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9805-
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9805-
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-0004
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-
15	SWITCH; LOW PRESS,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	01	1	9805-
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
28	BRACKET; AIR TANK	1-48317-601-4	02	1	9601-9804
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9805-
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X45	1-09030-052-1	08	1	9601-9601
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X40 FLANGE	0-28681-240-0	08	1	9602-9807
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9808-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	06	1	0601-
31	BOLT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12X45	1-09030-052-1	06	1	9601-9601
31	BOLT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12X40 FLANGE	0-28681-240-0	06	1	9602-9807
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12	9-99110-512-0	02	1	9601-9602
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12	9-09120-412-0	02	1	9603-9606
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12 FLANGE	0-91250-112-0	02	1	9607-9807
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9808-0602
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91280-112-0	02	1	0603-
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-760-0	01	1	9805-
36	STAY; MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9805-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-9804
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9805-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9804
40	BAND ASM; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-109-2	02	1	9805-
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-9804
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9805-0606
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-9804
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9805-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9804
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	06	1	0601-
58	NUT; BAND,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9805-0512
58	NUT; BAND,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	12	1	0601-
64	STAY; AIR TANK,MAIN (A)	1-48317-451-0	01	1	9601-9605
64	STAY; AIR TANK,MAIN (B)	1-48317-607-0	01	1	9601-9804
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-607-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-0004
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-0004
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9805-0004
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	02	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	01	1	9805-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9601-9804
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9601-9804
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9805-0004
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9601-9804
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9805-0004
176	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-0004
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-9804
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	1-09987-142-0	02	1	9805-
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU> (A) L=300 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9601-9606
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9607-9804
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU> (B) L=1350 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9601-9804
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (C) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9805-0004
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0005-0212
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-
342	STUD WHEEL BASE 7100MM(71W) M12X40 L=64	9-94321-240-0	02	1	9601-9807
342	STUD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9808-0604
342	STUD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	0-43211-240-0	02	1	0605-
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9601-9804
345	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=63	1-09700-418-1	01	1	9805-0305

8 13 3 5 8 166 10 166 38 5 5 5 5 5 3 2 10 32 342 3 11 13 31 38 5 10 10 43 345 67 41 28 42 185 64 38 1 5 10 45 7 6 45 64 43 45 43 43 45 28 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-493-0	01	1	9805-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-585-0	01	1	9805-9810
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-810-0	01	1	9811-
2	TANK; AIR BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR KENYA EQUIPMENT(PQ2) (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9805-9903
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9904-9904
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9905-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-182-1	01	1	9805-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK KENYA EQUIPMENT(PQ2) (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48410-182-3	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
5	UNION; AIR TANK (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9804
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M22 & PT3/4	1-48410-136-3	01	1	9805-
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9605
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9606-9804
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9601-9804
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9804
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	9606-9804
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (D) PT1/4 2WAY	1-09660-693-0	01	1	9601-9804
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	9601-9702
6	COCK; DRAIN,AIR TANK KENYA EQUIPMENT(PQ2)	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	9805-9903
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9601-9702
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9703-9904
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	0005-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9601-9702
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	0005-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-9609
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9610-9702
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	9805-9903
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9609-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9610-9702
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9703-9904
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	0005-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9606
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9610-9702
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	0005-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9804
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9805-0004
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9601-9605
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9606-9804
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT3/8	9-09204-517-0	01	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/4	9-09204-526-0	01	1	9805-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	9601-9605
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	04	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-0004
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9601-9702
13	ADAPTER; NYLON TUBE KENYA EQUIPMENT(PQ2) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9702
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9703-9804
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9601-9702
28	BRACKET; AIR TANK	1-48317-601-4	02	1	9601-9804
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9805-
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X45	1-09030-052-1	08	1	9601-9601
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X40 FLANGE	0-28681-240-0	08	1	9602-9807
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9808-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	06	1	0601-
31	BOLT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12X45	1-09030-052-1	06	1	9601-9601
31	BOLT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12X40 FLANGE	0-28681-240-0	06	1	9602-9807
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12	9-99110-512-0	02	1	9601-9602
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12	9-09120-412-0	02	1	9603-9606
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12 FLANGE	0-91250-112-0	02	1	9607-9807
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9808-0602
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91280-112-0	02	1	0603-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-9804
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9805-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9804
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-9804
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9805-0606
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-9804
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9805-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9804
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	06	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9601-9804
64	STAY; AIR TANK,MAIN (A)	1-48317-451-0	01	1	9601-9605
64	STAY; AIR TANK,MAIN (B)	1-48317-607-0	01	1	9601-9804
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-607-0	01	1	9805-
67	STAY; SUB TANK	1-48317-691-0	01	1	9601-9804
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9805-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	02	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	01	1	9805-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9601-9804
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-9804
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	1-09987-142-0	02	1	9805-
342	STUD WHEEL BASE 7100MM(71W) M12X40 L=64	9-94321-240-0	02	1	9601-9807
342	STUD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9808-0604
342	STUD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	0-43211-240-0	02	1	0605-
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9601-9804
345	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=63	1-09700-418-1	01	1	9805-0305

40 21 13 38 126 8 126 126 126 351 126 126 126 10 10 126 15 2 32 10 342 11 166 10 31 3 38 13 41 28 43 345 36 10 40 42 185 10 1 10 3 58 7 6 43 58 64 58 58 43 28 43 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-493-0	01	1	9805-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-585-0	01	1	9805-9810
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-810-0	01	1	9811-
2	TANK; AIR BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR KENYA EQUIPMENT(PQ2) (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9805-9903
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9904-9904
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9905-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-182-1	01	1	9805-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK KENYA EQUIPMENT(PQ2) (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48410-182-3	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	9601-9702
6	COCK; DRAIN,AIR TANK KENYA EQUIPMENT(PQ2)	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	9805-9903
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9601-9702
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9703-9904
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	0005-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9601-9702
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	0005-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-9609
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9610-9702
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	9805-9903
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9609-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9610-9702
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9703-9904
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	0005-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9606
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9610-9702
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	0005-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9804
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9805-0004
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9601-9605
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9606-9804
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT3/8	9-09204-517-0	01	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/4	9-09204-526-0	01	1	9805-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	9601-9605
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	04	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-0004
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9601-9702
13	ADAPTER; NYLON TUBE KENYA EQUIPMENT(PQ2) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9702
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9703-9804
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9601-9702
15	SWITCH; LOW PRESS,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	01	1	9805-
21	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
28	BRACKET; AIR TANK	1-48317-601-4	02	1	9601-9804
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9805-
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X45	1-09030-052-1	08	1	9601-9601
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X40 FLANGE	0-28681-240-0	08	1	9602-9807
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9808-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	06	1	0601-
31	BOLT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12X45	1-09030-052-1	06	1	9601-9601
31	BOLT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12X40 FLANGE	0-28681-240-0	06	1	9602-9807
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12	9-99110-512-0	02	1	9601-9602
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12	9-09120-412-0	02	1	9603-9606
32	NUT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12 FLANGE	0-91250-112-0	02	1	9607-9807
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91250-112-0	02	1	9808-0602
32	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12 FLANGE	0-91280-112-0	02	1	0603-
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-760-0	01	1	9805-
36	STAY; MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9805-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-9804
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9805-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9804
40	BAND ASM; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-109-2	02	1	9805-
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-9804
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9805-0606
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-9804
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9805-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9804
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	06	1	0601-
58	NUT; BAND,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9805-0512
58	NUT; BAND,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	12	1	0601-
64	STAY; AIR TANK,MAIN (A)	1-48317-451-0	01	1	9601-9605
64	STAY; AIR TANK,MAIN (B)	1-48317-607-0	01	1	9601-9804
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-607-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	9805-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9805-0004
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9805-0004
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9805-0004
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	02	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	01	1	9805-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9601-9804
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-9804
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	1-09987-142-0	02	1	9805-
342	STUD WHEEL BASE 7100MM(71W) M12X40 L=64	9-94321-240-0	02	1	9601-9807
342	STUD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	9-94321-240-0	02	1	9808-0604
342	STUD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 L=64	0-43211-240-0	02	1	0605-
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9601-9804
345	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=63	1-09700-418-1	01	1	9805-0305
351	CONNECTOR; TEST BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9805-0004

71 128 78 129 63 71 82 130 77 3 13 13 67 3 62 2 14 11 9 14 14 10 46 7 6 46 55 55 14 55 36 43 46 46 46 55 7 46 39 1 39 5 39 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-493-0	01	1	9805-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-585-0	01	1	9805-9810
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-810-0	01	1	9811-
2	TANK; AIR BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR KENYA EQUIPMENT(PQ2) (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9805-9903
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9904-9904
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9905-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-182-1	01	1	9805-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK KENYA EQUIPMENT(PQ2) (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48410-182-3	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
5	UNION; AIR TANK (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9804
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M22 & PT3/4	1-48410-136-3	01	1	9805-
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9605
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9606-9804
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9601-9804
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9804
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	9606-9804
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (D) PT1/4 2WAY	1-09660-693-0	01	1	9601-9804
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	9601-9702
6	COCK; DRAIN,AIR TANK KENYA EQUIPMENT(PQ2)	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	9805-9903
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9601-9702
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9703-9904
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	0005-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9601-9702
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	0005-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-9609
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9610-9702
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	9805-9903
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9609-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9610-9702
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9703-9904
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	0005-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9606
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9610-9702
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	0005-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-1	01	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9601-9605
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9606-9804
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT3/8	9-09204-517-0	01	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/4	9-09204-526-0	01	1	9805-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	9601-9605
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	04	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-0004
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9601-9702
13	ADAPTER; NYLON TUBE KENYA EQUIPMENT(PQ2) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9702
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9703-9804
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9601-9702
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	9805-
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	9805-
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9805-
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	9805-0004
14	UNION; 3 WAY,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	0005-
36	STAY; MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-760-0	01	1	9805-
36	STAY; MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-691-0	01	1	9805-
39	U-BOLT; AIR TANK BRAKE REGULATION ADR<TDU> L=250	1-48317-308-0	02	1	9601-9804
39	U-BOLT; AIR TANK KENYA EQUIPMENT(PQ2) L=250	1-48317-308-0	02	1	9601-9804
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-48317-308-0	02	1	9805-9903
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> L=250	1-48317-308-0	02	1	9904-9904
39	U-BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-48317-308-0	02	1	9905-
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-301-0	02	1	9805-
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-302-0	01	1	9805-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9804
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	06	1	0601-
46	NUT; U-BOLT BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	08	1	9601-9804
46	NUT; U-BOLT KENYA EQUIPMENT(PQ2) M8	9-09110-408-0	08	1	9601-9804
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	12	1	9805-0512
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	12	1	0601-
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	08	1	9805-9903
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> M8	9-09110-408-0	08	1	9904-9904
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	08	1	9905-0512
46	NUT; U-BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	08	1	0601-
55	WASHER; PL,U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	9-09160-608-0	08	1	9805-0605
55	WASHER; PL,U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	08	1	0606-
62	BOLT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28681-025-0	02	1	9805-0512
62	BOLT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	0601-
63	NUT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9805-0602
63	NUT; SUPPORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	0603-
67	STAY; SUB TANK	1-48317-691-0	01	1	9601-9804
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9805-
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-276-1	02	1	9805-
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-293-1	01	1	9805-
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	04	1	9805-0512
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	04	1	0601-
82	NUT; STAY,AIR MASTER BRKT M8	9-09110-408-0	06	1	9601-9601
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	06	1	9602-9605
82	NUT; STAY,AIR MASTER BRKT M10	9-09110-410-0	04	1	9606-9606
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	9607-9804
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	16	1	9805-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	16	1	0603-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	04	1	9805-0602
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	04	1	0603-
128	PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53319-018-0	01	1	9805-
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9805-0512
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	02	1	0601-
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9805-0602
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-

261 38 3 13 38 5 5 10 10 8 10 5 5 3 5 10 2 166 3 13 261 11 31 38 5 174 5 175 10 43 345 67 41 28 38 1 42 185 64 5 10 45 7 6 45 64 43 45 45 43 28 43 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-194-0	01	1	9601-9804
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48370-493-0	01	1	9805-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48370-221-0	01	1	9805-
2	TANK; AIR (A)	1-48370-182-1	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-585-0	01	1	9805-9810
2	TANK; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48370-810-0	01	1	9811-
2	TANK; AIR BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR KENYA EQUIPMENT(PQ2) (B)	1-48370-183-0	01	1	9601-9804
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9805-9903
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B)	1-48370-183-0	01	1	9904-9904
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48370-183-0	01	1	9905-
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-182-1	01	1	9805-
3	VALVE; CHECK,AIR TANK (A) M22 & PT3/4 ELBOW	1-48410-134-3	03	1	9601-9804
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK KENYA EQUIPMENT(PQ2) (B) M22 & PT3/4	1-48410-136-3	01	1	9601-9804
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9805-9903
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9904-9904
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	02	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT3/4	1-48410-136-3	02	1	0005-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48410-182-3	01	1	9805-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (B) M22 & PT3/4	1-48410-136-3	01	1	9905-0004
5	UNION; AIR TANK (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	9601-9804
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M22 & PT3/4	1-48410-136-3	01	1	9805-
5	UNION; AIR TANK (C) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9601-9605
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	05	1	9606-9804
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9804
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9601-9804
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (B) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9804
5	UNION; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (C) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	9606-9804
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (D) PT1/4 2WAY	1-09660-693-0	01	1	9601-9804
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	9601-9702
6	COCK; DRAIN,AIR TANK KENYA EQUIPMENT(PQ2)	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9703-9804
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	01	1	9805-9903
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	9904-0004
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9601-9702
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	9703-9904
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	0005-
6	COCK; DRAIN,AIR TANK EXC. BRAKE REGULATION ADR<TDU>	1-48312-015-0	04	1	9601-9702
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU>	1-48312-015-0	05	1	9905-0004
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	0005-
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9604
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14.2 OD=23.0	9-09572-014-0	01	1	9607-9608
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9609-9609
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9610-9702
7	GASKET; DRAIN COCK KENYA EQUIPMENT(PQ2) ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9703-9804
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	01	1	9805-9903
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	9904-0004
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9609-9804
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9604
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	05	1	9605-9606
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9610-9702
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	9703-9904
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	0005-
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9604
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14.2 OD=23.0	9-09572-014-0	04	1	9605-9606
7	GASKET; DRAIN COCK EXC. BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	04	1	9610-9702
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	05	1	9905-0004
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	0005-
8	CONNECTOR; AIR TANK BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	9601-9804
8	CONNECTOR; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-0	01	1	9805-0004
8	CONNECTOR; AIR TANK EXC. BRAKE REGULATION ADR<TDU> DIN12X2 & R3/8 3WAY	1-09660-660-1	01	1	9601-9804
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	02	1	9601-9605
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	9606-9804
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) PT3/8	9-09204-517-0	01	1	9805-
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	03	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) PT3/4	9-09204-526-0	01	1	9805-
10	PLUG; AIR TANK EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	01	1	9601-9605
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	04	1	9805-9807
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (A) PT3/8	9-09204-517-0	04	1	9808-0004
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/8	9-09204-517-0	05	1	0005-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	05	1	9808-0004
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4>,BRAKE REGULATION ADR<TDU> (B) PT1/4	9-99204-513-0	04	1	9601-9804
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR<TDU> (A) PT3/8	9-09204-517-0	06	1	9805-0004
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	9601-
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9601-9702
13	ADAPTER; NYLON TUBE KENYA EQUIPMENT(PQ2) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9703-9804
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9805-9903
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9904-9904
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	9905-0004
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007
13	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-
13	ADAPTER; NYLON TUBE BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	03	1	9601-9702
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9703-9804
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9805-0004
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-
13	ADAPTER; NYLON TUBE EXC. BRAKE REGULATION ADR<TDU> (A) DIN12 & M12 STRAIGHT	1-09660-878-0	02	1	9601-9702
28	BRACKET; AIR TANK	1-48317-601-4	02	1	9601-9804
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	9805-
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X45	1-09030-052-1	08	1	9601-9601
31	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) M12X40 FLANGE	0-28681-240-0	08	1	9602-9807
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	06	1	9808-0512
31	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	06	1	0601-
31	BOLT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12X45	1-09030-052-1	06	1	9601-9601
31	BOLT; BRKT TO FRAME WHEEL BASE 7100MM(71W) M12X40 FLANGE	0-28681-240-0	06	1	9602-9807
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	9601-9804
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9805-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	9601-9804
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	9601-9804
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9805-0606
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	0-82254-060-0	02	1	0607-
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	9601-9804
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	9-09164-510-0	02	1	9805-
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	08	1	9601-9605
43	BOLT; STAY,AIR TANK,MAIN M8X20 FLANGE	0-28080-820-0	06	1	9606-9702
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	9703-9804
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	06	1	9805-0512
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	06	1	0601-
45	NUT; AIR TANK,MAIN M8	9-09110-408-0	12	1	9601-9804
64	STAY; AIR TANK,MAIN (A)	1-48317-451-0	01	1	9601-9605
64	STAY; AIR TANK,MAIN (B)	1-48317-607-0	01	1	9601-9804
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-607-0	01	1	9805-
67	STAY; SUB TANK	1-48317-691-0	01	1	9601-9804
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-321-2	01	1	9805-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	02	1	9601-9804
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-1	01	1	9805-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. BRAKE REGULATION ADR<TDU> 530KPA	1-48340-054-0	01	1	9601-9804
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	1-09680-036-0	01	1	9601-9804
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9805-0004
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ADR<TDU>	9-48319-102-0	01	1	9601-9804
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9805-0004
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	9601-9804
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	1-09987-142-0	02	1	9805-
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU> (A) L=300 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9601-9606
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU> (A) SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9607-9804
261	TUBE; NYLON EXC. BRAKE REGULATION ADR<TDU> (B) L=1350 SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	9601-9804
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ADR<TDU> (C) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	9805-0004
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) SERVICED BY L=2000 OD=12	1-87410-069-0	02	1	0005-0212
261	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) SERVICED BY L=2000 OD=12	1-87411-011-0	02	1	0301-
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	9601-9804
345	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=63	1-09700-418-1	01	1	9805-0305

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
