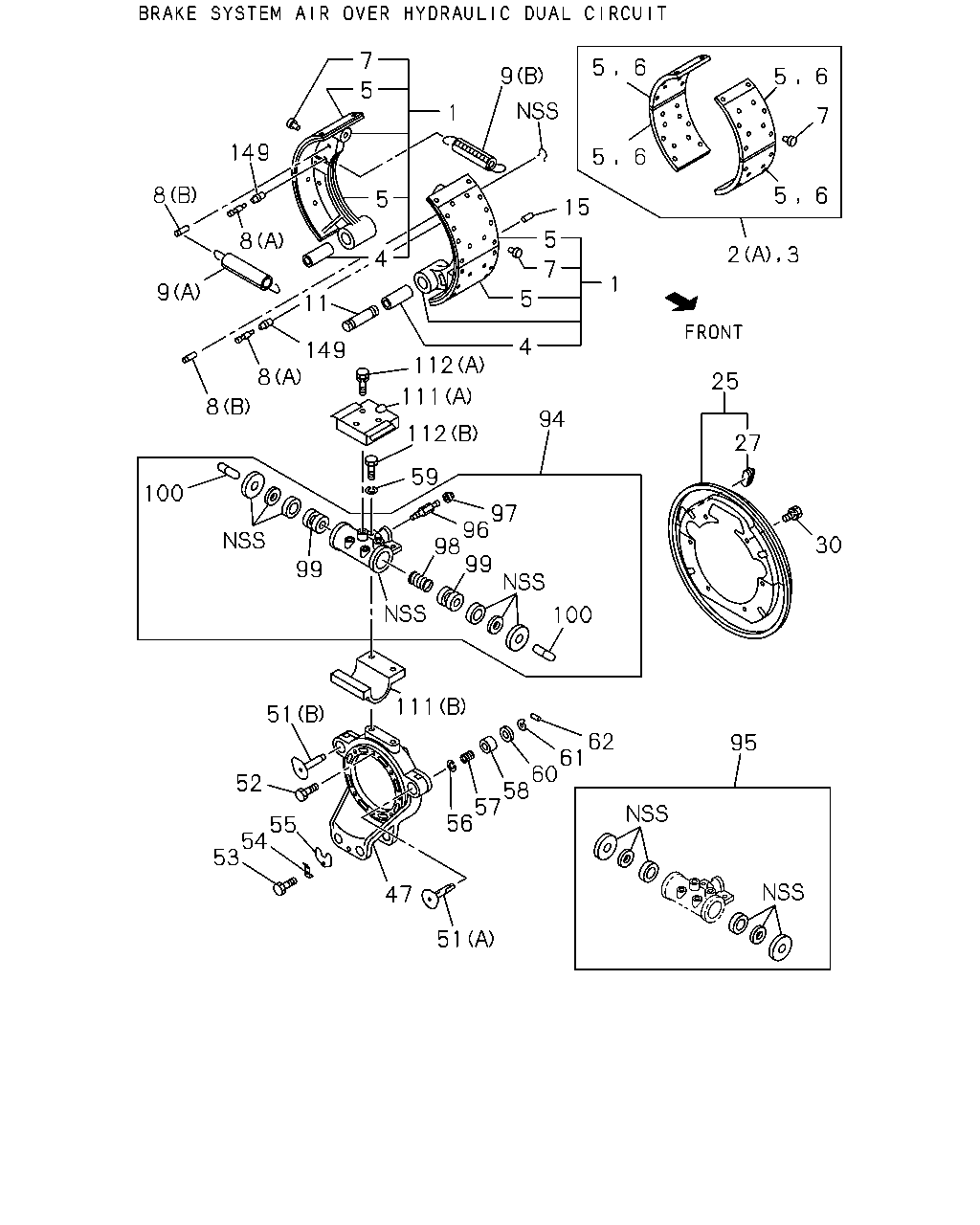

3-05 — REAR WHEEL BRAKE (#64934) — 433 parça

7 5 5 4 11 149 8 8 9 8 8 149 100 112 111 112 59 97 96 98 99 100 94 4 5 7 5 15 9 1 5 5 6 6 5 6 7 6 5 2 3 30 25 27 95 62 61 60 58 57 56 47 51 111 51 52 55 54 53 99 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-918-0	02	1	9601-9804
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-715-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-715-0	01	1	9805-
1	SHOE; BRK,RR TRAILING	1-47110-919-0	02	1	9601-9804
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-716-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-716-0	01	1	9805-
1	SHOE; BRK,RR LEADING	1-47110-916-0	02	1	9601-9804
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-326-0	04	1	9805-0603
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-326-0	04	1	9805-0603
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47170-442-0	04	1	0604-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47170-442-0	04	1	0604-
1	SHOE; BRK,RR TRAILING	1-47110-917-0	02	1	9601-9804
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-714-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-714-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-713-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-713-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD (A) LEADING	1-88302-958-0	02	1	9601-9804
2	LINING SET; RR BRK,STANDARD (A) TRAILING	1-88302-959-0	02	1	9601-9804
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) T=16	1-88310-301-0	02	1	9805-0603
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) T=16	1-88310-301-0	02	1	9805-0603
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) T=16	1-88311-359-1	02	1	0604-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) T=16	1-88311-359-1	02	1	0604-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-88310-521-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-88310-521-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-88310-523-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-88310-523-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-129-0	01	1	0005-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-129-0	01	1	0005-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-156-0	02	1	9601-9804
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-157-0	02	1	9601-9804
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-88310-302-0	02	1	9805-0603
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-88310-302-0	02	1	9805-0603
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-88311-360-1	02	1	0604-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-88311-360-1	02	1	0604-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-522-0	01	1	9805-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-522-0	01	1	9805-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-524-0	01	1	9805-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-524-0	01	1	9805-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9601-9804
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9805-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9805-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-054-0	08	1	9601-9804
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-799-0	04	1	9805-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-799-0	04	1	9805-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-055-0	08	1	9601-9804
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=16	1-47125-420-0	08	1	9805-0603
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=16	1-47125-420-0	08	1	9805-0603
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-760-0	08	1	0604-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-760-0	08	1	0604-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-797-0	04	1	9805-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-797-0	04	1	9805-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-056-0	08	1	9601-9804
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-800-0	04	1	9805-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-800-0	04	1	9805-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-057-0	08	1	9601-9804
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-47125-421-0	08	1	9805-0603
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-47125-421-0	08	1	9805-0603
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-47126-761-0	08	1	0604-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-47126-761-0	08	1	0604-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-798-0	04	1	9805-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-798-0	04	1	9805-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9601-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9601-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9601-9804
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	04	1	9805-1209
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	04	1	9805-1209
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9601-9804
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09744-051-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09744-051-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47119-025-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47119-025-0	04	1	9805-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9601-9804
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9805-1209
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9805-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09583-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09583-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9601-9804
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	02	1	9805-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	02	1	9805-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98219-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98219-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-210-0	04	1	9805-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-210-0	04	1	9805-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9601-9804
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9805-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9805-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	9805-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	9805-
25	COVER SET; RR BRK DRUM AUSTRALIA EQUIPMENT(RR3) REARWARD	1-47151-526-1	02	1	9601-9604
25	COVER SET; RR BRK DRUM FORWARD	1-47151-462-1	02	1	9601-9604
25	COVER SET; RR BRK DRUM EXC. AUSTRALIA EQUIPMENT(RR3) FORWARD	1-47151-462-1	02	1	9601-9604
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9605-9804
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9605-9804
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	02	1	9805-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	02	1	9805-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-526-1	02	1	9805-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-526-1	02	1	9805-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9601-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9601-
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X12	1-47159-187-0	12	1	1210-
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X12	1-47159-187-0	12	1	1210-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9601-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9601-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	0-50541-016-0	12	1	1210-
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	0-50541-016-0	12	1	1210-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-151-0	02	1	9805-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-151-0	02	1	9805-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	9805-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	9805-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	9805-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	9805-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9601-1209
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9601-1209
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X50	1-09040-066-0	02	1	1210-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X50	1-09040-066-0	02	1	1210-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1210-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1210-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9601-0512
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9601-0512
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1210-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9601-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9601-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9601-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9601-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9805-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9805-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9805-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9805-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	9805-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	9805-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	04	1	9805-0603
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	04	1	9805-0603
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	0-91510-514-0	04	1	0604-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	0-91510-514-0	04	1	0604-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	9805-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	9805-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	9805-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	9805-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	9805-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	9805-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-684-0	02	1	9805-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-684-0	02	1	9805-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-527-0	02	1	9805-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-527-0	02	1	9805-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47615-002-0	02	1	9805-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47615-002-0	02	1	9805-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	9805-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	9805-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-019-0	02	1	9805-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-019-0	02	1	9805-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-302-0	04	1	9805-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-302-0	04	1	9805-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	9805-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	9805-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47159-089-0	02	1	9805-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47159-089-0	02	1	9805-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47159-118-0	02	1	9805-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47159-118-0	02	1	9805-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14X35	0-20801-435-0	04	1	9805-0512
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14X35	0-20801-435-0	04	1	9805-0512
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14X35	0-20851-435-0	04	1	0601-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M14X35	0-20851-435-0	04	1	0601-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 W/LK WASHER	0-50040-816-0	06	1	9805-0512
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 W/LK WASHER	0-50040-816-0	06	1	9805-0512
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 W/LK WASHER	0-50540-816-0	06	1	0601-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X16 W/LK WASHER	0-50540-816-0	06	1	0601-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-024-0	04	1	9805-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-024-0	04	1	9805-

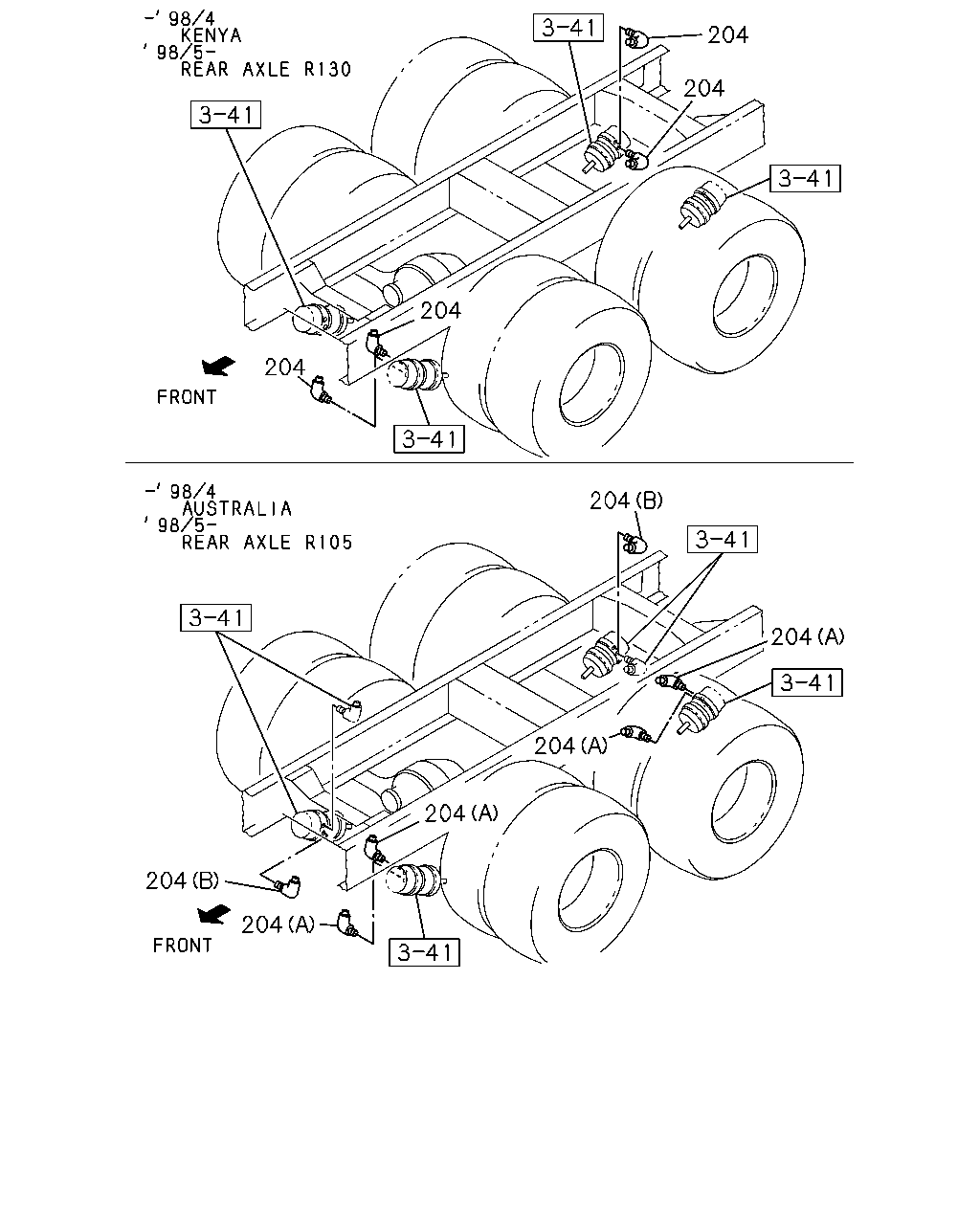

204 204 204 204 204 204 204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
204	CONNECTOR; SPR CHAMBER AUSTRALIA EQUIPMENT(RR3) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	9601-9804
204	CONNECTOR; SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 43/11 17.5" HYPOID(W4S) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9805-0004
204	CONNECTOR; SPR CHAMBER REAR AXLE R105(B5C) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9805-0004
204	CONNECTOR; SPR CHAMBER AUSTRALIA EQUIPMENT(RR3) (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	02	1	9601-9804
204	CONNECTOR; SPR CHAMBER FINAL GEAR 41/8 17.5" HYPOID(W4A),FINAL GEAR 43/11 17.5" HYPOID(W4S) (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	9805-0004
204	CONNECTOR; SPR CHAMBER REAR AXLE R105(B5C) (B) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	9805-0004
204	CONNECTOR; SPR CHAMBER KENYA EQUIPMENT(PQ2)	1-09660-574-0	04	1	9601-9706
204	CONNECTOR; SPR CHAMBER KENYA EQUIPMENT(PQ2) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	9707-9804
204	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5" HYPOID(W3Y) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	9805-0004
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR AXLE R130(B5V) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	9805-0004
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0005-0109
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0005-0109
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 43/7 17.5" HYPOID(W3Y) EXC. KENYA EQUIPMENT(PQ2) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0110-
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. KENYA EQUIPMENT(PQ2) DIN12 & R3/8 ELBOW	1-09660-653-1	04	1	0110-

2 5 6 5 6 7 5 6 5 6 5 6 5 6 5 6 5 6 7 2 30 202 201 76 63 65 195 298 198 74 77 27 34 75 73 65 64 3 25 69 71 72 66 70 67 68 5 6 5 6 6 5 6 5 5 6 5 6 5 6 7 5 6 2 4 5 5 7 14 12 13 11 10 9 1 1 8 53 9 8 54 10 55 52 50 48 46 45 49 3 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-918-0	02	1	9601-9804
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-715-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-715-0	01	1	9805-
1	SHOE; BRK,RR TRAILING	1-47110-919-0	02	1	9601-9804
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-716-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-716-0	01	1	9805-
1	SHOE; BRK,RR LEADING	1-47110-916-0	02	1	9601-9804
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-326-0	04	1	9805-0603
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-326-0	04	1	9805-0603
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47170-442-0	04	1	0604-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47170-442-0	04	1	0604-
1	SHOE; BRK,RR TRAILING	1-47110-917-0	02	1	9601-9804
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-714-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-714-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-713-0	01	1	9805-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-713-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD (A) LEADING	1-88302-958-0	02	1	9601-9804
2	LINING SET; RR BRK,STANDARD (A) TRAILING	1-88302-959-0	02	1	9601-9804
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) T=16	1-88310-301-0	02	1	9805-0603
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) T=16	1-88310-301-0	02	1	9805-0603
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) T=16	1-88311-359-1	02	1	0604-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) T=16	1-88311-359-1	02	1	0604-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-88310-521-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-88310-521-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-88310-523-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-88310-523-0	01	1	9805-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-129-0	01	1	0005-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-129-0	01	1	0005-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-156-0	02	1	9601-9804
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-157-0	02	1	9601-9804
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-88310-302-0	02	1	9805-0603
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-88310-302-0	02	1	9805-0603
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-88311-360-1	02	1	0604-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-88311-360-1	02	1	0604-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-522-0	01	1	9805-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-522-0	01	1	9805-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-524-0	01	1	9805-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-524-0	01	1	9805-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	9601-9804
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9805-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9805-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-054-0	08	1	9601-9804
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-799-0	04	1	9805-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-799-0	04	1	9805-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47125-055-0	08	1	9601-9804
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=16	1-47125-420-0	08	1	9805-0603
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=16	1-47125-420-0	08	1	9805-0603
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-760-0	08	1	0604-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-760-0	08	1	0604-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-797-0	04	1	9805-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-797-0	04	1	9805-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-056-0	08	1	9601-9804
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-800-0	04	1	9805-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-800-0	04	1	9805-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47125-057-0	08	1	9601-9804
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-47125-421-0	08	1	9805-0603
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-47125-421-0	08	1	9805-0603
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-47126-761-0	08	1	0604-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) T=17	1-47126-761-0	08	1	0604-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-798-0	04	1	9805-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-798-0	04	1	9805-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9601-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9601-
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	08	1	9601-9804
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	04	1	9805-1209
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	04	1	9805-1209
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	08	1	9601-9804
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09744-051-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09744-051-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47119-025-0	04	1	9805-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47119-025-0	04	1	9805-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	04	1	9601-9804
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9805-1209
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9805-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09583-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09583-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	04	1	9601-9804
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	02	1	9805-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	02	1	9805-1209
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98219-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98219-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-210-0	04	1	9805-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-210-0	04	1	9805-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	9601-9804
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	9-09185-410-0	08	1	9805-0604
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	9-09185-410-0	08	1	9805-0604
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	08	1	0605-1209
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	08	1	0605-1209
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	9601-9804
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9805-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9805-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	9601-9804
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-005-0	04	1	9805-
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-005-0	04	1	9805-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	9601-9804
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	9805-
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	9805-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	9601-9804
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-061-0	04	1	9805-
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-061-0	04	1	9805-
25	COVER SET; RR BRK DRUM AUSTRALIA EQUIPMENT(RR3) REARWARD	1-47151-526-1	02	1	9601-9604
25	COVER SET; RR BRK DRUM FORWARD	1-47151-462-1	02	1	9601-9604
25	COVER SET; RR BRK DRUM EXC. AUSTRALIA EQUIPMENT(RR3) FORWARD	1-47151-462-1	02	1	9601-9604
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9605-9804
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9605-9804
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	02	1	9805-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	02	1	9805-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-526-1	02	1	9805-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-526-1	02	1	9805-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9601-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9601-
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X12	1-47159-187-0	12	1	1210-
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X12	1-47159-187-0	12	1	1210-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9601-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9601-0906
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-1209
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	0-50541-016-0	12	1	1210-
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 W/LK WASHER	0-50541-016-0	12	1	1210-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	04	1	9601-9804
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	9805-0512
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	9805-0512
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	04	1	9601-9804
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-120-2	02	1	9805-
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-120-2	02	1	9805-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	9601-9804
46	RING; SPACER,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	02	1	9805-
46	RING; SPACER,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	02	1	9805-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	9601-9804
48	SEAL; OIL,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	02	1	9805-
48	SEAL; OIL,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	02	1	9805-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	04	1	9601-9804
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	9805-
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	9805-
50	CAMSHAFT; BRK,RR BRK FORWARD LH,REARWARD RH	1-47141-053-0	02	1	9601-9804
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH,REARWARD RH	1-47141-053-0	01	1	9805-
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH,REARWARD RH	1-47141-053-0	01	1	9805-
50	CAMSHAFT; BRK,RR BRK FORWARD RH,REARWARD LH	1-47141-054-0	02	1	9601-9804
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH,REARWARD LH	1-47141-054-0	01	1	9805-
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH,REARWARD LH	1-47141-054-0	01	1	9805-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9601-1209
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9601-1209
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X50	1-09040-066-0	02	1	1210-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X50	1-09040-066-0	02	1	1210-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1210-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1210-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9601-0512
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9601-0512
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-1209
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1210-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9601-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9601-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9601-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9601-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH,REARWARD RH	1-48270-045-0	02	1	9601-9804
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH,REARWARD RH	1-48270-045-0	01	1	9805-
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH,REARWARD RH	1-48270-045-0	01	1	9805-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD RH,REARWARD LH	1-48270-046-0	02	1	9601-9804
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH,REARWARD LH	1-48270-046-0	01	1	9805-
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH,REARWARD LH	1-48270-046-0	01	1	9805-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	04	1	9601-9804
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-022-0	02	1	9805-
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-022-0	02	1	9805-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	9601-9804
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47143-004-0	02	1	9805-
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47143-004-0	02	1	9805-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	02	1	9601-9804
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	9-09180-038-0	01	1	9805-
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	9-09180-038-0	01	1	9805-
66	PIN; JAW JOINT	1-09744-088-0	04	1	9601-9804
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	9805-
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	9805-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	9601-9804
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	08	1	9805-0512
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	08	1	9805-0512
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91110-516-0	08	1	0601-
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91110-516-0	08	1	0601-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	9601-9804
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	08	1	9805-0603
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	08	1	9805-0603
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-516-0	08	1	0604-0802
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-516-0	08	1	0604-0802
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	08	1	0803-
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	08	1	0803-
69	JOINT; JAW	1-09768-060-0	04	1	9601-9804
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-1	02	1	9805-
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-1	02	1	9805-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	9601-9804
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9805-0512
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9805-0512
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	0601-
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	0601-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9601-9804
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	02	1	9805-
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	02	1	9805-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	9601-9804
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	9805-0606
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	9805-0606
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	0-81124-028-0	02	1	0607-
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	0-81124-028-0	02	1	0607-
73	COLLAR; FELT RING,CM/SHF	1-47143-003-0	04	1	9601-9708
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-9804
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-9804
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-016-0	02	1	9805-
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-016-0	02	1	9805-
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	9601-9804
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	02	1	9805-
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	02	1	9805-
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	9601-9804
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	02	1	9805-
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	02	1	9805-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD LH,REARWARD RH	1-48258-083-0	02	1	9601-9804
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH,REARWARD RH	1-48258-083-0	01	1	9805-0906
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH,REARWARD RH	1-48258-083-0	01	1	9805-0906
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-248-0	01	1	0907-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-248-0	01	1	0907-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD RH,REARWARD LH	1-48258-084-0	02	1	9601-9804
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH,REARWARD LH	1-48258-084-0	01	1	9805-0906
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH,REARWARD LH	1-48258-084-0	01	1	9805-0906
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-249-0	01	1	0907-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-249-0	01	1	0907-
77	BUSHING	1-47146-003-1	04	1	9601-9804
77	BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	9805-
77	BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	9805-
195	RING; SNAP,CM/SHF	9-09180-038-0	02	1	9601-9804
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	01	1	9805-
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	01	1	9805-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	9601-9804
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9805-0512
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9805-0512
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-
201	BOLT; BRKT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X35	0-28081-435-0	08	1	0202-1209
201	BOLT; BRKT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X35	0-20851-435-0	08	1	1210-
202	WASHER; LK,BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	08	1	0202-0603
202	WASHER; LK,BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	0-91510-514-0	08	1	0604-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=23.3	9-09561-223-0	02	1	0005-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=23.3	9-09561-223-0	02	1	0005-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
