Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#64933) — 191 parça

2 22 3 2 3 7 2 3 2 2 1 7 2 8 14 29 28 33 43 15 26 44 36 30 2 8 1 2 7 42 41 40 39 38 37 25 34 4 5 46 45 15 17 21 22 21 20 24 23 24 27 27 16

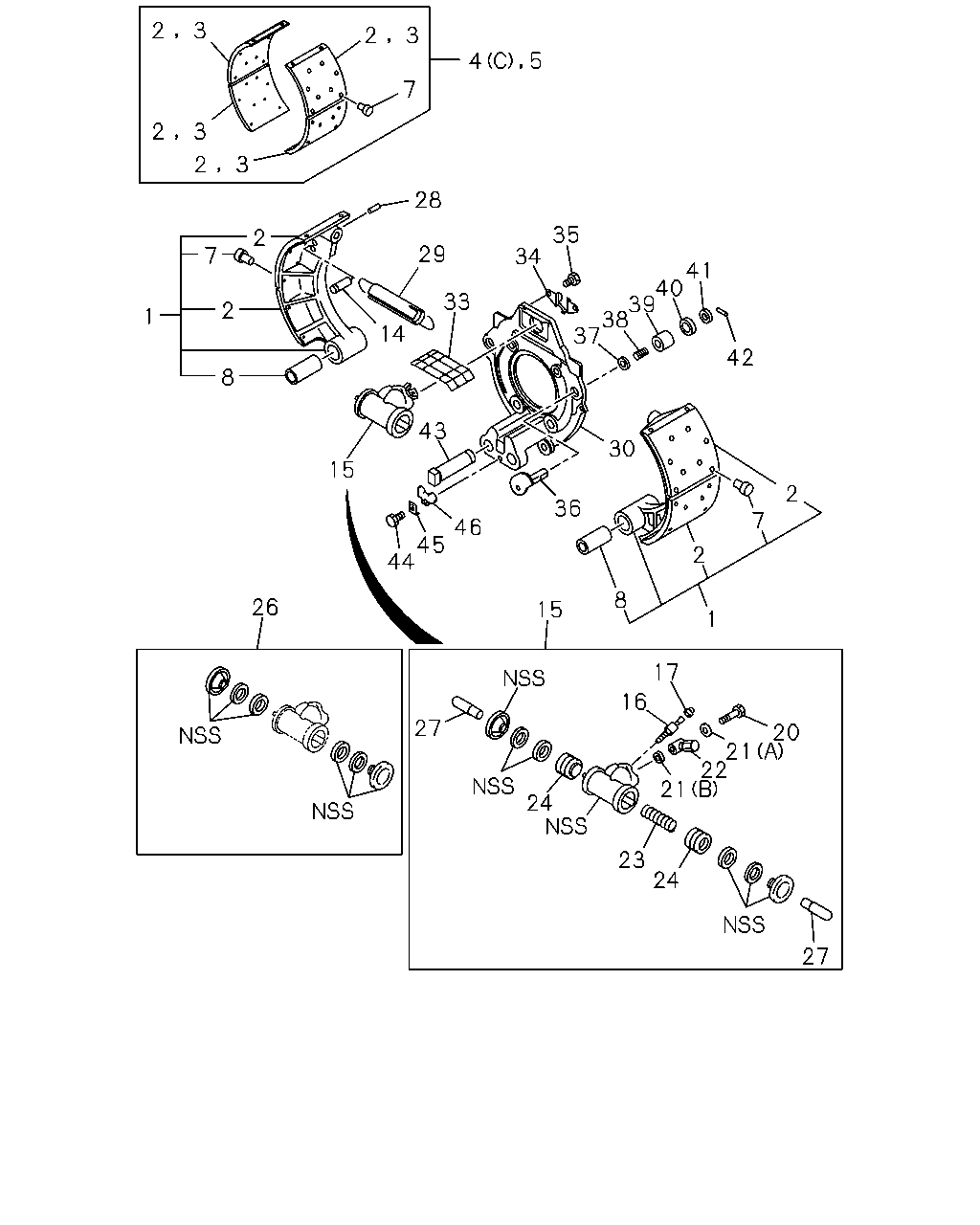

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT LEADING	1-47110-952-0	01	1	9601-9804
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-711-0	01	1	9805-
1	SHOE; BRK,FRT TRAILING	1-47110-953-0	01	1	9601-9804
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-712-0	01	1	9805-
1	SHOE; BRK,FRT LEADING	1-47110-956-0	01	1	9601-9804
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-709-0	01	1	9805-
1	SHOE; BRK,FRT TRAILING	1-47110-957-0	01	1	9601-9804
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-710-0	01	1	9805-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-325-0	04	1	9805-0603
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47170-441-0	04	1	0604-
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-867-0	04	1	9601-9804
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-793-0	04	1	9805-
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-868-0	04	1	9601-9804
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-795-0	04	1	9805-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-418-0	08	1	9805-0603
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-758-0	08	1	0604-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-869-0	04	1	9601-9804
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-794-0	04	1	9805-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-870-0	04	1	9601-9804
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-796-0	04	1	9805-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-419-0	08	1	9805-0603
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-759-0	08	1	0604-
4	LINING SET; FRT BRK,STANDARD (A) LEADING	1-88302-956-0	01	1	9601-9804
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-88310-497-0	01	1	9805-
4	LINING SET; FRT BRK,STANDARD (A) TRAILING	1-88302-957-0	01	1	9601-9804
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-88310-499-0	01	1	9805-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-88310-299-0	02	1	9805-0603
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-88311-353-1	02	1	0604-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-125-0	01	1	0005-
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-001-0	01	1	9601-9804
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-498-0	01	1	9805-
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-002-0	01	1	9601-9804
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-500-0	01	1	9805-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-300-0	02	1	9805-0603
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-354-1	02	1	0604-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9601-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9601-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9601-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-675-0	01	1	9805-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-674-0	01	1	9805-
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=66.5	1-47615-005-0	02	1	9805-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	9805-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	9805-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	9805-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	9805-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	9805-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09940-435-0	02	1	9805-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-47624-210-0	04	1	9805-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=47.5	1-87830-521-0	02	1	9805-
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	9805-
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	9805-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9601-9804
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-185-2	02	1	9805-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	9805-
30	BRACKET; ANCHOR,FRT	1-47137-119-1	01	1	9601-9804
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-119-3	01	1	9805-
30	BRACKET; ANCHOR,FRT	1-47137-118-1	01	1	9601-9804
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-118-3	01	1	9805-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9805-9901
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	9902-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-080-0	02	1	9805-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	9805-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	9805-0906
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRONT	1-47165-058-1	02	1	9805-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR	1-47165-059-1	02	1	9805-
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9805-
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9805-
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	9805-
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	9805-
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	9805-
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	9805-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9601-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9601-0512
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-
45	WASHER; LK	1-47133-011-0	02	1	9601-
46	PLATE; LOCK	1-47133-005-0	02	1	9601-

2 3 2 3 7 3 2 2 3 2 3 2 3 2 3 2 7 4 4 2 3 2 3 7 5 5 3 3 2 7 3 2 3 2 2 3 2 64 62 63 59 58 61 56 60 54 49 52 46 45 44 48 57 31 109 51 53 50 109 30 12 13 14 2 7 9 8 2 43 29 1 55 3 2 3 47 1 4

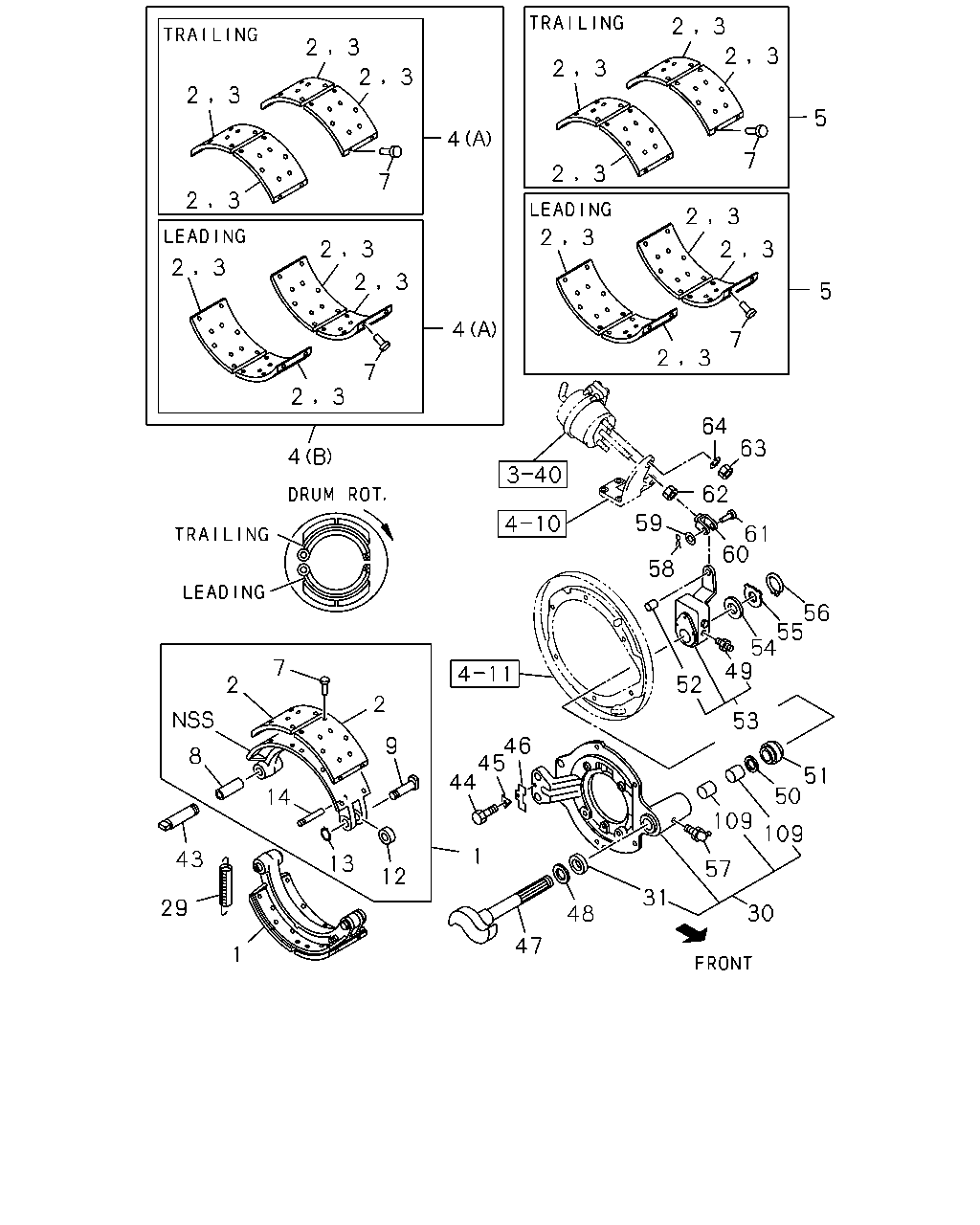

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT LEADING	1-47110-952-0	01	1	9601-9804
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-711-0	01	1	9805-
1	SHOE; BRK,FRT TRAILING	1-47110-953-0	01	1	9601-9804
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-712-0	01	1	9805-
1	SHOE; BRK,FRT LEADING	1-47110-956-0	01	1	9601-9804
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47120-709-0	01	1	9805-
1	SHOE; BRK,FRT TRAILING	1-47110-957-0	01	1	9601-9804
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47120-710-0	01	1	9805-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47120-325-0	04	1	9805-0603
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47170-441-0	04	1	0604-
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-867-0	04	1	9601-9804
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-793-0	04	1	9805-
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-868-0	04	1	9601-9804
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-795-0	04	1	9805-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-418-0	08	1	9805-0603
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-758-0	08	1	0604-
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-869-0	04	1	9601-9804
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47125-794-0	04	1	9805-
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-870-0	04	1	9601-9804
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47125-796-0	04	1	9805-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47125-419-0	08	1	9805-0603
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47126-759-0	08	1	0604-
4	LINING SET; FRT BRK,STANDARD (A) LEADING	1-88302-956-0	01	1	9601-9804
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-88310-497-0	01	1	9805-
4	LINING SET; FRT BRK,STANDARD (A) TRAILING	1-88302-957-0	01	1	9601-9804
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-88310-499-0	01	1	9805-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-88310-299-0	02	1	9805-0603
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-88311-353-1	02	1	0604-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) LEADING,TRAILING BEST VALUE PARTS	1-87610-125-0	01	1	0005-
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-001-0	01	1	9601-9804
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-498-0	01	1	9805-
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-002-0	01	1	9601-9804
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-500-0	01	1	9805-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88310-300-0	02	1	9805-0603
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88311-354-1	02	1	0604-
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9601-
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9601-
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9601-9804
9	PIN; SHOE HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-060-0	04	1	9805-
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9601-9804
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-007-0	04	1	9805-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9601-9804
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	9805-
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9601-
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9601-9804
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-185-2	02	1	9805-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-269-1	02	1	9805-
30	BRACKET; ANCHOR,FRT	1-47137-119-1	01	1	9601-9804
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-119-3	01	1	9805-
30	BRACKET; ANCHOR,FRT	1-47137-118-1	01	1	9601-9804
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-118-3	01	1	9805-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-149-0	02	1	9805-9901
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-435-0	02	1	9902-
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9601-9804
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	02	1	9805-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50051-235-0	04	1	9805-0906
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	0907-
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9601-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9601-0512
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0601-
45	WASHER; LK	1-47133-011-0	02	1	9601-
46	PLATE; LOCK	1-47133-005-0	02	1	9601-
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9601-9804
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-051-0	01	1	9805-
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9601-9804
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-052-0	01	1	9805-
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9601-9804
48	RING; SPACER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	02	1	9805-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	9601-9804
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	01	1	9805-0512
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9601-9804
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9805-0512
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9601-9804
50	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	02	1	9805-
51	COLLAR; RING,CM/SHF	1-47143-003-0	02	1	9601-9708
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	9709-9804
51	COLLAR; RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-016-0	02	1	9805-
52	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9601-9804
52	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	02	1	9805-
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	9601-9804
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-044-0	01	1	9805-
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	9601-9804
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-043-0	01	1	9805-
54	SPACER; CM/SHF	1-47143-004-0	02	1	9601-9804
54	SPACER; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-004-0	02	1	9805-
55	PLATE; STOPPER,CM/SHF	1-47149-021-0	02	1	9601-9804
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-021-0	02	1	9805-
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	9601-9804
56	CLIP; ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	02	1	9805-
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-9804
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	9805-0512
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9601-9804
58	PIN; SPLIT,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	9805-0606
58	PIN; SPLIT,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	0-81124-028-0	02	1	0607-
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9601-9804
59	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	02	1	9805-
60	JOINT; JAW,POWER CHAMBER	1-09768-060-0	02	1	9601-9804
60	JOINT; JAW,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-1	02	1	9805-
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9601-9804
61	PIN; JAW JOINT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	9805-
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9601-9804
62	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9805-0512
62	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	0601-
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9601-9804
63	NUT; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	04	1	9805-0512
63	NUT; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91110-516-0	04	1	0601-
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	9601-9804
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	04	1	9805-0603
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-516-0	04	1	0604-
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9601-9804
109	BUSHING; CM/SHF,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	04	1	9805-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
