Isuzu WW
▶
BUSES
▶
MT
▶
10969 - MT133/FTR(FRAME BUS) RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

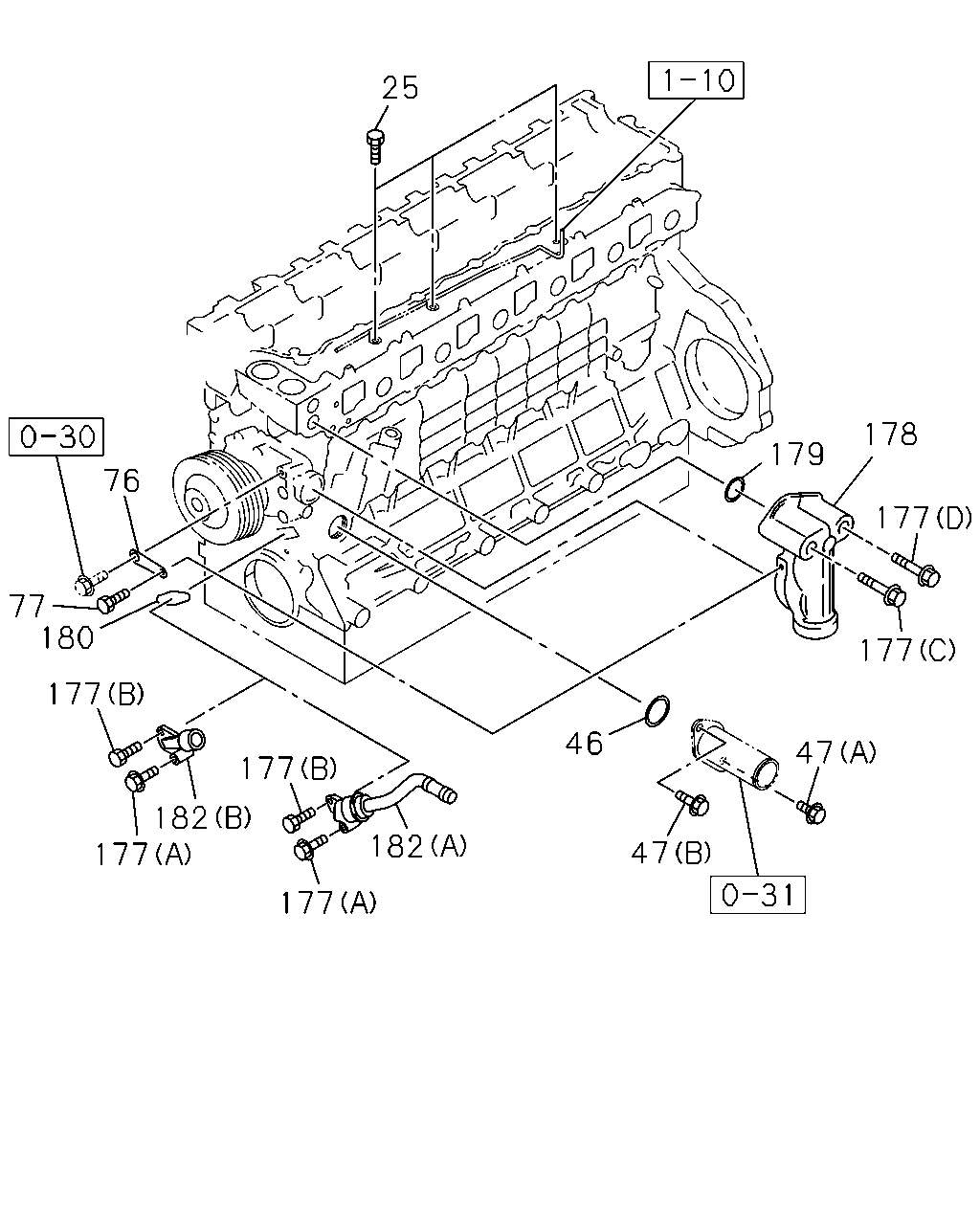

0-32 — WATER PIPING; ENGINE
(#64926) — 23 parça
177
182
177
182
177
177
180
77
76
25
178
179
177
177
46
47
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BOLT; WATER PIPE
M8X12 FLANGE
0-28080-812-0
03
1
0504-0512
25
BOLT; WATER PIPE
M8X12 FLANGE
0-28050-812-0
03
1
0601-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
0504-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE
0-28080-845-0
01
1
0504-0512
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE
0-28050-845-0
01
1
0601-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE
0-28680-825-0
01
1
0504-0512
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE
0-28650-825-0
01
1
0601-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
0504-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28080-850-0
01
1
0504-0512
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
0601-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28080-880-0
01
1
0504-0512
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28050-880-0
01
1
0601-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28680-825-0
01
1
0504-0512
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
0601-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
0504-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
0504-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
0504-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
0504-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
0504-
182
DUCT; WATER,HTR
BUS CHASSIS(FTA0AA) (B)
8-94390-283-0
01
1
1412-
182
DUCT; WATER,HTR
(A)
8-94396-724-4
01
1
0504-1411
182
DUCT; WATER,HTR
LEAF SUSPENSION(MTA0AA) (A)
8-94396-724-4
01
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
