Isuzu WW
▶
BUSES
▶
MT
▶
10969 - MT133/FTR(FRAME BUS) RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#64917) — 47 parça
◀

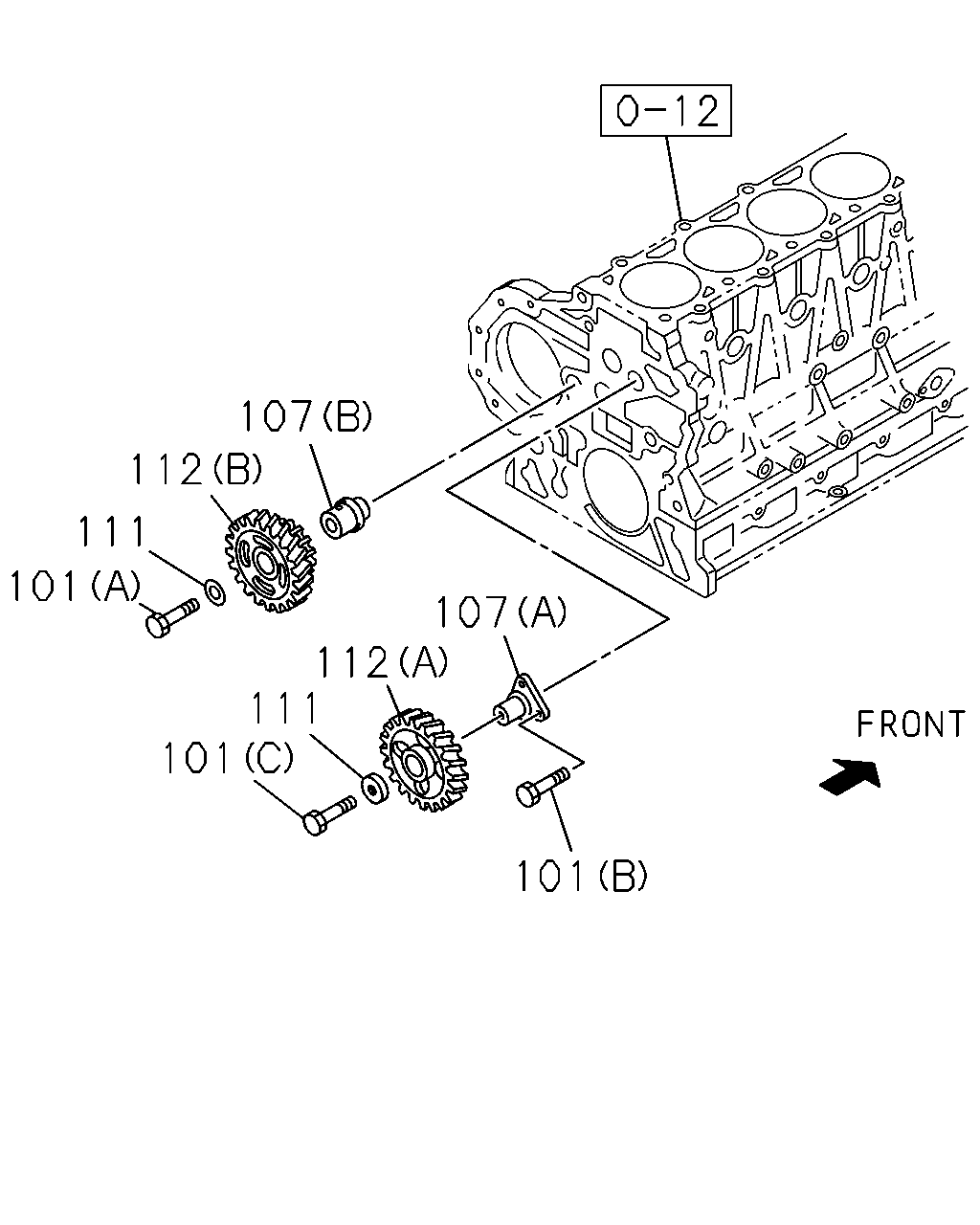

[014A] FIXING;IDLE GEAR (13 parça)

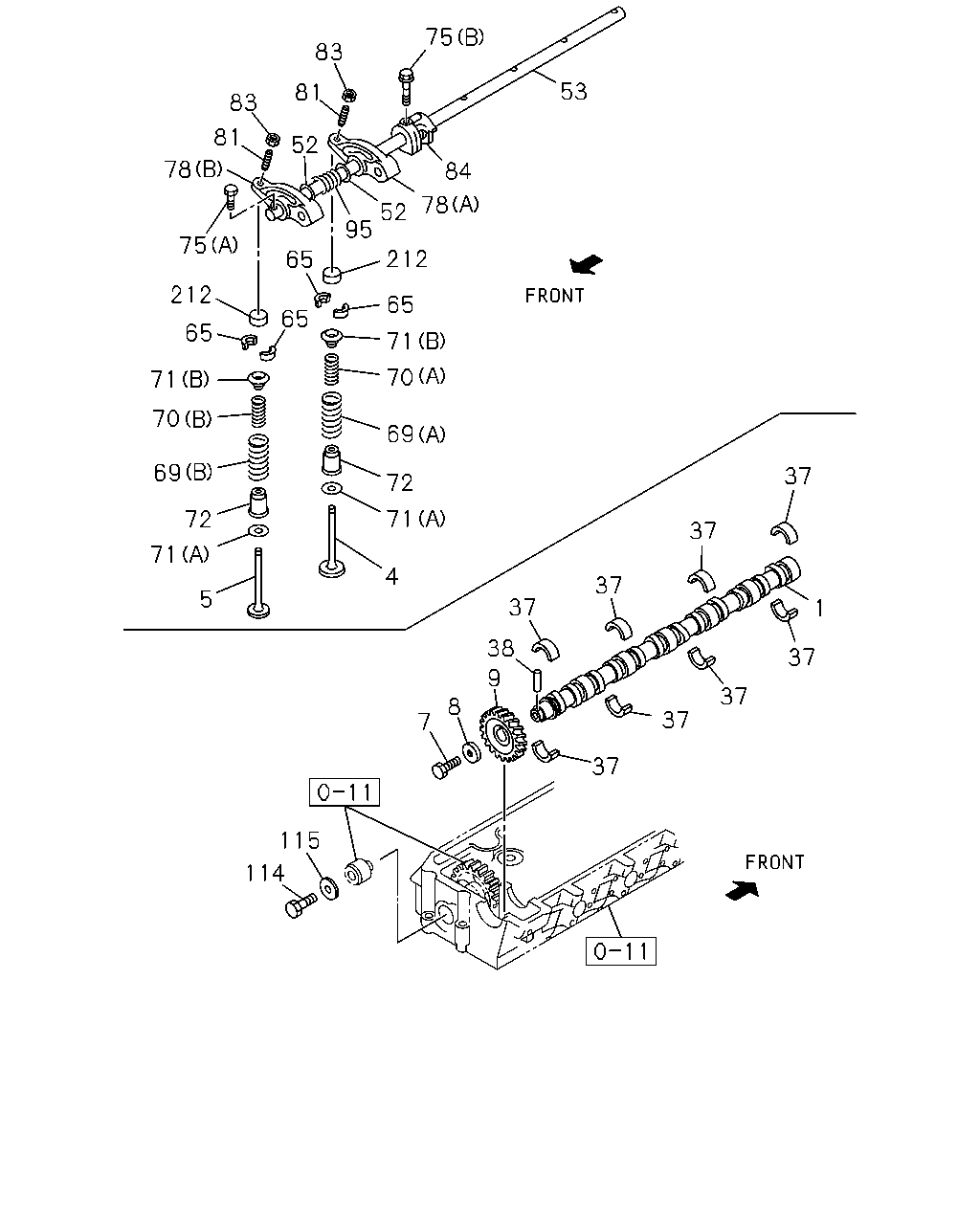

[014A] VALVE AND CAMSHAFT (34 parça)
▶
107
112
111
101
107
112
111
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28090-816-0
03
1
0504-0512
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
0601-
101
BOLT; THRUST COLLAR
(A) M14X60
9-91666-460-0
01
1
0504-0512
101
BOLT; THRUST COLLAR
(A) M14X60
0-16956-460-0
01
1
0601-
101
BOLT; THRUST COLLAR
(C) M14X30
9-92361-430-0
01
1
0504-0512
101
BOLT; THRUST COLLAR
(C) M14X30
0-23951-430-0
01
1
0601-
107
SHAFT; IDLE GEAR
(B)
8-97104-380-0
01
1
0504-0609
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
0610-
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
0504-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
02
1
0504-
112
GEAR; IDLE
(B) Z=72-30
8-94395-107-1
01
1
0504-0609
112
GEAR; IDLE
(B) Z=72-30
8-97227-074-0
01
1
0610-
112
GEAR; IDLE
(A) Z=61
8-97094-546-2
01
1
0504-
53
75
83
81
83
81
78
75
212
65
71
70
69
72
71
5
52
65
65
95
52
84
78
212
65
71
70
69
72
71
4
114
115
7
8
9
38
37
37
37
37
37
37
37
37
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-94395-576-2
01
1
0504-1311
1
CAMSHAFT
8-98227-259-1
01
1
1312-
4
VALVE; INL
8-94394-160-2
06
1
0504-
5
VALVE; EXH
8-94395-462-2
06
1
0504-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
0504-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
0504-
9
GEAR; CM/SHF
Z=35
8-97094-440-2
01
1
0504-
37
METAL; CM/SHF
UPPER B=16
8-97356-939-0
04
1
0504-0706
37
METAL; CM/SHF
UPPER B=16
8-97386-189-0
04
1
0707-
37
METAL; CM/SHF
LOWER B=22
8-97602-698-0
04
1
0504-
38
PIN; CAM BRG SET
OD=7 L=7.5
8-94399-487-0
01
1
0504-
52
WASHER; ROCKER ARM SHAFT
8-94362-105-0
12
1
0504-
53
SHAFT; ROCKER ARM
8-94393-984-4
01
1
0504-
65
COLLAR; SPLIT
5-12565-006-0
24
1
0504-
69
SPRING; VLV,OUTER
(B) EXHAUST MARK YELLOW
8-94393-310-0
06
1
0504-
69
SPRING; VLV,OUTER
(A) INLET MARK PINK
8-97120-912-0
06
1
0504-
70
SPRING; VLV,INNER
(B) EXHAUST MARK YELLOW
8-94397-500-0
06
1
0504-
70
SPRING; VLV,INNER
(A) INLET MARK PINK
8-97120-911-0
06
1
0504-
71
SEAT; SPR
(B) OD=38
8-94385-029-2
12
1
0504-
71
SEAT; SPR
(A) ID=14.3 T=0.5
8-94396-014-0
12
1
0504-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94396-609-2
12
1
0504-
75
BOLT; BRKT
(A) M8X35 FLANGE
0-28080-835-0
02
1
0504-0512
75
BOLT; BRKT
(A) M8X35 FLANGE
0-28050-835-0
02
1
0601-
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
0504-
78
ARM; ROCKER
(B) EXHAUST JBK
8-97014-258-2
06
1
0504-
78
ARM; ROCKER
(A) INLET JBK
8-97074-614-1
06
1
0504-
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
0504-
83
NUT; ADJ SCREW,LK
M10
9-09111-410-0
12
1
0504-0512
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
12
1
0601-
84
BRACKET; ROCKER SHAFT,INTER
JBK
8-94388-109-3
05
1
0504-
95
SPRING; ROCKER SHAFT
JBK
8-94397-263-0
06
1
0504-
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
0504-
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
01
1
0504-
212
CAP; ADJ SCREW
8-94396-015-2
12
1
0504-
