Isuzu WW
▶
BUSES
▶
MT
▶
10969 - MT133/FTR(FRAME BUS) RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

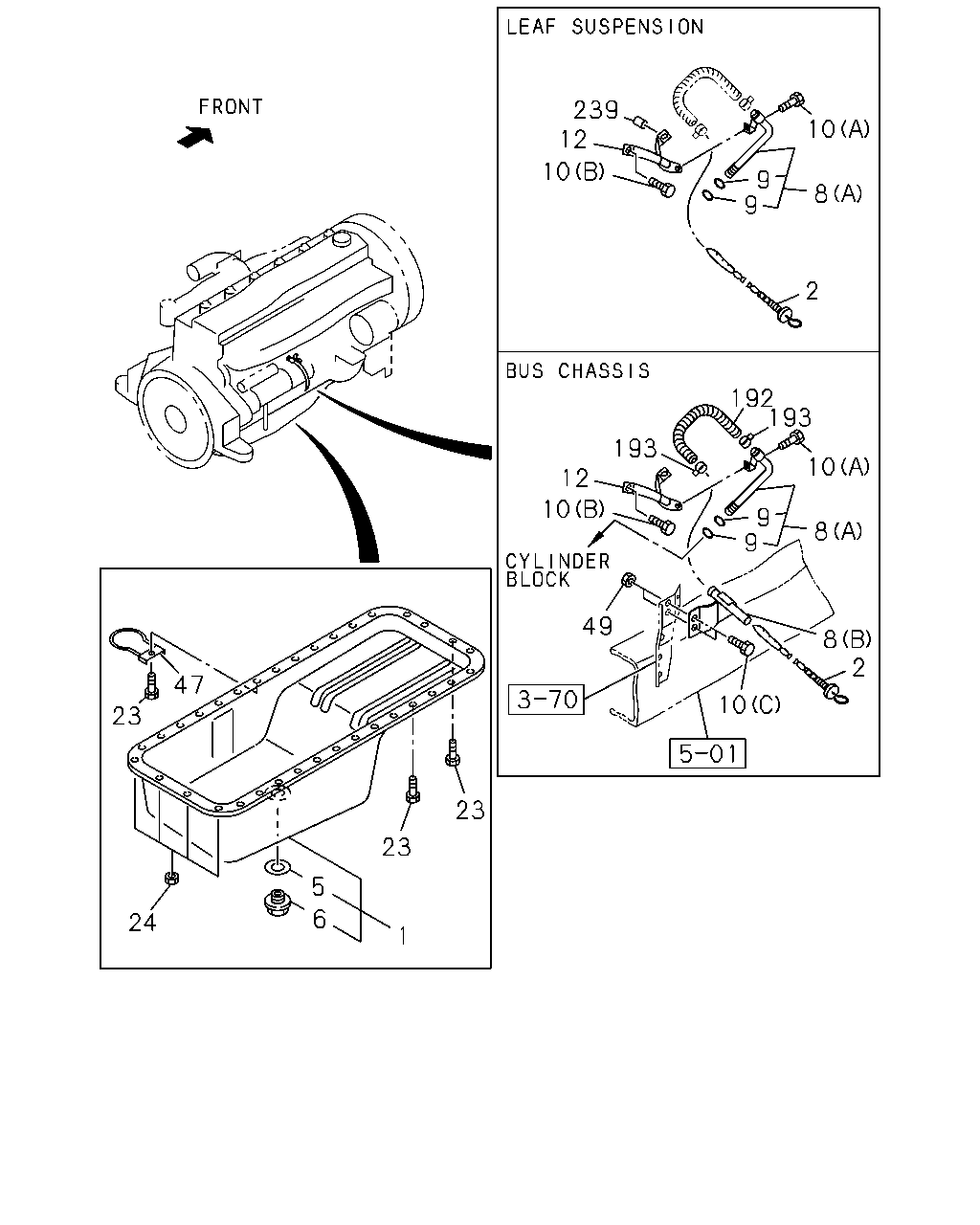

0-13 — OIL PAN AND LEVEL GAUGE
(#64916) — 24 parça
239
12
10
10
8
9
9
2
192
193
193
12
10
49
10
8
8
9
9
10
2
23
23
1
5
6
24
23
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-94395-861-1
01
1
0504-
2
GAUGE; OIL LEVEL
1-11760-396-1
01
1
0504-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0504-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0504-
8
TUBE; GUIDE,OIL LEVEL GAUGE
BUS CHASSIS(FTA0AA) (B)
1-11766-453-0
01
1
1412-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-94395-114-3
01
1
0504-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0504-
10
BOLT; GUIDE TUBE
BUS CHASSIS(FTA0AA) (C) M8X20 FLANGE
0-28650-820-0
02
1
1412-
10
BOLT; GUIDE TUBE
(B) M8X12 FLANGE
0-28080-812-0
01
1
0504-0512
10
BOLT; GUIDE TUBE
(B) M8X12 FLANGE
0-28050-812-0
01
1
0601-
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28080-816-0
01
1
0504-0512
10
BOLT; GUIDE TUBE
(A) M8X16 FLANGE
0-28050-816-0
01
1
0601-
10
BOLT; GUIDE TUBE
(B) M8X30 FLANGE
0-28080-830-0
01
1
0504-0512
10
BOLT; GUIDE TUBE
(B) M8X30 FLANGE
0-28050-830-0
01
1
0601-
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-94395-150-0
01
1
0504-
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
30
1
0504-
24
NUT; OIL PAN
M8 FLANGE
0-91150-108-0
04
1
0504-0602
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
0603-
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
0504-1506
47
CLIP; HOSE,AIR BREATHER
8-98303-447-0
01
1
1507-
49
NUT; GUIDE TUBE
BUS CHASSIS(FTA0AA) M8 FLANGE
0-91180-108-0
02
1
1412-
192
HOSE; GUIDE TUBE
BUS CHASSIS(FTA0AA) L=300
1-09360-978-0
01
1
1412-
193
CLIP; HOSE,GUIDE TUBE
BUS CHASSIS(FTA0AA) ID=17
1-09707-158-0
02
1
1412-
239
SPACER; BRKT
8-94313-327-0
01
1
0504-
