0-66 — GENERATOR (#6491) — 90 parça

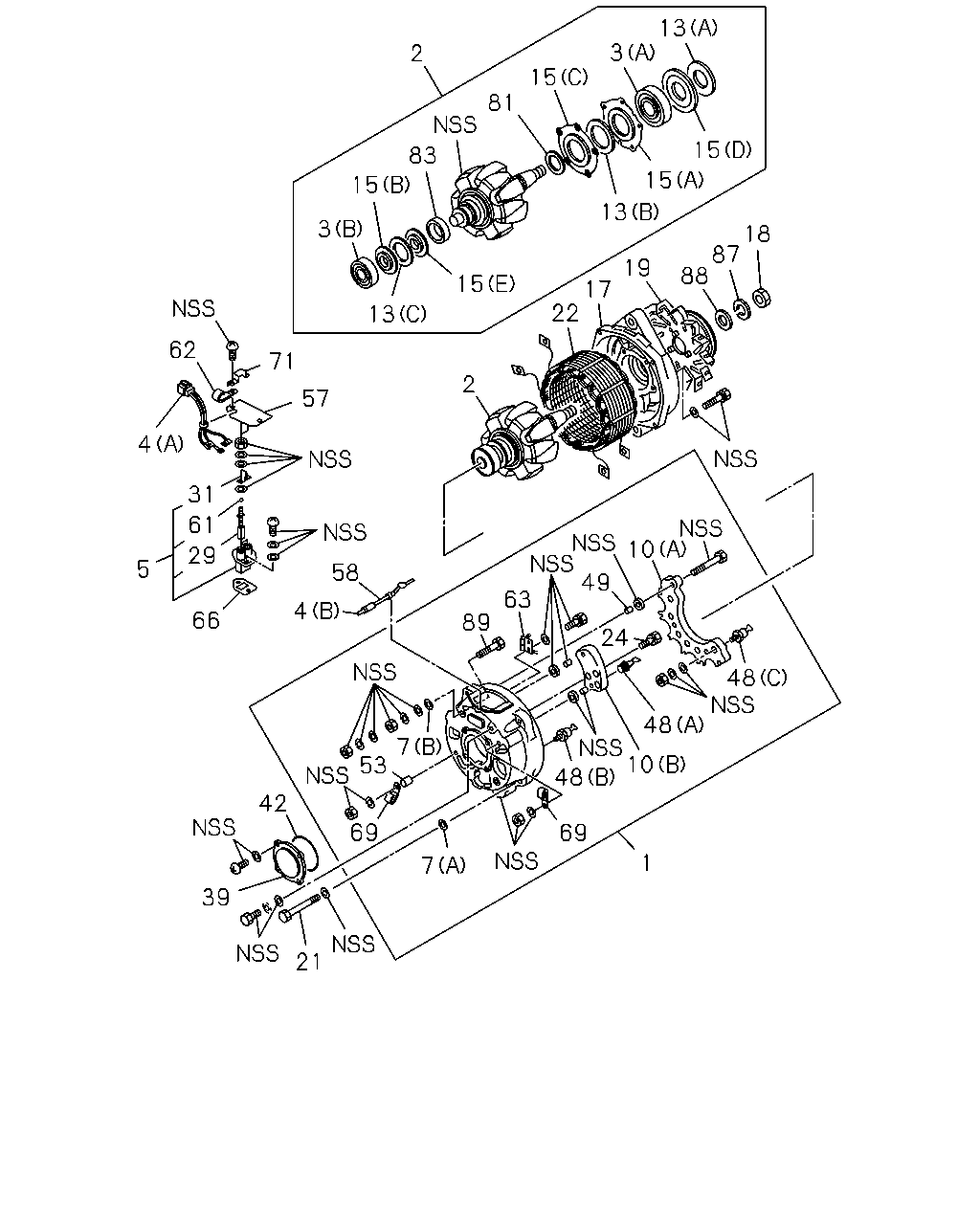

çizim 8734
13 3 2 15 81 15 83 15 15 13 3 18 87 88 19 15 17 22 13 62 71 2 57 4 31 61 49 10 29 5 58 63 4 66 89 24 48 7 53 48 10 48 42 69 69 1 7 39 21
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 1-81200-396-3 		1-81214-260-0 01 1 -
1 COVER ASM; RR,GEN
ASM PART: B = 1-81200-557-0 		1-81214-372-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 1-81200-396-3 		1-81221-082-0 01 1 -
2 ROTOR; GEN
ASM PART: B = 1-81200-557-0 		1-81221-107-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 1-81200-396-3 		1-81229-584-0 01 1 -
3 BEARING; ROTOR,GEN
(B) ASM PART: A = 1-81200-396-3 		1-81229-585-0 01 1 -
3 BEARING; ROTOR,GEN
ASM PART: B = 1-81200-557-0 		1-81229-861-0 01 1 -
3 BEARING; ROTOR,GEN
ASM PART: B = 1-81200-557-0 		1-81229-862-0 01 1 -
4 TERMINAL; BRUSH,GEN
(B) ASM PART: A = 1-81200-396-3 		1-81229-213-0 01 1 -
4 TERMINAL; BRUSH,GEN
(A) ASM PART: A = 1-81200-396-3 		1-81229-717-0 01 1 -
4 TERMINAL; BRUSH,GEN
ASM PART: B = 1-81200-557-0 		1-81229-855-0 01 1 -
4 TERMINAL; BRUSH,GEN
ASM PART: B = 1-81200-557-0 		1-81229-856-0 01 1 -
5 HOLDER; BRUSH,GEN
ASM PART: A = 1-81200-396-3 		1-81217-022-0 01 1 -
7 WASHER; INSULATE,RECTIFIER,GEN
(A) ASM PART: A = 1-81200-396-3 		1-81229-182-0 08 1 -
7 WASHER; INSULATE,RECTIFIER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-851-0 01 1 -
7 WASHER; INSULATE,RECTIFIER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-864-0 02 1 -
7 WASHER; INSULATE,RECTIFIER,GEN
(B) ASM PART: A = 1-81200-396-3 		9-82215-475-0 02 1 -
9 COVER; FELT WASHER,ROTOR,GEN
ASM PART: B = 1-81200-557-0 		1-81229-876-0 01 1 -
10 RECTIFIER; GEN
(B) ASM PART: A = 1-81200-396-3 		1-81219-099-0 01 1 -9708
10 RECTIFIER; GEN
(A) ASM PART: A = 1-81200-396-3 		1-81219-100-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 1-81200-396-3 		1-81219-137-0 01 1 9709-
10 RECTIFIER; GEN
ASM PART: B = 1-81200-557-0 		1-81219-138-0 04 1 -
10 RECTIFIER; GEN
ASM PART: B = 1-81200-557-0 		1-81219-139-0 04 1 -
15 RETAINER; ROTOR,GEN
(B) ASM PART: A = 1-81200-396-3 		1-81229-174-0 01 1 -
15 RETAINER; ROTOR,GEN
(C) ASM PART: A = 1-81200-396-3 		1-81229-189-0 01 1 -
15 RETAINER; ROTOR,GEN
(A) ASM PART: A = 1-81200-396-3 		1-81229-190-0 01 1 -
15 RETAINER; ROTOR,GEN
(D) ASM PART: A = 1-81200-396-3 		1-81229-191-0 01 1 -
15 RETAINER; ROTOR,GEN
(E) ASM PART: A = 1-81200-396-3 		1-81229-193-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 1-81200-396-3 		1-81213-029-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: B = 1-81200-557-0 		1-81229-885-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: B = 1-81200-557-0 		1-81229-870-0 01 1 -
18 NUT; PULLEY,GEN
ASM PART: A = 1-81200-396-3 		9-82216-098-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 1-81200-396-3 		1-81222-108-0 01 1 -
19 PULLEY; GEN
ASM PART: B = 1-81200-557-0 		1-81222-167-0 01 1 -
21 BOLT; THROUGH,GEN
ASM PART: A = 1-81200-396-3 		1-81229-277-0 04 1 -
21 BOLT; THROUGH,GEN
ASM PART: B = 1-81200-557-0 		1-81229-869-0 04 1 -
22 STATOR; GEN
ASM PART: A = 1-81200-396-3 		1-81211-098-0 01 1 -
22 STATOR; GEN
ASM PART: B = 1-81200-557-0 		1-81211-133-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: B = 1-81200-557-0 		1-81212-023-0 01 1 -
23 COIL; ROTOR GEN
ASM PART: B = 1-81200-557-0 		1-81212-024-0 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: A = 1-81200-396-3 		1-81229-278-0 02 1 -
25 BUSHING; INSULATION TERMINAL
ASM PART: B = 1-81200-557-0 		1-81229-879-0 01 1 -
29 BRUSH; GEN
ASM PART: A = 1-81200-396-3 		1-81215-024-0 02 1 -
31 SHEET; BRUSH,GEN
ASM PART: A = 1-81200-396-3 		1-81229-297-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: A = 1-81200-396-3 		1-81214-075-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: B = 1-81200-557-0 		1-81214-371-0 01 1 -
39 COVER; END,RR COVER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-859-0 01 1 -
42 GASKET; RR COVER,GEN
ASM PART: A = 1-81200-396-3 		1-81229-749-0 01 1 -
42 GASKET; RR COVER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-860-0 01 1 -
45 WASHER; INSULATE,RR COVER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-866-0 02 1 -
48 DIODE; GEN
(B) ASM PART: A = 1-81200-396-3 		1-81218-002-0 03 1 -9708
48 DIODE; GEN
(C) ASM PART: A = 1-81200-396-3 		1-81218-005-0 06 1 -
48 DIODE; GEN
(A) ASM PART: A = 1-81200-396-3 		1-81218-007-0 06 1 -
49 BUSHING; RECTIFIER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-852-0 01 1 -
49 BUSHING; RECTIFIER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-854-0 08 1 -
49 BUSHING; RECTIFIER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-881-0 01 1 -
49 BUSHING; RECTIFIER,GEN
ASM PART: A = 1-81200-396-3 		9-82216-005-0 01 1 -9708
49 BUSHING; RECTIFIER,GEN
ASM PART: A = 1-81200-396-3 		9-82216-005-0 02 1 9709-
53 TUBE; RECTIFIER,GEN
ASM PART: A = 1-81200-396-3 		9-82215-739-0 04 1 -
57 COVER; BRUSH,GEN
ASM PART: A = 1-81200-396-3 		1-81214-076-0 01 1 -
62 CLIP; TERMINAL,BRUSH,GEN
ASM PART: A = 1-81200-396-3 		1-81118-011-0 01 1 -
63 RESISTOR; GEN
ASM PART: A = 1-81200-396-3 		1-81229-583-0 01 1 -
67 COLLAR; SPACE,GEN
ASM PART: B = 1-81200-557-0 		1-81229-853-0 01 1 -
69 CLIP; WIRE,GEN
ASM PART: A = 1-81200-396-3 		1-81229-220-0 02 1 -
69 CLIP; WIRE,GEN
ASM PART: B = 1-81200-557-0 		1-81229-882-0 02 1 -
70 CONDENSER; LEAD WIRE,GEN
ASM PART: B = 1-81200-557-0 		1-84132-013-0 01 1 -
70 CONDENSER; LEAD WIRE,GEN
ASM PART: B = 1-81200-557-0 		1-84132-014-0 01 1 -
70 CONDENSER; LEAD WIRE,GEN
ASM PART: B = 1-81200-557-0 		1-84132-015-0 01 1 -
71 HOLDER; TERMINAL,GEN
ASM PART: A = 1-81200-396-3 		1-81229-196-0 01 1 -
71 HOLDER; TERMINAL,GEN
ASM PART: B = 1-81200-557-0 		1-81229-850-0 16 1 -
71 HOLDER; TERMINAL,GEN
ASM PART: B = 1-81200-557-0 		1-81229-877-0 01 1 -
71 HOLDER; TERMINAL,GEN
ASM PART: B = 1-81200-557-0 		1-81229-878-0 01 1 -
77 SCREW; REG
ASM PART: B = 1-81200-557-0 		1-81229-868-0 04 1 -
77 SCREW; REG
ASM PART: B = 1-81200-557-0 		1-81229-883-0 04 1 -
79 WASHER; FELT,ROTOR,GEN
ASM PART: B = 1-81200-557-0 		1-81229-875-0 01 1 -
81 SPACER; ROTOR,GEN
ASM PART: A = 1-81200-396-3 		1-81229-194-0 01 1 -
83 RING; SLIP,ROTOR,GEN
ASM PART: A = 1-81200-396-3 		1-81224-015-0 01 1 -
85 SPACER; PULLEY,GEN
ASM PART: B = 1-81200-557-0 		1-81229-880-0 01 1 -
87 WASHER; PULLEY,GEN
ASM PART: A = 1-81200-396-3 		1-81229-672-0 01 1 -
88 WASHER; PL,PULLEY GEN
ASM PART: A = 1-81200-396-3 		1-81229-673-0 01 1 -
89 BOLT; RECTIFIER,GEN
ASM PART: A = 1-81200-396-3 		1-81229-278-0 01 1 -
89 BOLT; RECTIFIER,GEN
ASM PART: B = 1-81200-557-0 		1-81229-865-0 01 1 -
127 BOLT SET; GEN
ASM PART: B = 1-81200-557-0 		1-81229-872-0 01 1 -
127 BOLT SET; GEN
ASM PART: B = 1-81200-557-0 		1-81229-873-0 01 1 -
127 BOLT SET; GEN
ASM PART: B = 1-81200-557-0 		1-81229-874-0 01 1 -
130 CONNECTOR; GEN
ASM PART: B = 1-81200-557-0 		1-81229-849-0 04 1 -
130 CONNECTOR; GEN
ASM PART: B = 1-81200-557-0 		1-81229-857-0 01 1 -
130 CONNECTOR; GEN
ASM PART: B = 1-81200-557-0 		1-81229-858-0 01 1 -
136 CLAMP; GENERATOR
ASM PART: B = 1-81200-557-0 		1-81229-847-0 01 1 -
136 CLAMP; GENERATOR
ASM PART: B = 1-81200-557-0 		1-81229-848-0 02 1 -
