8-90 — RADIO AND TV (#64909) — 22 parça

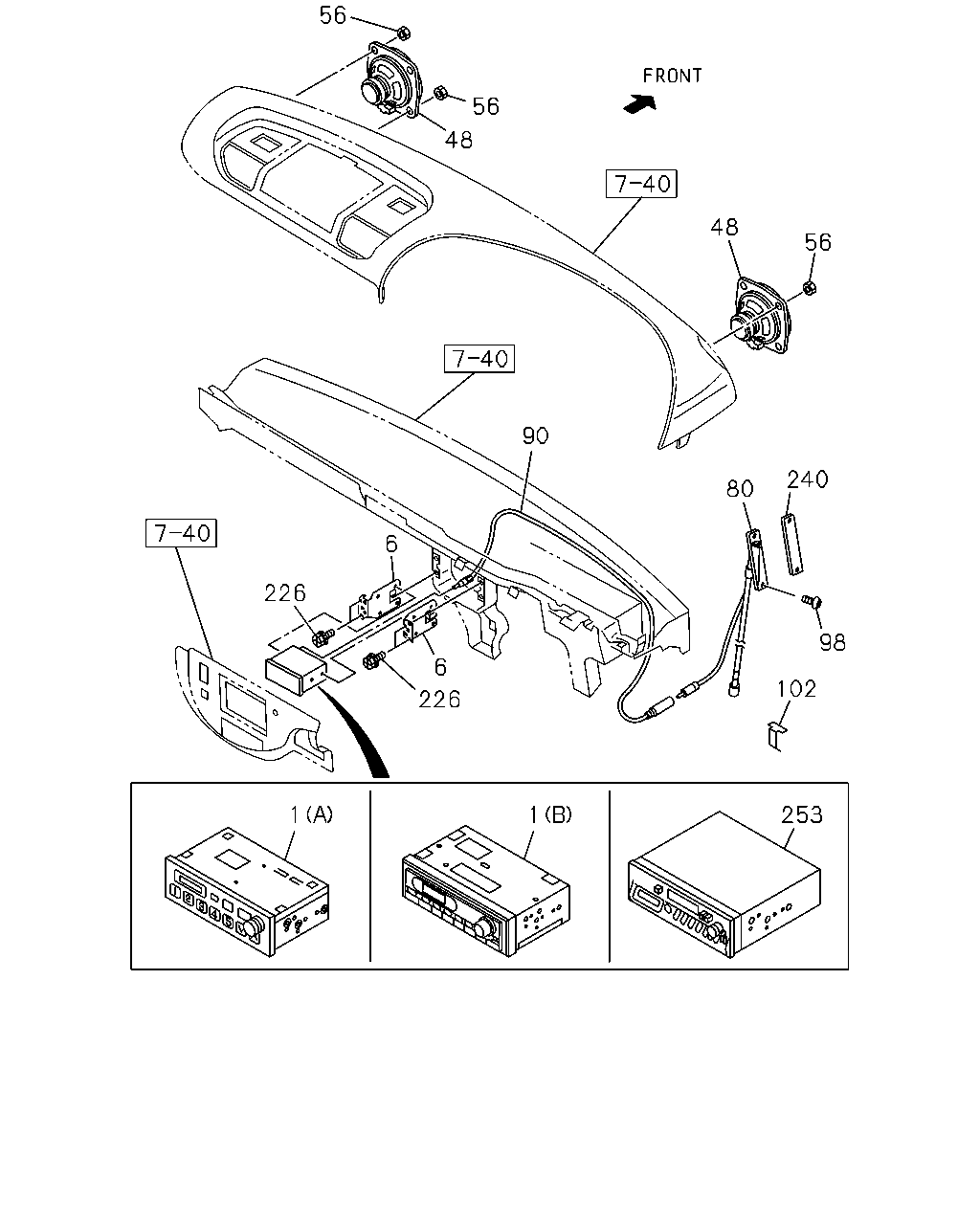

çizim 158365
56 56 48 48 56 240 80 90 6 226 6 226 1 1 253 102 98
BalonParca AdiParca NoAdetTipApplied Date
1 RADIO
RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		1-84112-063-0 01 1 0112-0702
1 RADIO
RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (B) CLARION AM/FM 		8-98029-605-0 01 1 0703-
6 BRACKET; RADIO TO PANEL
RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> 		1-65671-551-4 02 1 0112-0612
6 BRACKET; RADIO TO PANEL
RADIO CLARION<SK2>,RADIO AM/FM STEREO & TAPE PLAYER<UN3> 		1-65671-822-1 02 1 0701-
48 SPEAKER; AUDIO
RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-050-0 01 1 0112-0308
48 SPEAKER; AUDIO
RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-073-0 01 1 0309-0702
48 SPEAKER; AUDIO
RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-073-0 02 1 0703-0905
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> 		1-84114-073-0 02 1 0703-0905
48 SPEAKER; AUDIO
RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-98140-326-1 02 1 0906-
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> 		8-98140-326-1 02 1 0906-
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> 		1-84114-050-0 02 1 0112-0308
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION<SK2> 		1-84114-073-0 02 1 0309-0702
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION<SK2> EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703-
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703-
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 0112-1203
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-1 01 1 1204-
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 0112-
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 0112-
102 CLIP; CABLE
ANTENNA RADIO<U73> L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410-
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 04 1 0112-
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 0112-
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER<UN3> CLARION 		1-84122-032-3 01 1 0112-
