◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10832 - FSS(MALAYSIA)A/T ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#64906) — 105 parça

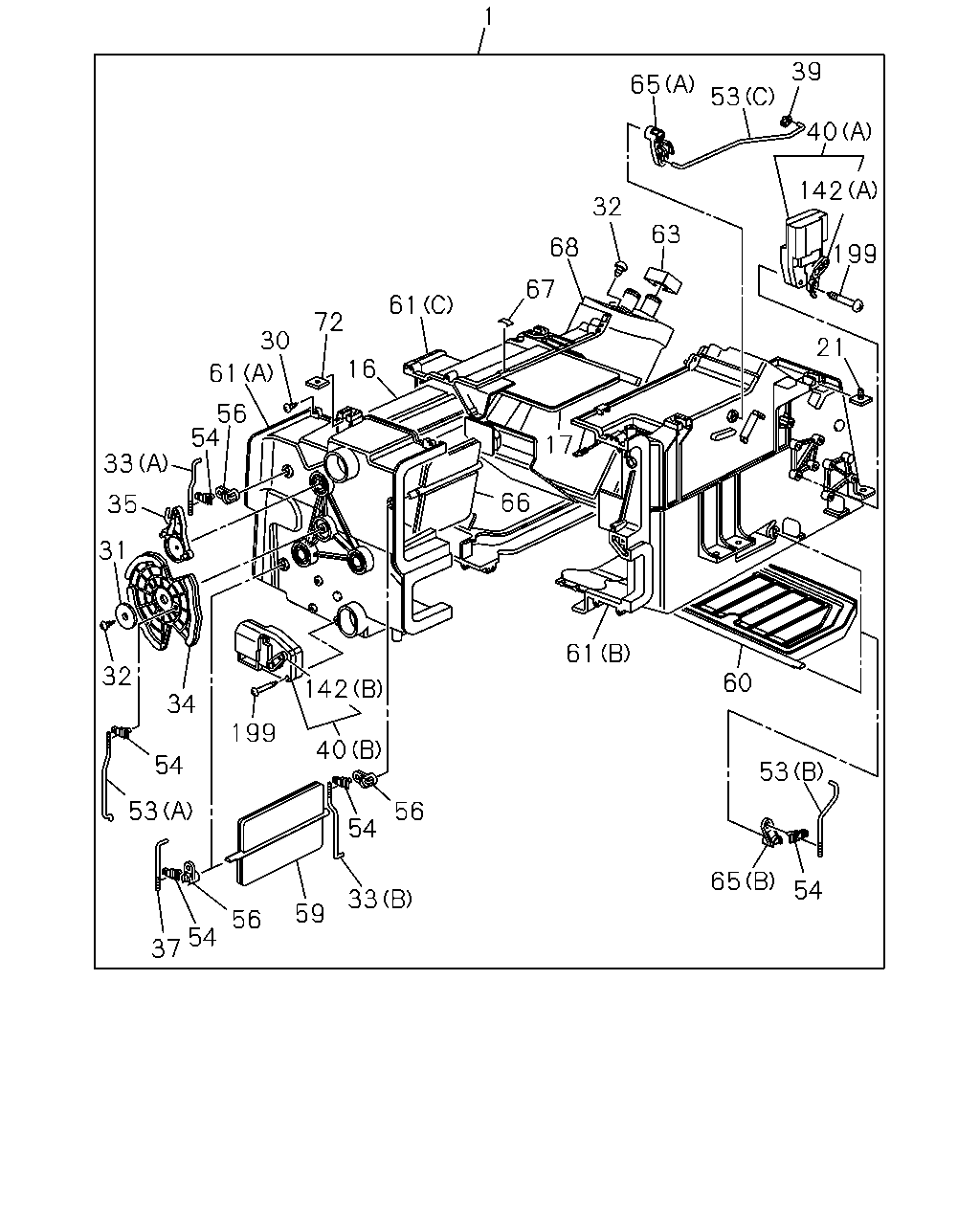

çizim 191321
1 39 65 53 40 142 32 63 68 199 67 61 72 30 21 16 61 56 54 17 33 66 35 31 61 32 60 142 34 199 40 54 53 53 56 54 65 54 33 59 56 54 37
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41) 		1-83511-175-1 01 1 0112-1409
1 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-476-0 01 1 1410-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83511-139-3 01 1 0112-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0112-
17 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41) 		1-83579-628-1 01 1 0112-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0112-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 MAL 		9-09829-324-1 01 1 0112-1409
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X16 		8-94248-820-0 01 1 1410-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 MAL 		8-94324-850-0 12 1 0112-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 MAL 		8-94324-850-0 11 1 0112-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL 		8-94129-950-0 01 1 0112-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 MAL 		9-09829-324-1 02 1 0112-1409
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X16 		8-94248-820-0 01 1 1410-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 MAL 		9-09829-324-1 01 1 0112-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		1-83579-621-0 01 1 0112-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0112-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0112-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-94389-502-1 03 1 0112-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0112-
37 ROD; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0112-
39 CLIP; HTR UNIT
HEATER & DEFROSTER(C41) MAL 		1-83574-136-0 01 1 0112-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-650-1 01 1 0112-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0112-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		1-83579-623-0 01 1 0112-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (C) 		1-83579-624-0 01 1 0112-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0112-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-94248-794-0 05 1 0112-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0112-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		1-83564-325-0 03 1 0112-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0112-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0112-
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41) 		1-83578-084-0 01 1 0112-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98299-713-0 01 1 1410-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98299-715-0 01 1 1410-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0112-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0112-1409
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 1410-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0112-1409
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 1410-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83579-557-0 02 1 0112-
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0112-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) (A) 		1-83564-327-0 01 1 0112-
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41) (B) 		1-83564-328-1 01 1 0112-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0112-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0112-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83562-078-1 01 1 0112-1409
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0112-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41) (A) 		1-83564-414-0 01 1 0112-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0112-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41) 		8-94348-809-0 04 1 0112-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0112-

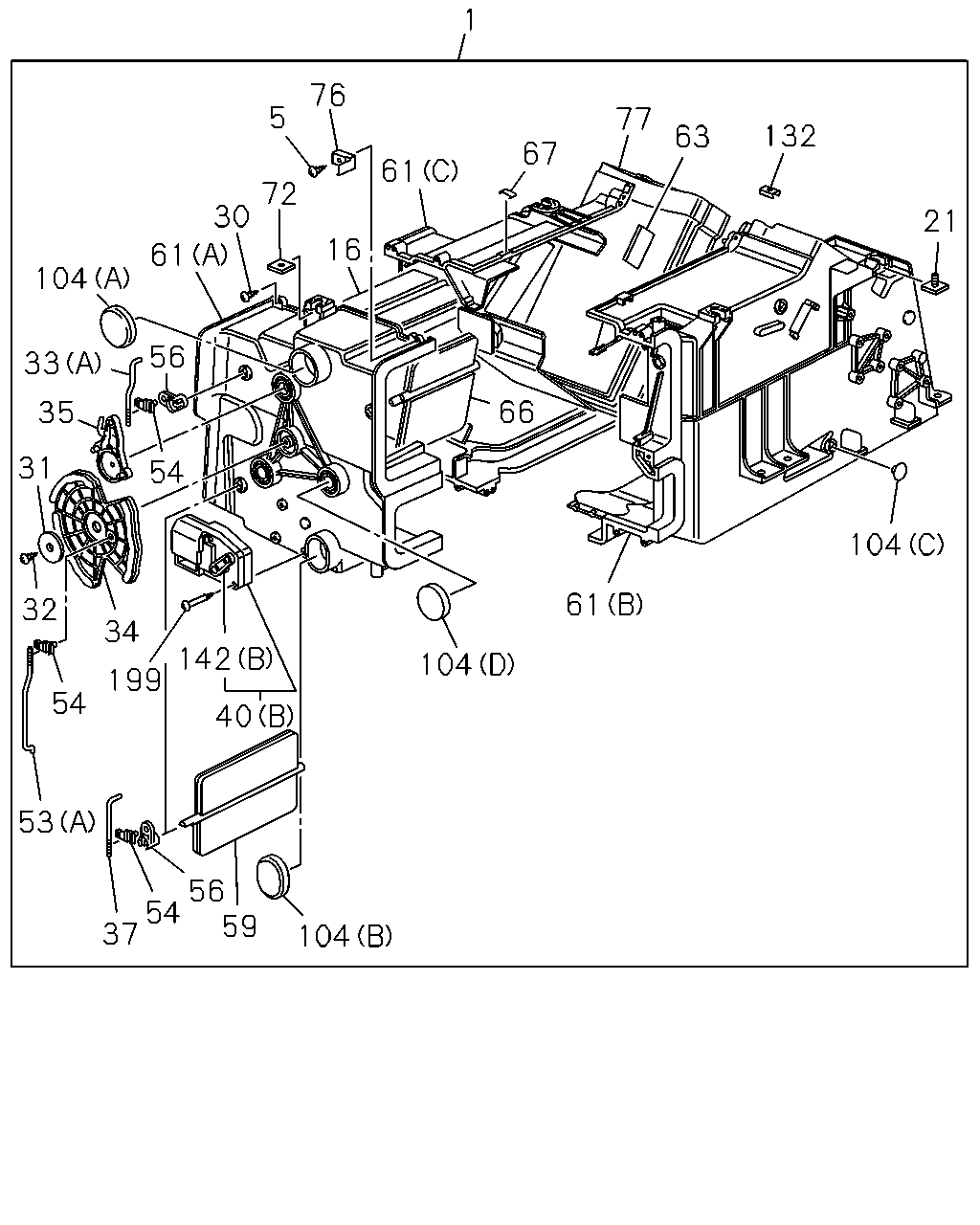

çizim 191324
1 76 5 77 132 63 67 61 72 30 21 16 61 104 56 33 66 35 31 54 104 61 32 34 142 104 199 54 40 53 56 54 59 37 104
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
HEATER & DEFROSTER(C41) 		1-83511-175-1 01 1 0112-1409
1 HEATER UNIT
HEATER & DEFROSTER(C41) 		8-98238-476-0 01 1 1410-
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83511-139-3 01 1 0112-
5 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 MAL 		8-94324-850-0 01 1 0112-
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-625-1 01 1 0112-
21 BOLT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 02 1 0112-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 MAL 		9-09829-324-1 01 1 0112-1409
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X16 		8-94248-820-0 01 1 1410-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 MAL 		8-94324-850-0 12 1 0112-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 MAL 		8-94324-850-0 11 1 0112-
31 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL 		8-94129-950-0 01 1 0112-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X20 MAL 		9-09829-324-1 02 1 0112-1409
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M5X16 		8-94248-820-0 01 1 1410-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 MAL 		9-09829-324-1 01 1 0112-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		1-83579-621-0 01 1 0112-
33 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-619-0 01 1 0112-
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-326-0 01 1 0112-
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		8-94389-502-1 03 1 0112-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94389-502-1 02 1 0112-
37 ROD; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-620-1 01 1 0112-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		1-83579-650-1 01 1 0112-
40 ACTUATOR; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-649-1 01 1 0112-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (B) 		1-83579-623-0 01 1 0112-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41) (C) 		1-83579-624-0 01 1 0112-
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-622-0 01 1 0112-
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41) 		8-94248-794-0 05 1 0112-
54 CLIP; SHUTTER LEVER
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 03 1 0112-
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41) 		1-83564-325-0 03 1 0112-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-325-0 02 1 0112-
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-626-2 01 1 0112-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (B) 		8-98299-713-0 01 1 1410-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98299-715-0 01 1 1410-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-346-3 01 1 0112-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 0112-1409
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-401-0 01 1 1410-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 0112-1409
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-402-0 01 1 1410-
63 LINING; HTR UNIT
HEATER & DEFROSTER(C41) 		1-83579-557-0 02 1 0112-
63 LINING; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83578-033-0 01 1 0112-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-627-0 01 1 0112-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 01 1 0112-
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-659-4 02 1 0112-
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-194-0 01 1 0112-
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) MAL 		8-97102-661-0 01 1 0112-
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-617-0 01 1 0112-
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-618-0 01 1 0112-
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) MAL 		8-94328-657-0 04 1 0112-
104 CAP; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) MAL 		8-94387-703-0 01 1 0112-
132 BRACKET; HTR CORE
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83573-195-0 01 1 0112-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41) (A) 		1-83564-414-0 01 1 0112-
142 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-345-1 01 1 0112-
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C41) 		8-94348-809-0 04 1 0112-
199 SCREW; ACTUATOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 0112-
