Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

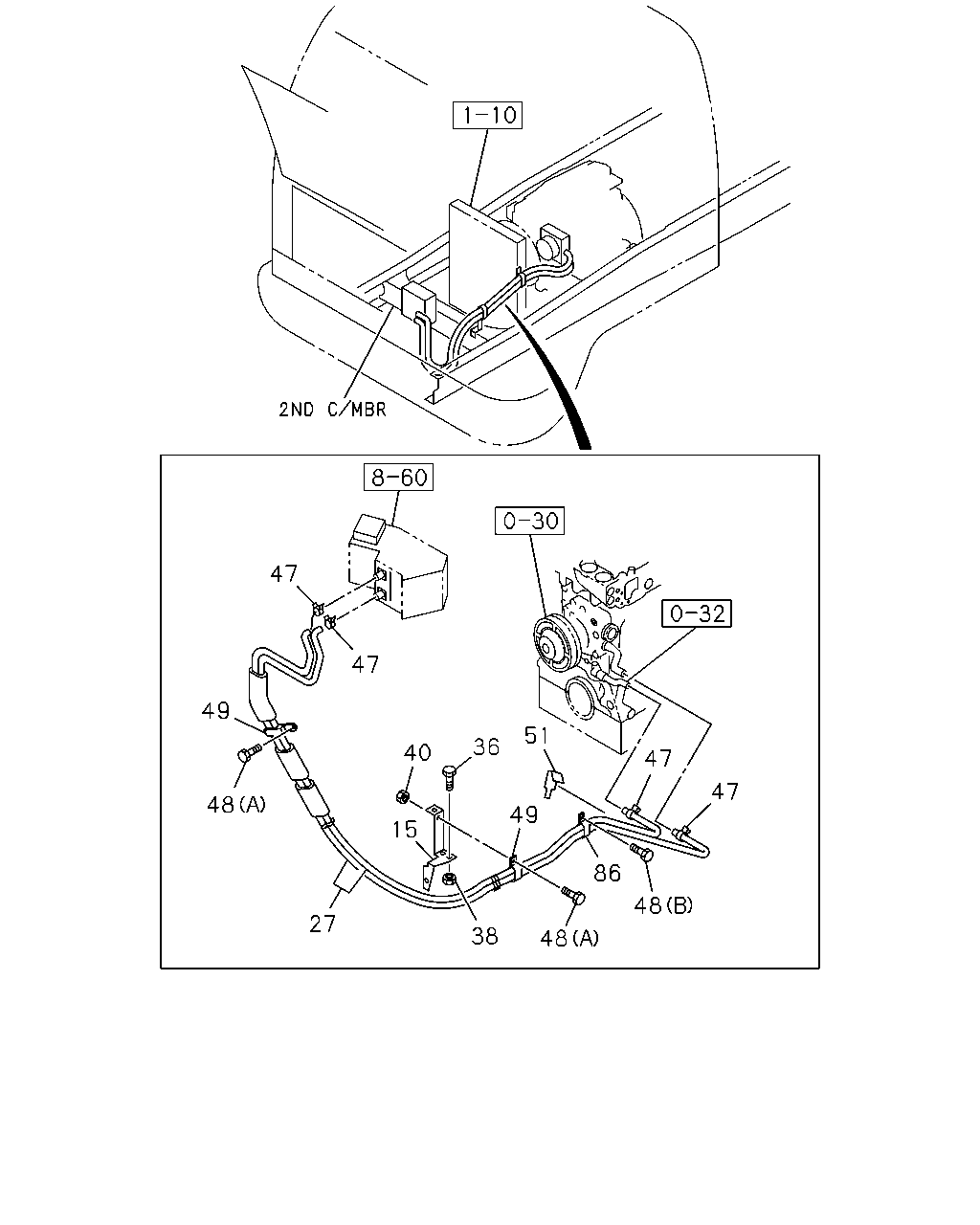

8-45 — HEATER PIPING
(#64904) — 17 parça
47
47
49
51
36
47
40
47
48
49
15
86
48
27
38
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
1-83571-844-2
01
1
0112-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
1-83565-748-0
01
1
0112-
36
BOLT; BRKT
M8X25 FLANGE MAL
0-28680-825-0
02
1
0112-0512
36
BOLT; BRKT
M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
38
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0112-0602
38
NUT; BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
40
NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE
0-91150-108-0
01
1
0112-0602
40
NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE MAL
0-91180-108-0
01
1
0603-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22
8-94382-401-0
04
1
0112-1003
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22
8-97359-141-0
04
1
1004-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE MAL
0-28680-820-0
03
1
0112-0512
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE MAL
0-28650-820-0
03
1
0601-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) (B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0112-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25
1-09700-710-0
03
1
0112-
51
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) L=170
1-83574-139-0
01
1
0112-1205
51
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) L=170
8-98166-021-0
01
1
1206-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41)
1-83571-049-1
01
1
0112-
