8-28 — CHASSIS ELECTRICAL (#64902) — 67 parça

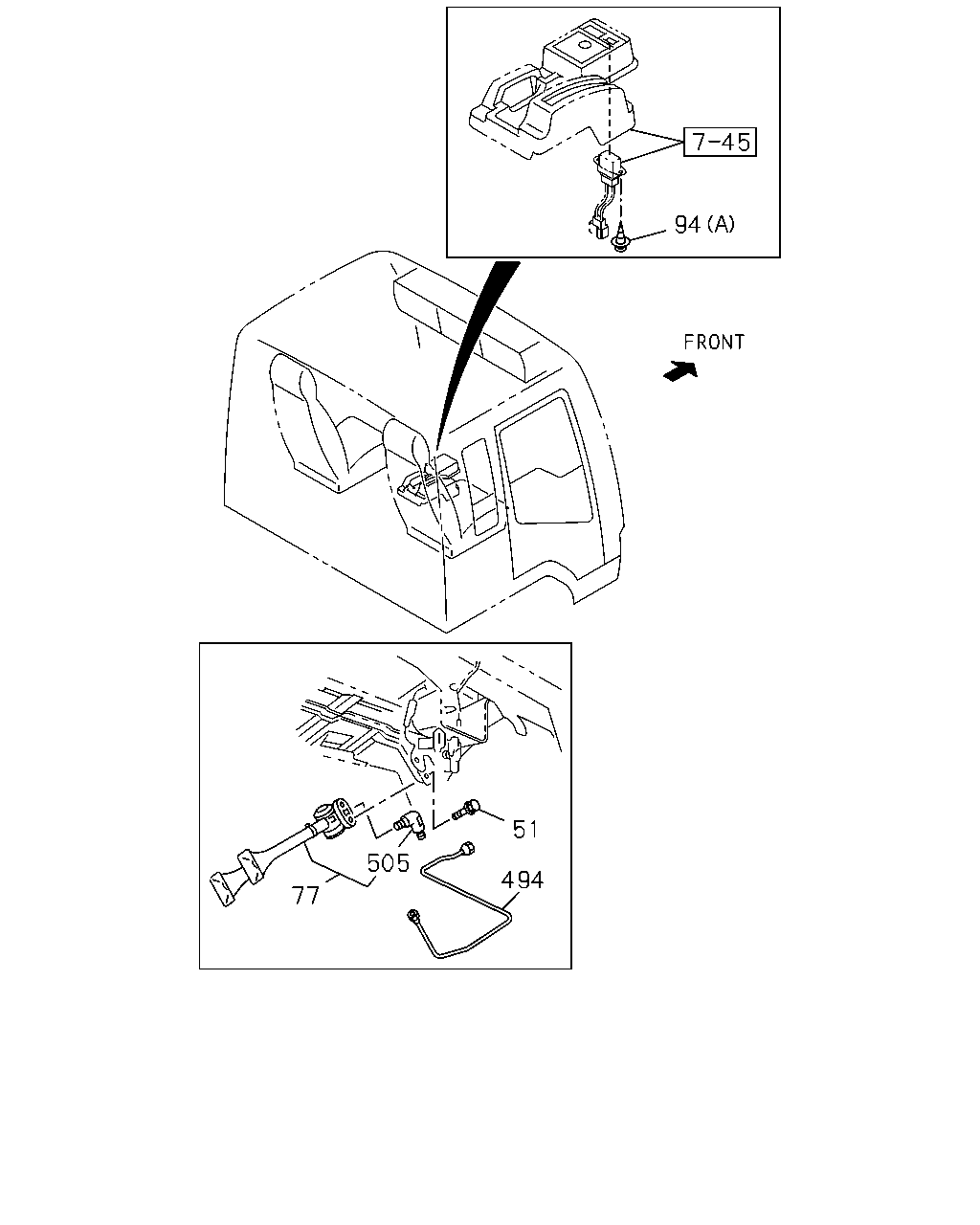

çizim 143647
94 51 505 494 77
BalonParca AdiParca NoAdetTipApplied Date
51 BOLT; HORN TO BRKT
M8X20 FLANGE MAL 		0-28680-820-0 02 1 0112-0512
51 BOLT; HORN TO BRKT
M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
77 HORN ASM 1-83430-038-3 01 1 0112-
94 SCREW; CONSENT TO BLIND PNL
(A) M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0112-0604
94 SCREW; CONSENT TO BLIND PNL
(A) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605-
94 SCREW; CONSENT TO BLIND PNL
(B) M3X10 CK-HEAD 		9-93090-310-0 02 1 0112-
494 PIPE; AIR,UNION TO HORN 1-49115-750-0 01 1 0112-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0112-

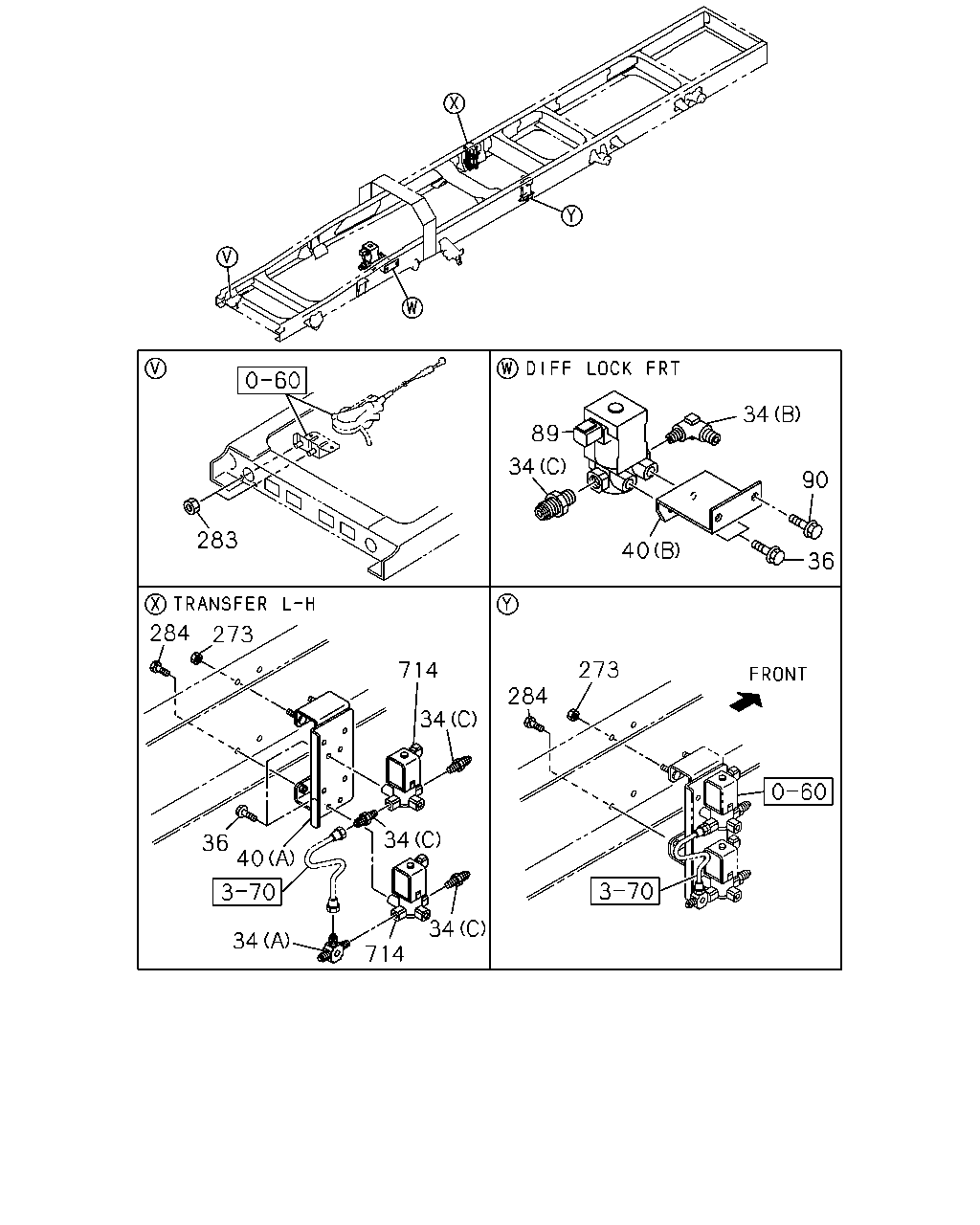

çizim 143855
34 89 34 90 283 40 36 284 273 273 714 284 34 34 36 40 34 34 714
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 ELBOW MAL 		1-09650-430-0 01 1 0112-
34 CONNECTOR; MAG VLV,INL PORT
(C) M12 & PT1/4 STRAIGHT MAL 		1-09650-074-1 03 1 0112-
34 CONNECTOR; MAG VLV,INL PORT
(C) M12 & PT1/4 STRAIGHT MAL 		1-09650-074-1 01 1 0112-
34 CONNECTOR; MAG VLV,INL PORT
(A) M12X2 & PT1/4 3WAY MAL 		1-09656-230-1 01 1 0112-
36 BOLT; MAG VLV,PTO CONT
M8X20 FLANGE MAL 		0-28680-820-0 04 1 0112-0512
36 BOLT; MAG VLV,PTO CONT
M8X20 FLANGE MAL 		0-28650-820-0 04 1 0601-
36 BOLT; MAG VLV,PTO CONT
M8X20 FLANGE MAL 		0-28680-820-0 02 1 0112-0512
36 BOLT; MAG VLV,PTO CONT
M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
40 BRACKET; MAG VLV
(A) 		1-47477-327-2 01 1 0112-
40 BRACKET; MAG VLV
(B) 		1-82569-259-0 01 1 0112-
89 VALVE; MAG,DIFF LOCK
MAL 		1-82563-602-6 01 1 0112-
90 BOLT; MAG VLV
M8X20 FLANGE MAL 		0-28680-820-0 02 1 0112-0512
90 BOLT; MAG VLV
M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
273 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 04 1 0112-0602
273 NUT; MAG VLV
M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
283 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
283 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
284 BOLT; MAG VLV
M8X25 FLANGE MAL 		0-28680-825-0 02 1 0112-0512
284 BOLT; MAG VLV
M8X25 FLANGE MAL 		0-28650-825-0 02 1 0601-
714 VALVE; MAG,TRANS,LOW TO HIGH 1-82563-598-5 02 1 0112-

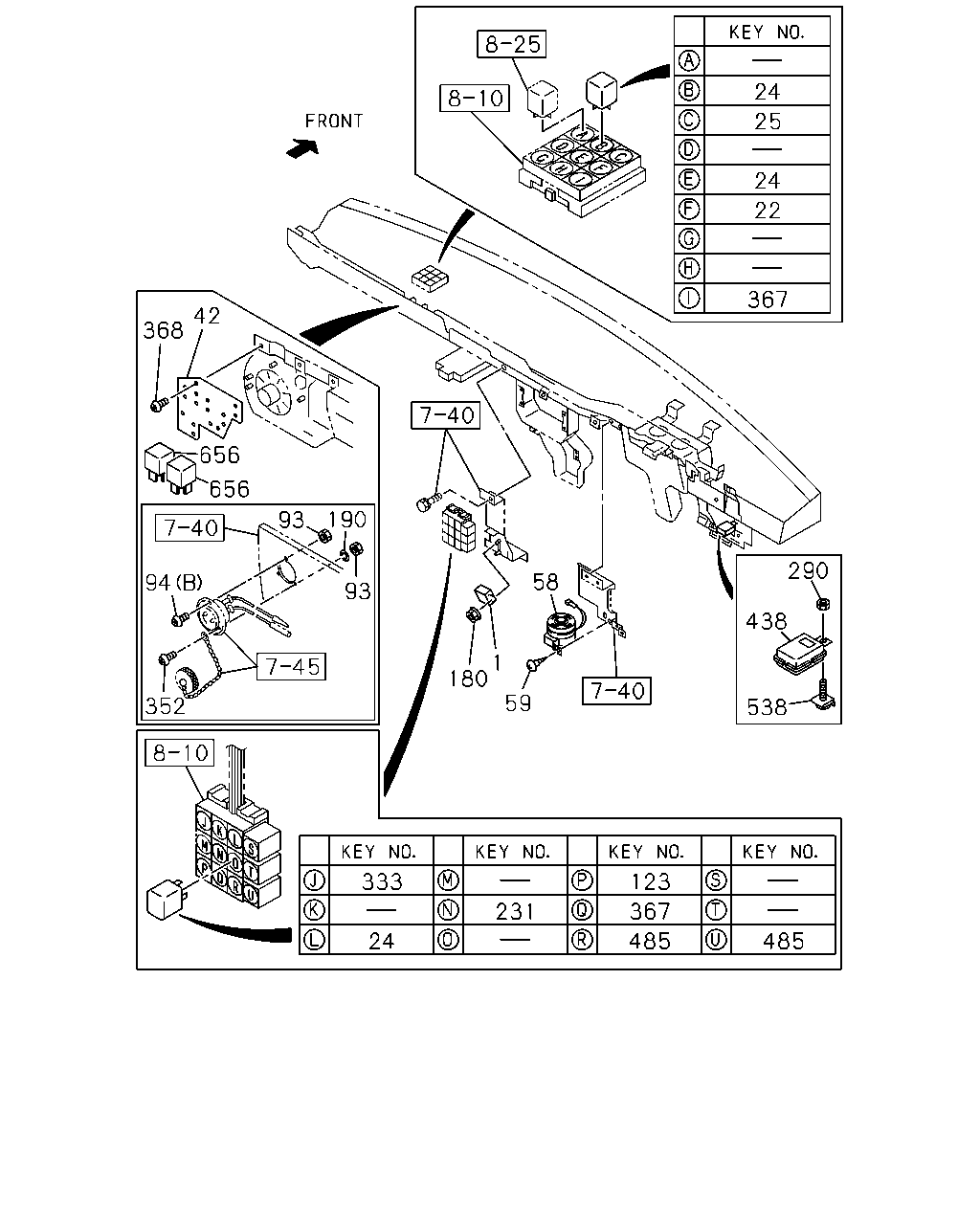

çizim 143992
24 25 24 22 367 42 368 656 656 190 93 290 58 94 93 438 1 180 352 59 538 123 333 231 367 24 485 485
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER
MAL 		1-83470-060-1 01 1 0112-
22 RELAY; STOP LAMP
24V 12.5A MITUBA MAL 		8-97062-815-1 01 1 0112-0112
22 RELAY; STOP LAMP
24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 0112-
24 RELAY; LIGHTING
24V 12.5A MITUBA MAL 		8-97062-815-1 01 1 0112-0112
24 RELAY; LIGHTING
24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 0112-
24 RELAY; LIGHTING
24V 12.5A MITUBA MAL 		8-97062-815-1 02 1 0112-0112
24 RELAY; LIGHTING
24V 12.5A PANASONIC MAL 		8-97262-933-0 02 1 0112-
25 RELAY; TAIL LAMP
24V 12.5A MITUBA MAL 		8-97062-815-1 01 1 0112-0112
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 0112-
42 BRACKET; RELAY 1-82699-833-1 01 1 0112-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-074-1 01 1 0112-0612
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-865-0 01 1 0701-
59 SCREW; BUZZER
M5X14 MAL 		8-94279-325-0 01 1 0112-
93 NUT; CONSENT TO BLIND PNL
M3 		9-99110-403-0 03 1 0112-
94 SCREW; CONSENT TO BLIND PNL
(A) M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0112-0604
94 SCREW; CONSENT TO BLIND PNL
(A) M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605-
94 SCREW; CONSENT TO BLIND PNL
(B) M3X10 CK-HEAD 		9-93090-310-0 02 1 0112-
123 RELAY; HTR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA MAL 		8-97062-815-1 01 1 0112-0112
123 RELAY; HTR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 0112-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0112-0602
180 NUT; FLASHER UNIT
M6 FLANGE MAL 		0-91180-106-0 01 1 0603-
190 WASHER
ID=3.1 		9-09150-503-0 01 1 0112-0604
190 WASHER
ID=3.1 		0-91510-503-0 01 1 0605-
231 RELAY; HAZARD
24V 12.5A MITUBA MAL 		8-97062-815-1 01 1 0112-0112
231 RELAY; HAZARD
24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 0112-
290 NUT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE 		0-91150-106-0 01 1 0112-0602
290 NUT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE MAL 		0-91180-106-0 01 1 0603-
333 RELAY; MARKER LAMP
24V 12.5A MITUBA MAL 		8-97062-815-1 01 1 0112-0112
333 RELAY; MARKER LAMP
24V 12.5A PANASONIC MAL 		8-97262-933-0 01 1 0112-
352 SCREW; BRKT
M3X10 		9-93490-310-0 01 1 0112-
367 RELAY; NEUTRAL
24V 12.5A MITUBA MAL 		8-97062-815-1 02 1 0112-0112
367 RELAY; NEUTRAL
24V 12.5A PANASONIC MAL 		8-97262-933-0 02 1 0112-
368 SCREW; RELAY FIX
M5X14 MAL 		8-94279-325-0 03 1 0112-
438 UNIT; SPD CONTROL 1-82550-271-0 01 1 0112-
485 RELAY; ABS
24V 12.5A MITUBA MAL 		8-97062-815-1 02 1 0112-0112
485 RELAY; ABS
24V 12.5A PANASONIC MAL 		8-97262-933-0 02 1 0112-
538 CLIP; CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97806-845-2 01 1 0112-
656 RELAY; DIFF LOCK
24V 12.5A MITUBA MAL 		8-97062-815-1 02 1 0112-0112
656 RELAY; DIFF LOCK
24V 12.5A PANASONIC MAL 		8-97262-933-0 02 1 0112-
