Isuzu WW
▶
TRUCKS
▶
FSS
▶
10832 - FSS(MALAYSIA)A/T
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#64900) — 34 parça
◀

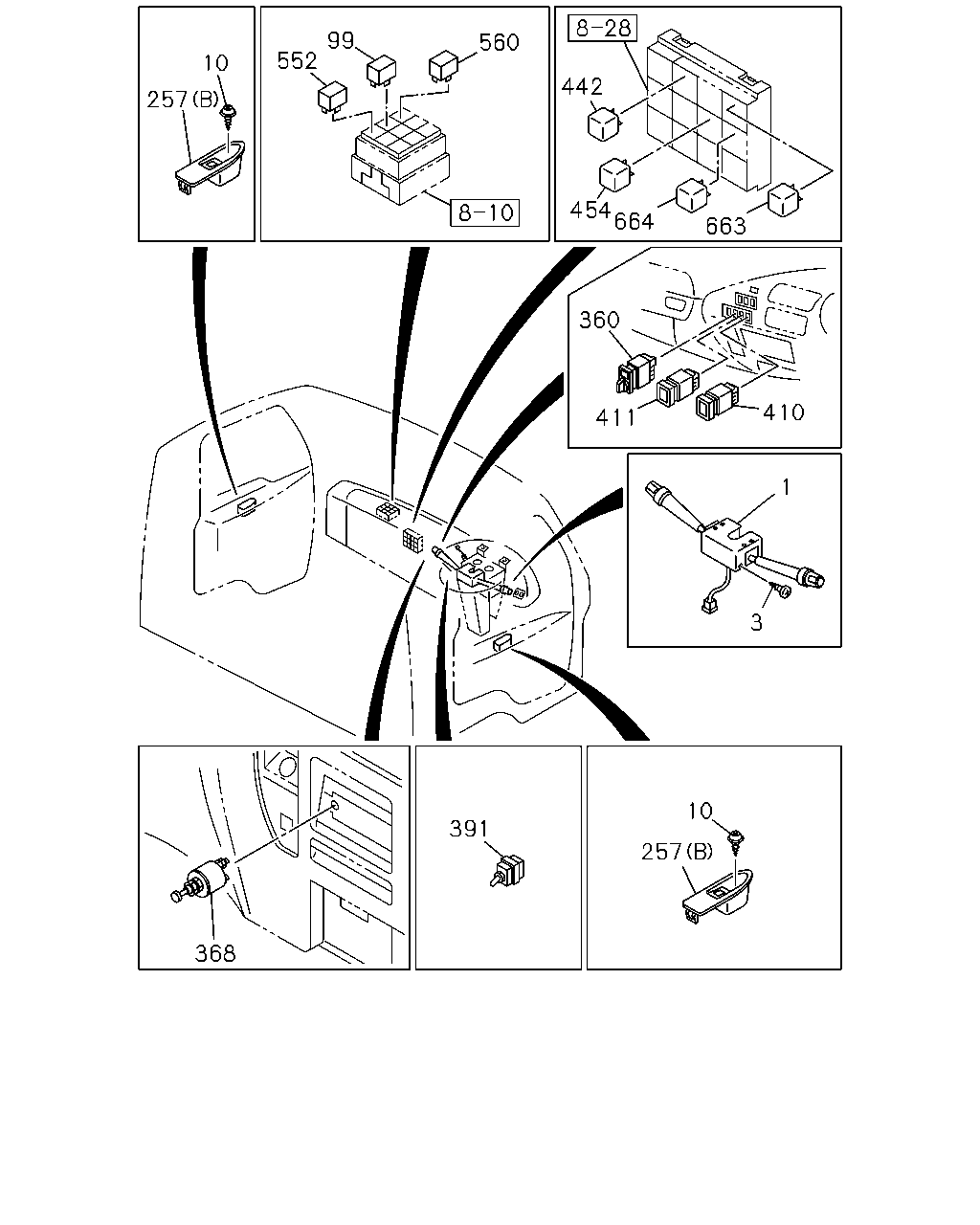

[825A] SWITCH AND RELAY (28 parça)

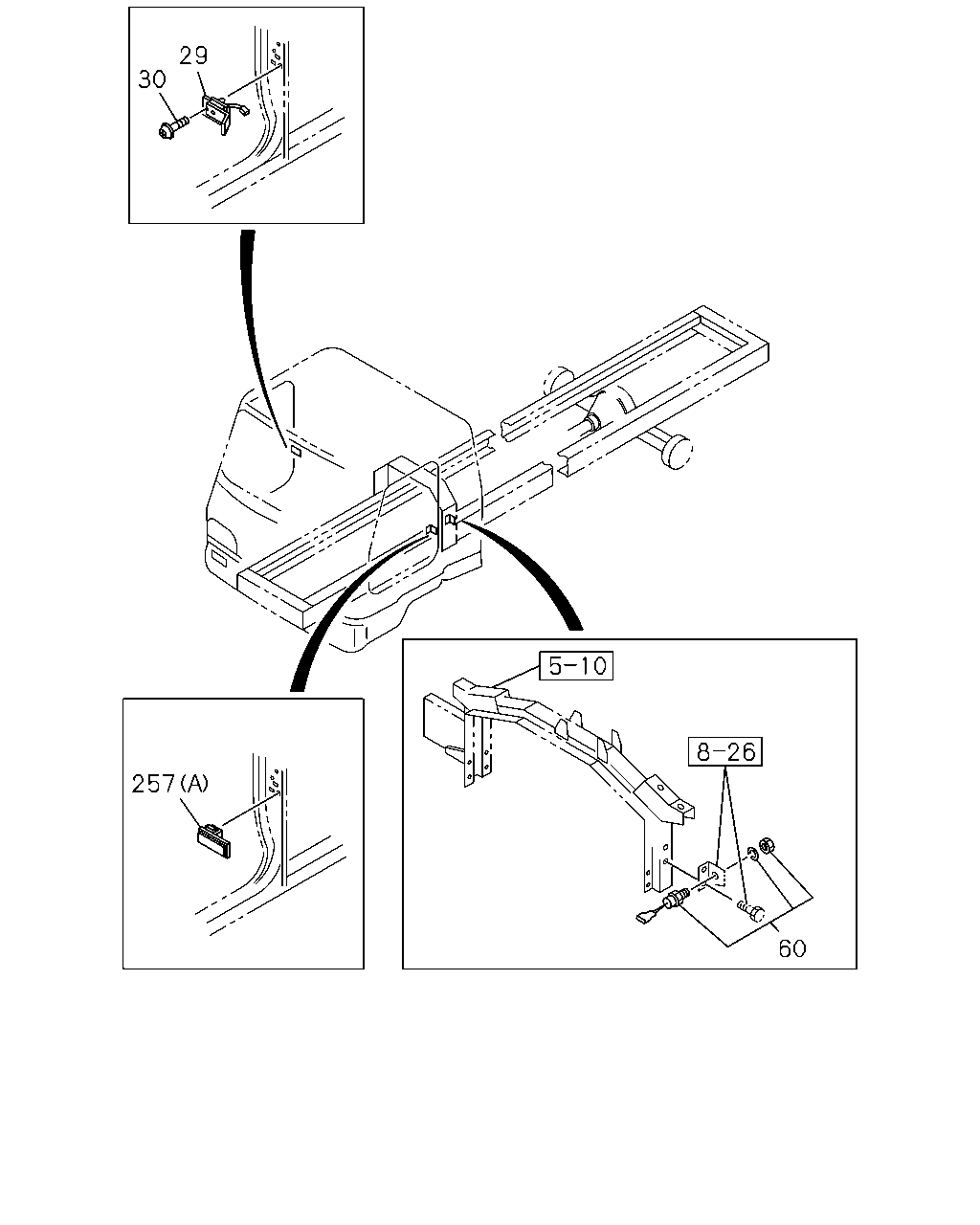

[825A] DOOR SWITCH AND STARTER SUB SWITCH (6 parça)
▶
99
560
552
10
442
257
663
454
664
360
410
411
1
3
10
391
257
368
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-641-0
01
1
0112-0312
1
SWITCH; COMB
1-82360-725-0
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0112-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0112-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER MAL
0-74360-516-0
02
1
0605-
99
RELAY; FOG LAMP
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0112-0112
99
RELAY; FOG LAMP
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
257
COVER; HOLE,SW
(A) MAL
8-94229-914-1
01
1
0112-
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
0112-
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
0112-
360
SWITCH ASM; DIFF LK
1-82330-063-0
01
1
0112-
368
SWITCH; LAMP
9-82750-469-0
01
1
0112-
391
SWITCH; IE SYSTEM CHECK
1-82350-182-0
01
1
0112-
410
SWITCH; FRT DRIVE
1-82350-264-0
01
1
0112-
411
SWITCH; TRANSFER
1-82350-265-0
01
1
0112-
442
RELAY
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0112-0112
442
RELAY
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
454
RELAY; PASSING
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0112-0112
454
RELAY; PASSING
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
552
RELAY; CIGAR LIGHTER
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0112-0112
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
560
RELAY; DIFF LOCK
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0112-0112
560
RELAY; DIFF LOCK
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
663
RELAY; LOW CUT
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0112-0112
663
RELAY; LOW CUT
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
664
RELAY; MAP LAMP
24V 12.5A MITUBA MAL
8-97062-815-1
01
1
0112-0112
664
RELAY; MAP LAMP
24V 12.5A PANASONIC MAL
8-97262-933-0
01
1
0112-
29
30
257
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
MAL
8-97855-032-3
01
1
0112-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0112-
60
SWITCH; STARTER SUB
1-82380-107-1
01
1
0112-
257
COVER; HOLE,SW
(A) MAL
8-94229-914-1
01
1
0112-
257
COVER; HOLE,SW
(B)
1-82389-012-2
01
1
0112-
257
COVER; HOLE,SW
(B)
1-82389-011-2
01
1
0112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
