0-65 — STARTER (#6490) — 53 parça

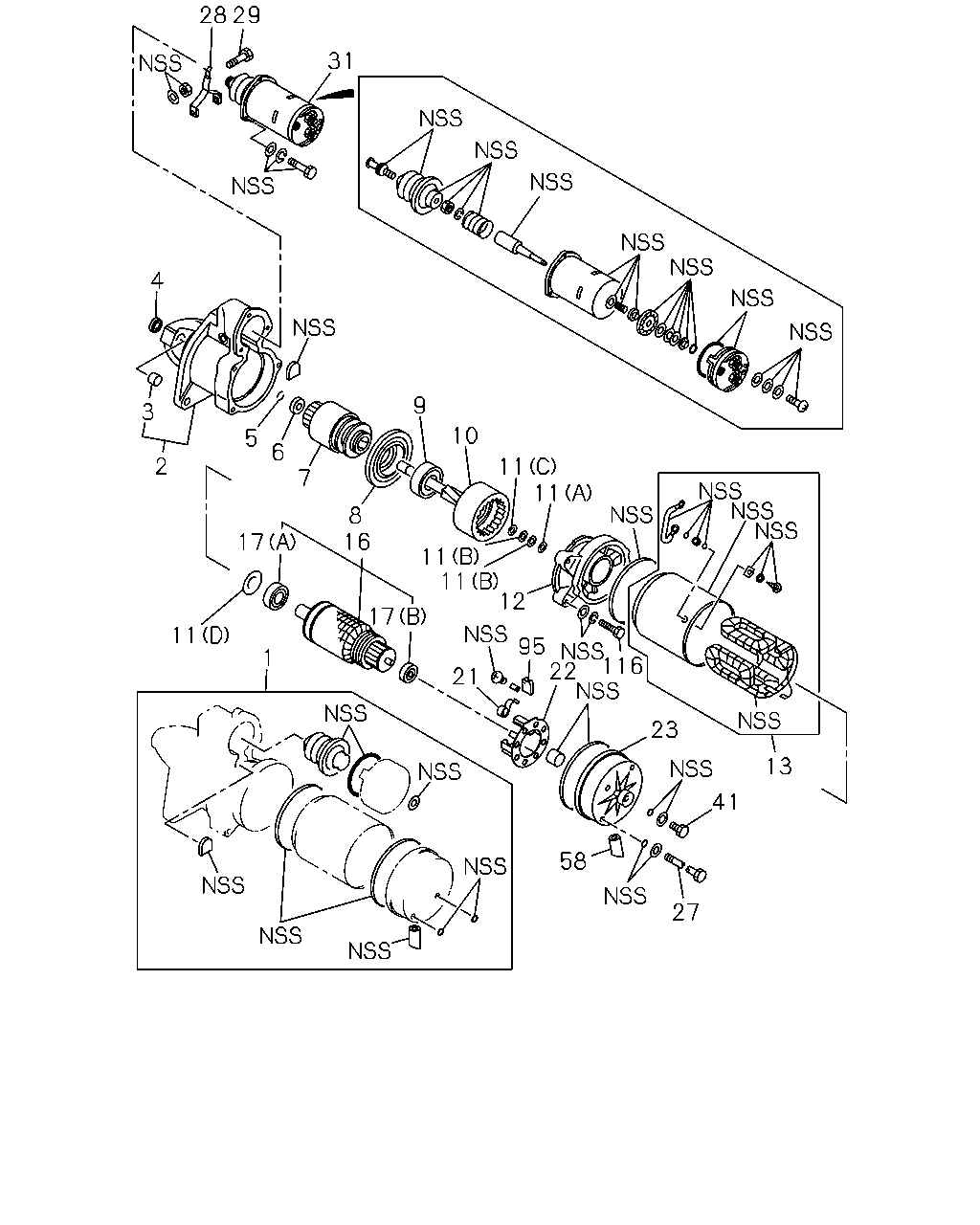

çizim 45644
31 4 9 3 10 5 6 2 11 11 7 8 16 17 11 11 12 17 11 95 116 22 1 21 23 13 41 58 27 28 29
BalonParca AdiParca NoAdetTipApplied Date
1 SEAL KIT; STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-666-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: C = 1-81100-345-0 		1-81123-066-0 01 1 -
2 CASE; PINION,STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-687-0 01 1 -
3 METAL; PINION CASE STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-655-0 01 1 -
4 COVER; PINION CASE STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-305-0 01 1 -
5 CLIP; PINION STOPPER STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-189-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-190-0 01 1 -
6 STOPPER; PINION STARTER
ASM PART: C = 1-81100-345-0 		1-81129-785-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-689-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: C = 1-81100-345-0 		1-81129-794-0 01 1 -
8 BRACKET; CENTER STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81113-084-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-658-0 01 1 -
10 SHAFT; GEAR STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81123-047-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
(C) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-295-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
(A) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-592-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
ASM PART: C = 1-81100-345-0 		1-81129-781-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
(B) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		5-81129-159-0 02 1 -
11 WASHER; GEAR SHAFT STARTER
(D) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		5-81129-160-0 01 1 -
12 BRACKET; CENTER RR STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-660-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-695-0 01 1 -
13 YOKE; STARTER
ASM PART: C = 1-81100-345-0 		1-81129-839-0 01 1 -
16 ARMATURE; STARTER
ASM PART: C = 1-81100-345-0 		1-81121-067-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-652-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-196-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-294-0 01 1 -
17 BEARING; ARMATURE,STARTER
ASM PART: C = 1-81100-345-0 		1-81129-790-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81117-016-0 04 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: C = 1-81100-345-0 		1-81129-828-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: C = 1-81100-345-0 		1-81121-071-0 01 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-664-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: C = 1-81100-345-0 		1-81115-233-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-692-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-665-0 02 1 -
27 BOLT; THROUGH,STARTER
ASM PART: C = 1-81100-345-0 		1-81129-769-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81127-040-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: C = 1-81100-345-0 		1-81129-783-0 01 1 -
29 PIN; SHIFT LEVER STARTER
NIKKO ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-185-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-657-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: C = 1-81100-345-0 		1-81151-115-0 01 1 -
41 SCREW; RR COVER,STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-641-0 02 1 -
46 GEAR; CLU STARTER
ASM PART: C = 1-81100-345-0 		1-81123-061-0 01 1 -
48 BALL; PINION,STARTER
ASM PART: C = 1-81100-345-0 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: C = 1-81100-345-0 		1-81129-782-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: C = 1-81100-345-0 		1-81129-838-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
ASM PART: B = 1-81100-327-0 		1-81129-756-0 01 1 -
90 GASKET; ARMATURE
ASM PART: C = 1-81100-345-0 		1-81129-827-0 02 1 -
95 BRUSH ASM; STARTER
ASM PART: C = 1-81100-345-0 		1-81116-067-0 01 1 -
95 BRUSH ASM; STARTER
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-663-1 04 1 -
96 GASKET; FRT CASE
ASM PART: C = 1-81100-345-0 		1-81129-796-0 01 1 -
97 GEAR; STARTER
ASM PART: C = 1-81100-345-0 		1-81123-056-0 04 1 -
116 BOLT; BRKT
ASM PART: A = 1-81100-302-0, B = 1-81100-327-0 		1-81129-661-0 03 1 -
128 BEARING; STARTER
ASM PART: C = 1-81100-345-0 		1-81129-780-0 01 1 -
133 SCREW SET; STARTER
ASM PART: C = 1-81100-345-0 		1-81129-787-0 01 1 -
