1-31 — AIR DUCT (#649) — 87 parça

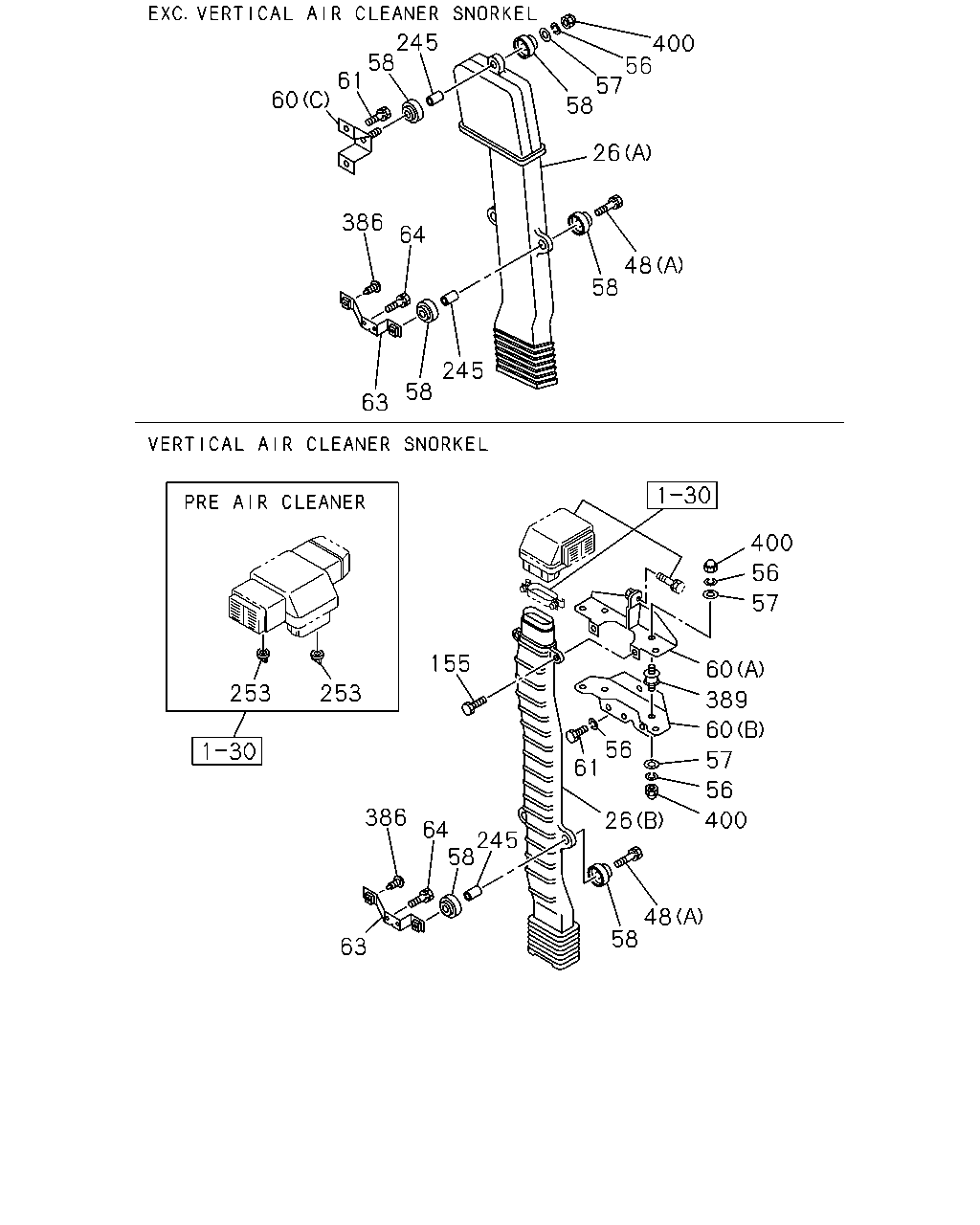

245 58 61 60 400 56 57 58 26 386 64 48 58 245 58 63 400 56 57 155 60 253 253 389 60 56 61 57 56 386 400 26 64 245 58 48 58 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-110-0	01	1	9202-9501	●	●
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-14230-143-0	01	1	9502-	●	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-676-0	01	1	9202-9501	●	●
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-14230-141-0	01	1	9502-	●	●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X18	0-28010-818-0	02	1	9202-9204	●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X20 FLANGE	0-28080-820-0	02	1	9208-	●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	9202-	●	●
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-09985-180-0	08	1	9202-	●	●
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09500-046-0	01	1	9202-	●	●
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=18	1-09985-173-0	08	1	9202-	●	●
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	9202-	●	●
58	SUPPORT; AIR INL DUCT VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	04	1	9202-	●	●
58	SUPPORT; AIR INL DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	06	1	9202-	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-600-0	01	1	9202-	●	●
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-665-0	01	1	9202-	●	●
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-571-2	01	1	9202-	●	●
61	BOLT; BRKT,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9202-	●	●
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●
63	BRACKET; AIR DUCT,LWR	1-79998-572-2	01	1	9202-	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9202-	●	●
155	BOLT; BRKT DOUBLE CAB(FS*W) M8X22 FLANGE	0-28010-822-0	04	1	9202-9204	●
155	BOLT; BRKT DOUBLE CAB(FS*W) M8X22 FLANGE	0-28080-822-0	04	1	9205-9207	●
155	BOLT; BRKT DOUBLE CAB(FS*W) M8X25 FLANGE	0-28080-825-0	04	1	9208-	●
155	BOLT; BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9202-	●	●
245	PIECE; DIST,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9202-	●	●
245	PIECE; DIST,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9202-	●	●
253	VALVE; VACUATER VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER(W17)	1-14219-192-0	02	1	9202-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	02	1	9202-	●	●
389	RUBBER; SUPPORT,AIR INT UPR VERTICAL AIR CLEANER SNORKEL<PP3>	1-14119-189-0	04	1	9202-	●	●
400	NUT; CAP,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-121-0	08	1	9202-	●	●
400	NUT; CAP,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-145-0	01	1	9202-	●	●

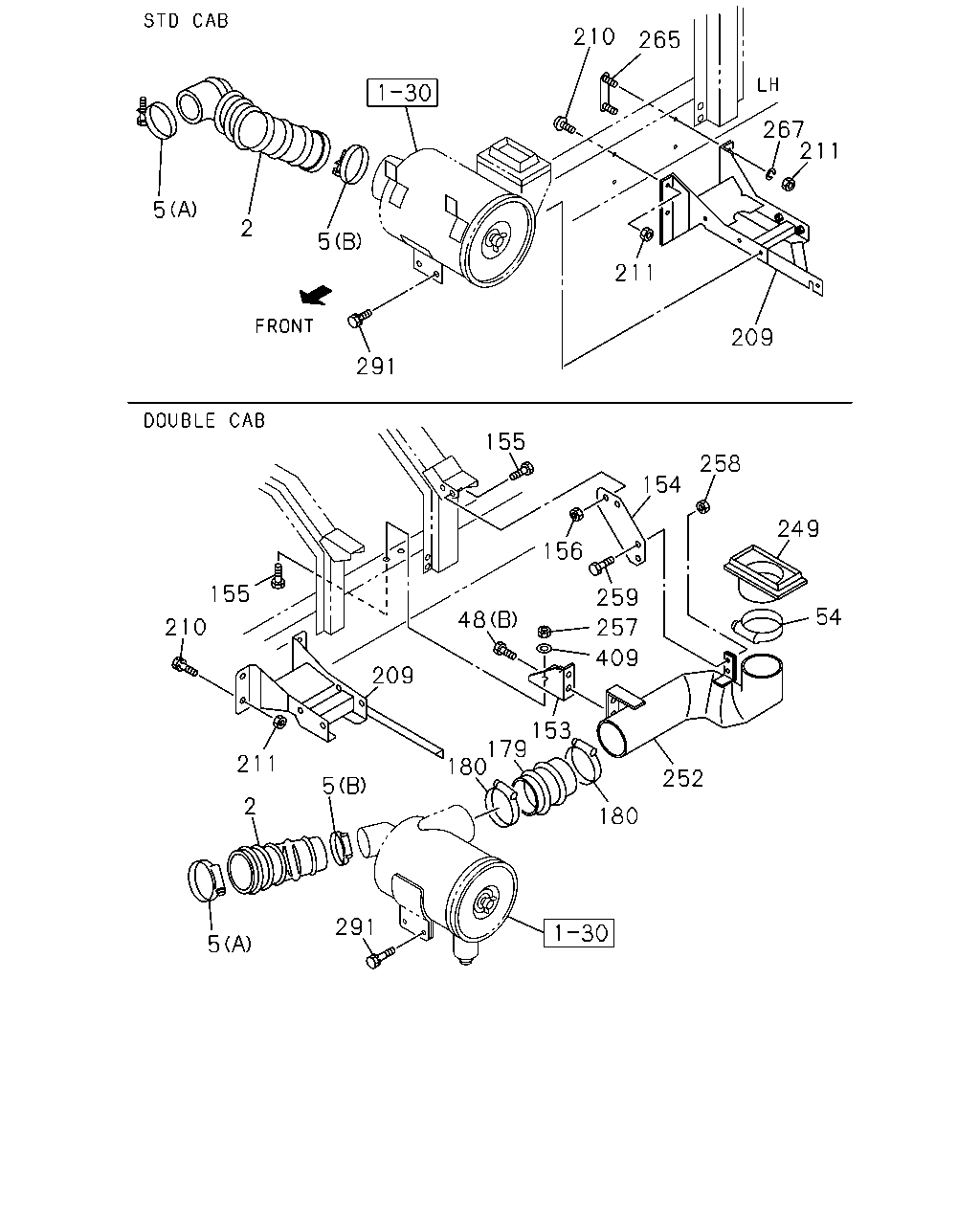

210 265 267 211 5 2 5 211 209 291 155 258 154 249 156 155 259 54 48 210 257 409 209 153 179 180 211 252 5 2 180 291 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL STD CAB(FS*M) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-14231-817-0	01	1	9202-	●
2	HOSE; ACL BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-14231-817-0	01	1	9202-		●
2	HOSE; ACL STD CAB(FS*M) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-14231-796-0	01	1	9202-	●
2	HOSE; ACL EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-14231-796-0	01	1	9202-		●
2	HOSE; ACL DOUBLE CAB(FS*W)	1-14231-752-0	01	1	9202-	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	9202-	●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	9202-	●	●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X18	0-28010-818-0	02	1	9202-9204	●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●
48	BOLT; AIR DUCT DOUBLE CAB(FS*W) (B) M8X20 FLANGE	0-28080-820-0	02	1	9208-	●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	9202-	●	●
54	CLIP; GASKET,AIR DUCT DOUBLE CAB(FS*W) ID=104-142	1-09707-155-0	01	1	9202-	●
153	BRACKET; ACL,FRT DOUBLE CAB(FS*W)	1-14239-222-0	01	1	9202-	●
154	BRACKET; ACL,RR DOUBLE CAB(FS*W)	1-14239-232-0	01	1	9202-	●
155	BOLT; BRKT DOUBLE CAB(FS*W) M8X22 FLANGE	0-28010-822-0	04	1	9202-9204	●
155	BOLT; BRKT DOUBLE CAB(FS*W) M8X22 FLANGE	0-28080-822-0	04	1	9205-9207	●
155	BOLT; BRKT DOUBLE CAB(FS*W) M8X25 FLANGE	0-28080-825-0	04	1	9208-	●
155	BOLT; BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9202-	●	●
156	NUT; BRKT DOUBLE CAB(FS*W) M8	9-09110-408-0	02	1	9202-	●
179	HOSE; AIR INT DOUBLE CAB(FS*W)	1-14231-810-0	01	1	9202-	●
180	CLIP; AIR INT HOSE DOUBLE CAB(FS*W) ID=104-142	1-09707-155-0	02	1	9202-	●
209	BRACKET; ACL STD CAB(FS*M) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-356-2	01	1	9202-	●
209	BRACKET; ACL BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-356-2	01	1	9202-		●
209	BRACKET; ACL STD CAB(FS*M) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-306-3	01	1	9202-	●
209	BRACKET; ACL EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-306-3	01	1	9202-		●
209	BRACKET; ACL DOUBLE CAB(FS*W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-472-1	01	1	9202-	●
209	BRACKET; ACL DOUBLE CAB(FS*W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-328-1	01	1	9202-	●
210	BOLT; ACL BRKT STD CAB(FS*M) M12X35 W/LK WASHER	0-50041-235-0	02	1	9202-9307	●
210	BOLT; ACL BRKT M12X35 W/LK WASHER	0-50041-235-0	02	1	9202-9307		●
210	BOLT; ACL BRKT STD CAB(FS*M) M12X35 FLANGE	0-28081-235-0	02	1	9308-	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	02	1	9308-		●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) M12X35 W/LK WASHER	0-50041-235-0	04	1	9202-9208	●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X40 W/LK WASHER	0-50041-240-0	04	1	9209-9307	●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X40 FLANGE	0-28081-240-0	04	1	9308-	●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X50 M12X50 W/LK WASHER	0-50041-250-0	04	1	9209-9307	●
210	BOLT; ACL BRKT DOUBLE CAB(FS*W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X50 FLANGE	0-28081-250-0	04	1	9308-	●
211	NUT; BRKT STD CAB(FS*M) M12	9-99110-512-0	02	1	9202-	●
211	NUT; BRKT M12	9-99110-512-0	02	1	9202-		●
211	NUT; BRKT DOUBLE CAB(FS*W) M12	9-99110-512-0	01	1	9202-	●
249	GASKET; RUBBER,BELLOWS DOUBLE CAB(FS*W)	1-14219-222-0	01	1	9202-	●
252	DUCT; AIR INT DOUBLE CAB(FS*W)	1-14231-819-1	01	1	9202-	●
257	NUT; BRKT DOUBLE CAB(FS*W) M8	9-09110-408-0	02	1	9202-	●
258	NUT; AIR DUCT DOUBLE CAB(FS*W) M8	9-09110-408-0	02	1	9202-	●
259	BOLT; AIR DUCT TO BRKT DOUBLE CAB(FS*W) M8X18	0-28010-818-0	02	1	9202-9204	●
259	BOLT; AIR DUCT TO BRKT DOUBLE CAB(FS*W) M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●
259	BOLT; AIR DUCT TO BRKT DOUBLE CAB(FS*W) M8X20 FLANGE	0-28080-820-0	02	1	9208-	●
265	BRACKET; STUD,ACL STD CAB(FS*M) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-397-0	01	1	9202-	●
265	BRACKET; STUD,ACL BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-397-0	01	1	9202-		●
265	BRACKET; STUD,ACL STD CAB(FS*M) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-348-1	01	1	9202-	●
265	BRACKET; STUD,ACL EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-348-1	01	1	9202-		●
267	WASHER; LK,ACL STD CAB(FS*M) ID=12.2	9-09150-512-0	02	1	9202-	●
267	WASHER; LK,ACL ID=12.2	9-09150-512-0	02	1	9202-		●
291	BOLT; ACL M8X22 FLANGE	0-28080-822-0	04	1	9202-9207	●	●
291	BOLT; ACL M8X25 FLANGE	0-28080-825-0	04	1	9208-	●	●
409	WASHER; PL,BRKT DOUBLE CAB(FS*W) ID=8.4 OD=18	9-09160-608-0	02	1	9202-	●
