◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10832 - FSS(MALAYSIA)A/T ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#64897) — 160 parça
çizim 136708
38 239 173 38 38 139 133 133 239 516 520 209 178 38 88 184 210 219 294 524 185 224
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0112-0512
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE MAL 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE MAL 		0-28680-820-0 02 1 0112-0512
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE MAL 		0-28680-825-0 01 1 0112-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE MAL 		0-28680-825-0 02 1 0112-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE MAL 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE MAL 		0-28680-825-0 03 1 0112-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE MAL 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0112-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0112-1202
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 02 1 1203-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28680-830-0 02 1 0112-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0112-1007
88 BOLT; DOOR HARNESS EARTH
M8X18.5 W/PL WASHER MAL 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER MAL 		8-94279-200-0 01 1 0112-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0112-
139 BOLT; BRKT
M8X20 FLANGE MAL 		0-28680-820-0 01 1 0112-0512
139 BOLT; BRKT
M8X20 FLANGE MAL 		0-28650-820-0 01 1 0601-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0112-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0112-
178 GROMMET; HARNESS
ID=24 OD=30 T=22 		1-09332-104-0 02 1 0112-
178 GROMMET; HARNESS
ID=32 OD=48 T=5 		9-09575-232-0 01 1 0112-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 03 1 0112-
178 GROMMET; HARNESS
PINTLE HOOK<PP7> ID=24 OD=30 T=22 		1-09332-104-0 01 1 0112-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0112-
185 SLEEVE; RUBBER
ID=32 OD=36 L=50 		1-09337-023-0 06 1 0112-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0112-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0112-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0112-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0112-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 05 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0112-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 02 1 0408-
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0408-
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 0112-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0112-1007
239 BOLT; GRAND
(A) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0112-1202
239 BOLT; GRAND
(A) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0112-0602
294 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0112-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0112-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0112-0602
524 NUT; HARNESS
M6 FLANGE MAL 		0-91180-106-0 01 1 0603-
çizim 137142
148 168 148 171 217 154 334 223 223 513 530 503 514 59 246
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0112-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0112-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 MAL 		8-97069-515-0 01 1 0112-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0301-
168 CLIP; DASH HARNESS
ID=6 & 10-13 MAL 		8-97069-515-0 05 1 0112-
171 CLIP; STARTER HARNESS
(D) ID=19 H=33 L=45 		1-09701-045-0 01 1 0112-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0112-
171 CLIP; STARTER HARNESS
(C) L=180 		1-09707-162-1 01 1 0112-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0112-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0112-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0112-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 09 1 0112-0407
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0408-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0112-0407
223 CLIP; AIR TANK HARNESS
(E) L=180 		1-09707-162-1 01 1 0408-
223 CLIP; AIR TANK HARNESS
(C) ID=6-10 & 6-10 		1-09709-192-1 02 1 0112-
223 CLIP; AIR TANK HARNESS
(C) ID=6-10 & 10-14 		1-09709-201-1 01 1 0112-0407
223 CLIP; AIR TANK HARNESS
(C) ID=6-10 & 10-14 		1-09709-201-1 02 1 0408-
223 CLIP; AIR TANK HARNESS
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0112-0407
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 08 1 0112-0407
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 09 1 0408-
246 BRACKET; CLIP,SPD SENSOR
L=55 		1-47475-304-0 01 1 0112-
334 BRACKET 1-82698-078-0 01 1 0112-
503 CONNECTOR 1-82690-668-0 02 1 0112-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0112-0906
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 02 1 0112-
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER<UN3> L=50 		8-94270-377-1 01 1 0907-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0112-

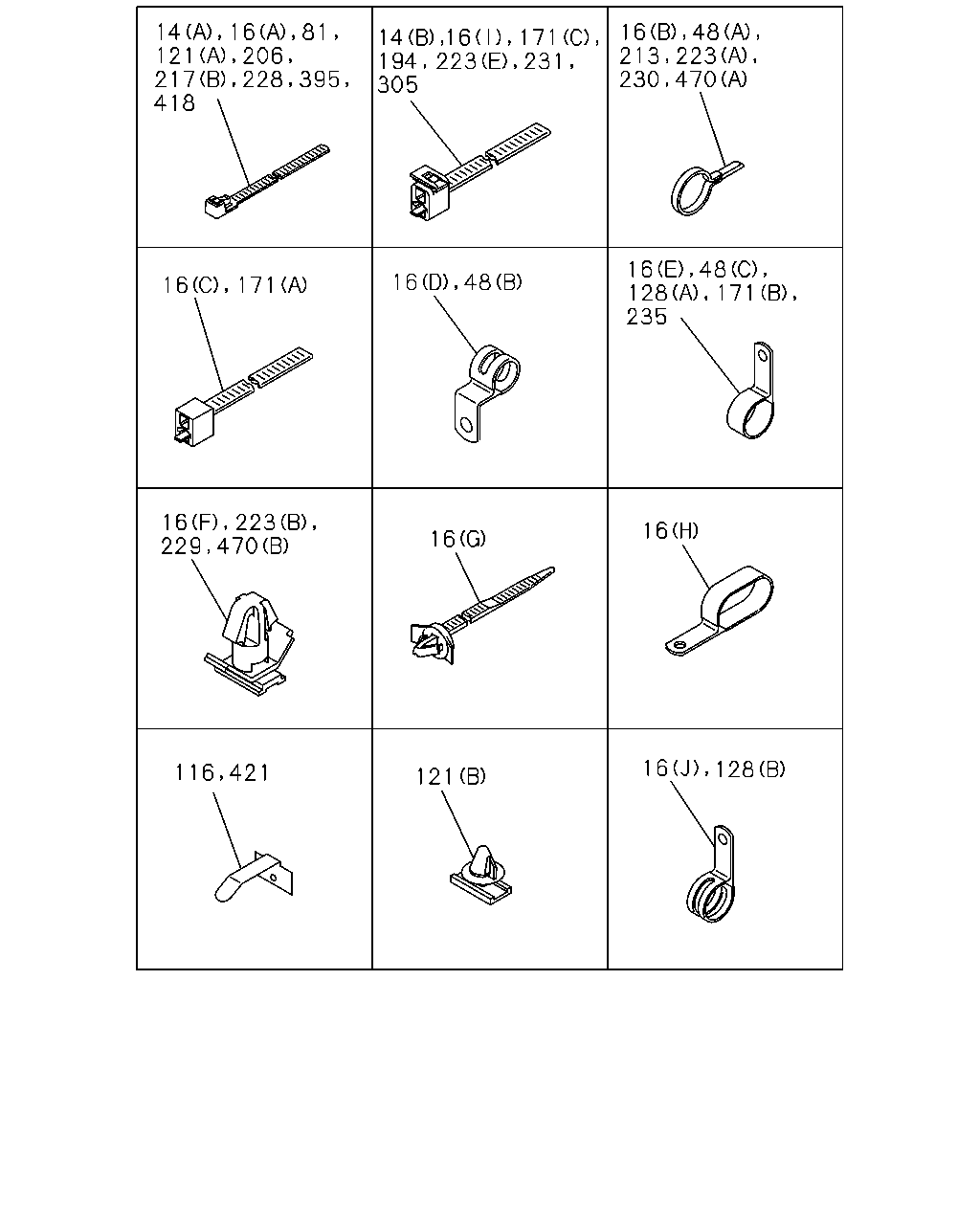

çizim 191316
14 418 14 16 171 305 128 171 235 16 171 16 16 16 128 121 16 81 121 206 217 228 395 194 223 231 16 48 213 223 230 470 16 48 16 48 16 223 229 470 116 421
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 02 1 0112-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 0112-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 01 1 1206-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 06 1 0112-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 07 1 0112-0401
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 08 1 0402-
16 CLIP; HARNESS
(B) ID=28 L=78 		1-09700-858-0 01 1 0112-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0112-
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0112-
16 CLIP; HARNESS
(C) L=300 		1-09707-001-1 01 1 0112-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0112-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0112-0407
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 04 1 0408-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0112-
16 CLIP; HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 0112-
16 CLIP; HARNESS
(G) L=175 MAL 		8-97110-167-0 02 1 0112-
16 CLIP; HARNESS
(E) ID=11 L=16 		9-09525-025-0 02 1 0112-0606
16 CLIP; HARNESS
(E) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(J) ID=19 L=32 		9-09525-866-0 01 1 0112-0606
16 CLIP; HARNESS
(J) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(H) ID=11X2 L=16 		9-09535-025-0 01 1 0112-0606
16 CLIP; HARNESS
(H) ID=11X2 L=16 		0-95325-025-0 01 1 0607-
16 CLIP; HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 0112-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0112-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0112-
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 05 1 0112-
48 CLIP; FRAME HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0112-
48 CLIP; FRAME HARNESS
(C) ID=19 L=28 		9-09525-856-0 01 1 0112-0606
48 CLIP; FRAME HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 0112-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 25 1 0112-0407
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 24 1 0408-
48 CLIP; FRAME HARNESS
(A) ID=22 L=52 		9-09917-431-0 04 1 0112-
81 CLIP; HARNESS
L=140 MAL 		5-09707-031-1 02 1 0112-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0112-0112
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
(A) L=140 MAL 		5-09707-031-1 01 1 0112-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0112-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0112-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0112-
171 CLIP; STARTER HARNESS
(D) ID=19 H=33 L=45 		1-09701-045-0 01 1 0112-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0112-
171 CLIP; STARTER HARNESS
(C) L=180 		1-09707-162-1 01 1 0112-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0112-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0112-
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0112-
206 CLIP; FUEL TANK HARNESS
L=140 MAL 		5-09707-031-1 02 1 0112-
213 CLIP; END CROSS HARNESS
PINTLE HOOK<PP7> ID=20 L=50 		9-09917-430-0 04 1 0112-
213 CLIP; END CROSS HARNESS
EXC. PINTLE HOOK<PP7> ID=20 L=50 		9-09917-430-0 03 1 0112-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0112-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0112-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 09 1 0112-0407
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0408-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0112-0407
223 CLIP; AIR TANK HARNESS
(E) L=180 		1-09707-162-1 01 1 0408-
223 CLIP; AIR TANK HARNESS
(C) ID=6-10 & 6-10 		1-09709-192-1 02 1 0112-
223 CLIP; AIR TANK HARNESS
(C) ID=6-10 & 10-14 		1-09709-201-1 01 1 0112-0407
223 CLIP; AIR TANK HARNESS
(C) ID=6-10 & 10-14 		1-09709-201-1 02 1 0408-
223 CLIP; AIR TANK HARNESS
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0112-0407
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 08 1 0112-0407
223 CLIP; AIR TANK HARNESS
(A) ID=20 L=50 		9-09917-430-0 09 1 0408-
228 CLIP; COOLER HARNESS
L=140 MAL 		5-09707-031-1 01 1 0112-
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0112-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0112-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0112-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=16 		9-09525-025-0 02 1 0112-0606
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=16 		0-95235-025-0 02 1 0607-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0112-
395 CLIP; WIPER HARNESS
L=140 MAL 		5-09707-031-1 01 1 0112-
418 CLIP; LAMP HARNESS
RADIO CLARION<SK2> L=140 MAL 		5-09707-031-1 01 1 0703-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0112-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0112-
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> (A) ID=11 L=41 		1-09700-403-0 01 1 0112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
